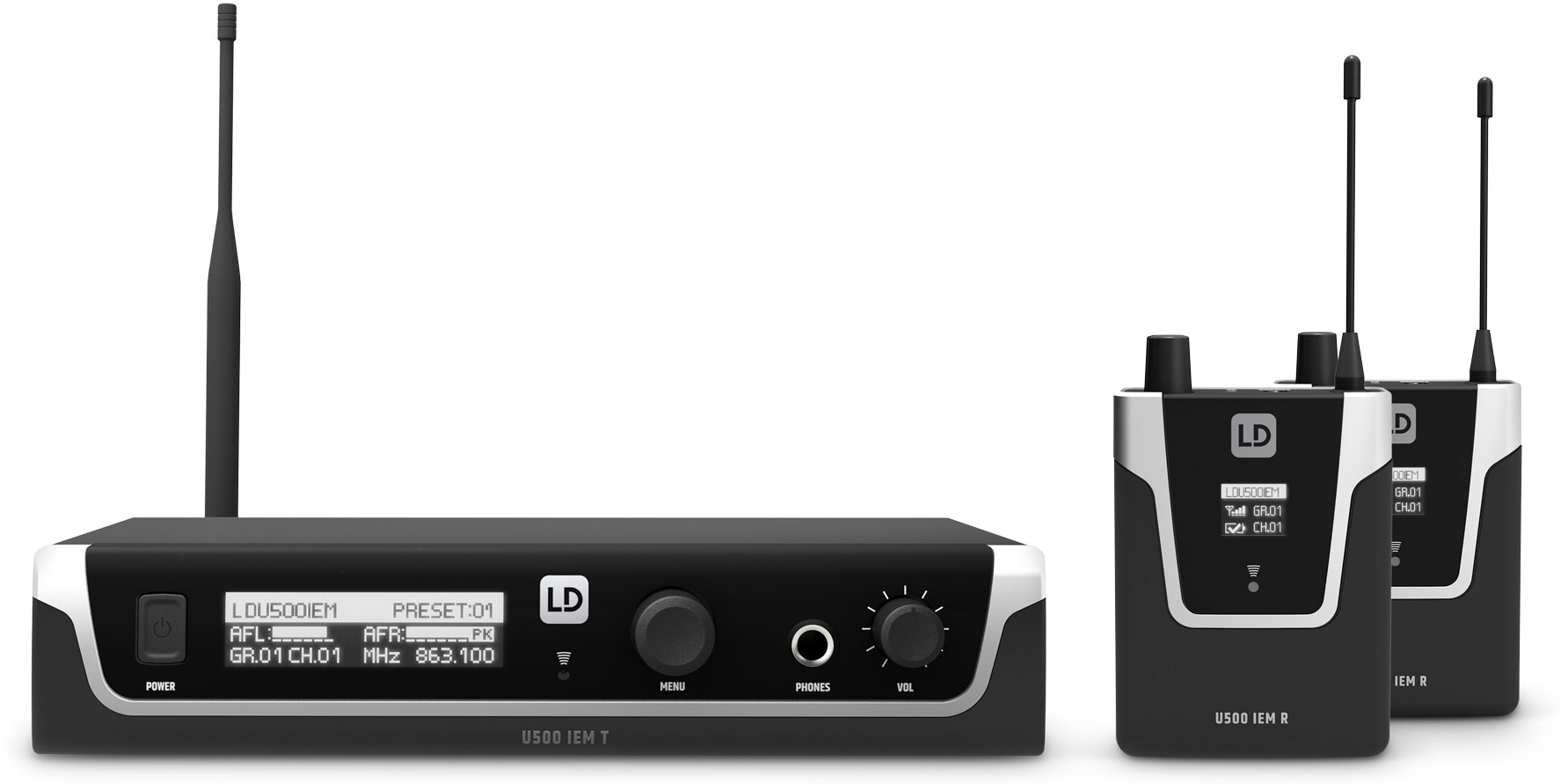

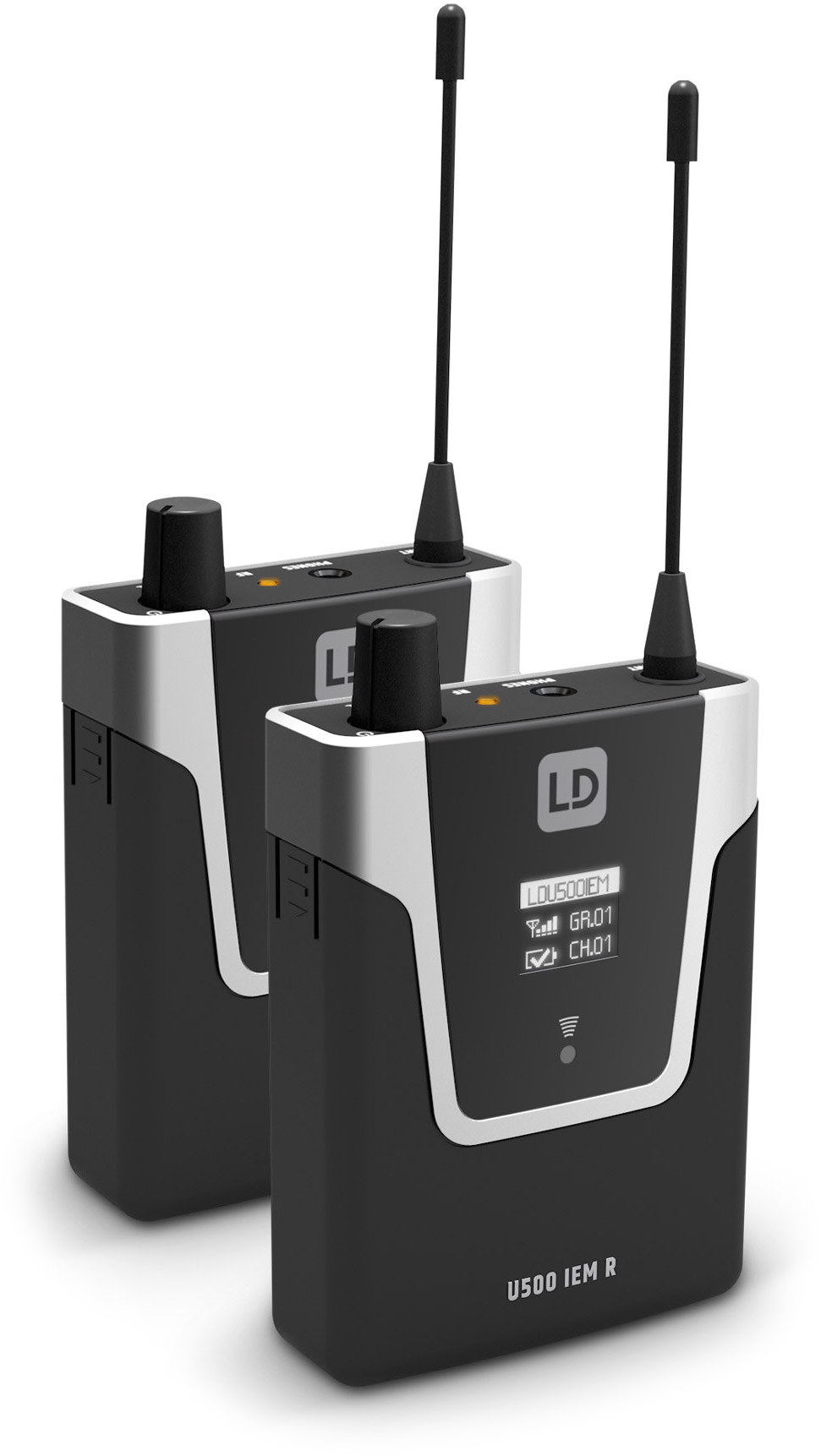

LD Systems U505 IEM BUNDLE - In-Ear Monitoring System with 2 x Bodypack - 584 - 608 MHz
- Reliable in-ear monitoring with more than 100 m range
- 96 available channels
- 2, 10 or 30 mW ERP selectable transmission power
- Convenient infrared frequency syncing
- Individual user name assignment and memory for 10 custom presets
- Extended frequency response
- 3-band EQ with parametric mids
- Switchable limiter
- Stereo, focus and mono modes of operation
- High-contrast OLED display

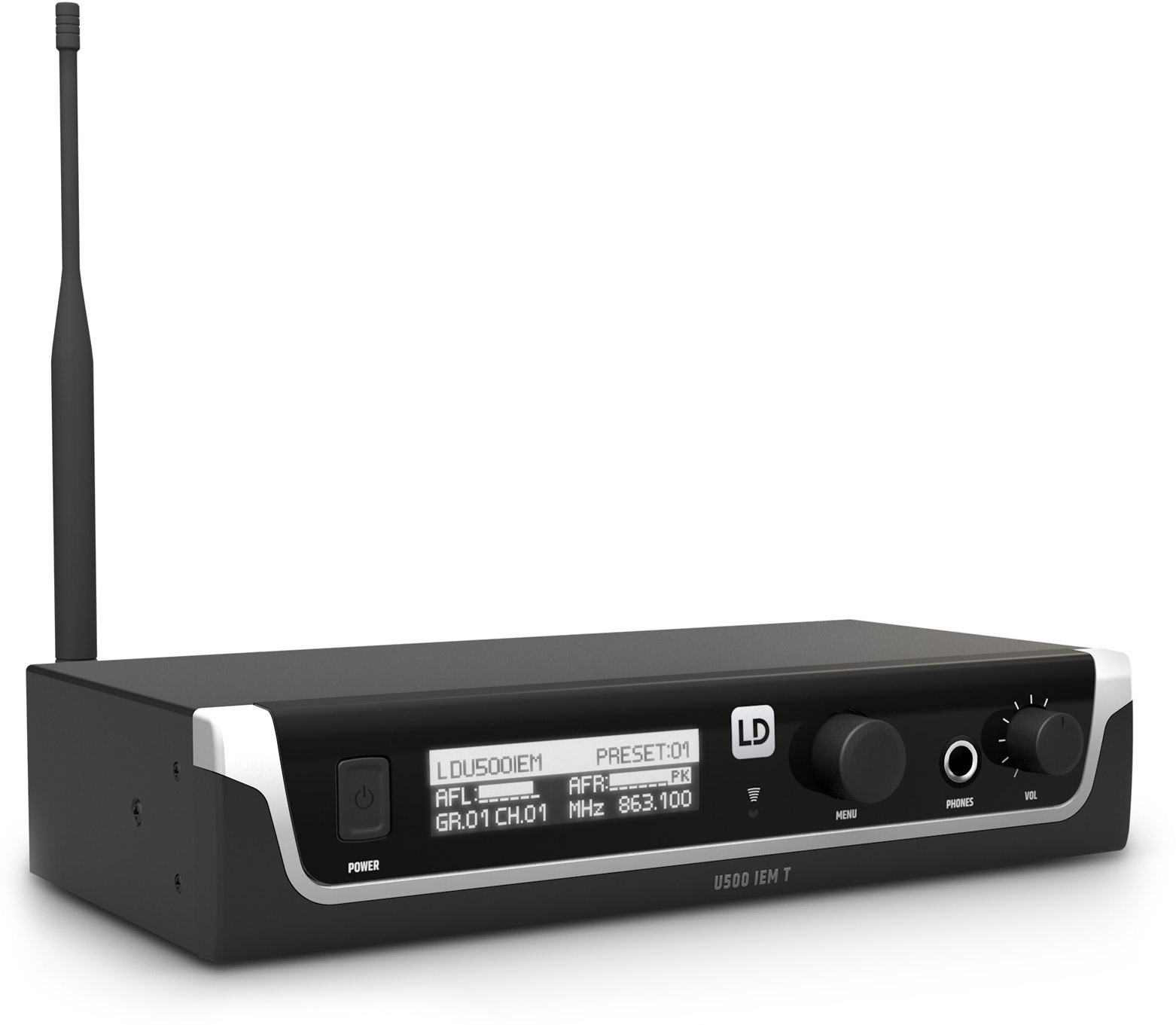

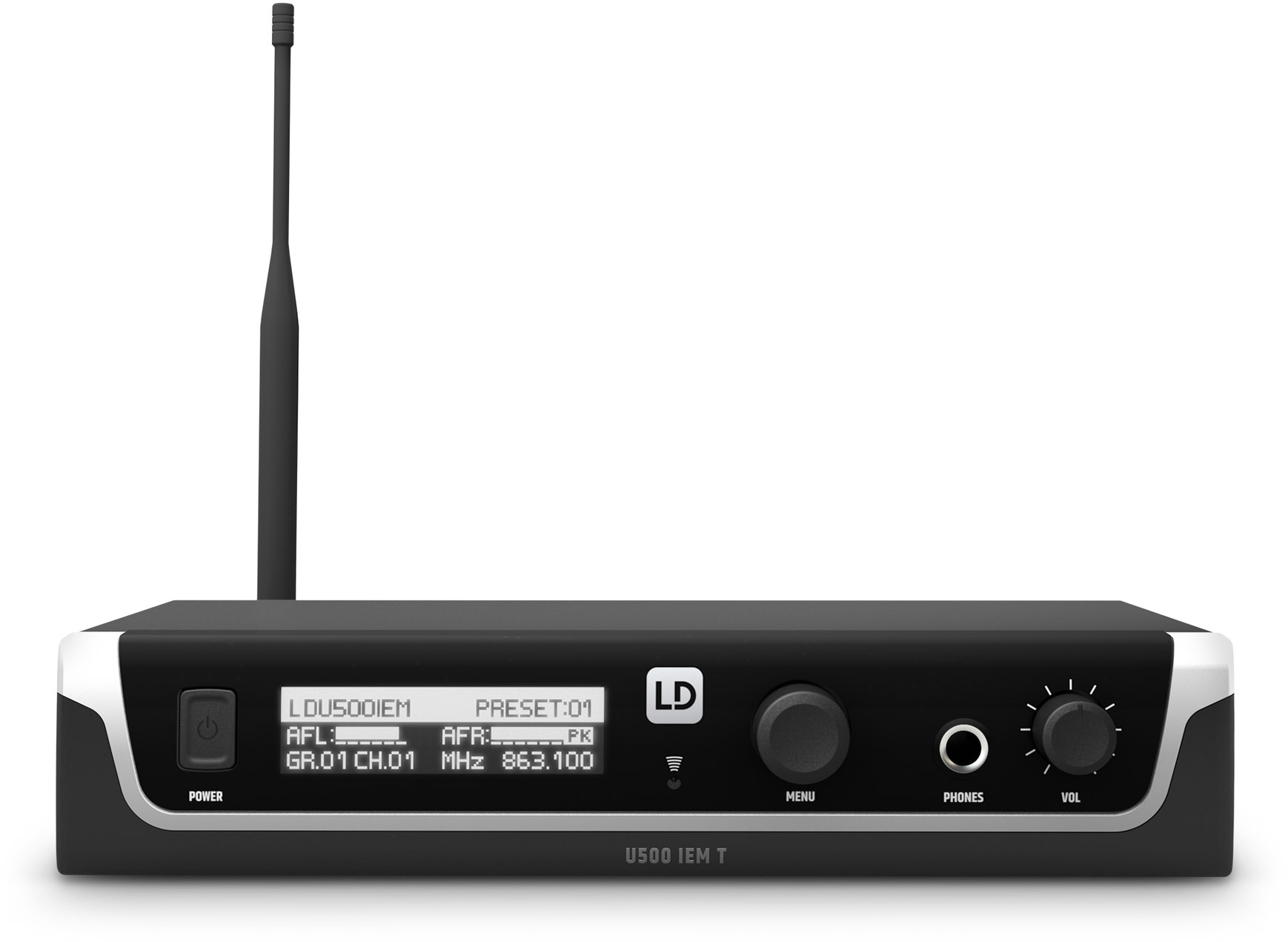

- Transmitter with direct monitoring headphone output
- Bodypack receiver with three selectable squelch levels
- 10 h of bodypack receiver operation on two AA batteries
- Simultaneous operation of up to 12 systems
- U500® IEM transmitter compatible with U300® IEM bodypacks
Move freely on stage while the perfect monitor mix is delivered directly to your ears: the amazing performance and reliability of the U500® In-Ear Monitoring Systems will surpass your expectations for certain. Designed with the pro user in mind, they feature advanced technology, contemporary looks and straightforward operation.
U500® In-Ear Systems provide a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range greater than 100 m. For quick and trouble-free setup, they allow for convenient infrared synchronisation of transmitter and receiver. U500® In-Ears sport high-contrast OLED displays and allow for individual user name assignment. In addition, you can save 10 custom presets.
To deliver pristine, precise audio U500® In-Ear Monitoring Systems include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear's noise floor is exceptionally low.

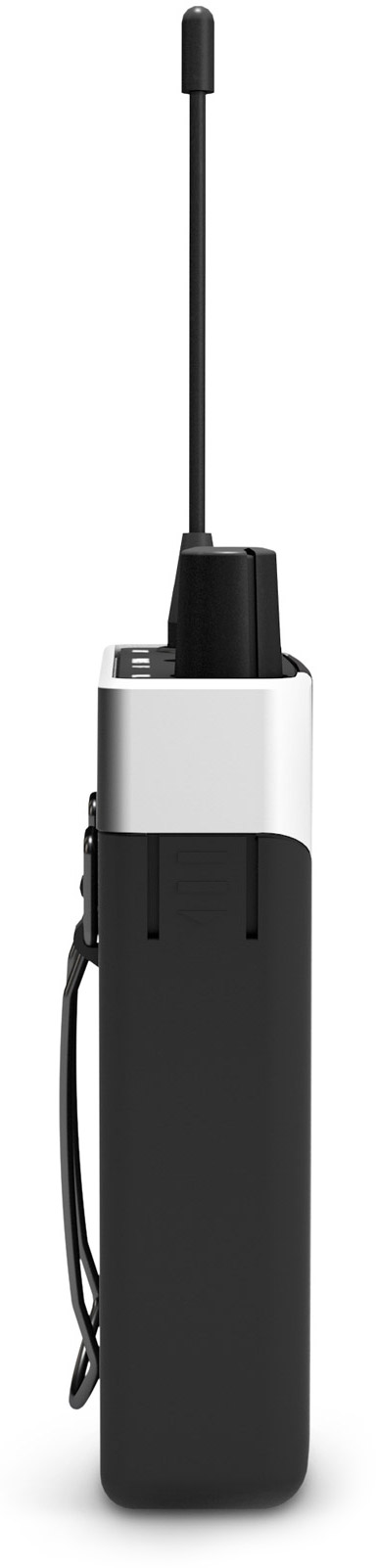

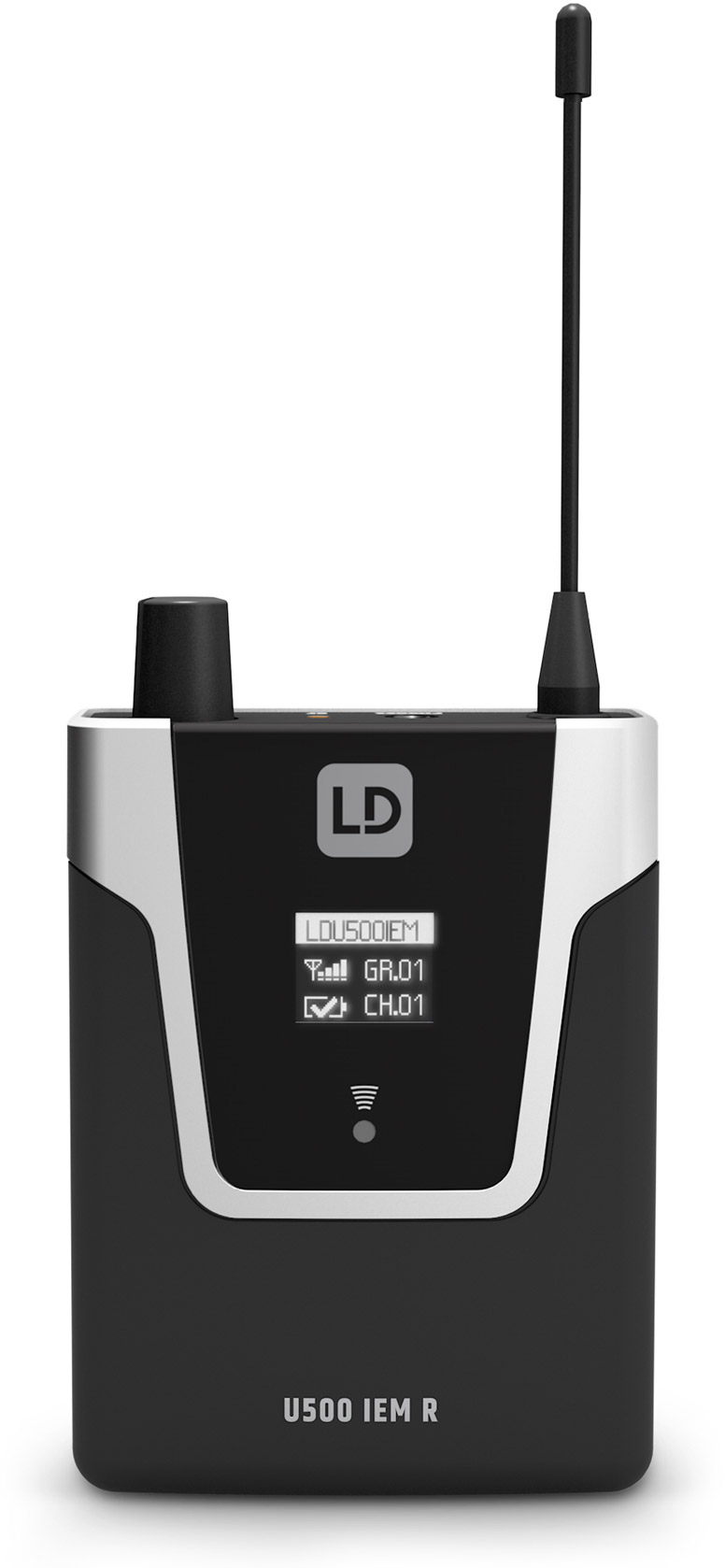

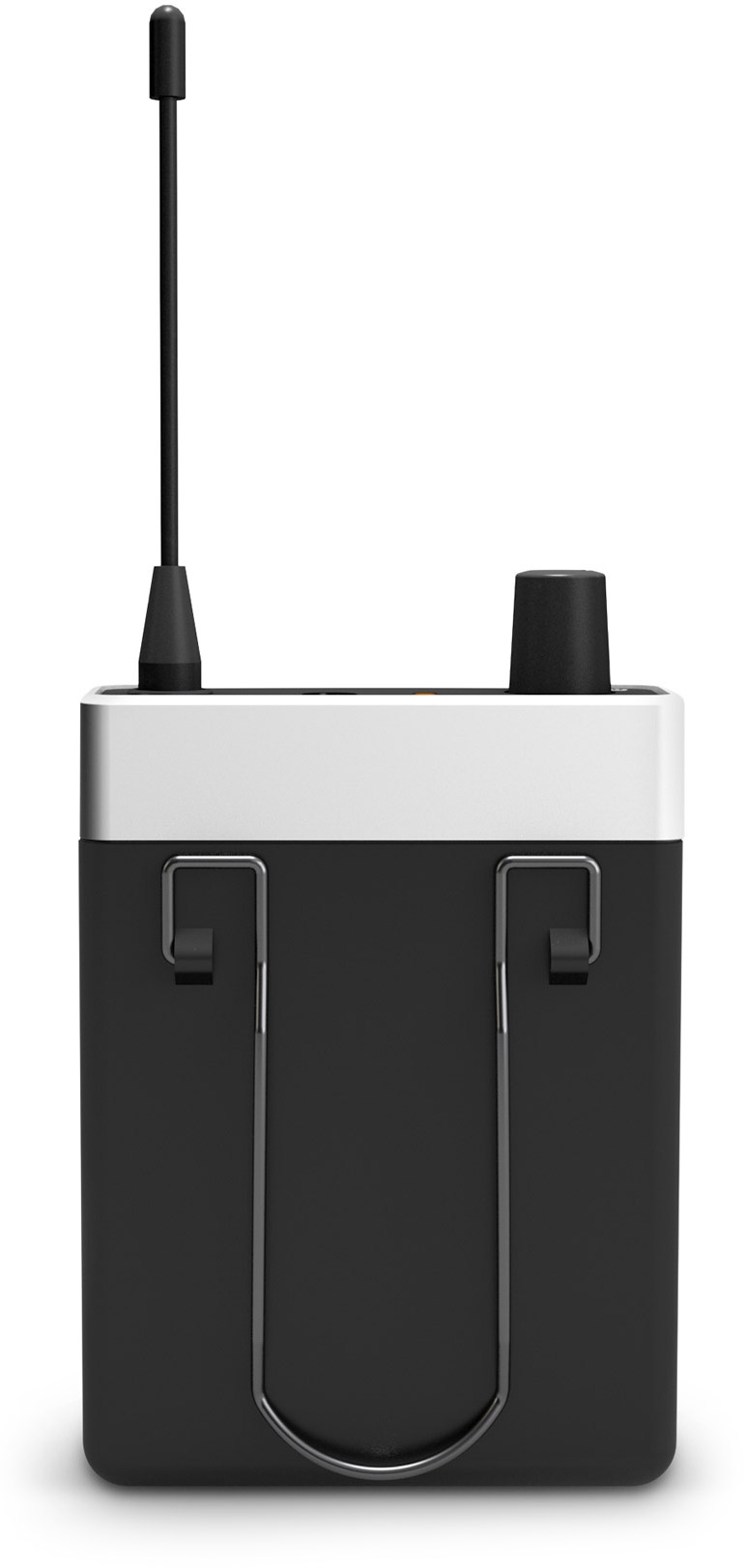

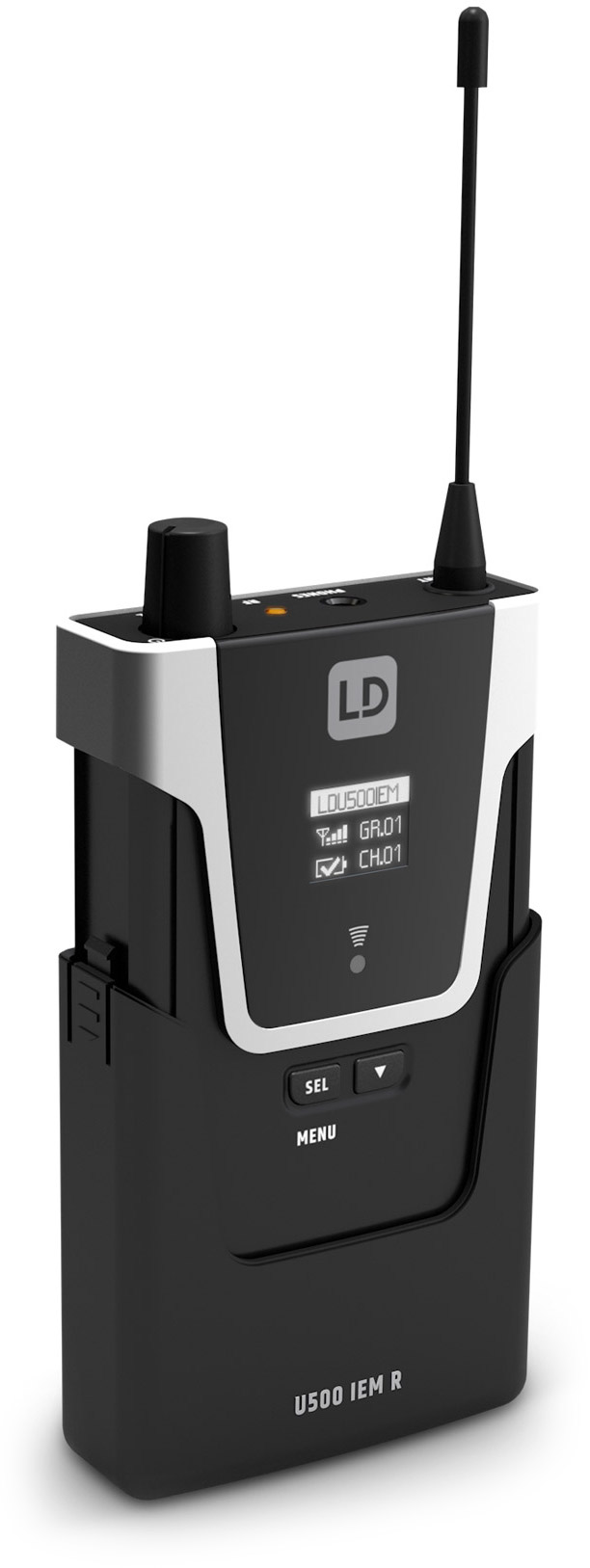

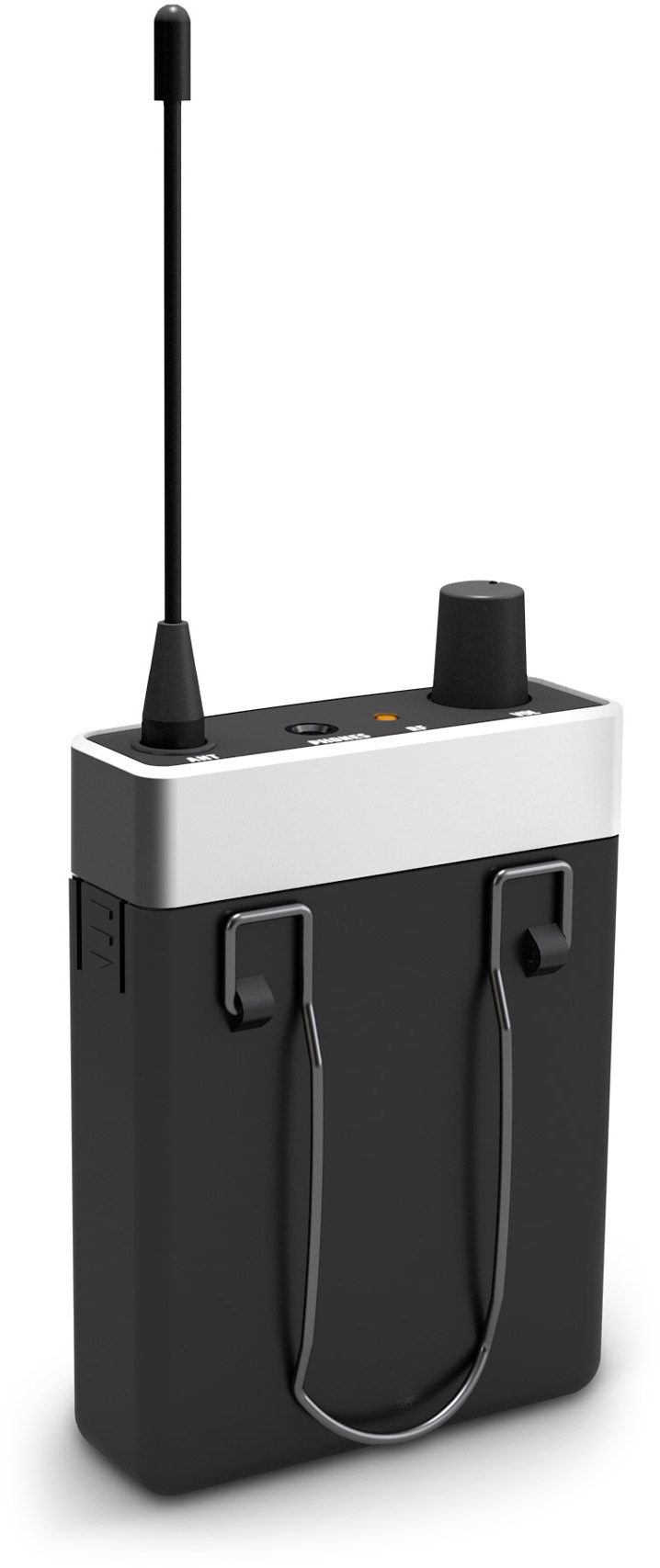

Drawing little current only, the U500® Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure optimum performance at all times.
U500® In-Ear Monitoring Systems are available for operation in five frequency ranges. The 470 - 490 MHz, 514 - 542 MHz, 584 - 608 MHz and 655 - 679 MHz bands permit running up to 12 systems simultaneously. In the 823 - 832 MHz + 863 - 865 MHz range six systems can be operated at the same time providing wireless monitoring for your entire band.
Technical data:| Product type: | In-ear Monitoring Accessories |
| Product type: | In-ear Monitoring Accessories |
| Product type: | In-ear Monitoring |
| Type: | Receivers |
| Type: | Transmitters |
| Transmission frequency range: | 584 - 608 MHz |
| Transmission frequency range: | 584 - 608 MHz |
| Transmission frequency range: | 584 - 608 MHz |
| Weight: | 0,85 kg |
| Channels: | 12 |
| Channels: | 12 |
| Headphones ouput: | 3.5 mm TRS |
| Transmission method: | FM, mono/stereo |
| Modes of operation: | focus/mono/stereo |
| Transmission method: | FM, mono/stereo |
| Frequency response: | 40 - 16000 |
| Rated HF output power: | 10 mW |
| Rated HF output power: | 2 mW |
| Rated HF output power: | 30 mW |
| Frequency response: | 40 - 16000 |
| Signal-to-noise ratio: | 93 dB |
| Total Harmonic Distortion (THD): | 0.3 % |
| Audio output: | 3.5 mm TRS |
| Minimum connected impedance: | 16 Ohm(s) |
| Max. audio output level: | 33 mW @ 16 Ohm mW |
| Max. audio output level: | 80 mW @ 33 Ohm mW |
| Dynamic range: | 88 dB |
| Antenna connector: | Fixed to housing |
| Controls: | Down |
| Controls: | On / Off |
| Controls: | Up |
| Controls: | volume |
| Inputs: | 2 |

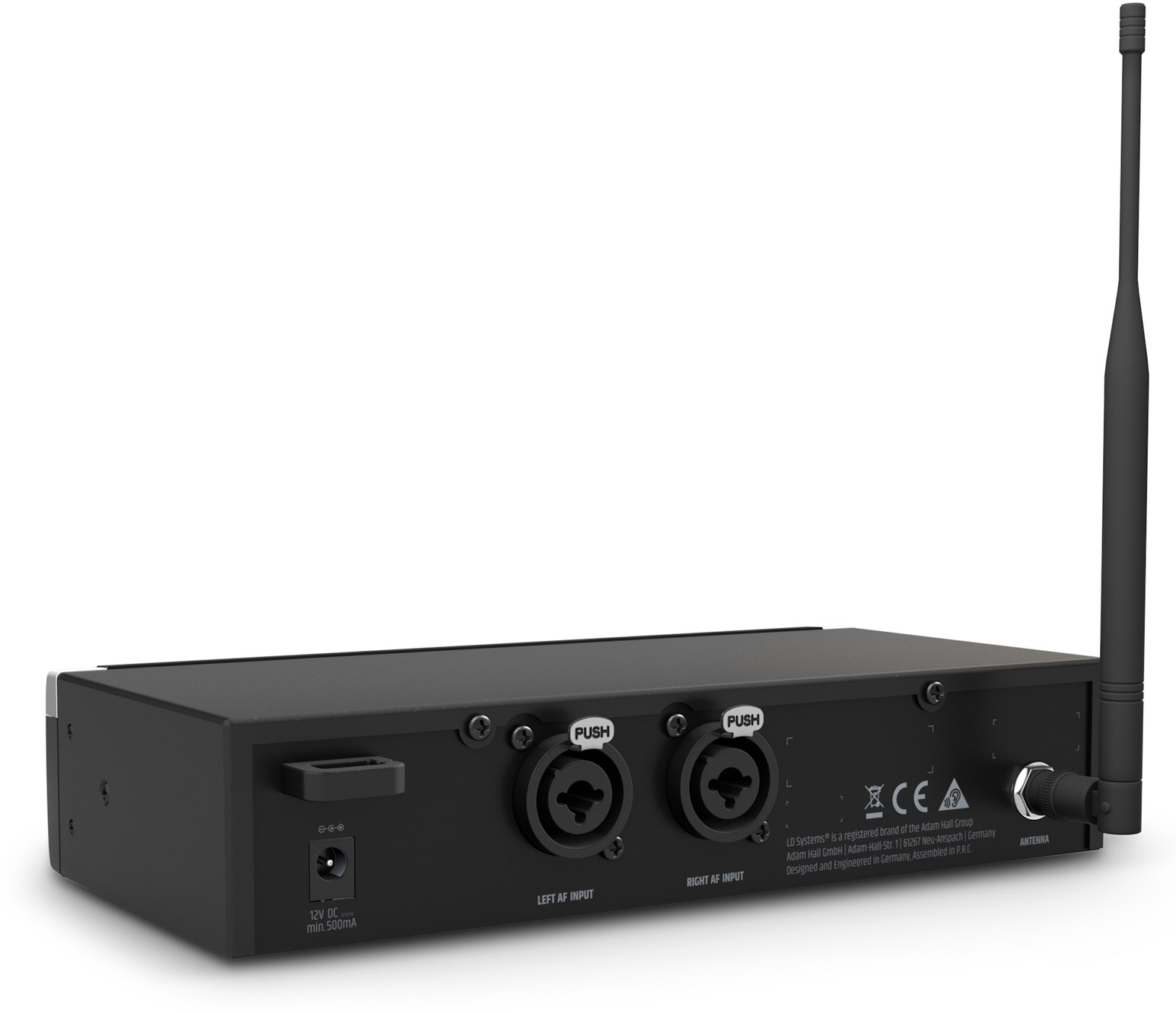

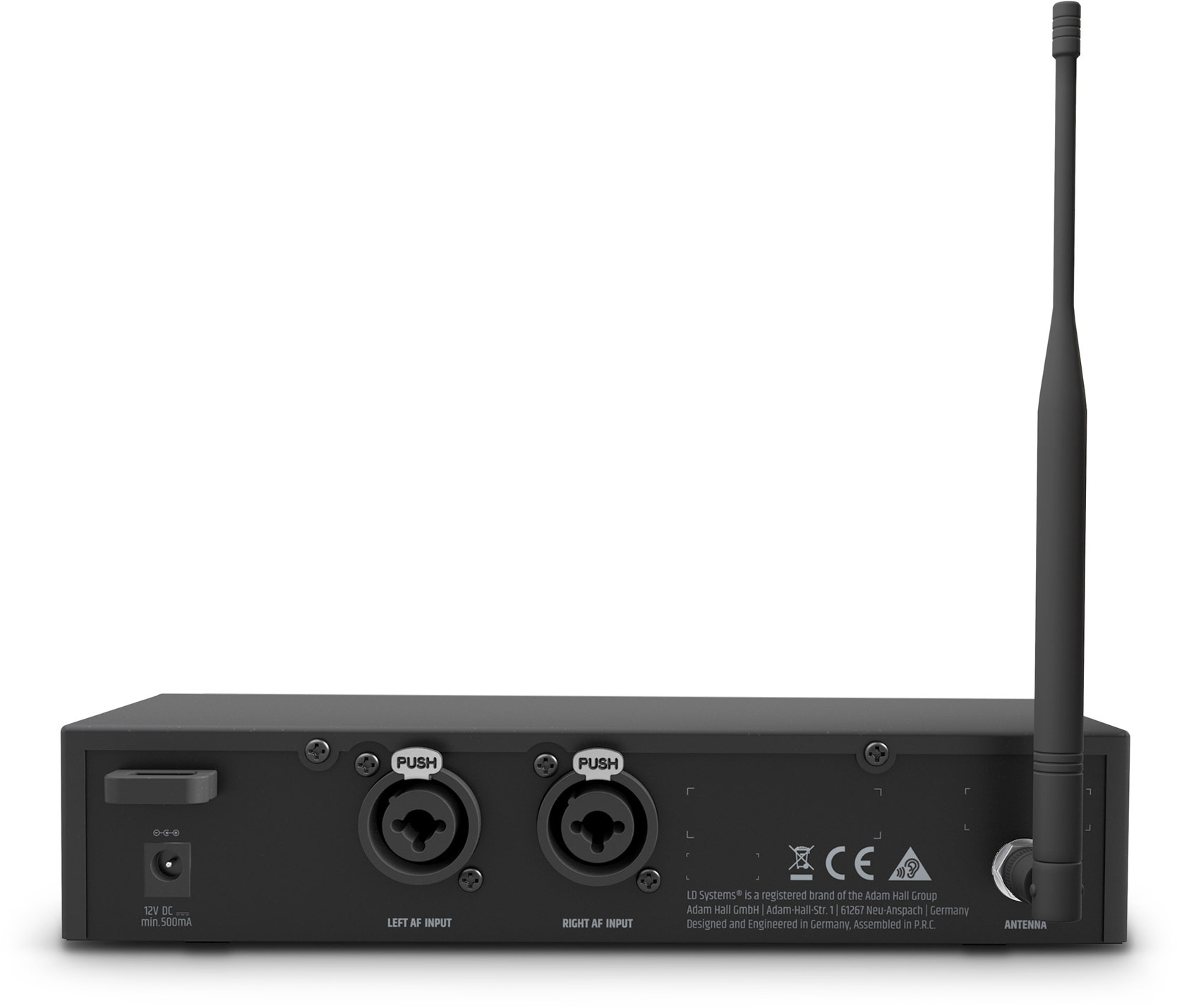

| Input connectors: | Combo TRS 6.3 mm |
| Input connectors: | XLR (balanced) |
| Input impedance (kOhms): | 12 kOhm |
| Indicators: | Multifunctional OLED-Display |
| Indicators: | RF (LED) |
| Power supply: | 2 x 1.5 V AA |
| Operating time: | |
| Width: | 64 mm |
| Antenna connector: | BNC |
| Controls: | Menu selector Button |
| Controls: | Power On/Off |
| Controls: | volume headphones |
| Height: | 100 mm |
| Depth: | 24 mm |
| Indicators: | Multifunctional OLED-Display |
| Power supply: | 12 - 18 V DC |
| Weight: | 0,095 kg |
| Accessories (included): | 2 x AA batteries |
| Accessories (included): | Antenna |
| Features: | battery status LED |
| Width: | 212 mm |
| Height: | 43 mm |
| Depth: | 123 mm |
| Weight: | 0,641 kg |
| Accessories (included): | 19" Rack mount kit |
| Accessories (included): | BNC-Antenna |
| Accessories (included): | power adapter |
