Power Dynamics PD810R Bodypack Receiver for In Ear Monitor System PD810

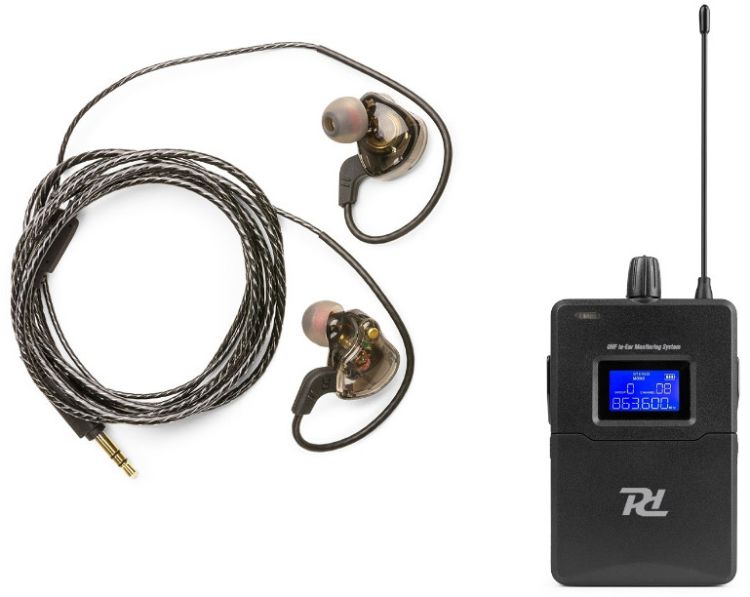

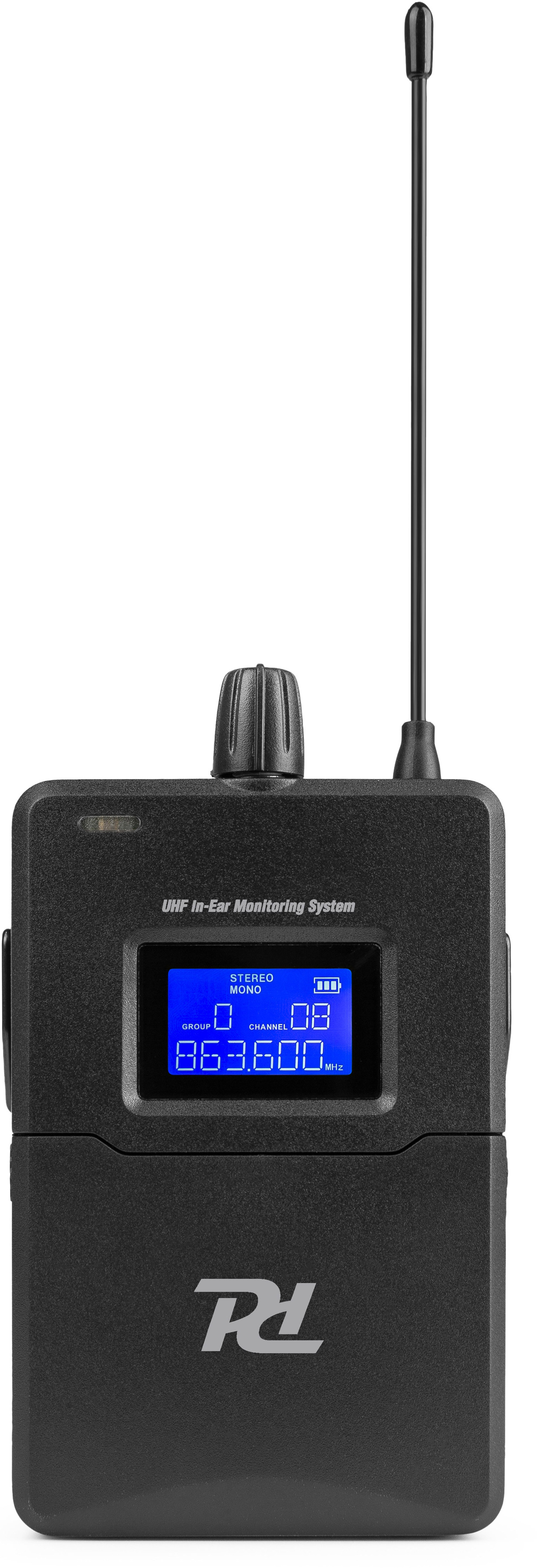

The PD810R bodypack reciever is equipped with an easy to read backlit LCD display and comes with an isolated earphone. Featuring a compact and lightweight design, the PD810R is easy to use and comfortable to wear, making it perfect for extended use on stage or in the studio. With its advanced UHF wireless technology, the PD810R offers stable and interference-free performance, even in crowded and high-interference environments.

• Frequency Range: UHF 863 – 865mHz
• Max. 50m operating range (under typical conditions)
• PLL oscillator
• 15 selectable channels
• LCD display function with backlight
• Signal/noise ratio: > 80dB
• Lockable receiver
• Audio sampling: 24bit/48KHz

Technical data:

• Product colour: Black
• Output connections: 3.5mm Jack
• Dynamic range: >80dB
• Frequency: 863.000 - 865.000 MHz
• Frequency response : 20Hz - 20.000Hz
• Sensitivity: 80dB on input 6dBµV
• Signal-to-noise ratio: >105dB
• THD: 3%
• Batteries: 3V (2x AA)
• Dimensions: Body pack: 120 x 62 x 23mm
• Weight (kg): 0.1500
