RELACART PM-320 In-Ear System 626-668 MHz

€569.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 219004550

EAN: 4026397718539

The PM-320 is a wireless in-ear monitoring system delivering outstanding sound for live... more

Back to the overview

All information about the product:

"RELACART PM-320 In-Ear System 626-668 MHz"

The PM-320 is a wireless in-ear monitoring system delivering outstanding sound for live performances, theater and voice applications. Diversity technology guarantees optimum reception quality without interference or dropouts. The system can be operated in mono and stereo mode. The bodypack receiver is 100 g light and offers perfect wearing comfort.

In-ear stereo system with diversity technology, 626-668 MHz

Transmitter and receiver also available separately
Can also be used as audio transmission system with extremely low latency

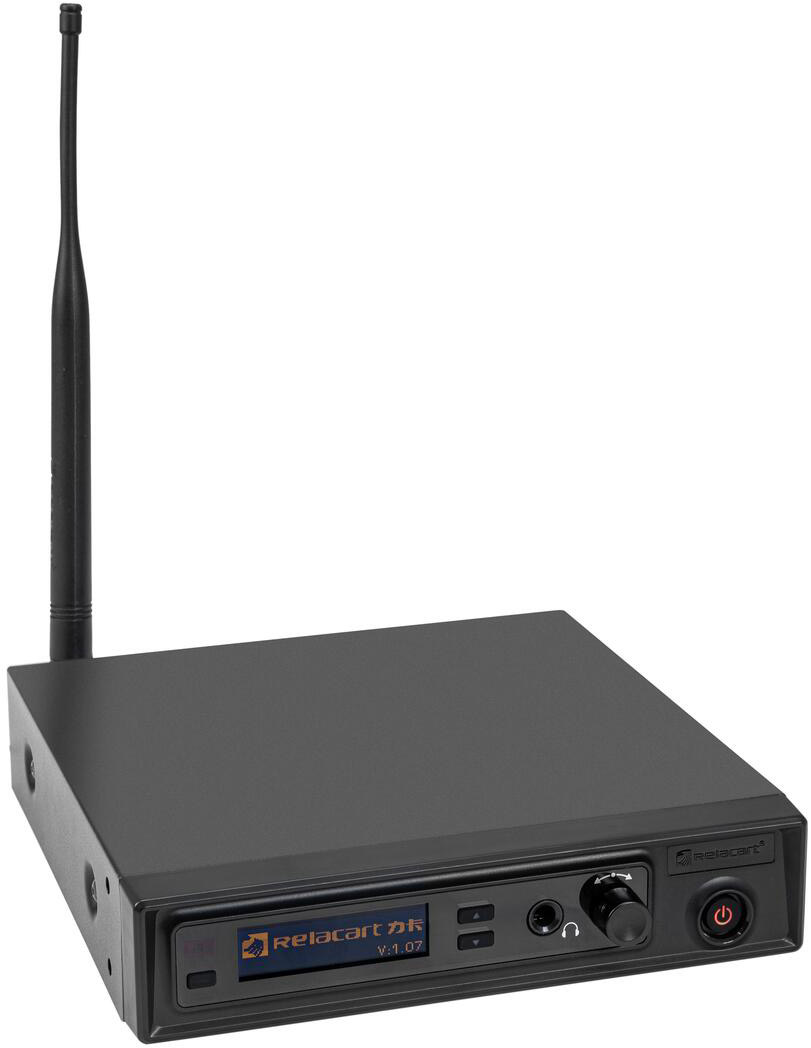

RELACART PM-320T In Ear Stereo Transmitter 626-668 MHz

In-ear stereo wireless transmitter with pilot tone technology (PLL)

Wireless stereo transmitter wiht 317 preset channels and 5 user-defined channels for in-ear monitoring
Pilot frequency squelch technology delete wireless RF interference
Easy and error-free synchronization between receiver and transmitter via infrared signal
Stereo or mono/mix mode
Lock function for prevents undesired changes to settings
RF output power Hi/Low adjustable
2 line inputs via balanced combo mounting jacks XLR/6.3 mm
2 feed-through outputs (loop)
Adjustable headphones output
OLED display
Operating range up to 100m with line-of-sight
Desktop console housing
(19") 48.3 cm rack installation possible 1 U

Package contents

1 x transmitter, 1 x antenna, 1 x external mains adapter, 3 x mounting bracket, 8 x screw, 2 x jack cable, 3 x user manual, 1 x declaration of conformity

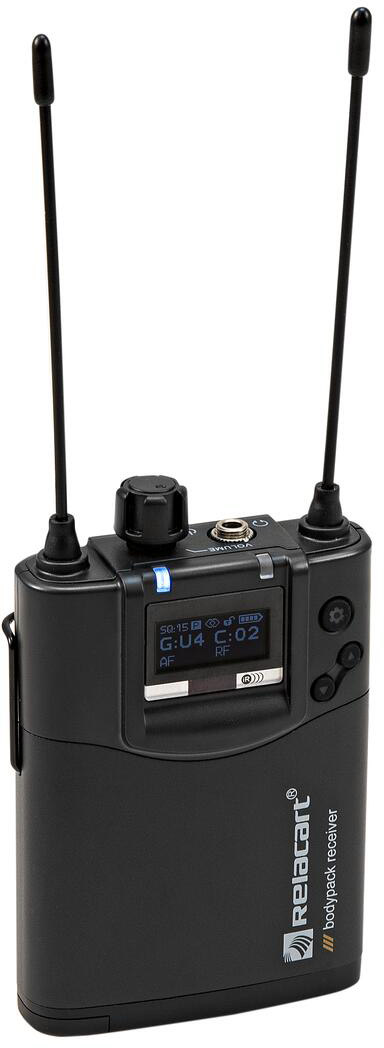

RELACART PM-320R In-Ear Bodypack Receiver 626-668 MHz

In-ear stereo wireless receiver with diversity technology

Stereo pocket receiver with 317 preset channels and 5 user-defined channels for in-ear monitoring
Sturdy all-metal housing with soft-touch controls, applicable for touring
Diversity technology for high reception quality
Pilot frequency squelch technology delete wireless RF interference
Parallel operation of up to 5 systems is possible without any interference
Easy and error-free synchronization between receiver and transmitter via infrared signal
Stereo or mono/mix mode
Balance (left, right) adjustable
Limiter and high frequency boost
Lock function for prevents undesired changes to settings
OLED display
Operating range up to 100m with line-of-sight

Package contents

1 x receiver, 1 x user manual, 1 x declaration of conformity

Weight:	2,28 kg
RELACART PM-320T In Ear Stereo Transmitter 626-668 MHz
Type:	In-ear Monitor
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 1 A
Power consumption:	2,1 W
Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Frequency range:	25 - 15000 Hz
S/N ratio:	>100 dB
THD:
Display type:	OLED display
Connections:	Antenna via 1 x BNC (F) Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Frequency band:	UHF 628 - 668 MHz
Frequency selection:	317 Switchable frequencies In 20 groups
Modulation:	FM, stereo
RF power output:	30 mW (LO); 50 mW (HI)
Frequency stability:	± 0,005 %
Range:	Range up to 100m with line-of-sight
Switching bandwidth:	32 MHz
Material:	Metal
Color:	Black
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible 1 U
Dimensions:	Width: 20 cm Depth: 19,9 cm Height: 4,4 cm
Weight:	1,51 kg
RELACART PM-320R In-Ear Bodypack Receiver 626-668 MHz
Type:	In-ear Monitor
Battery:	2 x Mignon (AA) (not included)
Frequency range:	25 - 15000 Hz
S/N ratio:	>100 dB
THD:
Display type:	OLED display
Display:	Charge level , frequency , Chanal
Status LED:	Antenna A/B
Connections:	Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Frequency band:	UHF 628 - 668 MHz
Frequency selection:	317 Switchable frequencies In 20 groups
Modulation:	FM, stereo
Frequency stability:	± 0,005 %
Range:	Range up to 100m with line-of-sight
Switching bandwidth:	32 MHz
Diversity:	Antenna diversity
Material:	Aluminum
Dimensions:	Width: 6,5 cm Depth: 2,3 cm Height: 9 cm
Weight:	110 g
