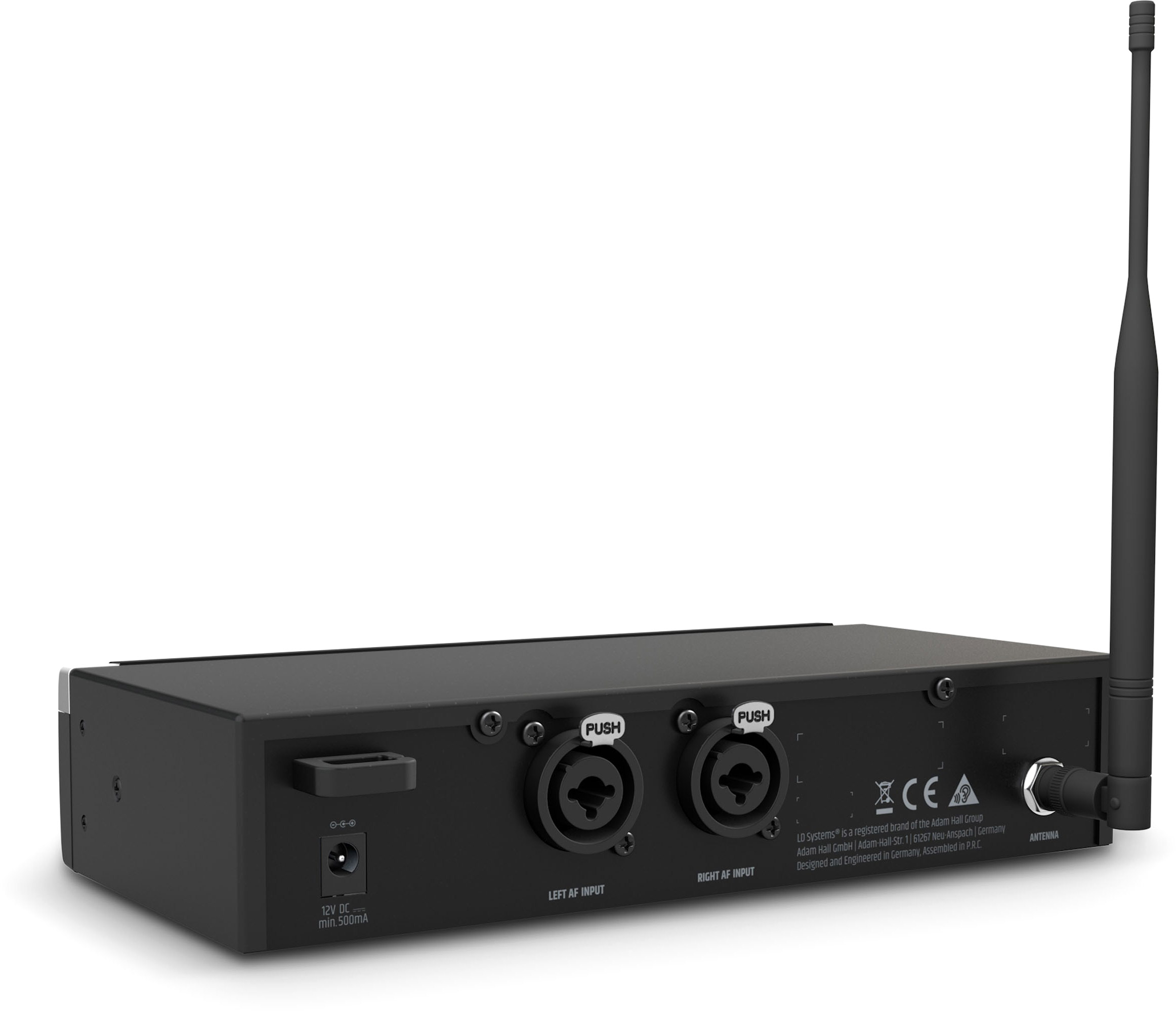

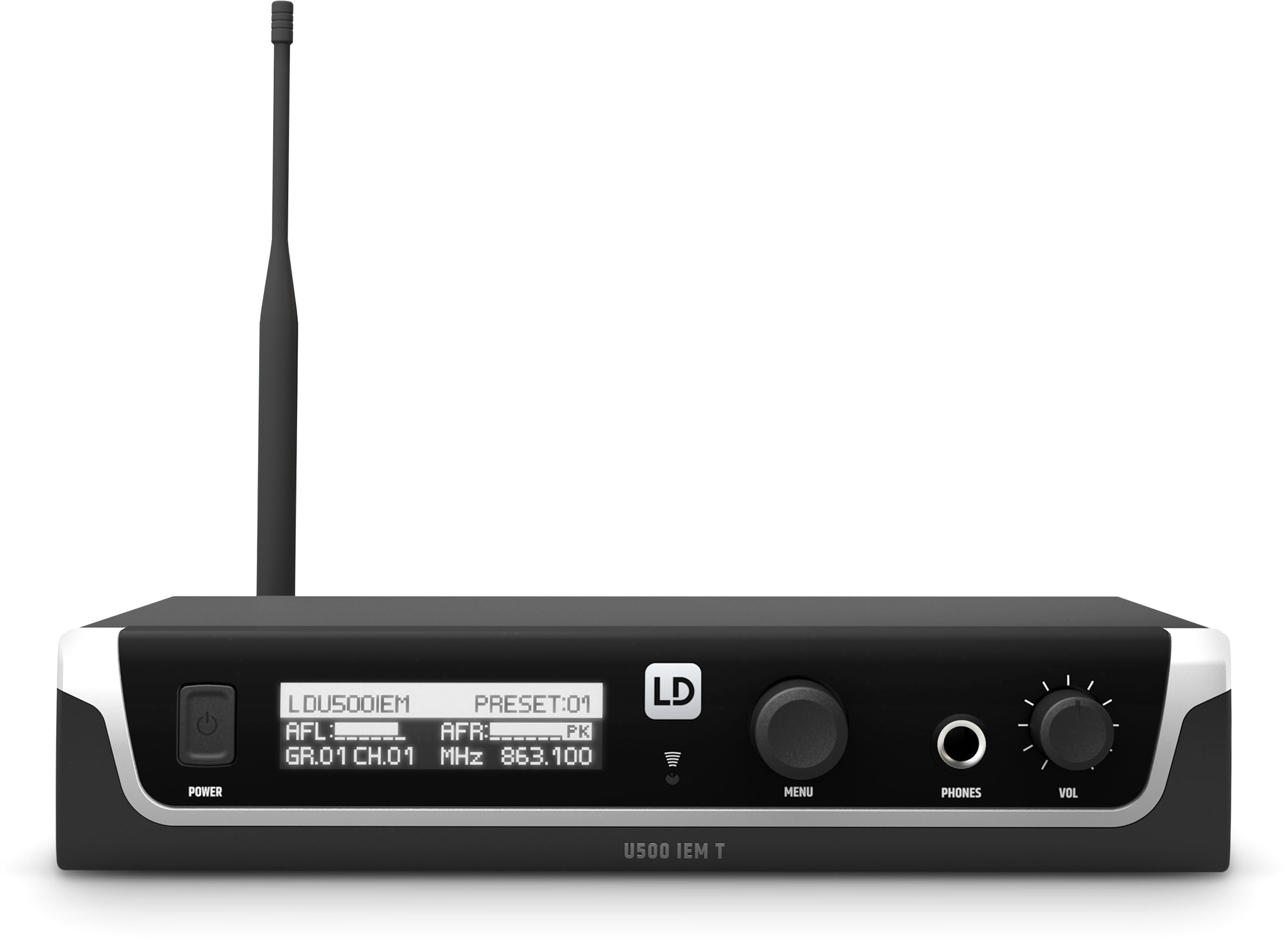

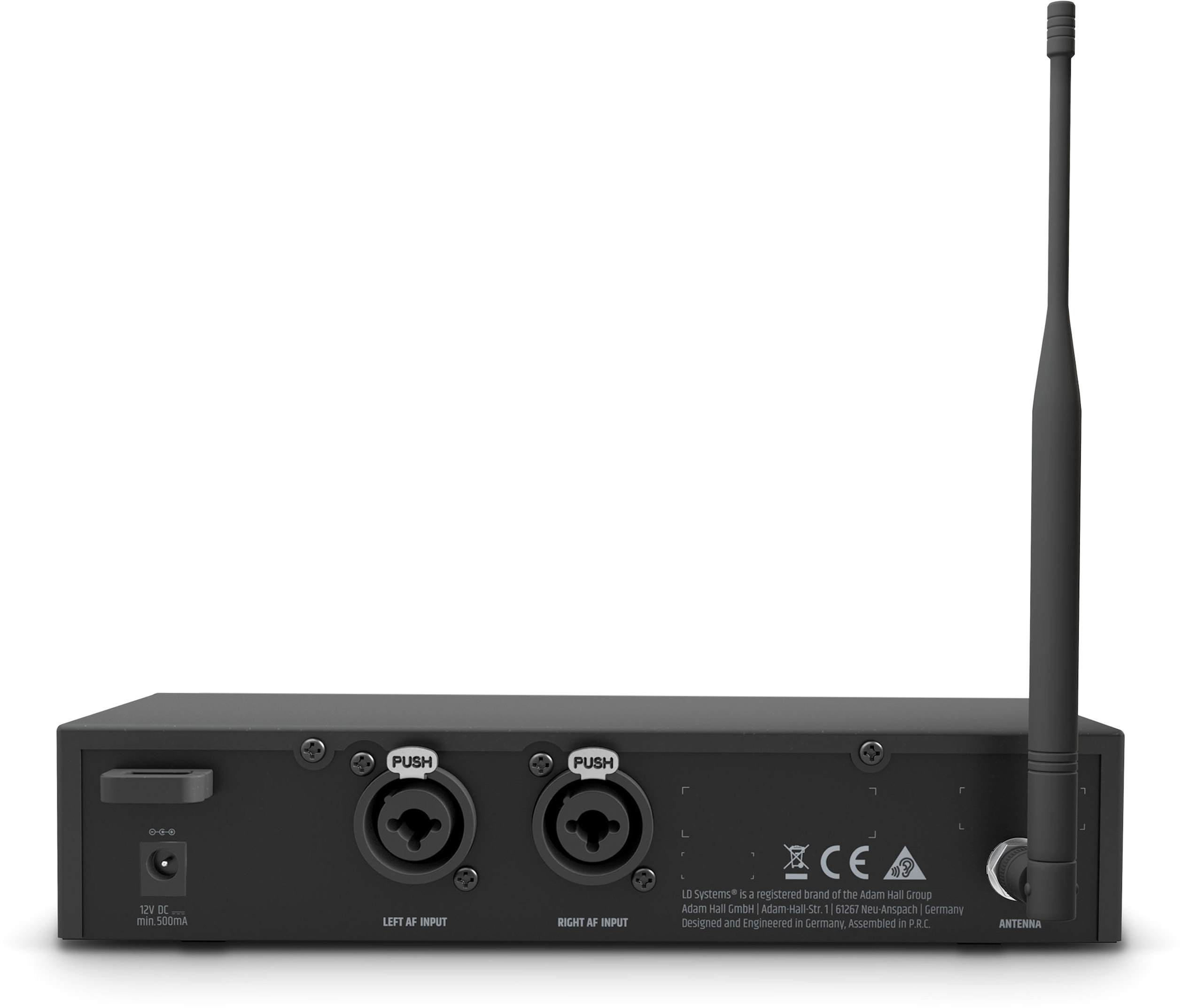

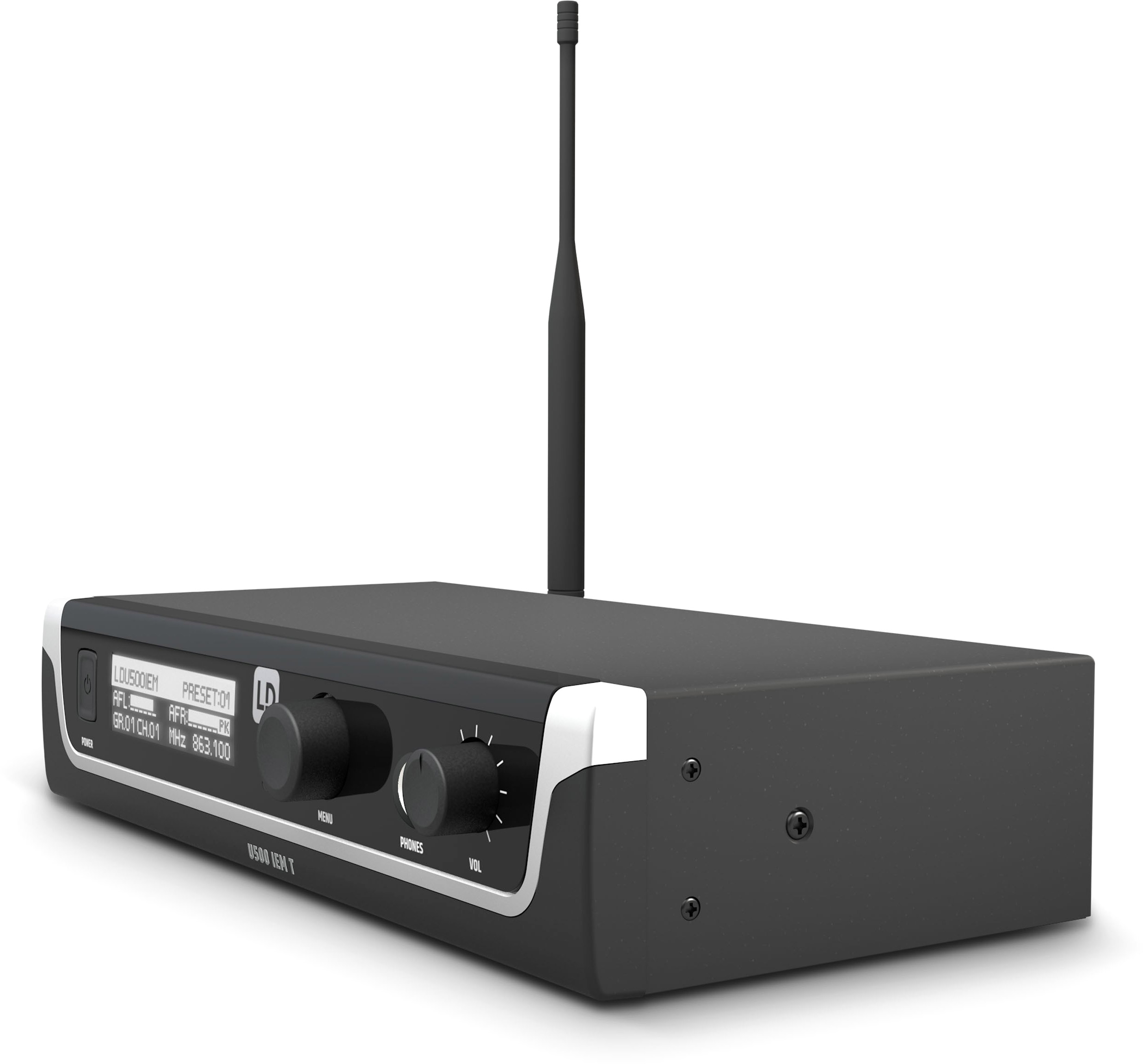

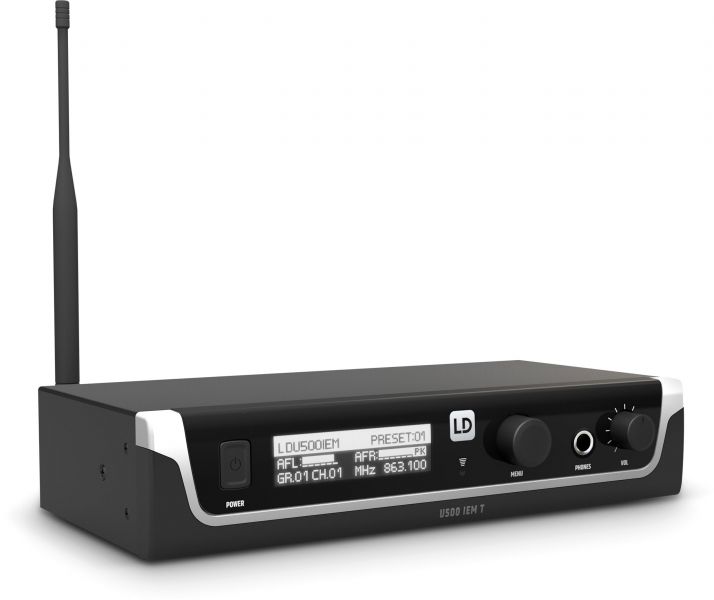

LD Systems U508 IEM T - Transmitter

€296.30 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 210904740

EAN: 4049521396458

Reliable in-ear monitoring with more than 100 m range 96 available channels 2, 10 or 30 mW... more

Back to the overview

All information about the product:

"LD Systems U508 IEM T - Transmitter"

Reliable in-ear monitoring with more than 100 m range
96 available channels
2, 10 or 30 mW ERP selectable transmission power
Convenient infrared frequency syncing
Individual user name assignment and memory for 10 custom presets
Extended frequency response
3-band EQ with parametric mids
Switchable limiter
Stereo and mono modes of operation
High-contrast OLED display
Transmitter with direct monitoring headphone output
Bodypack receiver with three selectable squelch levels
10 h of bodypack receiver operation on two AA batteries
Simultaneous operation of up to 12 systems
U500® IEM transmitter compatible with U300® IEM bodypacks

Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems noise floor is exceptionally low.

To deliver pristine, precise audio U500® IEM Transmitters include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and provide a convenient direct monitoring headphone output.

Technical data:

Product type:	In-ear Monitoring Accessories
Type:	Transmitters
Transmission frequency range:	823 - 832 MHz
Transmission frequency range:	863 - 865 MHz
Channels:	96 (8 groups of 12 channels)
Modes of operation:	focus/mono/stereo
Transmission method:	FM, mono/stereo
Rated HF output power:	10 mW
Rated HF output power:	2 mW
Rated HF output power:	30 mW
Frequency response:	40 - 16000 Hz
Total Harmonic Distortion (THD):	0.3 %
Dynamic range:	88 dB
Inputs:	2
Input connectors:	Combo TRS 6.3 mm
Input connectors:	XLR (balanced)
Input impedance (kOhms):	12 kOhm
Antenna connector:	BNC
Controls:	Menu selector Button
Controls:	Power On/Off
Controls:	volume headphones
Indicators:	Multifunctional OLED-Display
Operating voltage:	12 - 18 V DC
Width:	212 mm
Height:	43 mm
Depth:	123 mm
Weight:	0,641 kg
Accessories (included):	19" Rack mount kit
Accessories (included):	BNC-Antenna
Accessories (included):	power adapter
