AKG WMS 40 Mini Earmic Set

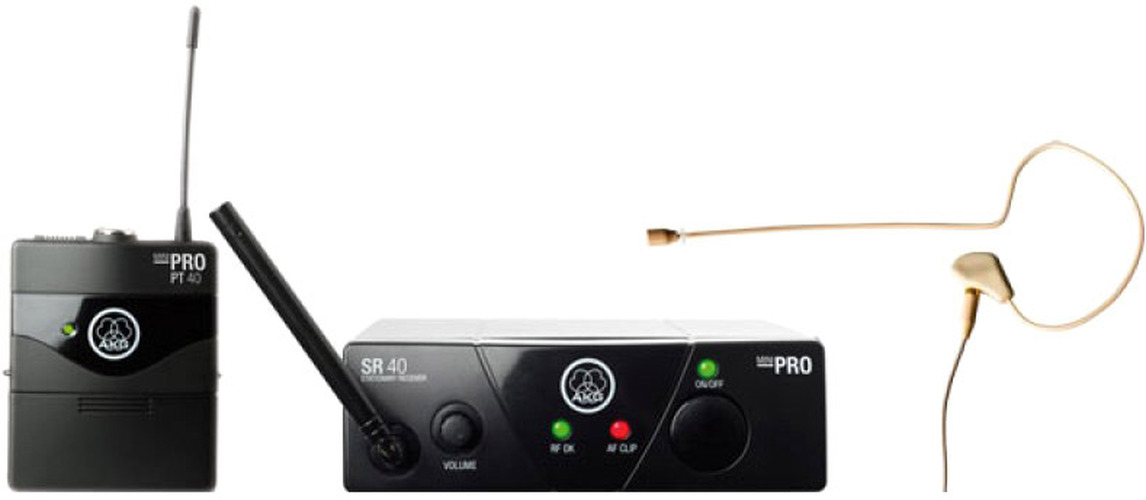

The WMS 40 MINI Earmic Set is versatile and easy to use. It consists of the SR 40 MINI receiver, the PT 40 MINI bodypack transmitter and the COBT earpiece microphone. Other AKG microphones can also be easily connected to the bodypack transmitter*.
Operating the WMS 40 MINI Instrumental Set requires no prior knowledge of wireless technology - simply unpack, switch on and get started. The radio system operates in the ISM frequency band and will remain registration and toll-free in the future.
The SR 40 MINI receiver has a robust metal housing and is very compact. On the front are control LEDs for power on/off, radio reception and audio peak. The volume control can be used to adjust the level of the 6.3 mm jack output. HDAP technology (High Definition Audio Performance) guarantees high sound quality and secure transmission of the audio signal.
The PT 40 MINI pocket transmitter is particularly small and lightweight. With only one AA battery, the system is ready for operation for up to 30 hours. The input sensitivity for the connected microphone or instrument can be continuously adjusted directly on the pocket transmitter.
The COBT earpiece microphone is a very lightweight, single-sided microphone that gives the speaker and singer optimum freedom of movement. The special design in the color beige makes the microphone almost invisible in many situations. Fatigue-free wearing and high speech intelligibility recommend this microphone for all kinds of presentations in theaters, churches or conference rooms.

The scope of delivery includes a power supply unit and an AA battery.

Available frequencies: ISM (free of registration and fees)

Features

• Set of pocket transmitter, receiver and earpiece microphone
• 30 hours runtime with only one AA battery
• Incl. power supply and battery
• Available in three ISM frequencies

PT 40 MINI pocket transmitter

• Very small and light
• Input sensitivity control
• Low power consumption

Receiver SR 40 MINI

• Robust metal housing
• High audio and transmission quality
• Status LEDs for reception, audio clipping and power on/off
• Balanced 6.3 mm jack output
• Output level adjustable at receiver

Earpiece microphone COBT

• Very light, movable gooseneck, condenser microphone, omnidirectional characteristic, beige

Technical data

• Carrier frequency range: 863 - 865 MHz
• Modulation type: FM / UHF
• Distortion factor: 0.8
• Signal to noise ratio: 110 dB (A)
