AKG WMS 40 MINI Vocal / Instrumental Set Dual

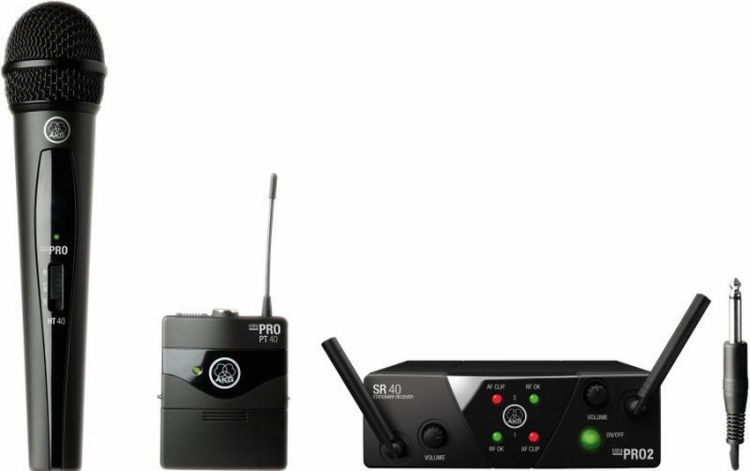

The AKG WMS40 Mini Dual Vocal Instrumental Set consists of a 2-channel receiver, handheld transmitter, bodypack transmitter and a connection cable for instruments.

The compact 2-channel receiver has a robust metal housing. It can be operated with two transmitters simultaneously. Each channel can be controlled individually and has a separate output. On the front are control LEDs for the operating status (on / off), the radio reception and overdrive. The volume controls can be used to adjust the level of the 6.3 mm jack outputs. HDAP technology (High Definition Audio Performance) guarantees high sound quality and secure transmission of the audio signal.

The radio microphone fits well in the hand and provides the right assertiveness of the voice. The capsule in the transmitter has a cardioid polar pattern. The microphone is insensitive to handling noise and safe against feedback. An internal windscreen effectively suppresses pop and wind noise. In addition, the handheld transmitter has a crack-free on/off/mute switch. To avoid accidental operation, the switch is recessed.

The pocket transmitter is particularly small and lightweight. With only one AA battery, it is ready for operation for up to 30 hours. This saves you frequent battery changes and a lot of money in the long run. The input sensitivity for the connected microphone or instrument can be continuously adjusted directly on the pocket transmitter.

The scope of delivery includes a power supply unit and an AA battery.

Features

• Set of pocket transmitter, handheld transmitter and two-channel receiver
• 30 hours runtime with only one AA battery
• Incl. power supply and battery

• Handheld transmitter HT40 Mini
• Dynamic capsule with cardioid characteristic
• Sturdy spring steel grill
• On/Off/Mute switch
• Low battery indicator

• PT40 Mini pocket transmitter
• Very small and light
• Input sensitivity control
• Low power consumption

• Receiver SR40 Mini Dual
• Robust metal housing
• High audio and transmission quality
• Status LEDs for reception, audio clipping and power on/off
• Balanced 6.3 mm jack outputs
• Output level adjustable at receiver

Technical data

• Carrier frequency range: 863 - 865 MHz
• Modulation type: FM / UHF
• Distortion factor: 0.8
• Signal to noise ratio: 110 dB (A)
• Audio output: 6.3 mm jack unbalanced, level adjustable between -30 and 0 dBm
