RELACART UR-222D 2-Channel UHF System

True diversity wireless microphone system with two channels, 823-832 MHz + 863-865 MHz

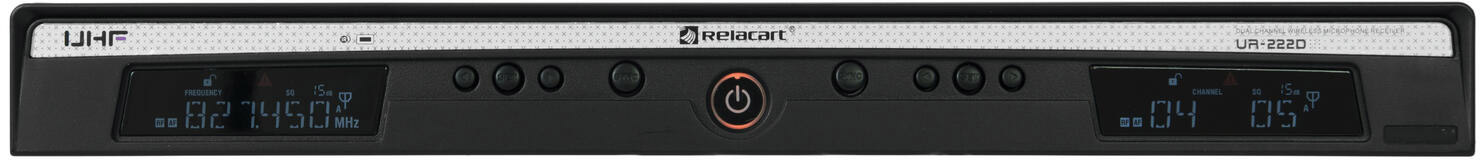

RELACART UR-222D 2-Channel UHF Receiver

2-channel multifrequency wireless receiver with high-quality diversity reception

• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot frequency squelch technology delete wireless RF interference
• Automatic frequency scan (AFS) finds interference-free channels
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Rugged metal housing
• Multicolor LCD display
• UHF 863 - 865 MHz License-free and approved in Europe
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• Operating range up to 80m with line-of-sight
• Desktop console housing
• (19") 48.3 cm rack installation possible 1 U

Package contents

• 1 x receiver, 1 x external mains adapter, 2 x antenna, 2 x mounting bracket, 6 x screw, 2 x jack cable, 1 x user manual, 1 x declaration of conformity

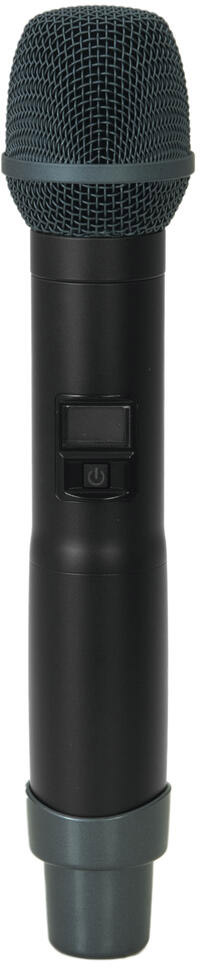

RELACART UH-222D Microphone

Hand-held microphone with PLL multifrequency transmitter

• Dynamic hand-held microphone with UHF pilot tone technology (PLL)
• Ergonomic aluminum alloy housing, applicable for touring
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• RF output power Hi/Low adjustable
• Gain level Hi/Mid/Low adjustable
• Capsule M-022
• Directly compatible with Shure's SM58 capsule
• Polar pattern: Super cardoid
• OLED display
• UHF 863 - 865 MHz License-free and approved in Europe
• UHF 823 - 832 MHz License-free and approved in large parts of Europe
• Operating range up to 80m

Package contents

• 1 x microphone, 1 x user manual, 1 x declaration of conformity
