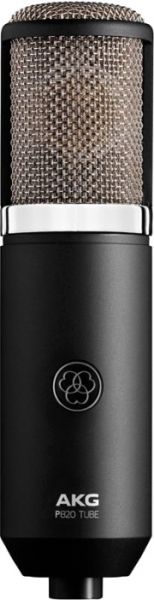

AKG P820 High-Performance Dual-Capsule Tube Microphone

GREATER IN SPIRIT, LARGER THAN LIFE
For Professional Studios and Project Studios

The P820 Tube high-performance multi-pattern tube microphone is an excellent tool for highlighting lead vocals, brass instruments, electric guitars and drums. With its dual one-inch diaphragm capsule and the advanced ECC83 dual-triode circuitry, the P820 Tube delivers real tube sound and raises the bar in its class of affordable tube microphones.

Elegant remote control
allows choice of nine different polar patterns

Switchable bass-cut filter
eliminates rumble or footfall noise

Switchable attenuation pad
for high SPL applications up to 155 dB SPL

Technical Specification

General
Audio Frequency bandwidth 20 to 20000 Hz
Sensitivity 20 mV/Pa
Equivalent Noise Level 16 dB-A
Signal to Noise 78 dB-A
Preattenuation Pad -20 dB
Bass Cut Filter 80 - 12 dB/octave (selectable on remote control unit) Hz
Electrical Impedance <= 200 Ohms
Recommended Load Impedance >= 1000 Ohms

Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin

Dimensions / Weight
Length 212 mm
Diameter 54 mm
Net Weight 765 g

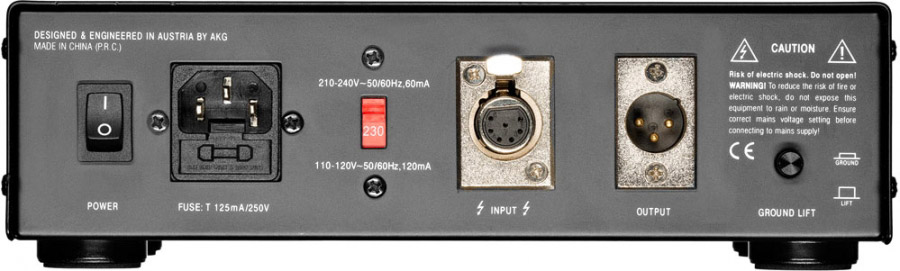

Power Supply
Primary Fuse 125 mA / 250 V slow-blow
Powering 210-240 VAC or 110-120 VAC (selectable)
