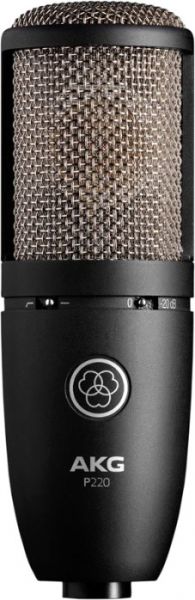

AKG P220 High-Performance Large Diaphragm Microphone

Professional Projects
For Project Studios and Stage

The P220 is a large-diaphragm true condenser microphone offering a warm and clear sound for lead vocals, acoustic guitar and brass instruments. A switchable bass-cut filter and attenuation pad make it perfectly suited for use on loud sound sources with sound pressure levels up to 155dB SPL. The rugged and roadworthy design also makes the P220 a perfect choice for on-stage applications.

The P220 represents the most popular and successful microphone within the actual Project Studio Line. It comes complete with a spider-type shock mount in an aluminum carrying case.

Rugged all-metal body and robust design
withstands tough day-to-day use

Switchable bass-cut filter
eliminates rumble or footfall noise

Switchable attenuation pad
for high SPL applications up to 155 dB SPL


Specs

General
Audio Frequency bandwidth 20 to 20000 Hz
Sensitivity 20 mV/Pa
Equivalent Noise Level 16 dB-A
Signal to Noise 78 dB-A
Preattenuation Pad -20 dB
Bass Cut Filter 300 - 12 dB/octave Hz
Electrical Impedance <= 200 Ohms
Recommended Load Impedance >= 1000 Ohms

Powering Interface
Voltage 44 to 52 V
Current <= 3 mA

Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin

Dimensions / Weight
Length 165 mm
Diameter 54 mm
Net Weight 530 g
