JTS E-7BPSET/5 UHF PLL audio transmission set
€296.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250139550
EAN: 4007754273588
MPN: 0259612
UHF PLL audio transmission set, consisting of: Diversity UHF PLL receiver E-7R/5 UHF... more
All information about the product:
"JTS E-7BPSET/5 UHF PLL audio transmission set"

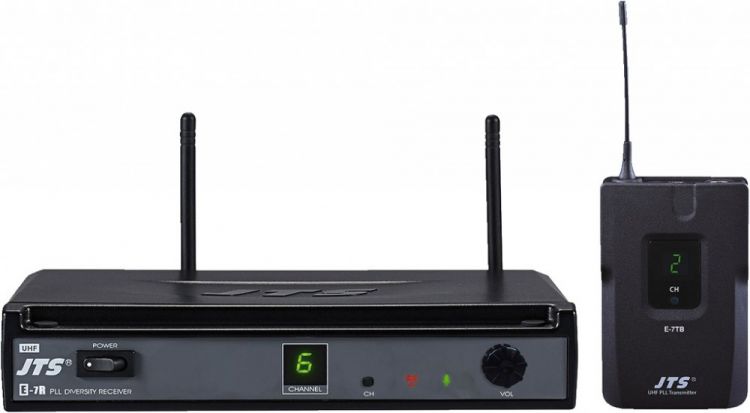

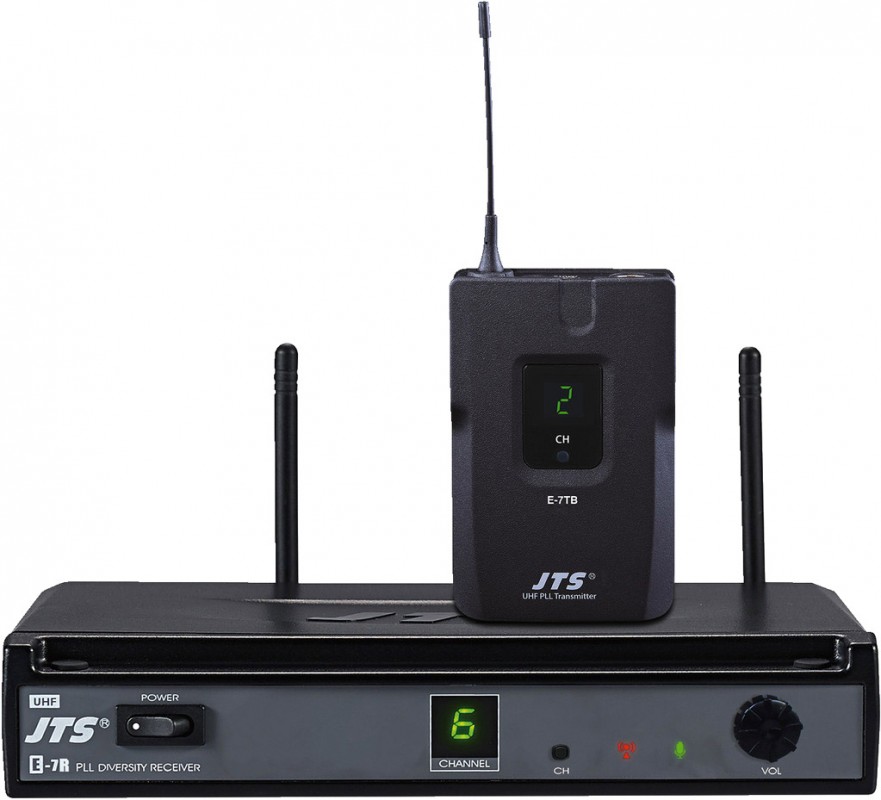

UHF PLL audio transmission set,
consisting of:

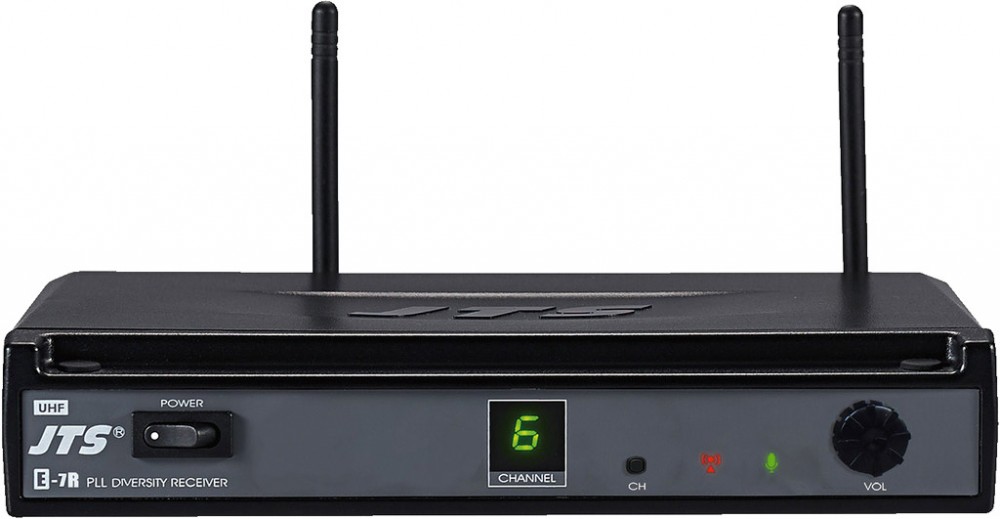

- Diversity UHF PLL receiver E-7R/5

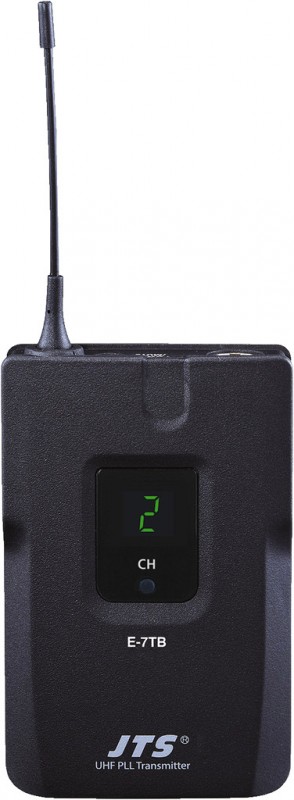

- UHF PLL pocket transmitter with lavalier microphone E-7TB/5
Carrier frequency range: 504-542 MHz
For specifications, please refer to individual items.
For specifications, please refer to individual items.
There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!| General information: | - |
| Description: | UHF PLL audio transmission set |
| Carrier frequency range: | 506-542 MHz |
| Audio frequency range: | 40-18,000 Hz |
| Channels: | 1 |
| THD: | |
| Dynamic range: | > 100 dB |
| Admiss. ambient temp.: | 0-40 °C |
| Specifications transmitter: | - |
| Power supply transmitter: | 2 x batt. AA size, alkaline (not supplied) |
| Specifications receiver: | - |
| Audio signal receiver: | 180 mV jack |
| Power supply receiver: | via encl. power supply |
| Width receiver: | 221 mm |
| Height receiver: | 40 mm |
| Depth receiver: | 152 mm |
| Connections receiver: | 1 x 6.3 mm jack, bal. |
