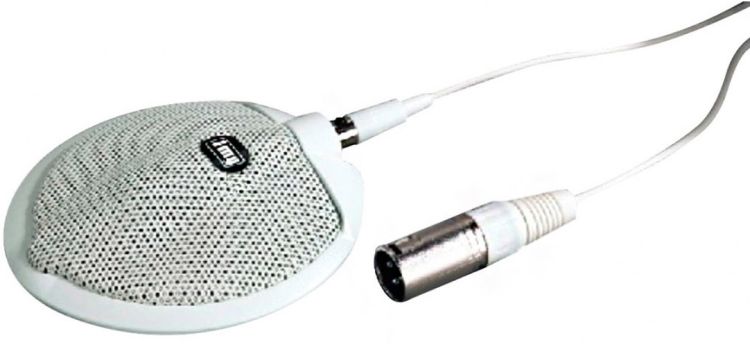

MONACOR ECM-302B/WS Boundary microphone
![IMG STAGE LINE ECM-302B/WS Grenzflaechen-Mikrofon](https://www.ltt-versand.de/media/image/69/aa/34/250114825thro8UkJhrQ7H_750x600.jpg)
€109.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250114825
EAN: 4007754178975
Boundary microphone Integrated electronics for the direct connection to a phantom power... more
All information about the product:
"MONACOR ECM-302B/WS Boundary microphone"
Boundary microphone
- Integrated electronics for the direct connection to a phantom power supply 17-48 V DC
- Transformer-balanced AF output
- 6 m connection cable with 3-pole mini XLR/XLR
Description: | boundary microphone |
Transmission method: | cable |
Polar pattern: | semi-cardioid |
System: | electret |
Audio frequency range: | 30-20,000 Hz |
Nominal impedance: | 250 O |
Sensitivity: | 22 mV/Pa |
Max. sound pressure: | 140 dB |
Power supply: | DC 17-48 V, phantom power |
Admiss. ambient temp.: | 0-40 °C |
Dimensions: | Ø 120 mm x 22 mm |
Weight: | 350 g |
Cable: | 6 m |
Connection: | 3-pole mini XLR/XLR |
Packing dimensions (W x H x L): | 0.15 x 0.06 x 0.215 m |
Gross weight: | 0.777 kg |
Net weight: | 0.497 kg |
