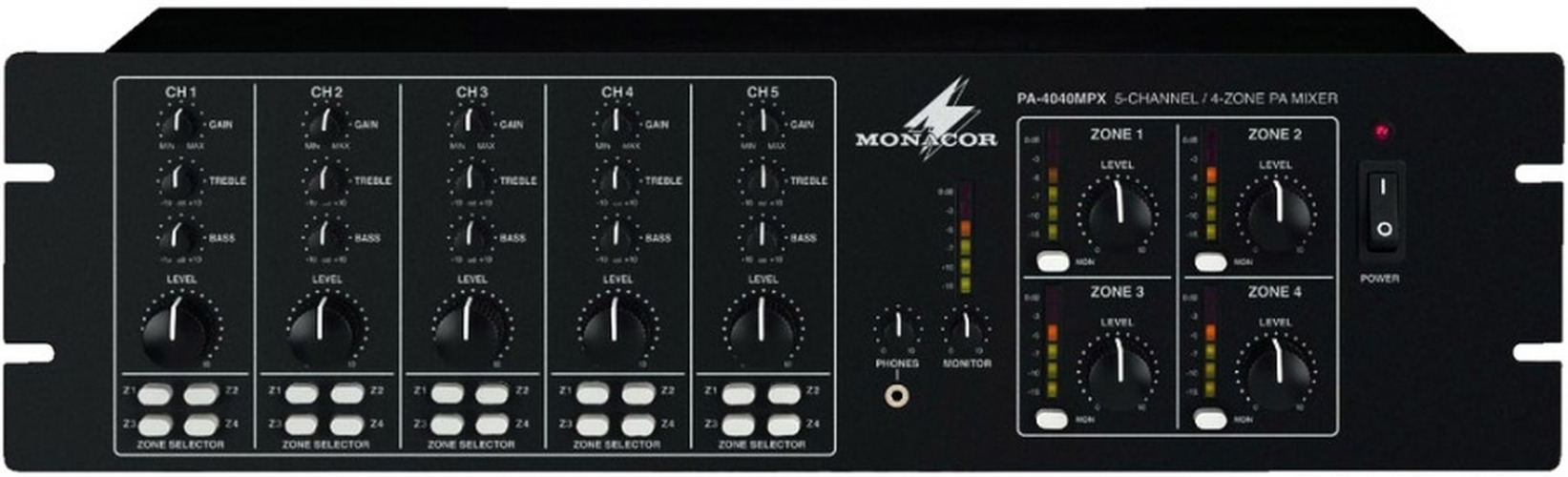

MONACOR PA-4040MPX 4-zone mixer

€308.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 250127095

EAN: 4007754225808

MPN: 0173450

4-zone mixer, for general multi-room PA applications. 4 zones with user-defined routing... more

All information about the product:

"MONACOR PA-4040MPX 4-zone mixer"

4-zone mixer,

for general multi-room PA applications.

4 zones with user-defined routing of all input channels
3 inputs microphone/line via comb. jacks
2 inputs line stereo via RCA jacks
Each input channel with gain control, 2-way tone control and zone routing switch
Microphone inputs with 15 V phantom power, to be activated as required
Priority function for channel 1, switchable
Independent paging input, can be routed to each zone
4 zone outputs, can be adjusted individually
Connection for monitor speaker
Level control via VU meters for zone and monitor
Adjustable headphone output
Mains operation or 24 V emergency power operation

Technical data:

Channels:	5
Zones:	4
Inputs:	5 mV/4 kO, 100 mV/10 kO (mic/line), 100 mV/30 kO (line)
Frequency range:	50-17,000 Hz
Equalizer bass:	± 10 dB/100 Hz
Equalizer treble:	± 10 dB/10 kHz
S/N ratio:	> 65 dB (mic), > 75 dB (line)
THD:
Phantom power:	15 V
Mains voltage:	~ 230 V
Mains frequency:	50 Hz
Power consumption, operation:	20 VA
Operating voltage (possible alternative):	DC 24 V
Power supply (possible alternative):	DC 600 mA
Admiss. ambient temp.:	0-40 °C
Width:	482 mm
Height:	133 mm
Depth:	220 mm
Rack spaces, RS:	3
Weight:	4.5 kg
Connections:	3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 4 x plug-in screw terminal (zones), screw contacts (monitor speakers), screw contacts (mix out), screw contacts (paging), screw contacts (priority)
Packing dimensions (W x H x L):	0.28 x 0.22 x 0.57 m
Gross weight:	5.68 kg
Net weight:	4.7 kg
