LD Systems DQOR® SUB 8 A - Active Installation Subwoofer, Black

NEW

Preview: LD Systems DQOR® SUB 8 A - Aktiver Installations-Subwoofer, schwarz

LD Systems DQOR® SUB 8 A - Aktiver Installations-Subwoofer, schwarz

Sale to reseller only

Availability:

Currently not available

Product inquiry

Item number: 210906330

EAN: 4049521940644

MPN: LDDQORSUB8A

NEW

Active installation subwoofer, black 8" active subwoofer with 10" passive radiator Sleek,... more

Back to the overview

All information about the product:

"LD Systems DQOR® SUB 8 A - Active Installation Subwoofer, Black"

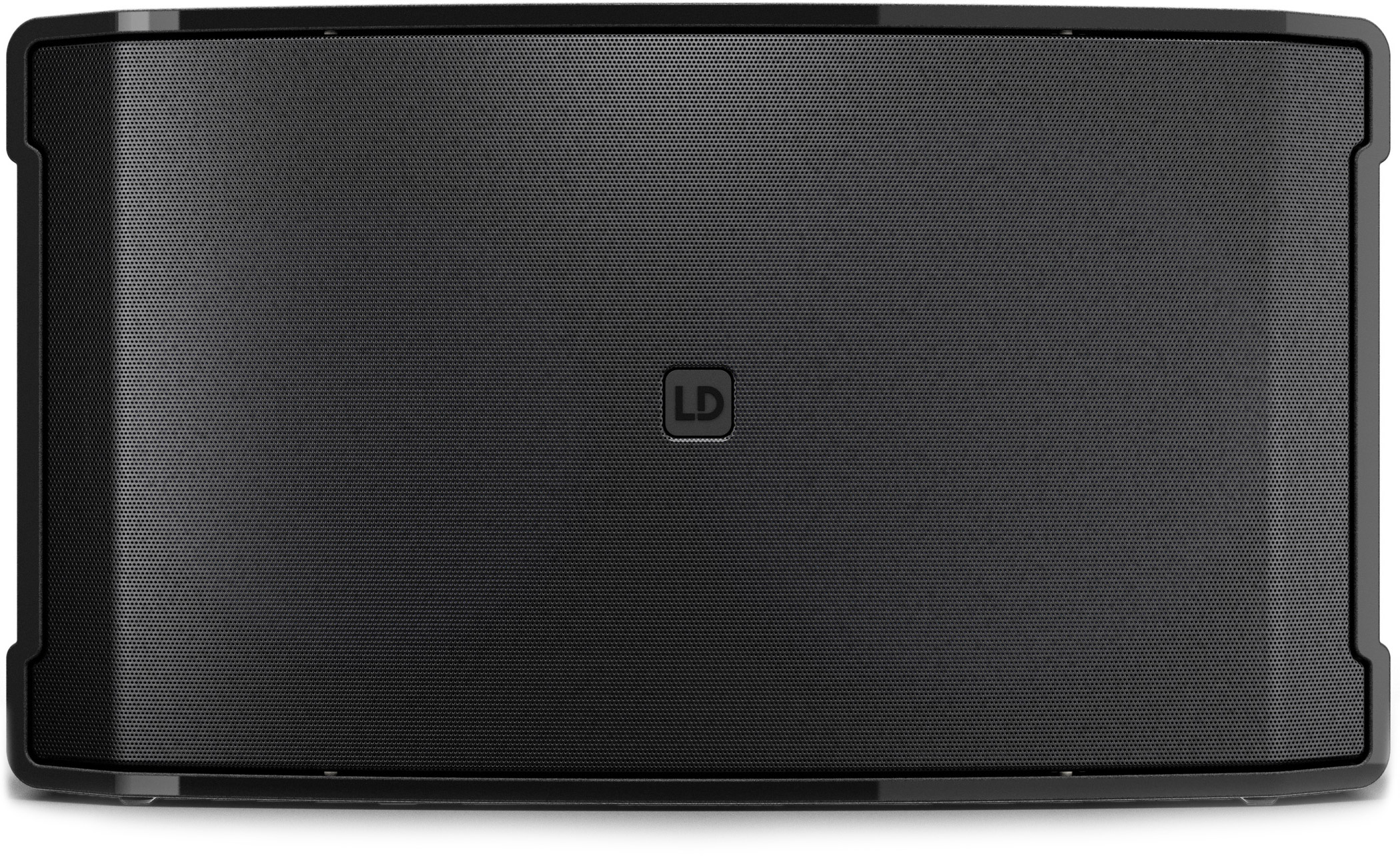

Active installation subwoofer, black

8" active subwoofer with 10" passive radiator

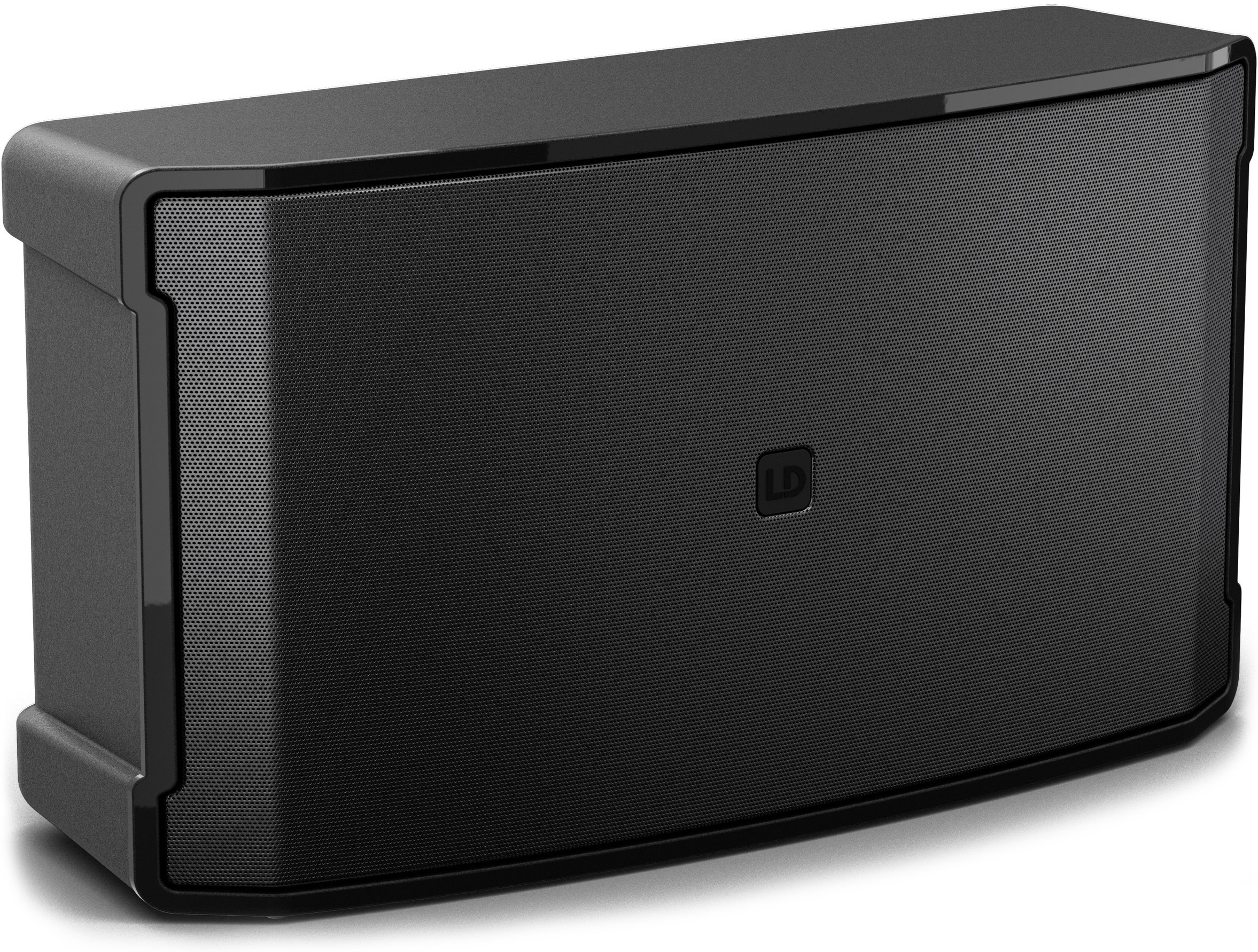

Sleek, low-profile design with rugged aluminum casing
250 W RMS subwoofer power.

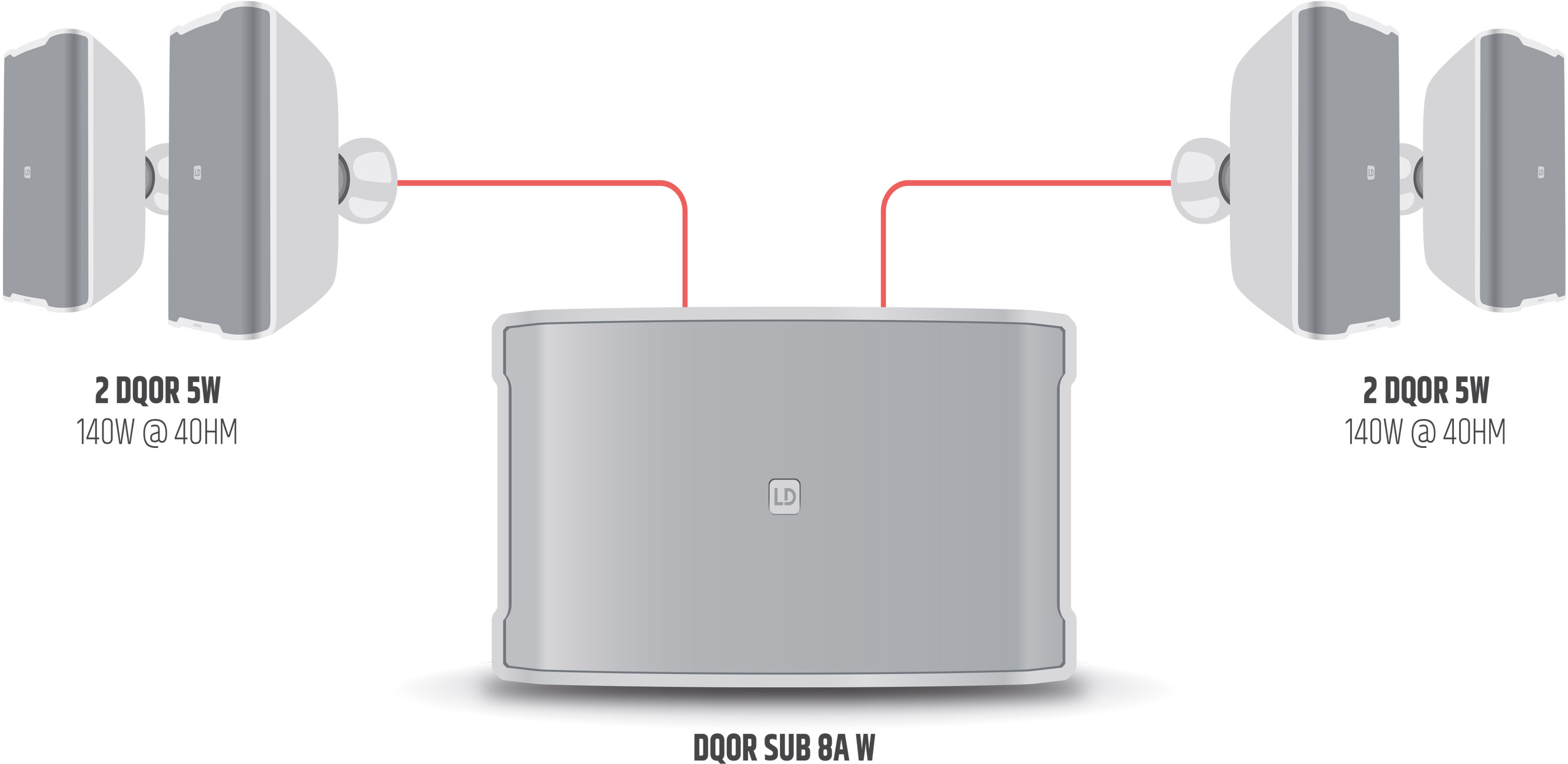

2 × 140 W amplifier for driving passive loudspeakers for a 2.1 system
DSP presets for DQOR® speakers or HPF for any speaker
Optional surface mount box (wall + ceiling) with hinges for easy installation

The DQOR® SUB 8 A from the DQOR® series is an active subwoofer for indoor installation with an 8" woofer and a 10" passive radiator. It has two 140 W RMS power outputs that have been specially designed for connecting external full-range speakers. These outputs are fine-tuned using the DSP presets to ensure optimal audio pairing with DQOR® series speakers or any other speaker.

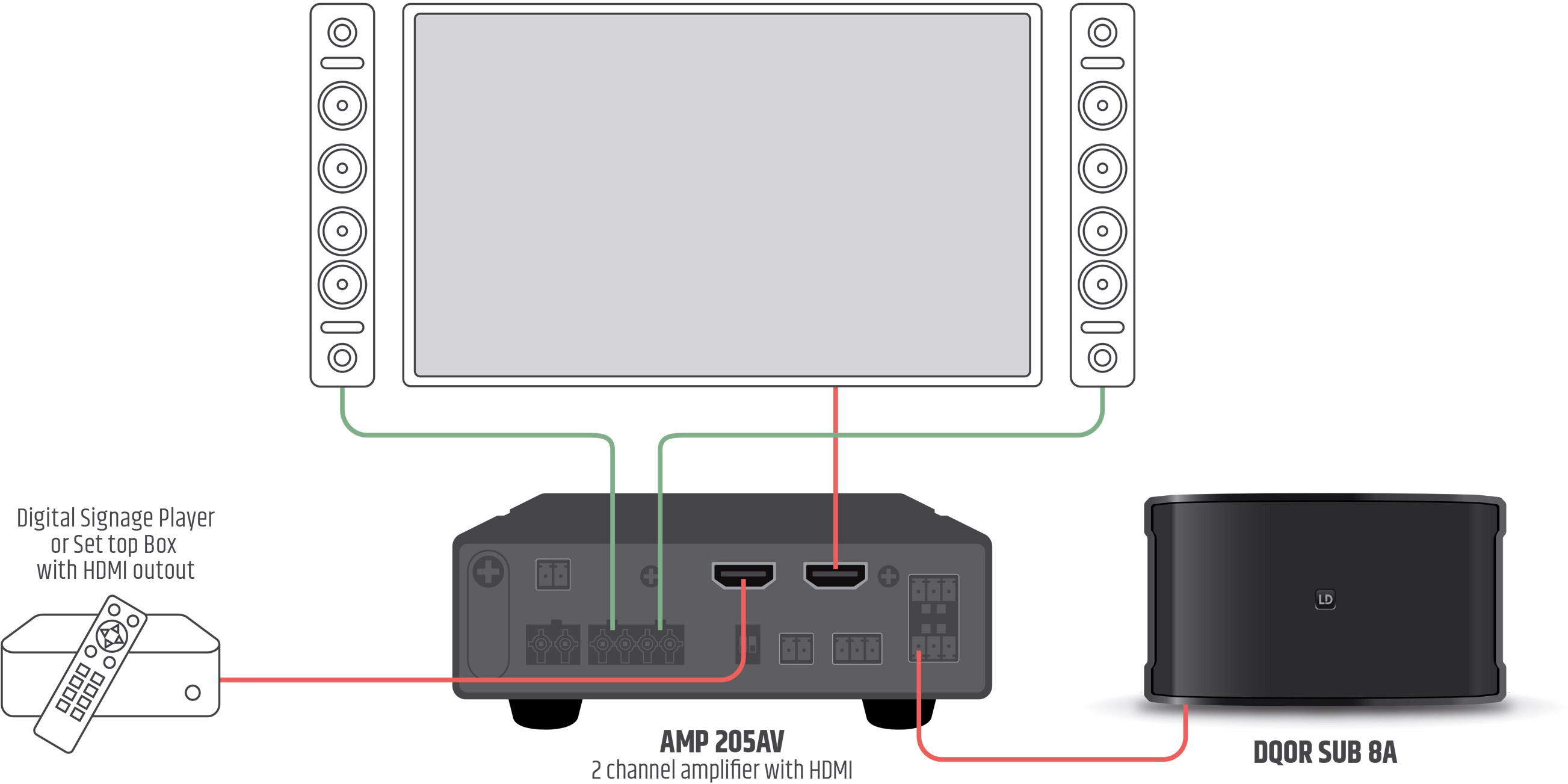

Designed for high performance in a compact form factor, it enables a powerful 2.1 audio system without the need for separate amplifier racks.

Combining aesthetics with powerful audio performance, the DQOR® SUB 8A's clean, low-profile design makes it an elegant addition to any room. Delivering 250W RMS, it provides impressive sound quality with up to 108dB SPL and an extension of low frequencies down to 37Hz.

The DQOR® SUB 8 A has rubber feet for placement on the floor or can be easily installed with the optional surface mount bracket. This offers flexible mounting options, holes for clean cable management, locking screws, a security lock and a hinge mechanism for quick mounting.

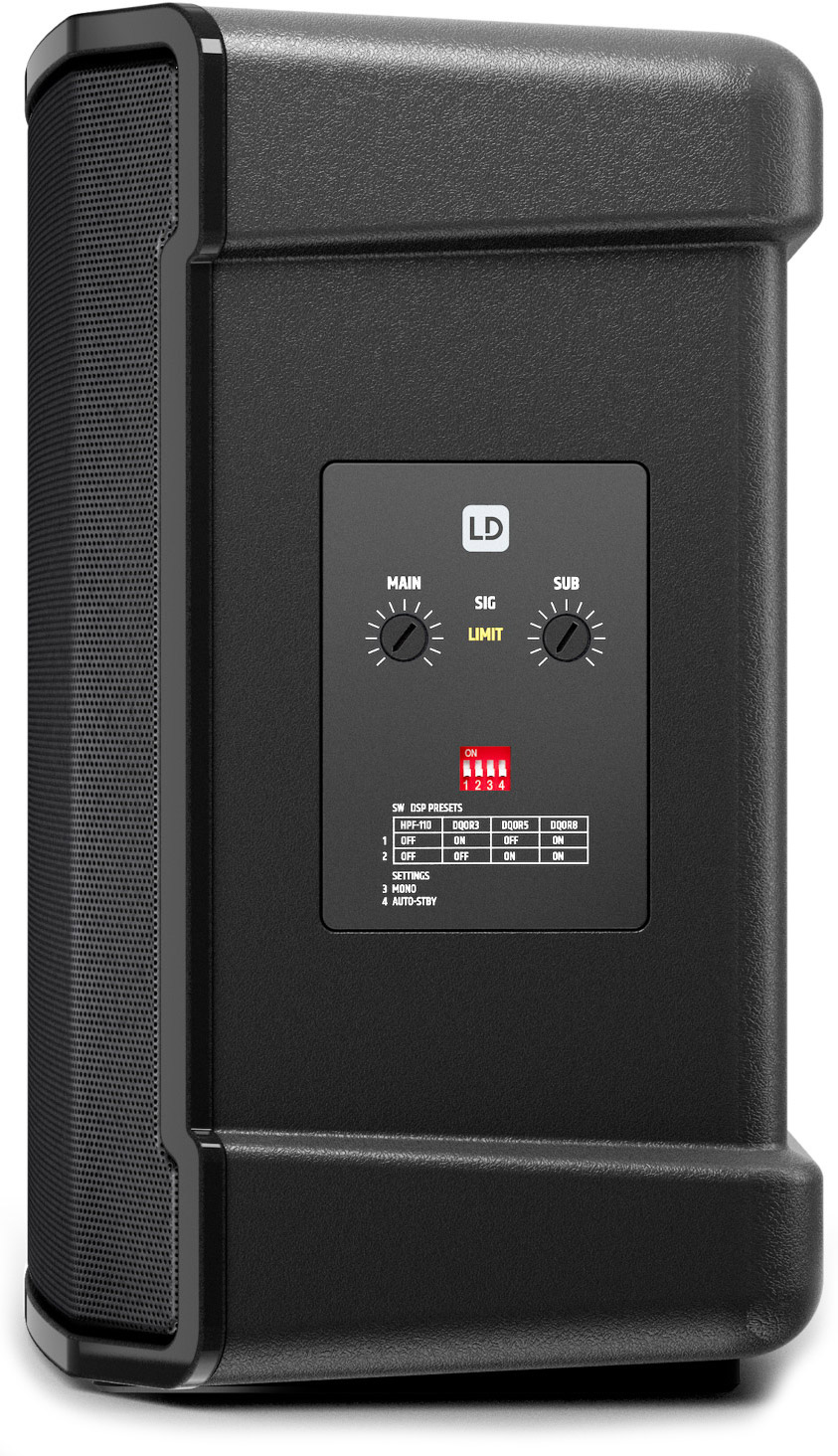

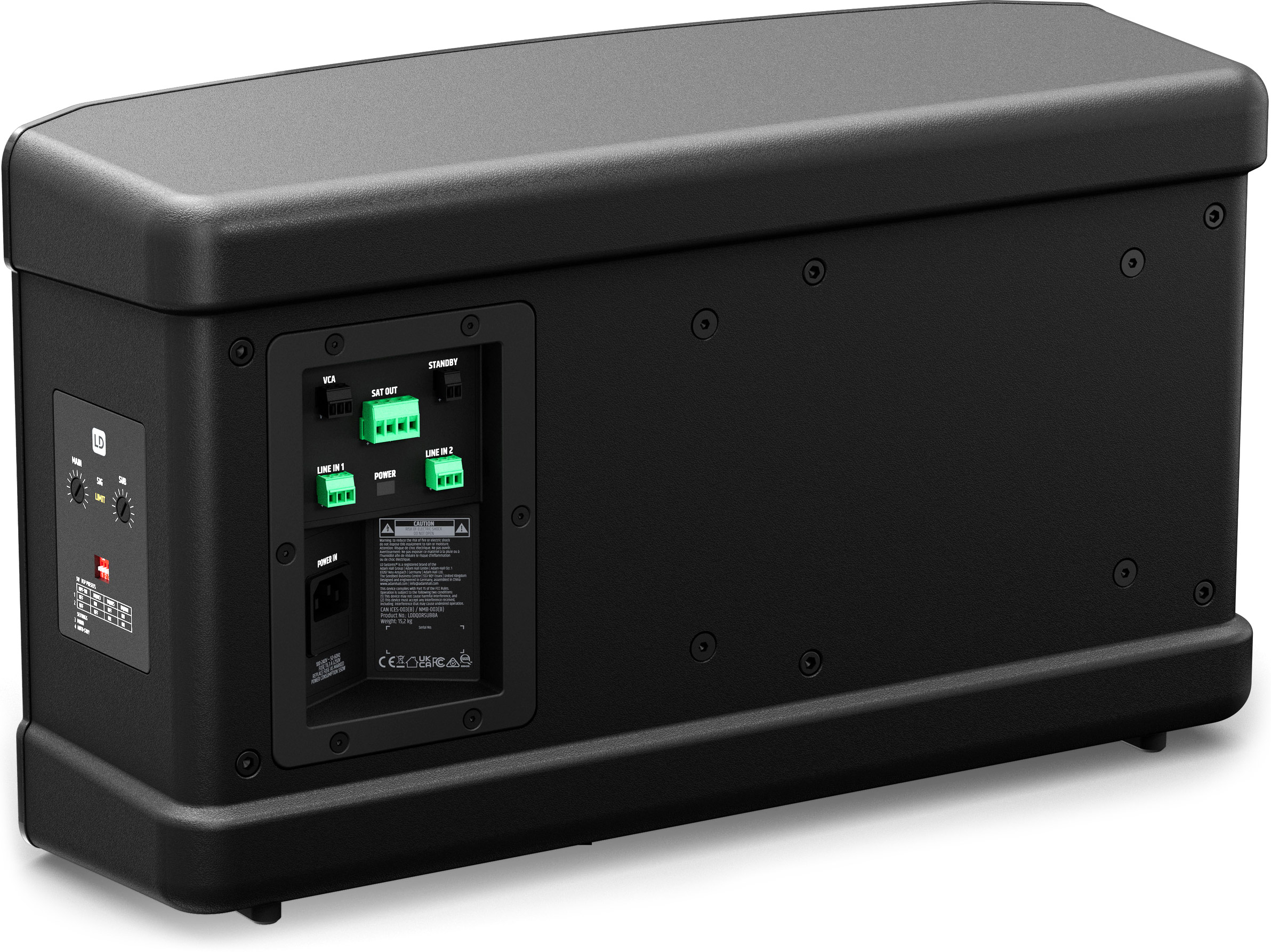

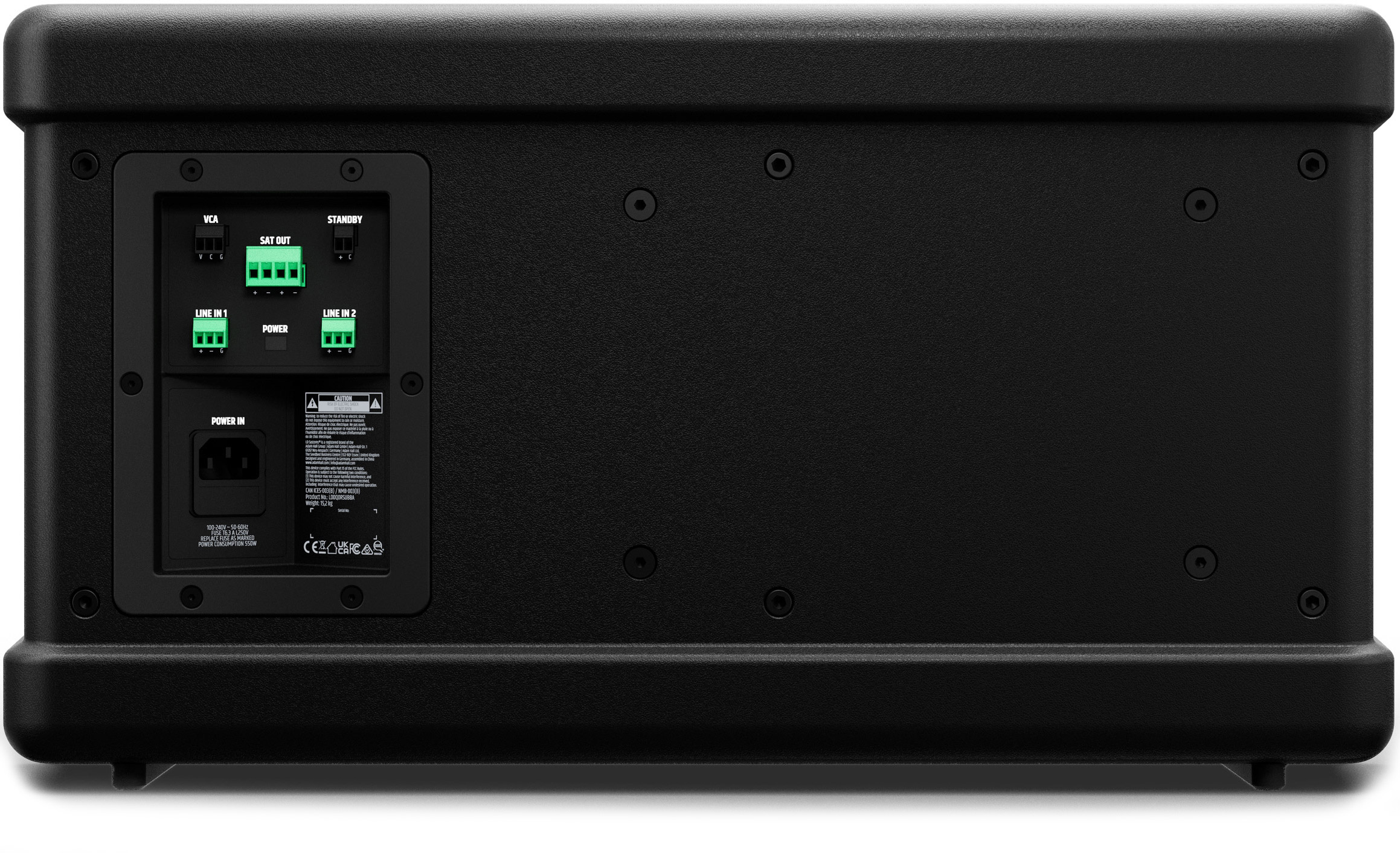

Four terminal blocks allow for balanced stereo input, VCA volume control and remote standby. Dip-switch selectable features include stereo/mono mode, auto standby mode and DSP preset.

The active indoor subwoofer can be used in many different areas, such as hospitality, retail, entertainment or corporate.

It is available in two colors: black (RAL9005) and white (RAL9016).

Technical data:General

Polarization pattern:	omnidirectional
RMS output power:	250 W
amplifier class:	Class D
SPL (1 W/1 m):	86 dB
Max. SPL Peak (Sine Burst, Halfspace/1 m, THD=10 %):	110 dB
Max. SPL Peak (Pink Noise, Halfspace/1 m, CF 4):	119 dB
crossover frequency:	200 Hz
Protective functions:	Soft start, short circuit, overheating, overvoltage, undervoltage, direct current
color:	Black.

Inputs

Number of line inputs:	2
Line-in connection type:	Terminal strip, 3-pole / contact spacing 3.81 mm

line inputs

Nom. Sensitivity (	0 dBu:
Nom. Input Clipping:	19 dBu
Impedance:	16 kO
Min. CMRR (0 dBu, avg. volume, 1 kHz):	50 dB

outputs

Output signal types:	loudspeaker
Number of speaker outputs:	2
Type of speaker output connection:	4-pole terminal block / 5.08 mm pitch
Min. speaker impedance:	4 O

signal processing

Bit depth of the AD/DA converter:	24 bits
Sample rate AD/DA converter:	48 kHz
Frequency response (-3 dB, rel. Avg):	43 Hz
Frequency response (-10 dB, rel. Avg):	37 Hz
Min. signal-to-noise ratio (SNR):	96 dB
System latency:	2 ms

amplifier

Number of satellite outputs:	2
Output power of satellites per channel (RMS):	25 W
Output power sub per channel (RMS):	125 W
Output power of satellite per channel (peak):	45 W
Output power sub per channel (peak):	180 W
Max. THD+N (SAT out, 0 dBu, Volume Center, 1 kHz, 20 kHz BW):	0.01%
Max. THD+N (SUB out, 0 dBu, Volume Center, 63 Hz, 20 kHz BW):	0.02 %

External control

Resistor for volume control (VCA):	10 kO
VCA input connection socket:	Terminal strip, 3-pole / contact spacing 3.81 mm
GPI-controllable functions:	standby
GPI input socket:	2-pole terminal block / 3.81 mm pitch

woofer

Size:	8 ?
Magnet:	Ferrite
Voice coil:	2.5 ?
Passive radiator:	10 ?

mains operation

Operating voltage:	100 V AC - 240 V AC (±10 %) / 50 - 60 Hz
Power consumption:	550 W
Power consumption in idle:	25 W
Max. power consumption in standby:	0.5 W
Power supply type:	Switch-mode power supply (SMPS)
Starting current:	2.7 A
Grid connection:	IEC C14 socket
Fuse:	T6.3AL / 250 V

standby

Auto-standby after:	20 min
Wake-up time in standby mode:	3 s
awakening threshold:	-54 dBFS

enclosure

Type:	Closed with passive radiator
Housing material:	die-cast aluminum, plastic
Front grille material:	aluminum

cooling

Cooling system:

convection cooling

environmental conditions

Maximum humidity (non-condensing):	85%
Security class:	Class 1

Dimensions & weight

width:	537.4 mm
Height:	304.4 mm
Depth:	185.6 mm
Weight:	15.2 kg
