LD Systems DQOR® SUB 8 - Passive Indoor/Outdoor Installation Subwoofer, Black
- 8" subwoofer with 10" passive radiator
- Sleek, low-profile design with rugged aluminum casing
- IP55 protection class for outdoor use
- 240 W RMS, 400 W peak at 4 ohms
- Optional surface mount box (wall + ceiling) with hinges for easy installation
- Available in black or white

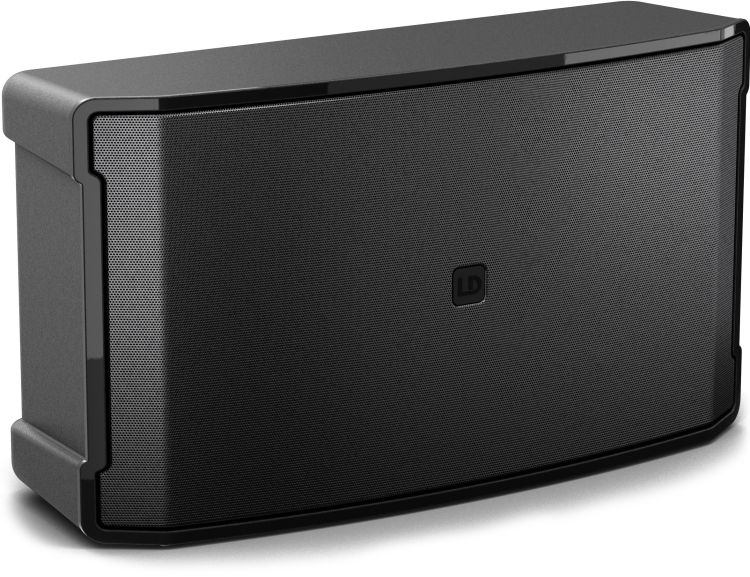

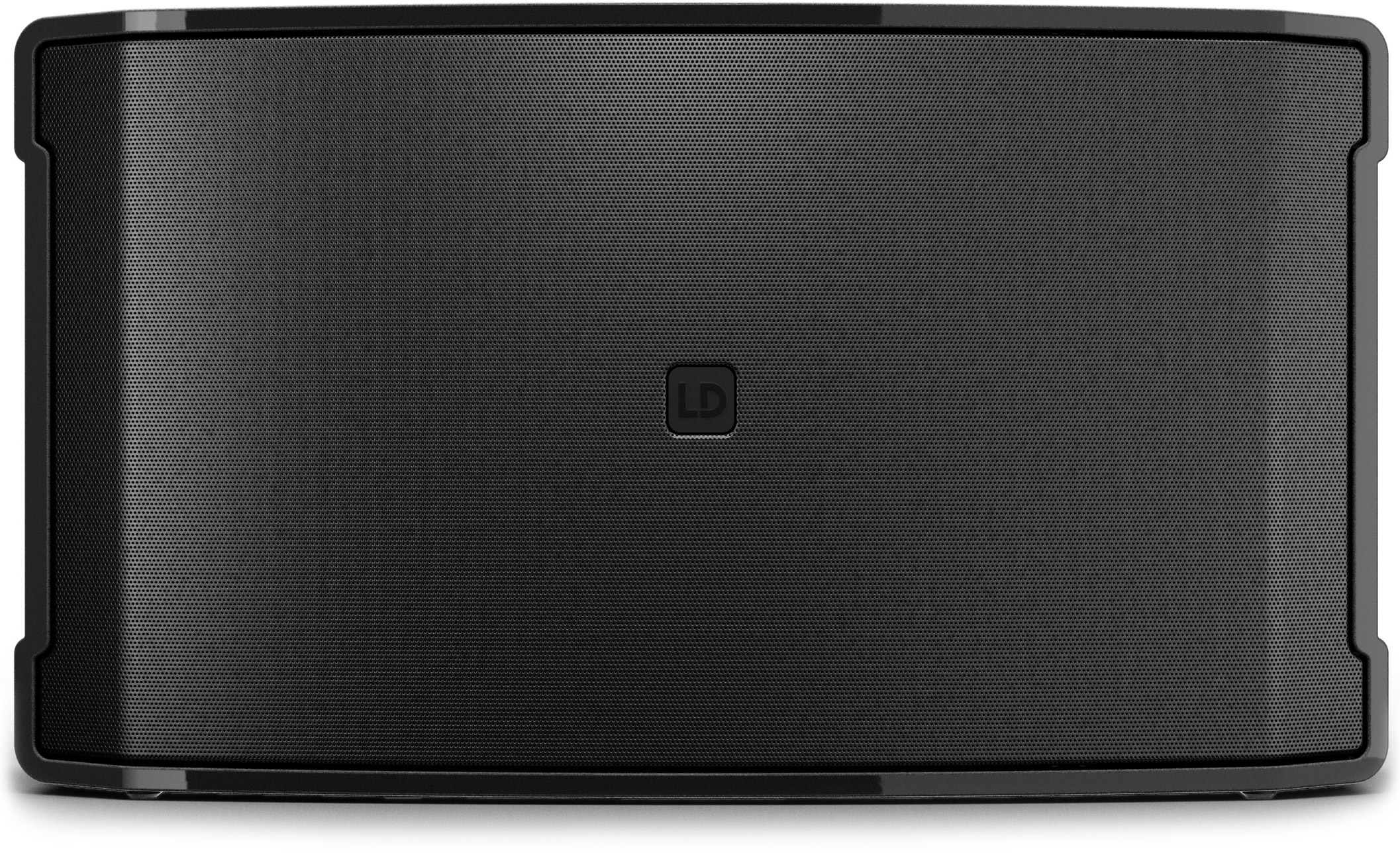

The DQOR® SUB 8 is part of the DQOR® series and is an installation subwoofer with an 8" woofer and a 10" passive radiator designed for high performance in a compact form factor. The DQOR® SUB 8 is suitable for both indoor and outdoor use and has a robust, powder-coated aluminum enclosure that ensures durability and has an IP55 rating for outdoor use.
Its clean, low-profile design makes the DQOR® SUB 8 an elegant addition to any room, combining aesthetics with powerful audio performance. With 240 W RMS and an impedance of 4 ohms, it delivers impressive sound quality with up to 108 dB SPL and an extension of low frequencies down to 37 Hz.

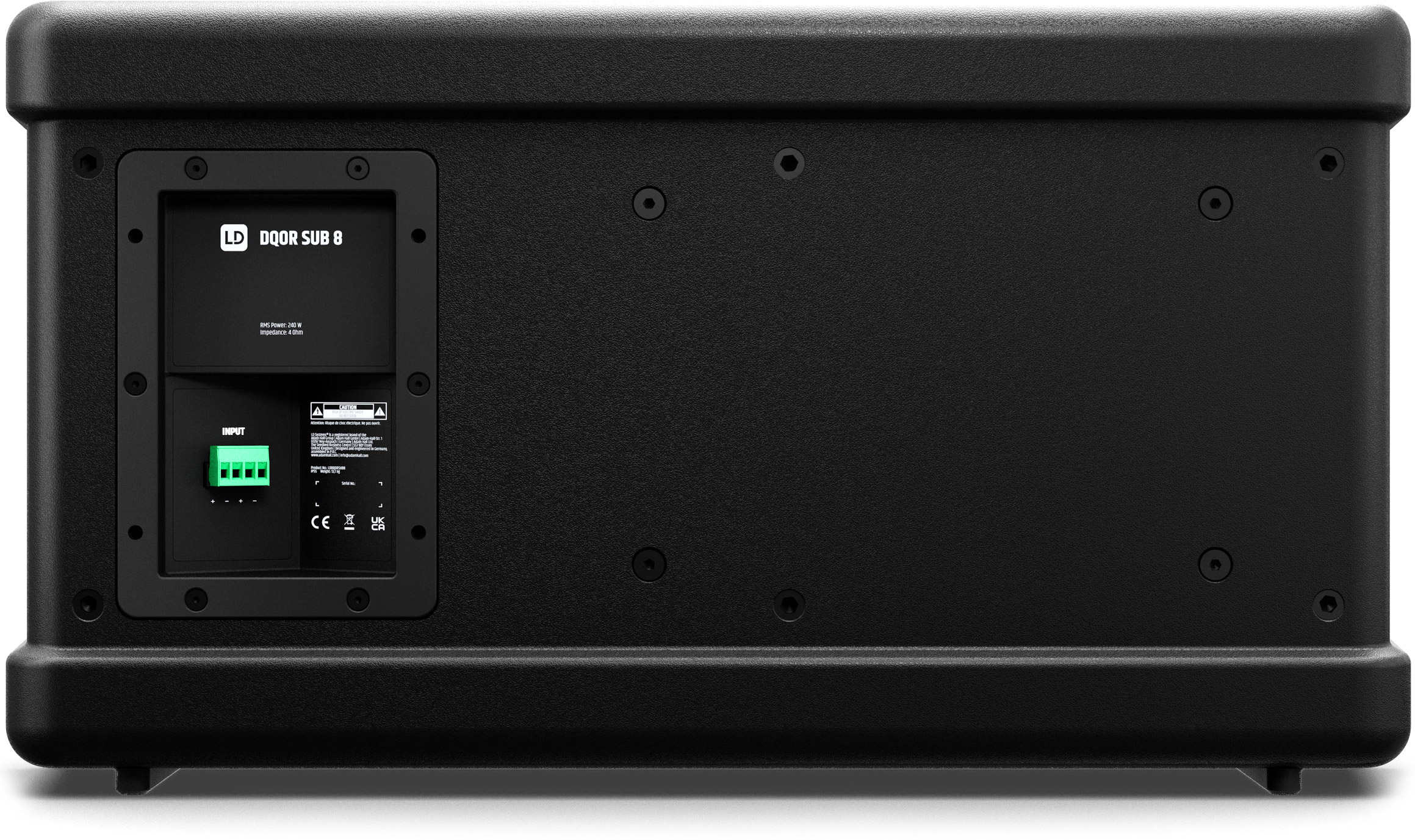

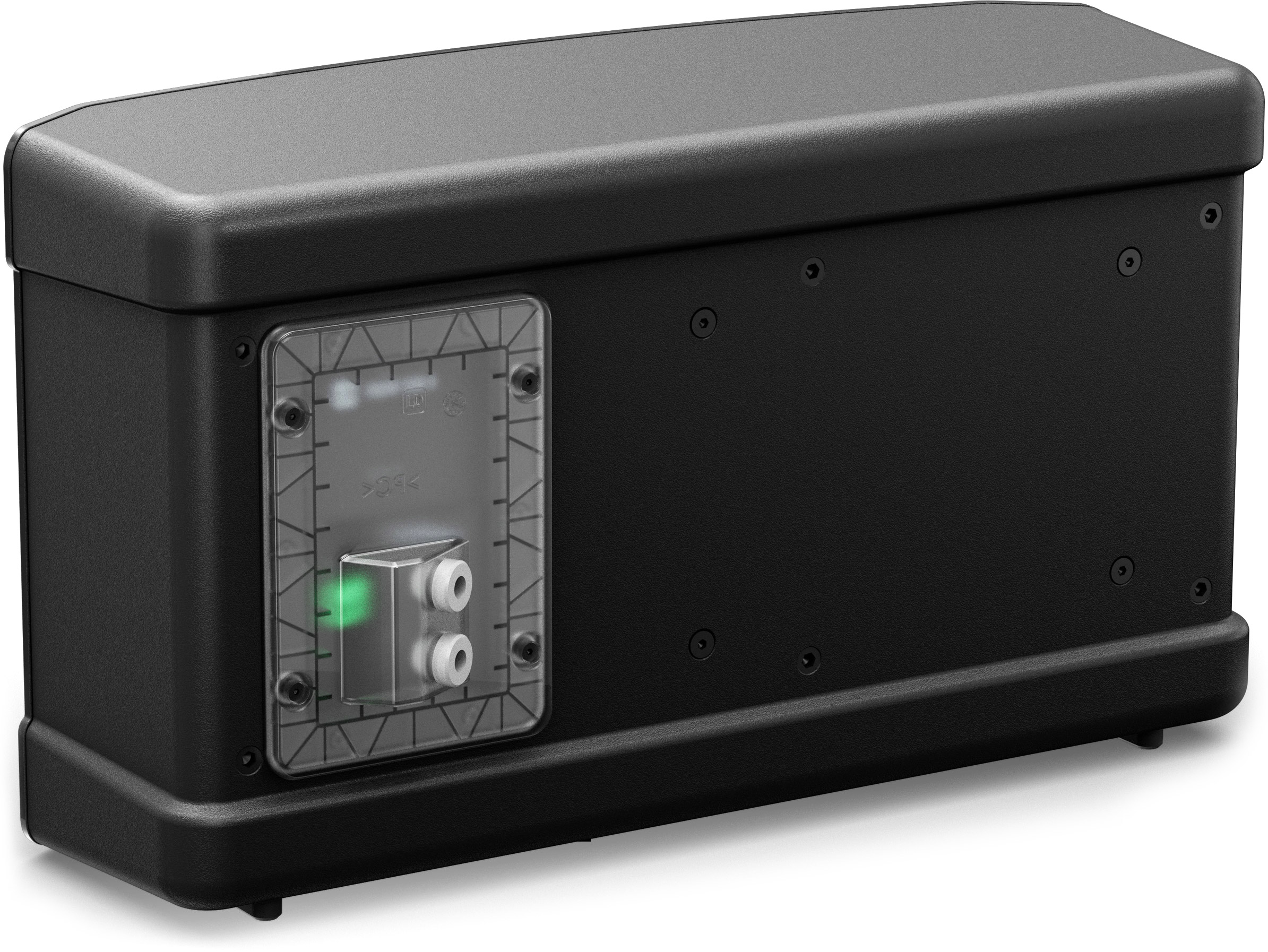

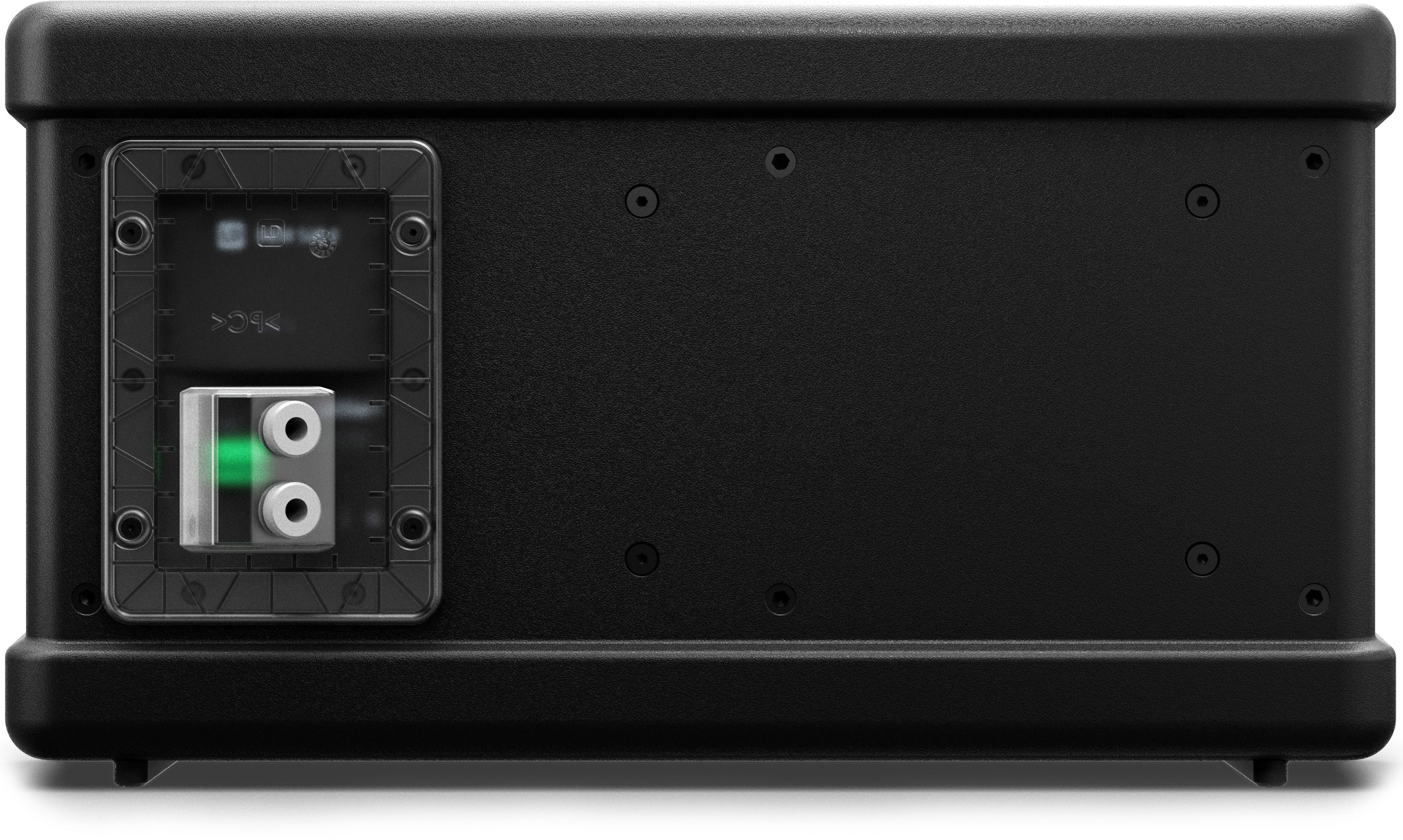

The DQOR® SUB 8 features rubber feet for floor mounting or can be easily installed with the optional surface mount bracket. This offers flexible mounting options, holes for clean cable management, locking screws, a security lock and a hinge mechanism for quick deployment. The recessed connection area with a transparent plastic cover ensures that the connections are protected from the elements.

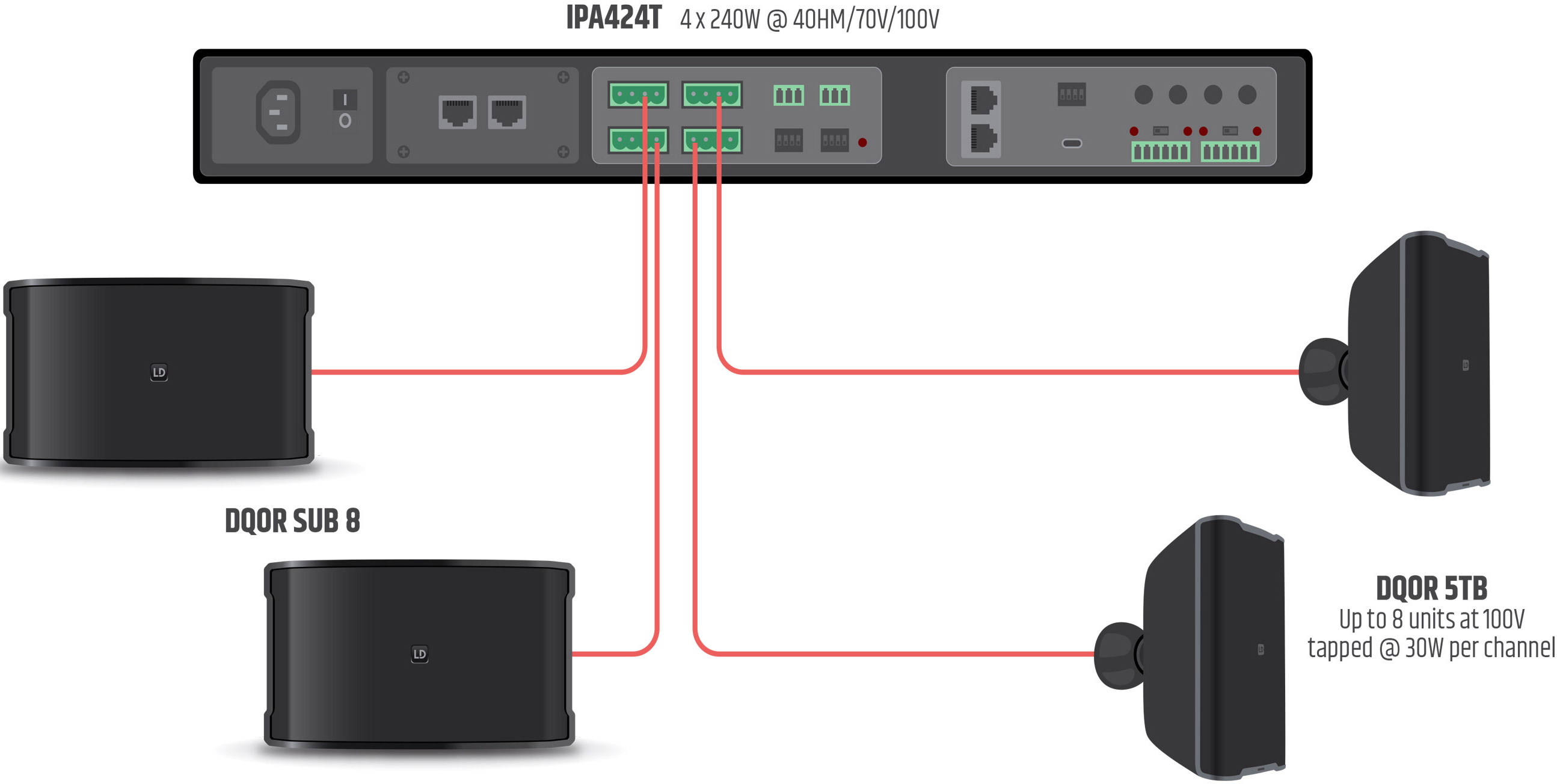

The four-pole terminal block connection allows parallel (2 ohms) or serial connections (8 ohms).
The DQOR® SUB 8 can be used in many different areas, such as hospitality, retail, entertainment or corporate.
It is available in two colors: black (RAL9005) and white (RAL9016).
Technical data:General| Polarization pattern: | omnidirectional |
| Peak power handling: | 400 W |
| RMS power rating: | 240 W |
| SPL (1 W/1 m): | 86 dB |
| Max. SPL Peak (Sine Burst, Fullspace/1 m, THD=10 %): | 108 dB |
| Impedance: | 4 O |
| crossover frequency: | 200 Hz |
| Number of inputs: | 1 |
| Connection types Inputs: | 4-pole terminal block / 5.08 mm pitch |
| color: | Black. |
| RAL color code: | RAL 9005 |
| Frequency response (-3 dB, rel. Avg): | 43 - 200 Hz |
| Size: | 8 ? |
| Magnet: | Ferrite |
| Voice coil: | 2.5 ? |
| Passive radiator: | 10 ? |
| Housing material: | die-cast aluminum, plastic |
| Front grille material: | aluminum |
| Protection type: | IP55 |
| Ambient temperature: | -30 - 50 °C |
| Maximum humidity (non-condensing): | 85% |
| width: | 537 mm |
| Height: | 303 mm |
| Depth: | 205 mm |
| Weight: | 13.7 kg |
