OMNITRONIC ODX-212TM Installation Speaker 100V dark grey
€469.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 200021645
EAN: 4026397703214
MPN: 11036965
Weather-proof 12" wall speaker with top-quality sound, incl. mount, 300 W RMS Well-balanced... more
All information about the product:
"OMNITRONIC ODX-212TM Installation Speaker 100V dark grey"

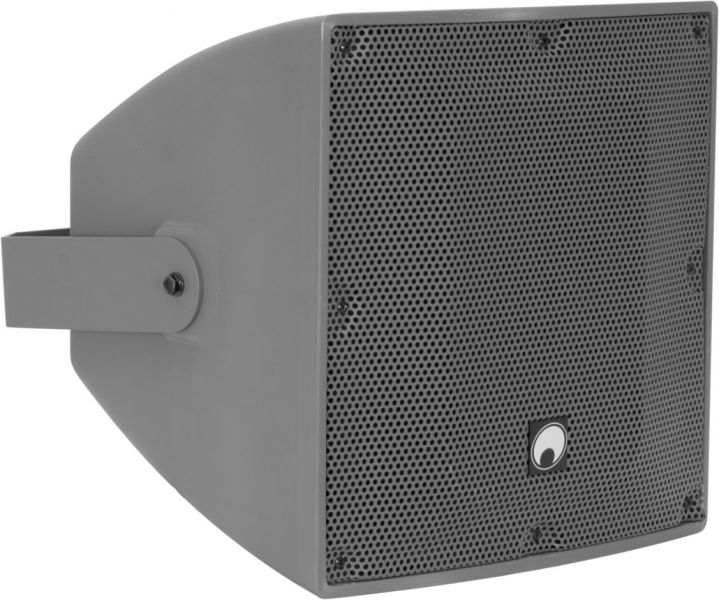

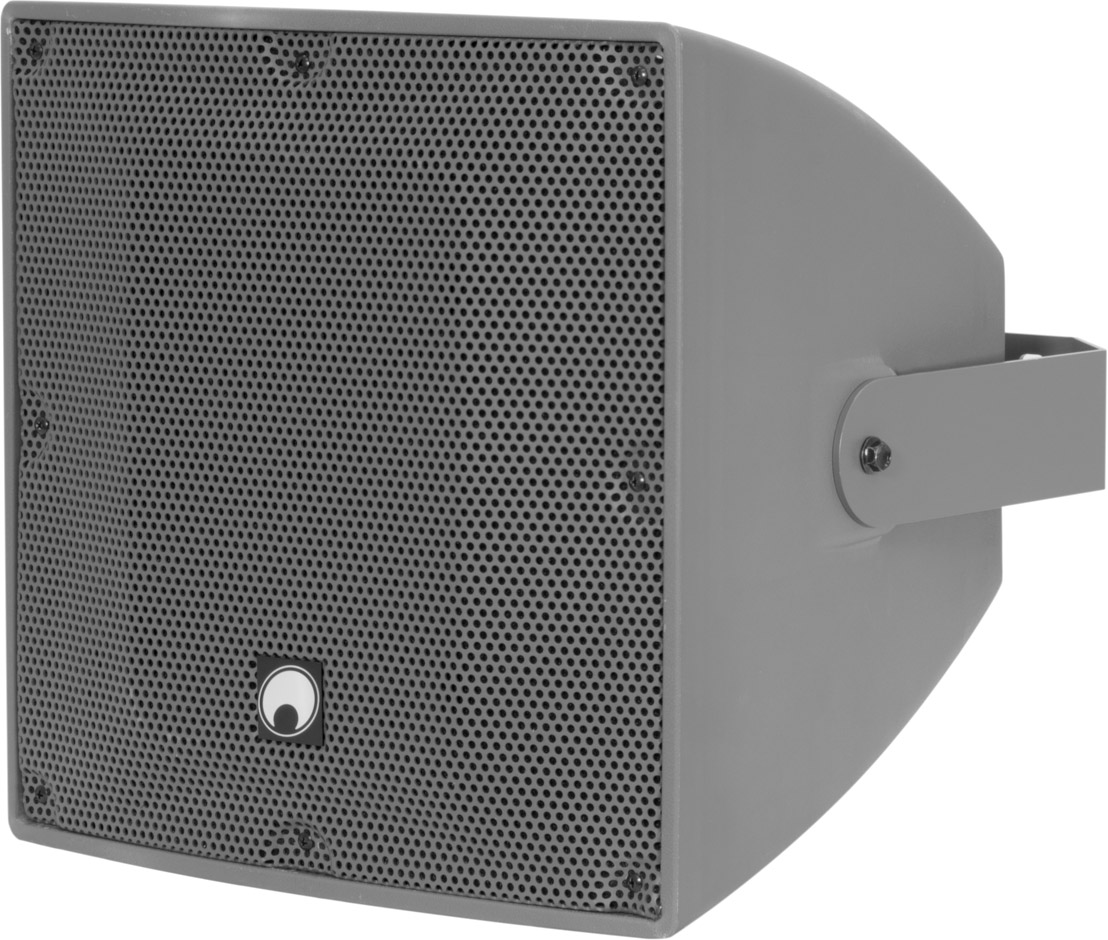

Weather-proof 12" wall speaker with top-quality sound, incl. mount, 300 W RMS
- Well-balanced sound

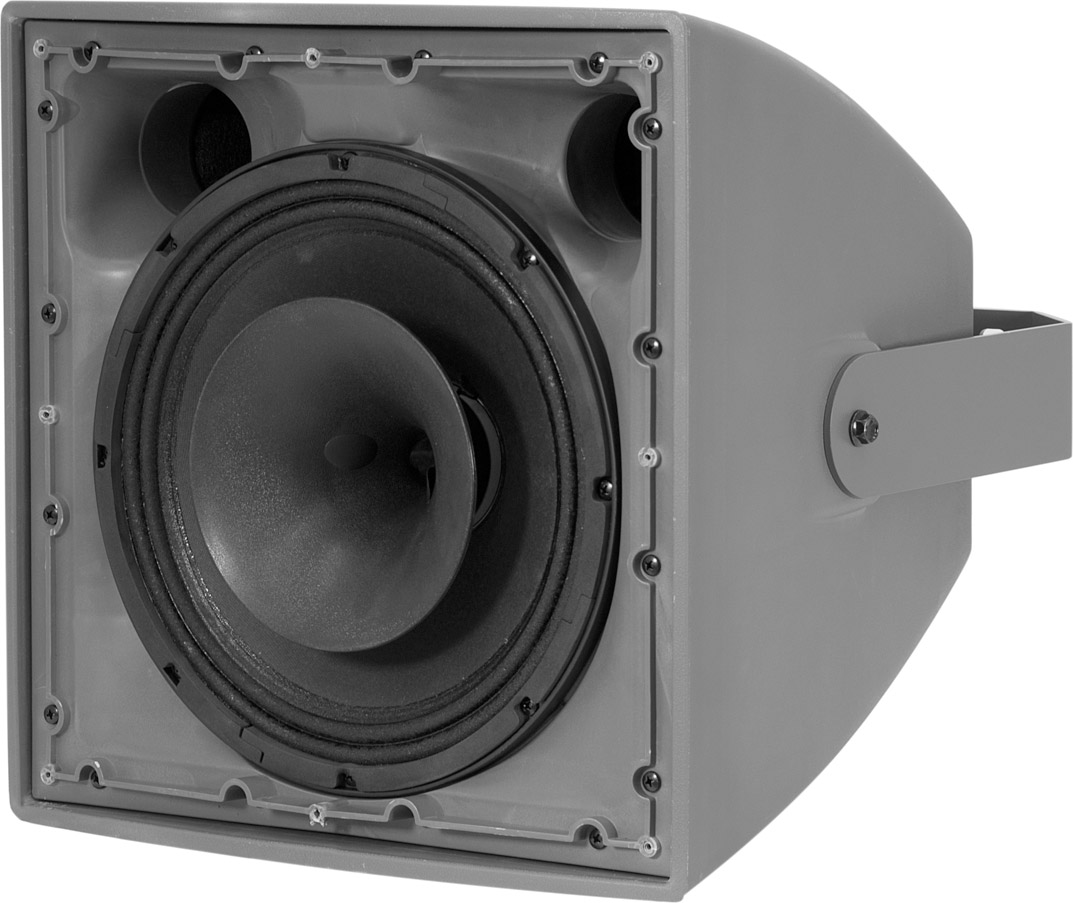

- 2-way coaxial system with 30 cm woofer (12") and 4 cm tweeter (1.7")

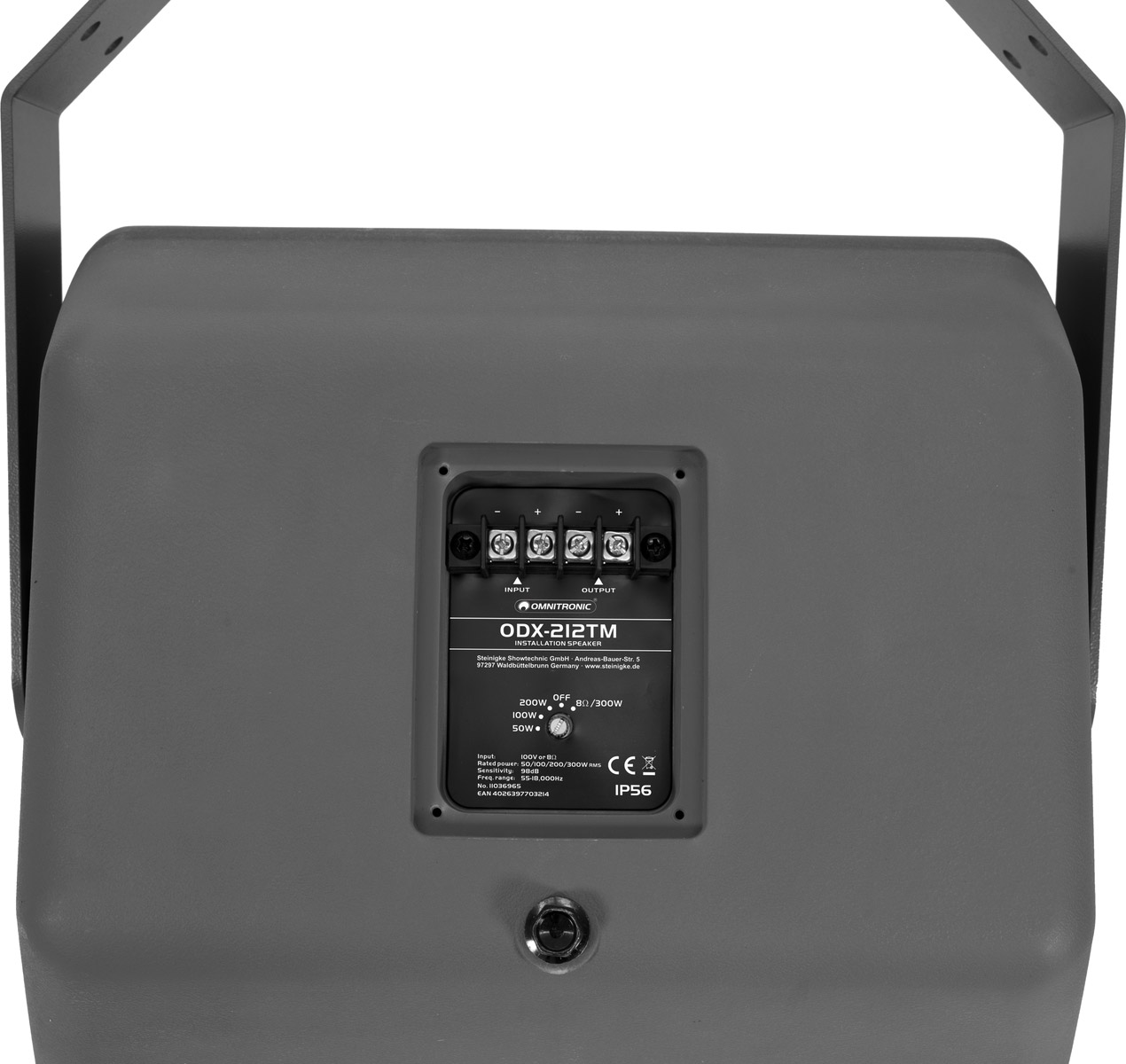

- Power selector switch with 8 ohms operating position
- Screw terminals for parallel connection

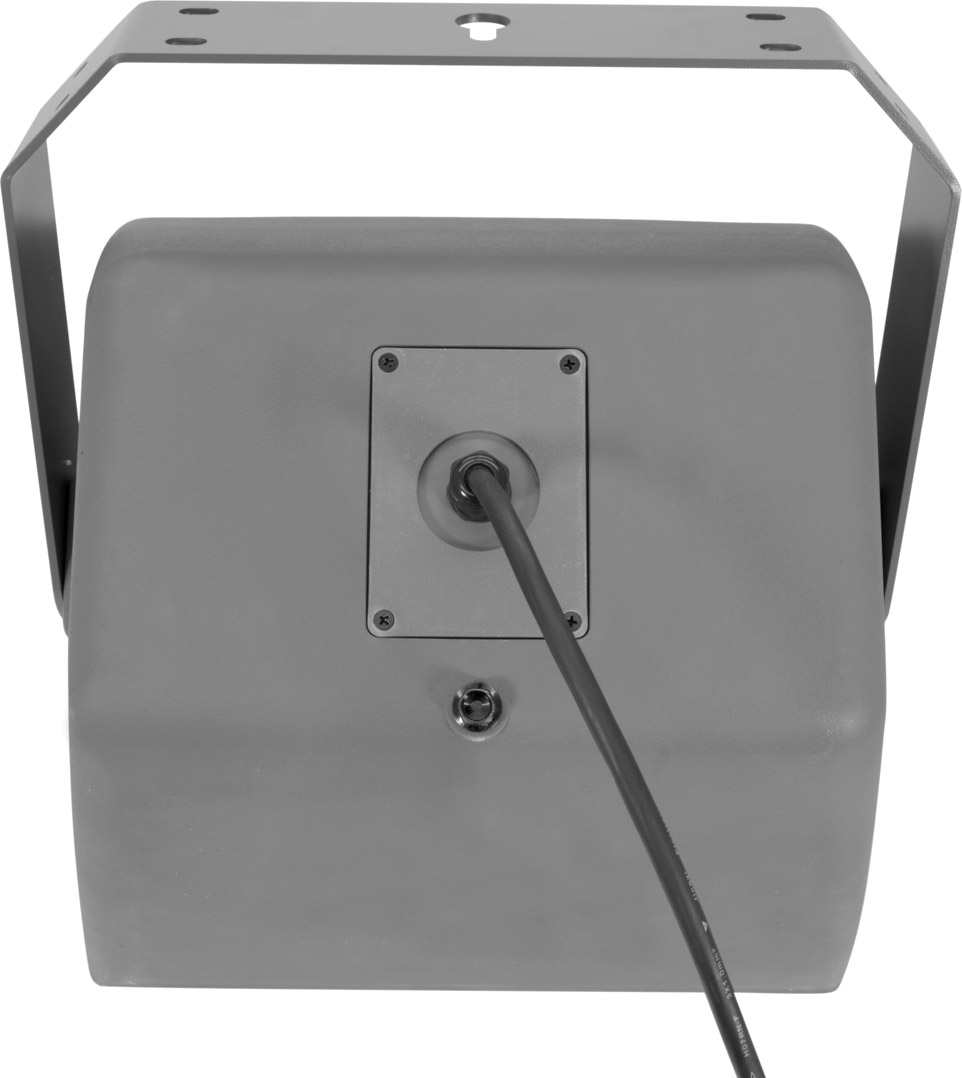

- With Mounting bracket
- Grey aluminum grille with acoustic foam
- Suitable for outdoor use IP56
Package contents
- 1 x top, 1 x mounting bracket, 1 x user manual, 6 x screw, 1 x safety eyelet, 1 x lid, 2 x washer
| IP classification: | IP56 |
| Power: | Program: 600W Rated: 300W RMS |
| Frequency range: | 55 - 18000 Hz |
| Sensitivity: | 98 dB (1W/1m) |
| Max. SPL: | 123 dB |
| Dispersion angle: | 80° x 80° |
| Impedance: | 8 ohms; Public address systems 100V |
| Attachment system: | Mounting bracket |
| Power tapping: | 50W; 100W; 200W RMS via Selector switch switchable |
| Connections: | Input: speaker via screw terminal |
| Crossover frequency: | 2000 Hz |
| Speaker: | 1 x woofer (12") approx. 30 cm Basket material: Steel Conematerial: Cardboard/paper Voice coil lows (3") approx. 8 cm 1 x compression tweeter highs (1") approx. 2.5 cm Voice coil compression tweeter highs (1.7") approx. 4.3 cm |
| Type of speaker: | On-ceiling/on-wall speaker |
| Material: | Plastic |
| Color: | Grey |
| Dimensions: | Width: 40 cm Depth: 38 cm Height: 41 cm |
| Weight: | 19,65 kg |
