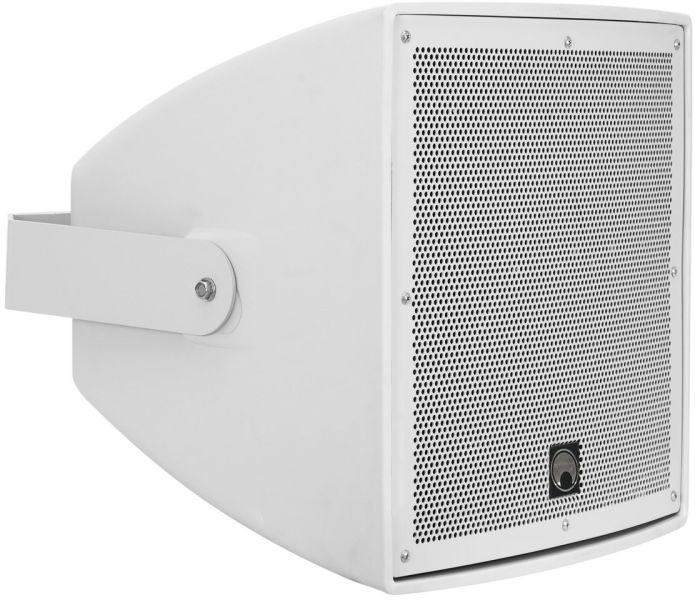

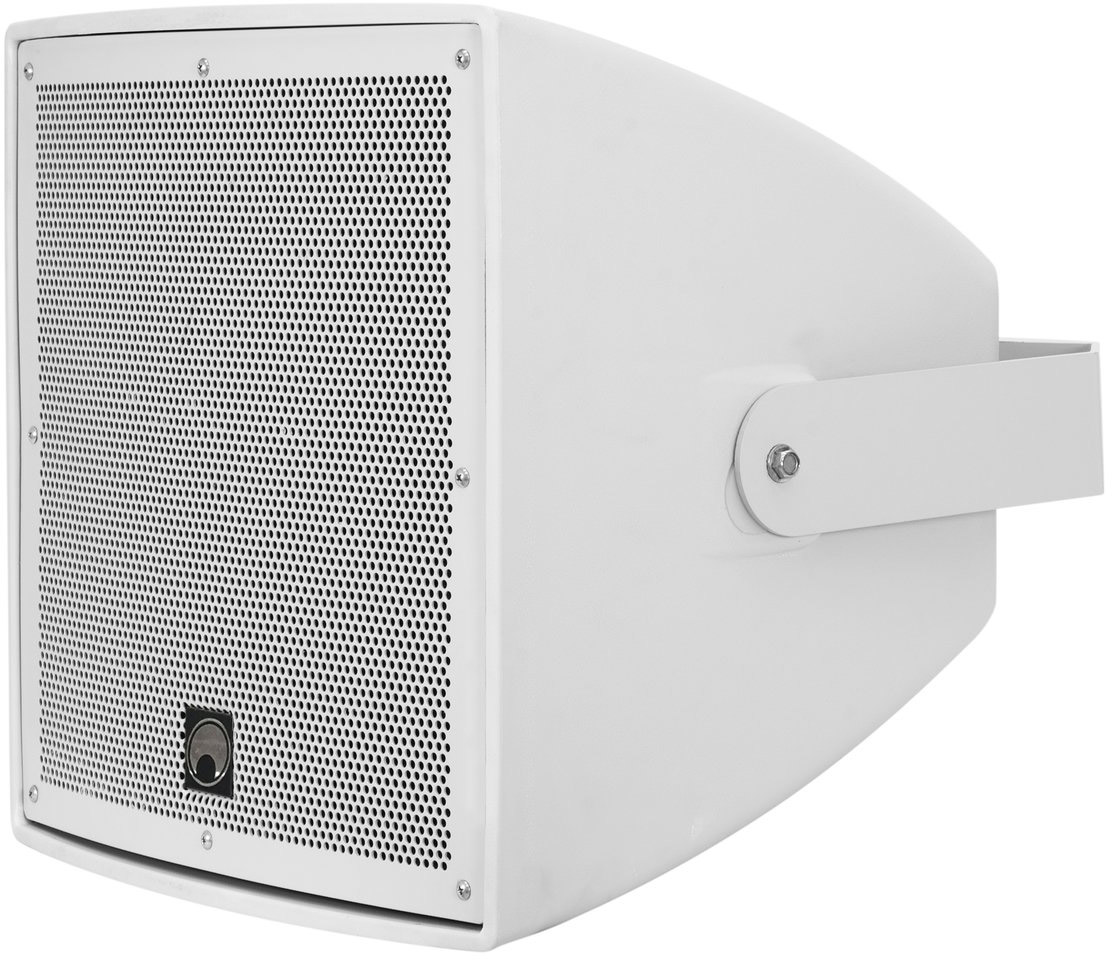

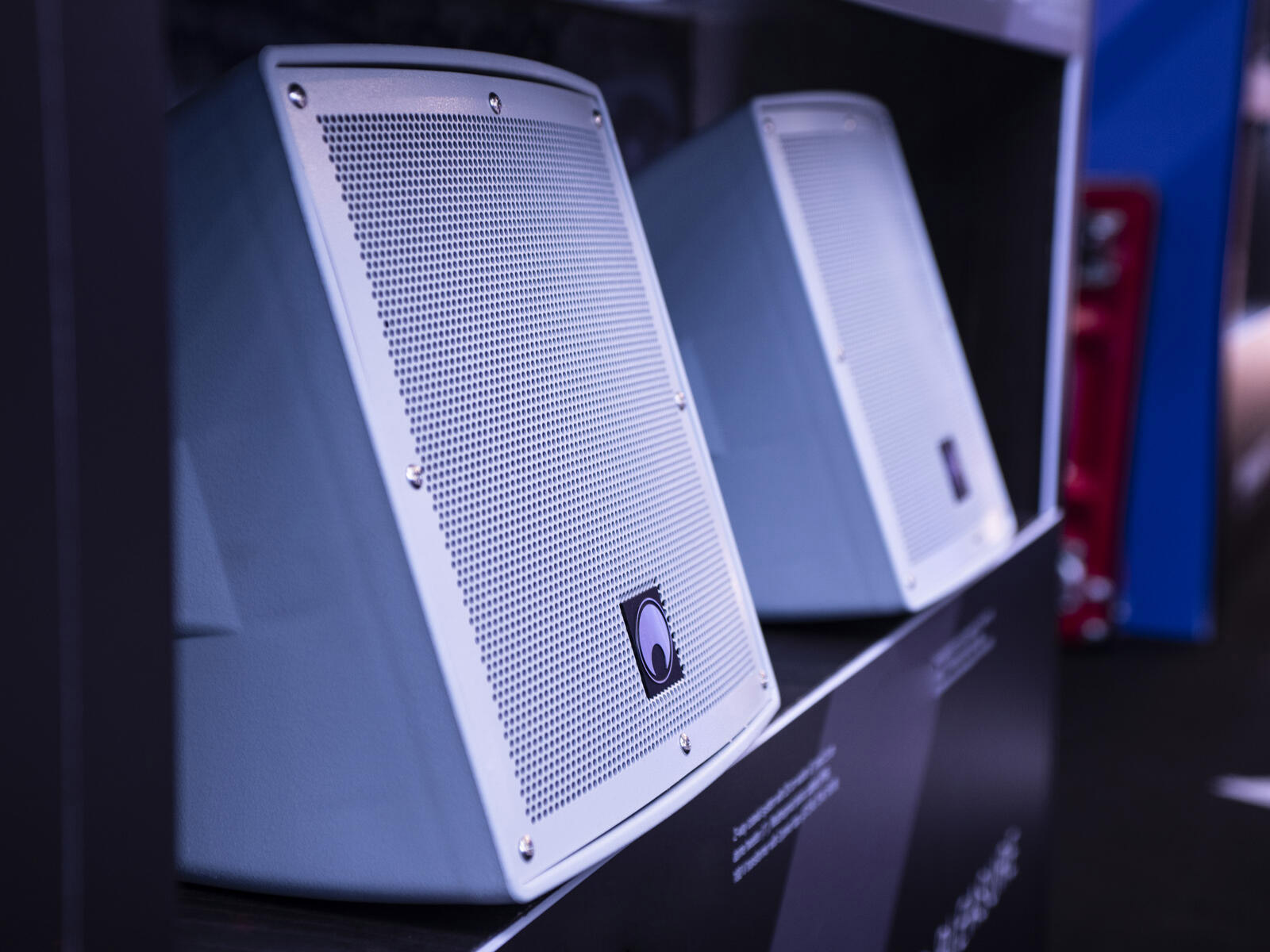

OMNITRONIC ODX-212T Installation Speaker 100V white

Weatherproof 12" wall speaker with mountThe ODX-212T 100 V sound reinforcement box by OMNITRONIC offers excellent sound and is ideally suited for outdoor use with its protection class IP56.The 2-way coaxial system is equipped with a 30 cm woofer and a 2.5 cm tweeter and a 100 V transformer with 3 power taps. In addition, the wall-mounted speaker has a power switch with an 8-ohm operating setting.The weatherproof, white plastic housing with the swivel mounting bracket can be mounted at variable angles.

Weather-proof 12" wall speaker with mount, 300 W RMS

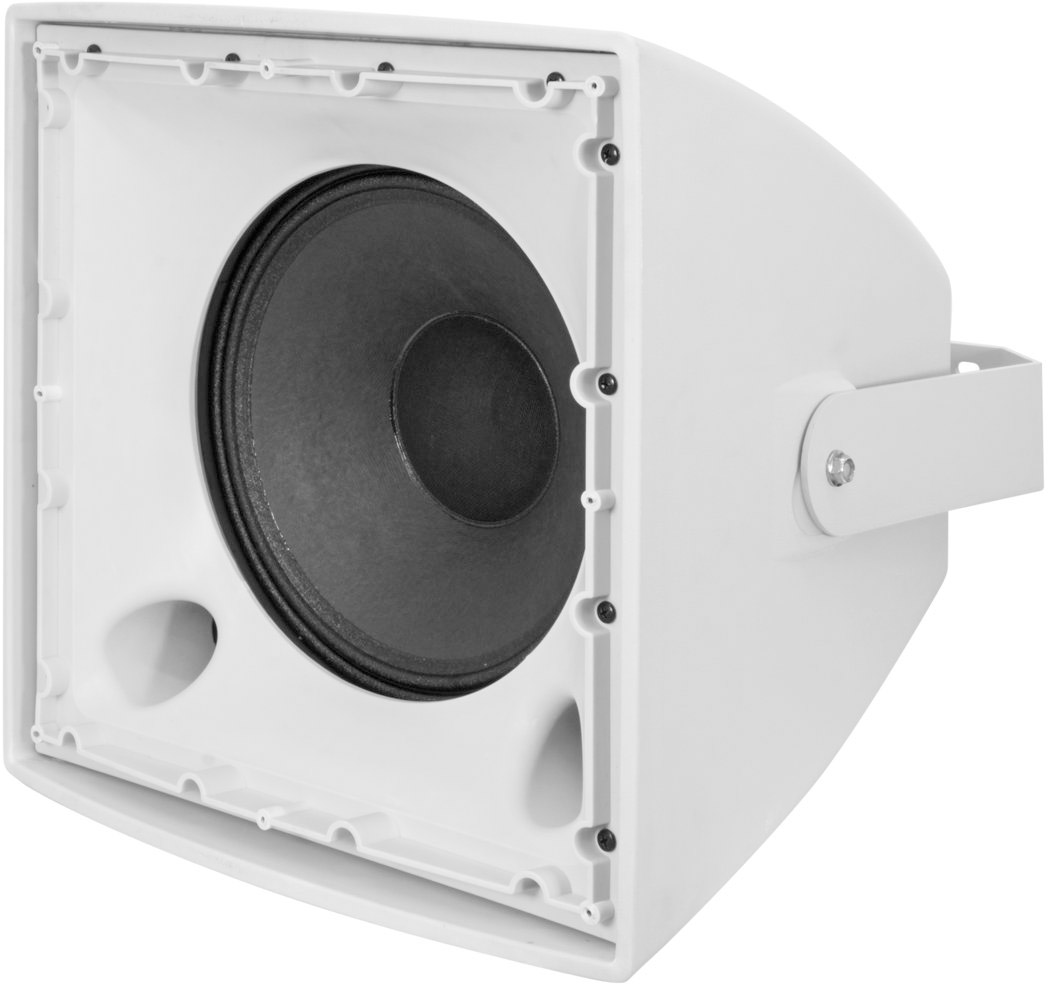

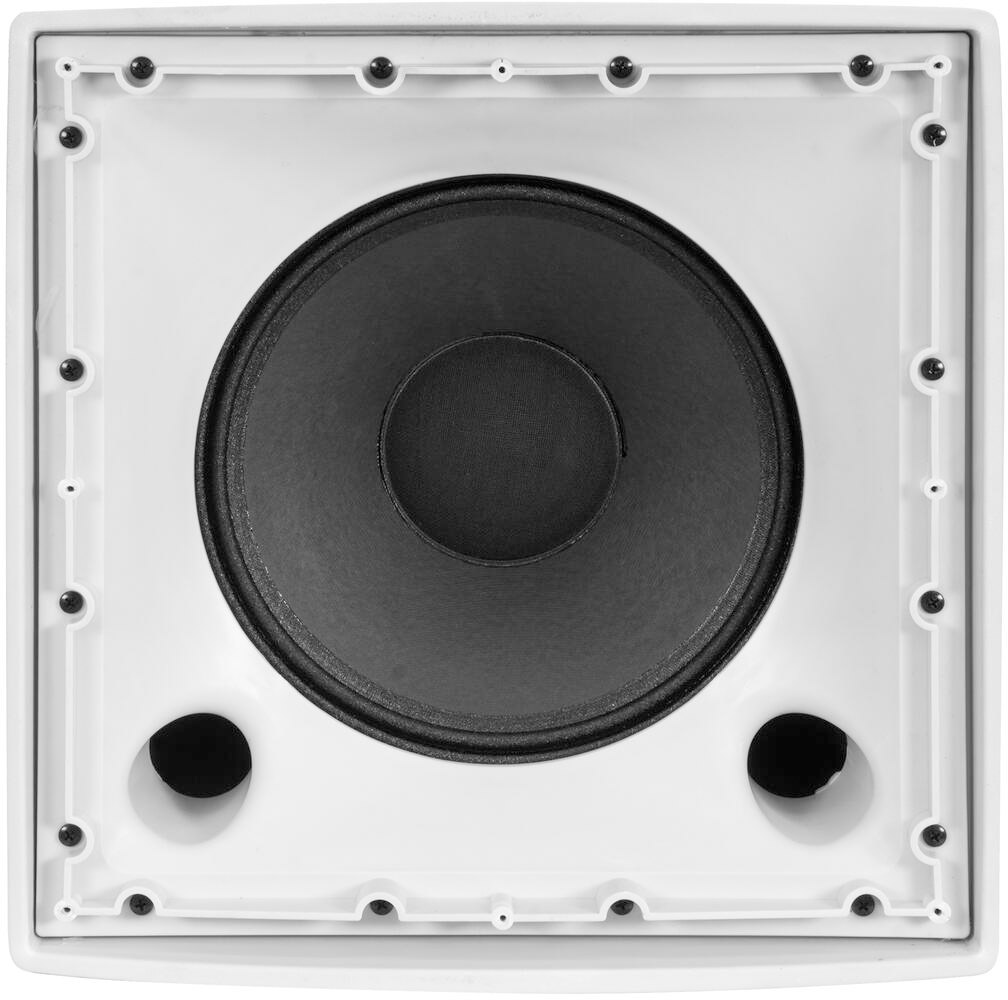

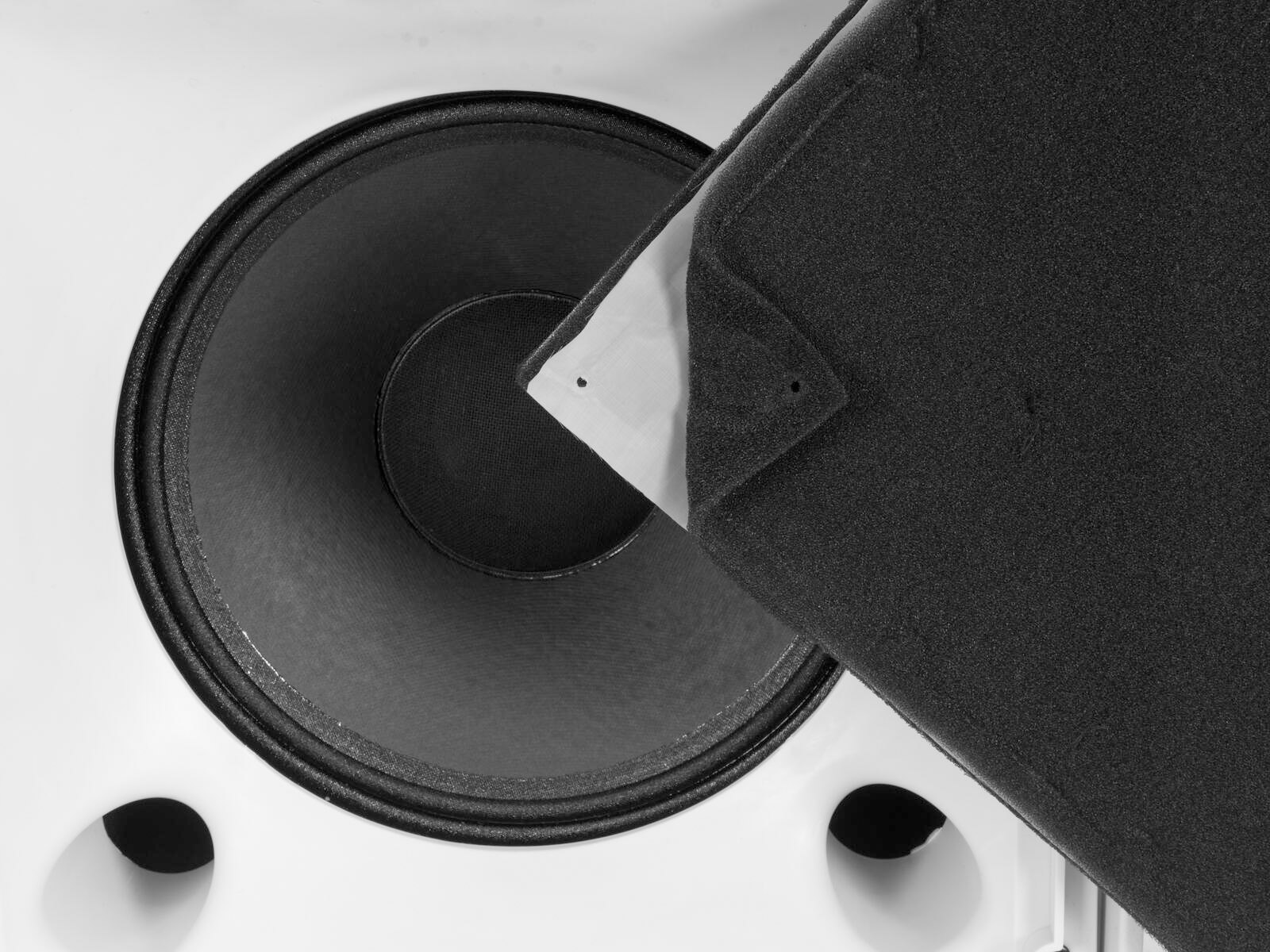

• 2-way coaxial system with 30 cm woofer (12") and 2.5 cm tweeter (1")
• Durable plastic cabinet with metal grille
• Power selector switch with 8 ohms operating position
• Screw terminals for parallel connection

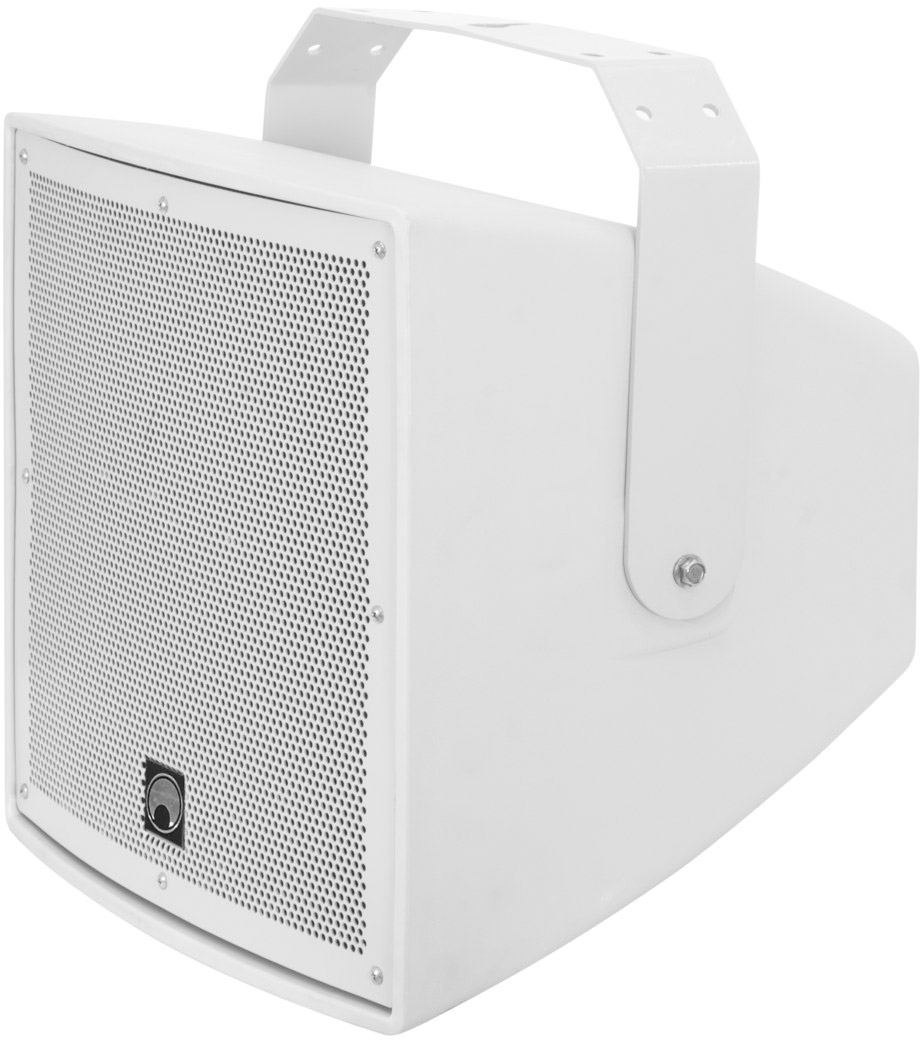

• With Mounting bracket
• Suitable for outdoor use IP56

Package contents

• 1 x top, 1 x mounting bracket, 1 x user manual, 6 x screw, 1 x safety eyelet, 1 x lid, 8 x washer

IP classification:	IP56
Power:	Program: 600W Rated: 300W RMS
Frequency range:	55 - 18000 Hz
Sensitivity:	98 dB (1W/1m)
Max. SPL:	122 dB
Dispersion angle:	80° x 80°
Impedance:	8 ohms; Public address systems 100V
Attachment system:	Mounting bracket

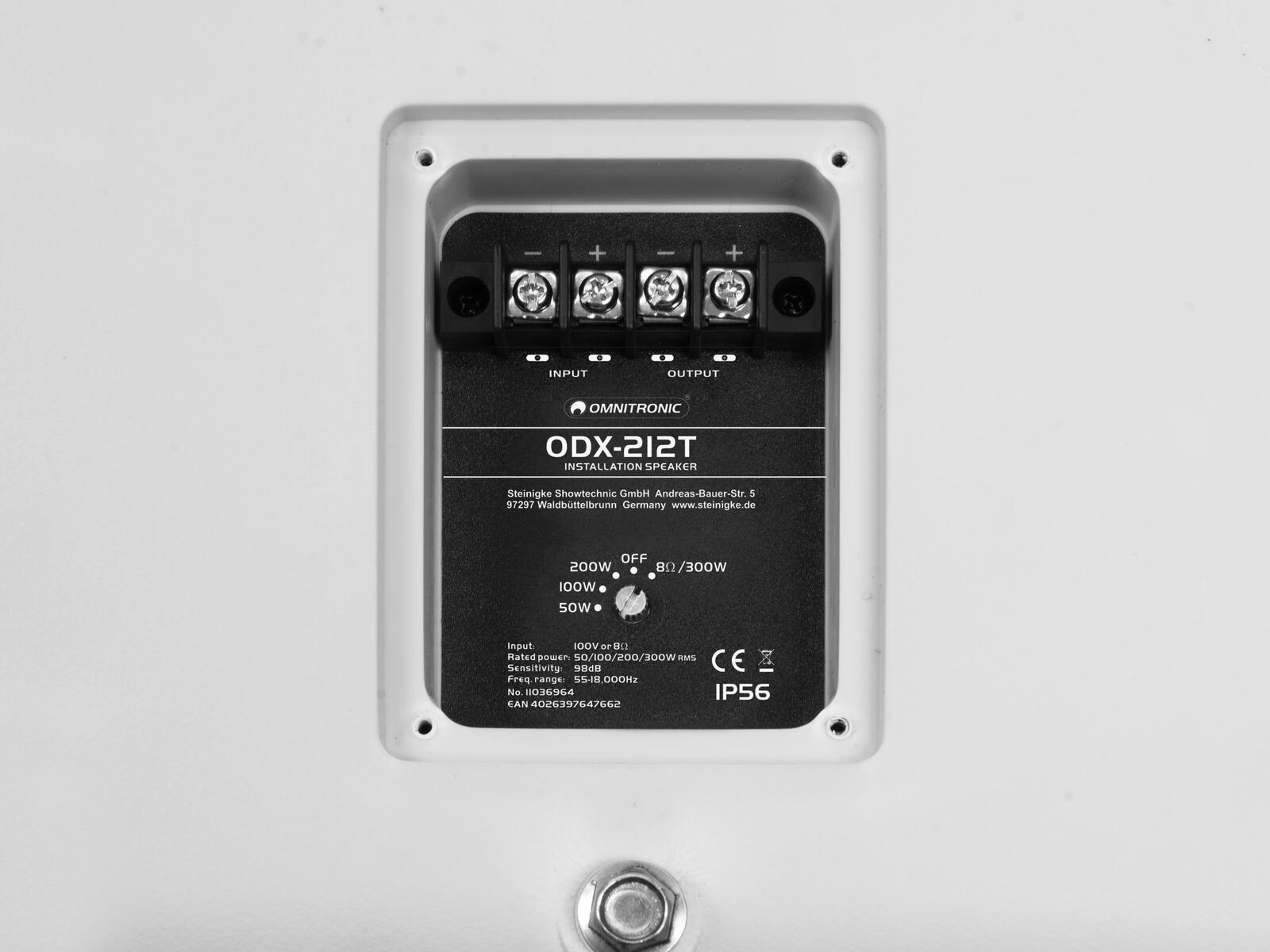

Power tapping:	50W; 100W; 200W RMS via Selector switch switchable

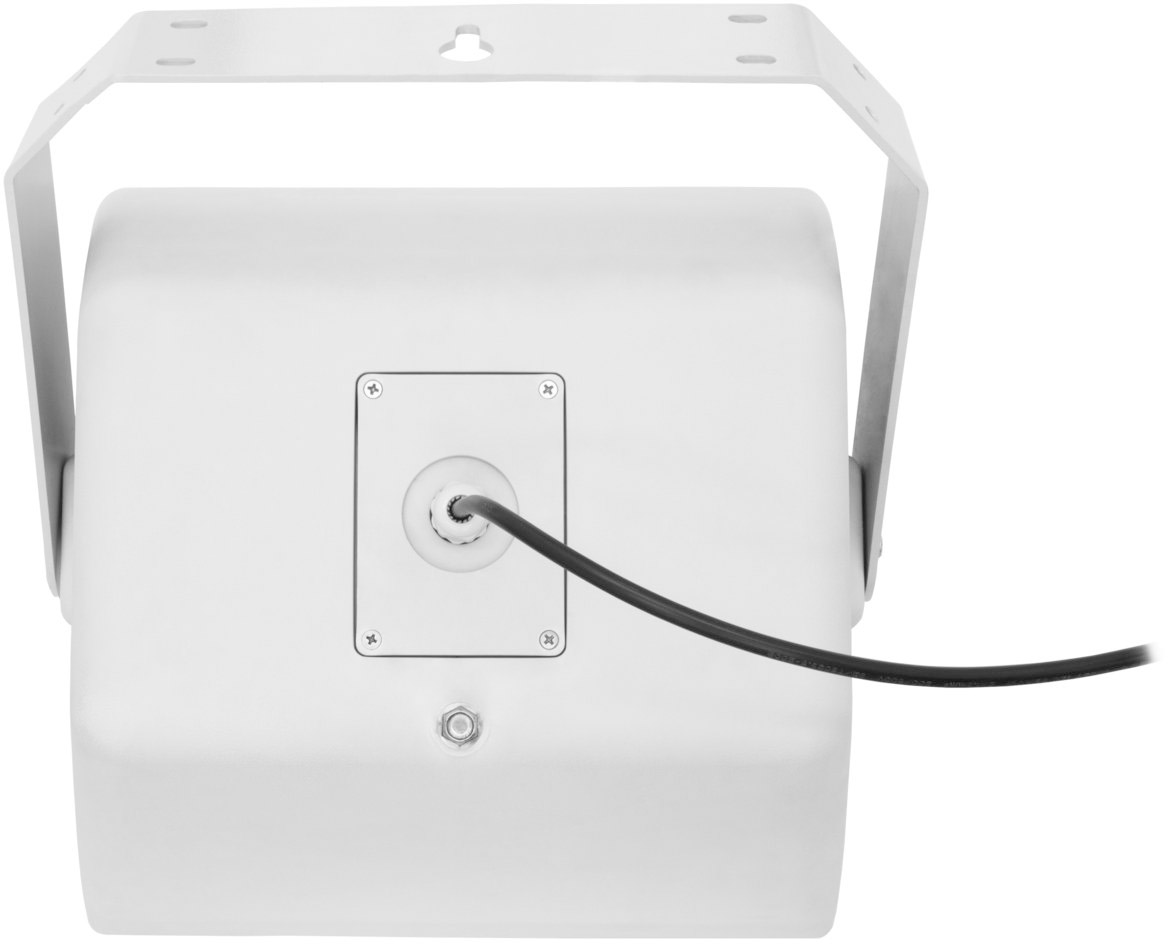

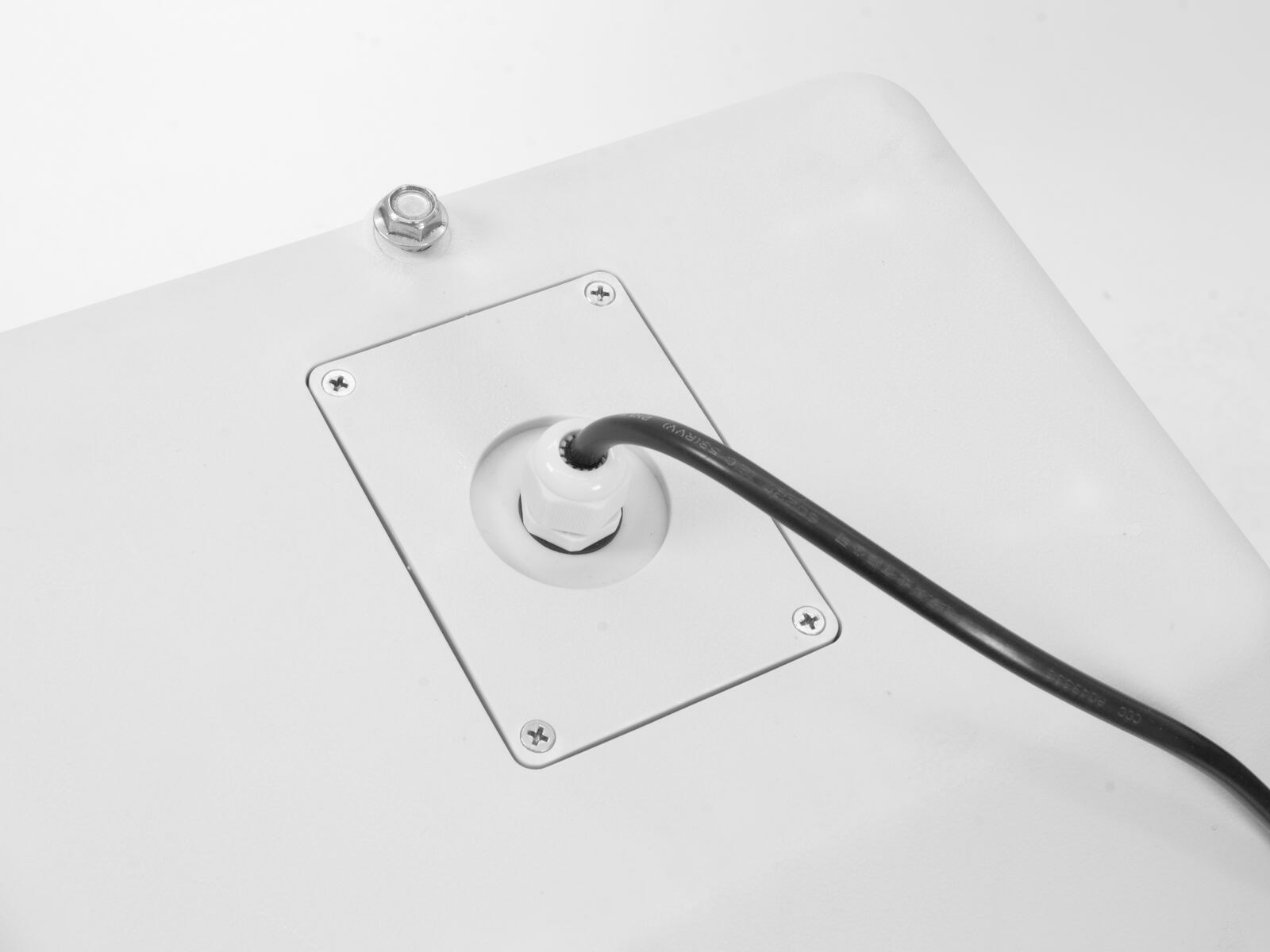

Connections:	Input: speaker via screw terminal
Crossover frequency:	2200 Hz
Speaker:	1 x woofer (12") approx. 30 cm 1 x Calottes highs (1") approx. 2.5 cm
Type of speaker:	On-ceiling/on-wall speaker
Color:	White

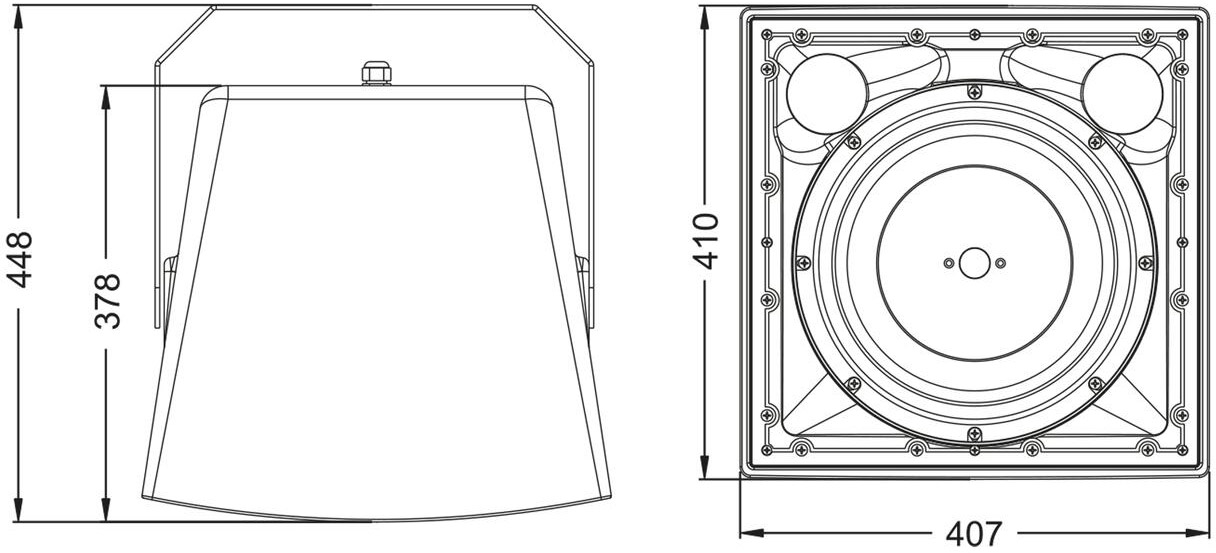

Dimensions:	Width: 45 cm Depth: 41,5 cm Height: 42 cm
Weight:	19,95 kg
