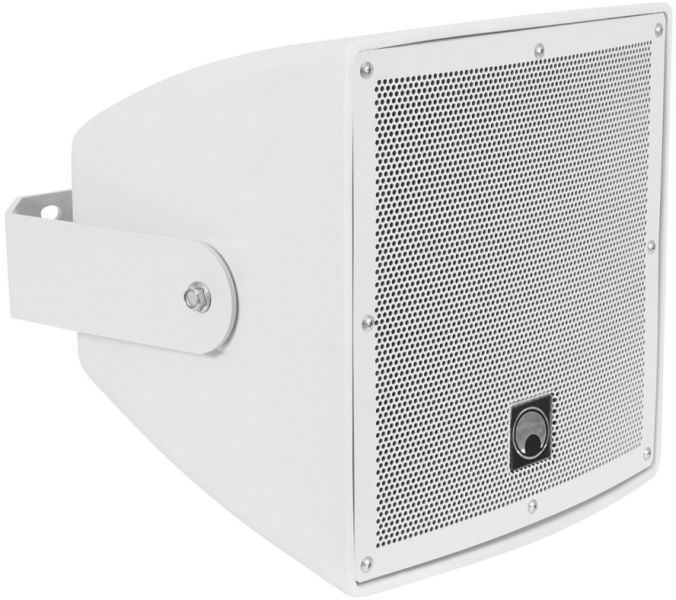

OMNITRONIC ODX-208T Installation Speaker 100V white
€335.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 200020205
EAN: 4026397647655
MPN: 11036962
Weather-proof 8" wall speaker with mount, 150 W RMS 2-way coaxial system with 20 cm woofer... more
All information about the product:
"OMNITRONIC ODX-208T Installation Speaker 100V white"
Weather-proof 8" wall speaker with mount, 150 W RMS

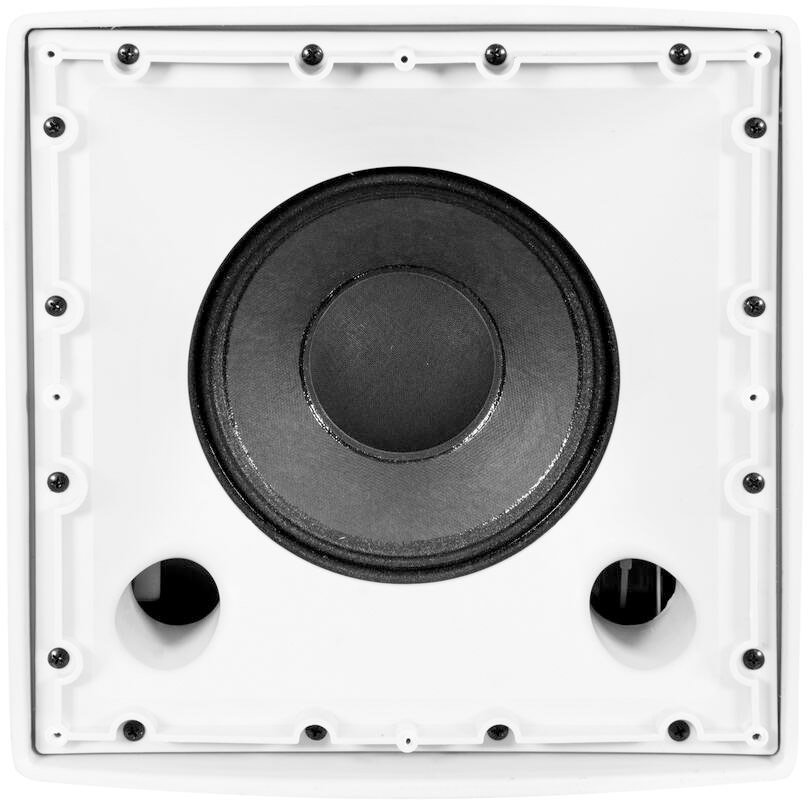

- 2-way coaxial system with 20 cm woofer (8") and 2.5 cm dome tweeter (1")
- Durable plastic cabinet with metal grille

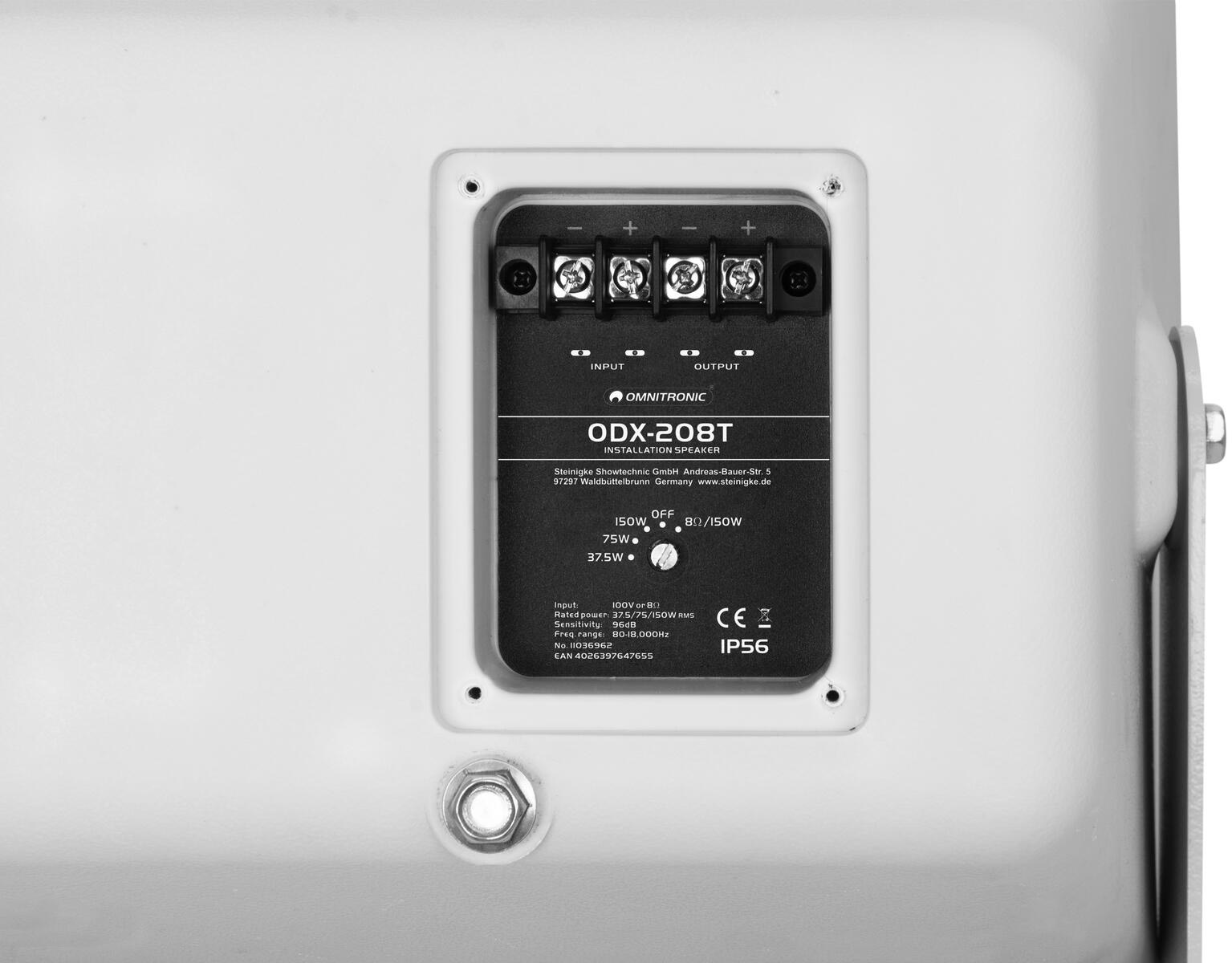

- Power selector switch with 8 ohms operating position
- Screw terminals for parallel connection

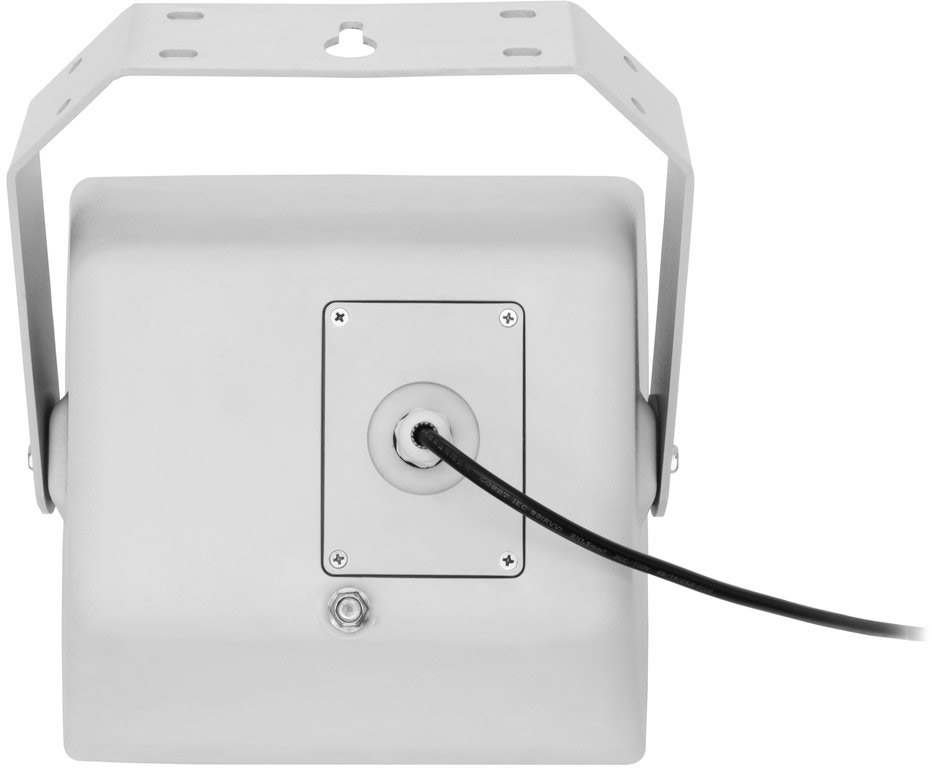

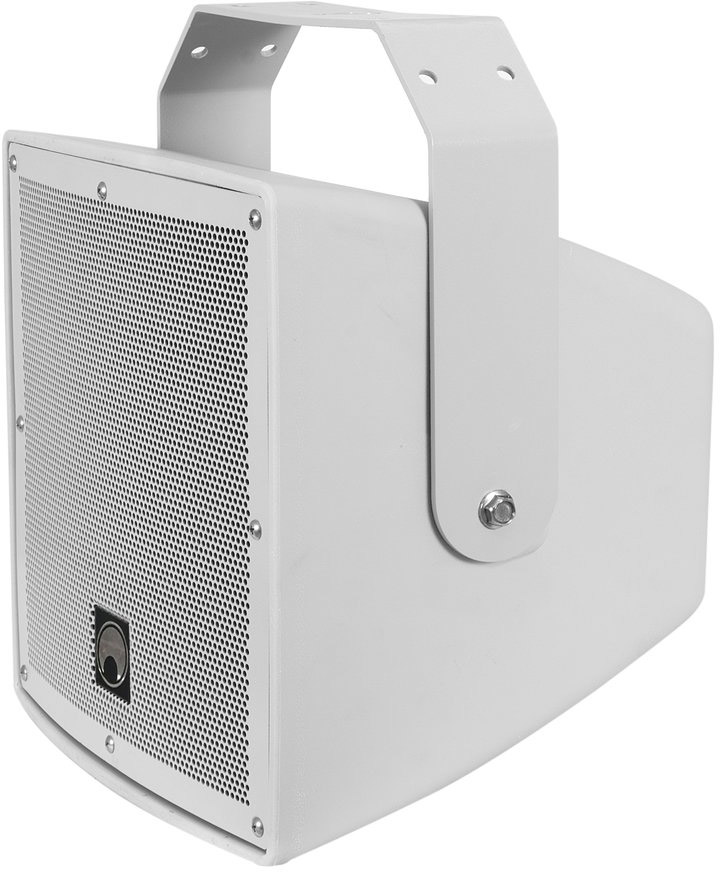

- With Mounting bracket
- Suitable for outdoor use IP56
Package contents
- 1 x top, 1 x mounting bracket, 1 x user manual, 6 x screw, 1 x safety eyelet, 1 x lid, 2 x washer
| IP classification: | IP56 |
| Power: | Program: 300W Rated: 150W RMS |
| Frequency range: | 80 - 18000 Hz |
| Sensitivity: | 96 dB (1W/1m) |
| Max. SPL: | 117 dB |
| Dispersion angle: | 100° x 100° |
| Impedance: | 8 ohms; Public address systems 100V |
| Attachment system: | Mounting bracket |
| Power tapping: | 37,5W; 75W; 150W RMS via Selector switch switchable |

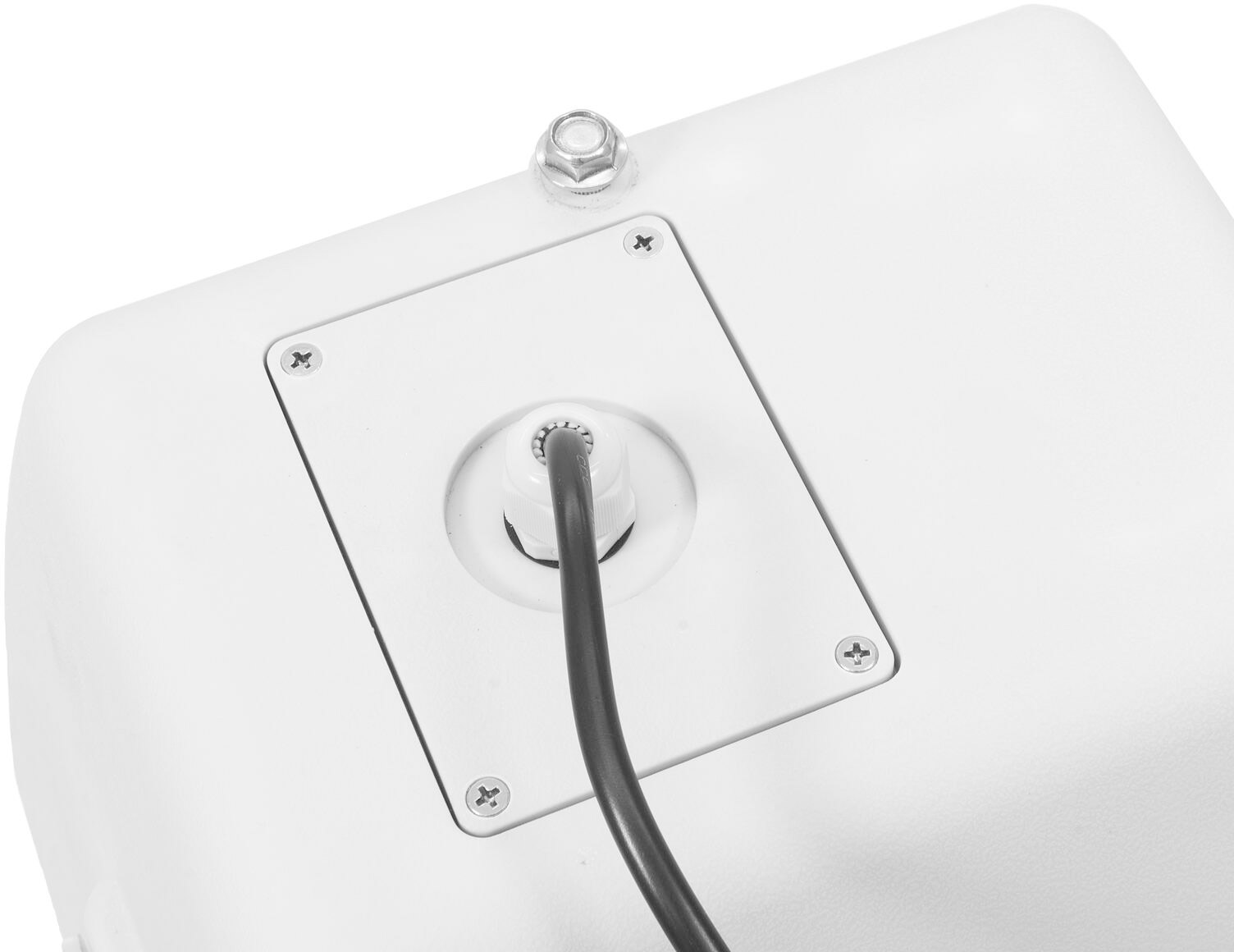

| Connections: | Input: speaker via screw terminal |
| Crossover frequency: | 2500 Hz |
| Speaker: | 1 x woofer (8") approx. 20 cm Voice coil lows (2") approx. 5 cm 1 x Calottes highs (1") approx. 2.5 cm Voice coil calotte tweeter (1") approx. 2.5 cm |
| Type of speaker: | On-ceiling/on-wall speaker |
| Color: | White |

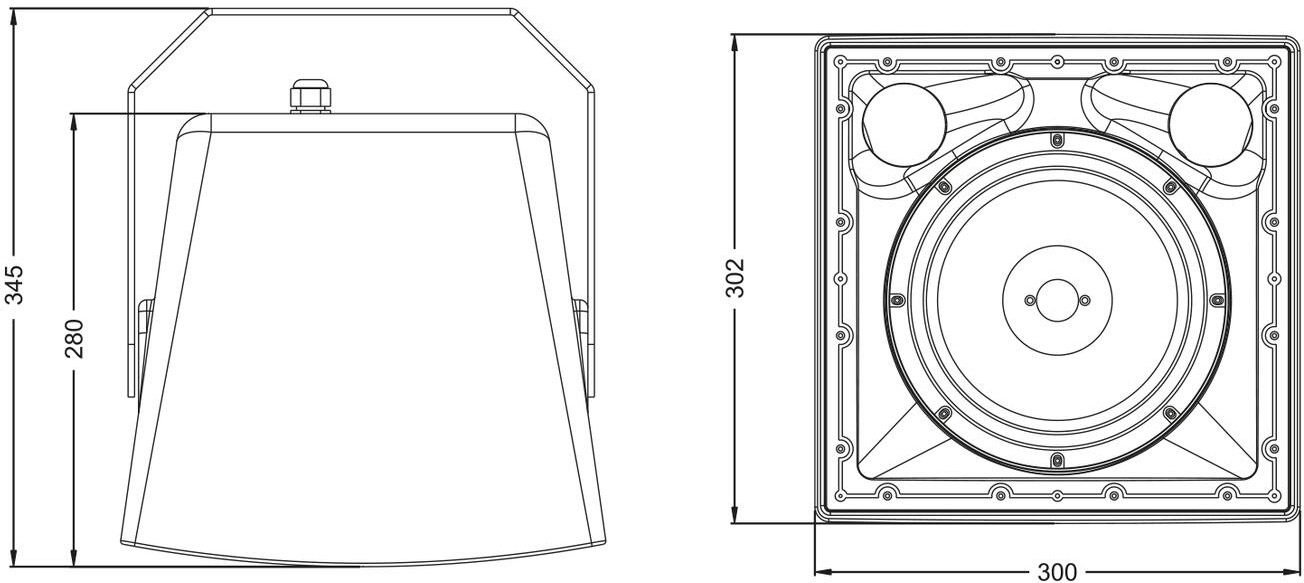

| Dimensions: | Width: 35 cm Depth: 30,8 cm Height: 31 cm |
| Weight: | 10,75 kg |
