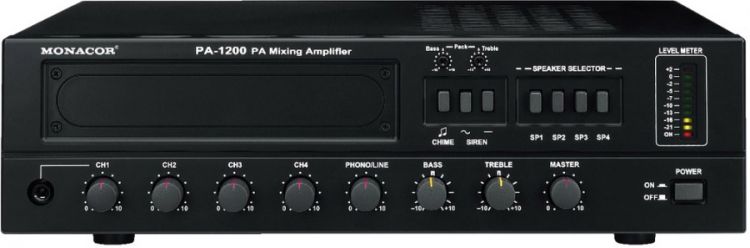

MONACOR PA-1200 4-zone mono PA mixing amplifier
€451.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250111200
EAN: 4007754097481
MPN: 0170710
4-zone mono PA mixing amplifier 1 x 120 W Silent operation due to fanless cooling... more
All information about the product:
"MONACOR PA-1200 4-zone mono PA mixing amplifier"
4-zone mono PA mixing amplifier
- 1 x 120 W
- Silent operation due to fanless cooling concept
- Chime, continuous sound and wailing sound, automatic mute, chime can also be activated via external momentary push-button, 2-tone chime or 4-tone chime (selectable)
- Bass, treble and master controls, level display via LEDs
- 15 V phantom power for channels 2 and 3
- Insertions for various functions are available at option
- 482 mm (19") rack installation with mounting frame PA-1200RM, available at option
- Mains operation and 24 V emergency power operation
| Peak output power: | 170 W |
| Power rating: | 120 W |
| Channels: | 5 |
| Zones: | 4 |
| Inputs: | 1.5 mV/600 O (mic), 150 mV/47 kO (line), 1 mV/47 kO (phono) |
| Frequency range: | 80-15,000 Hz |
| Equalizer bass: | ± 10 dB/100 Hz |
| Equalizer treble: | ± 10 dB/10 kHz |
| S/N ratio: | > 60 dB (mic), > 70 dB (line) |
| THD: | |
| Phantom power: | 15 V |
| Mains voltage: | ~ 230 V |
| Mains frequency: | 50 Hz |
| Power consumption, operation: | 280 VA |
| Operating voltage (possible alternative): | DC 24 V |
| Power supply (possible alternative): | DC 11 A |
| Admiss. ambient temp.: | 0-40 °C |
| Width: | 420 mm |
| Height: | 122 mm |
| Depth: | 350 mm |
| Weight: | 12.28 kg |

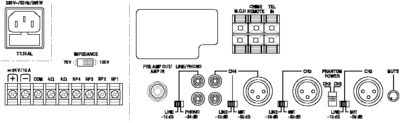

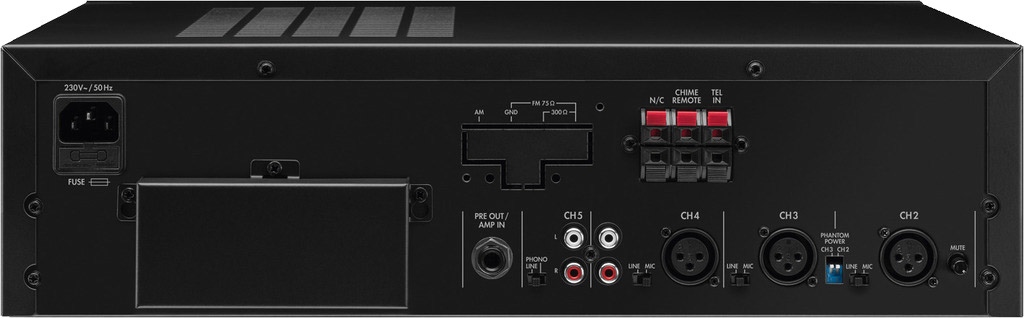

| Connections: | 1 x 6.3 mm jack (mic input), 3 x XLR, bal. (mic/line inputs), 1 x RCA L + R (line input), 1 x RCA L + R (phono/line input), spring-load. contact (telephone input), spring-load. contact (tuner output), spring-load. contact (chi |
| Packing dimensions (W x H x L): | 0.46 x 0.2 x 0.52 m |
| Gross weight: | 13.8 kg |
| Net weight: | 12.28 kg |
