LD Systems AMP 405 - 4-Channel Mini Installation Power Amplifier 4 × 50 W @ 4 Ohm

NEW

Preview: LD Systems AMP 405 - 4-Kanal Mini-Installationsendstufe 4 × 50 W @ 4 Ohm

LD Systems AMP 405 - 4-Kanal Mini-Installationsendstufe 4 × 50 W @ 4 Ohm

Sale to reseller only

Availability:

Currently not available

Product inquiry

Item number: 210906050

EAN: 4049521908798

MPN: LDAMP405

NEW

4-channel mini installation amplifier 4 × 50 W @ 4 Ohm Professional mini amplifier 4 × 50 W... more

Back to the overview

All information about the product:

"LD Systems AMP 405 - 4-Channel Mini Installation Power Amplifier 4 × 50 W @ 4 Ohm"

4-channel mini installation amplifier 4 × 50 W @ 4 Ohm

Professional mini amplifier
4 × 50 W Class D amplifier 4 ohms
Small format 1/3 19" rack, 1 RU
Silent operation with passive cooling
Connection options for remote control of standby mode
External 100–240 V power supply
Operates in 4-channel mode or as a bridge for 2 channels at 100 W in high power mode
Mounting plates for flexible, unobtrusive installation, even above suspended ceilings
Automatic standby mode to save energy
Four loudspeaker outputs with terminal blocks

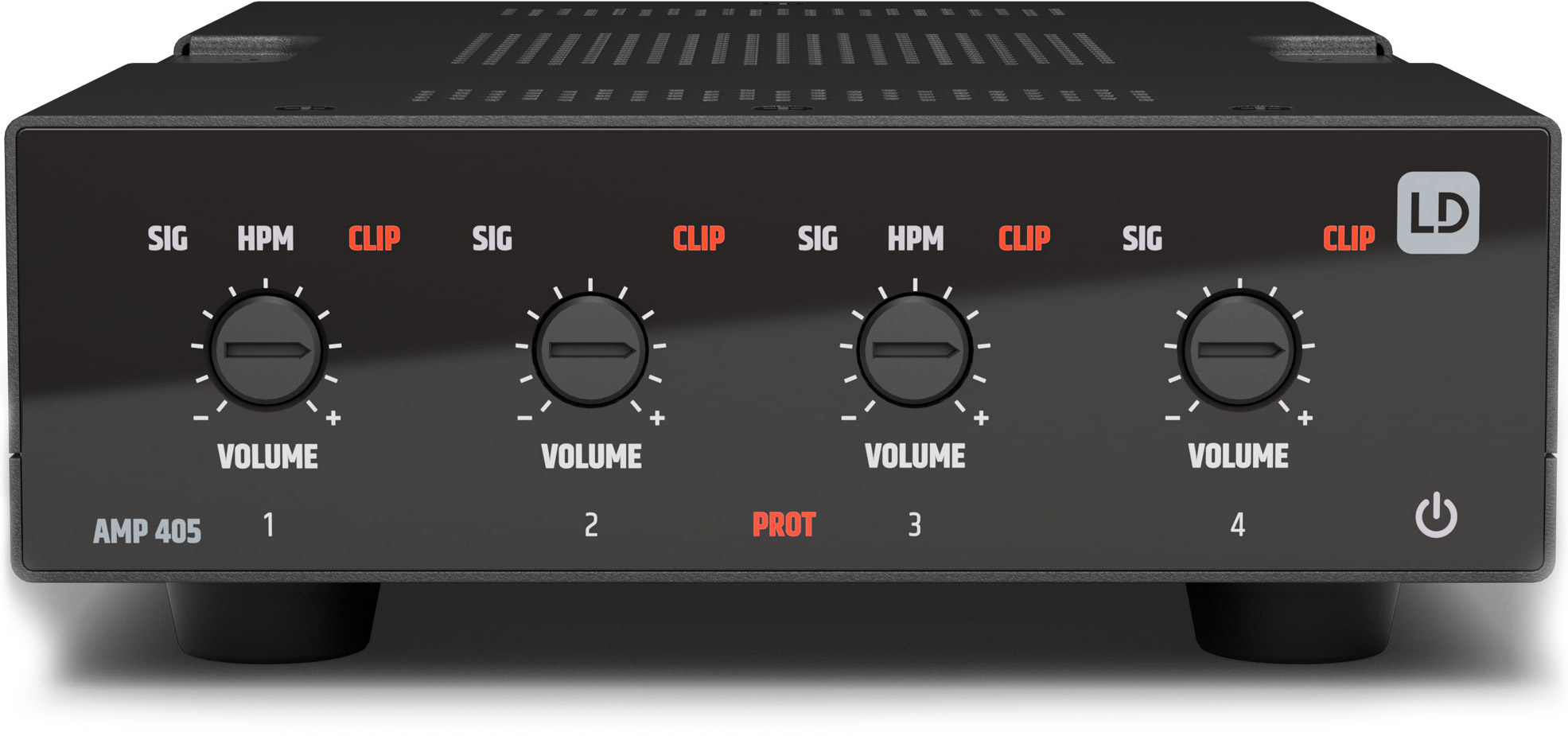

User-friendly control panel with signal, clip and protection LEDs
Optional rack tray for combining with other products in the TICA® series

Part of TICA® series combines compact size, passive cooling and high efficiency – ideal for a wide variety of audio fixed installations.

The highly efficient 50 W 4-channel Class D amplifier can drive low-impedance speakers in different zones.

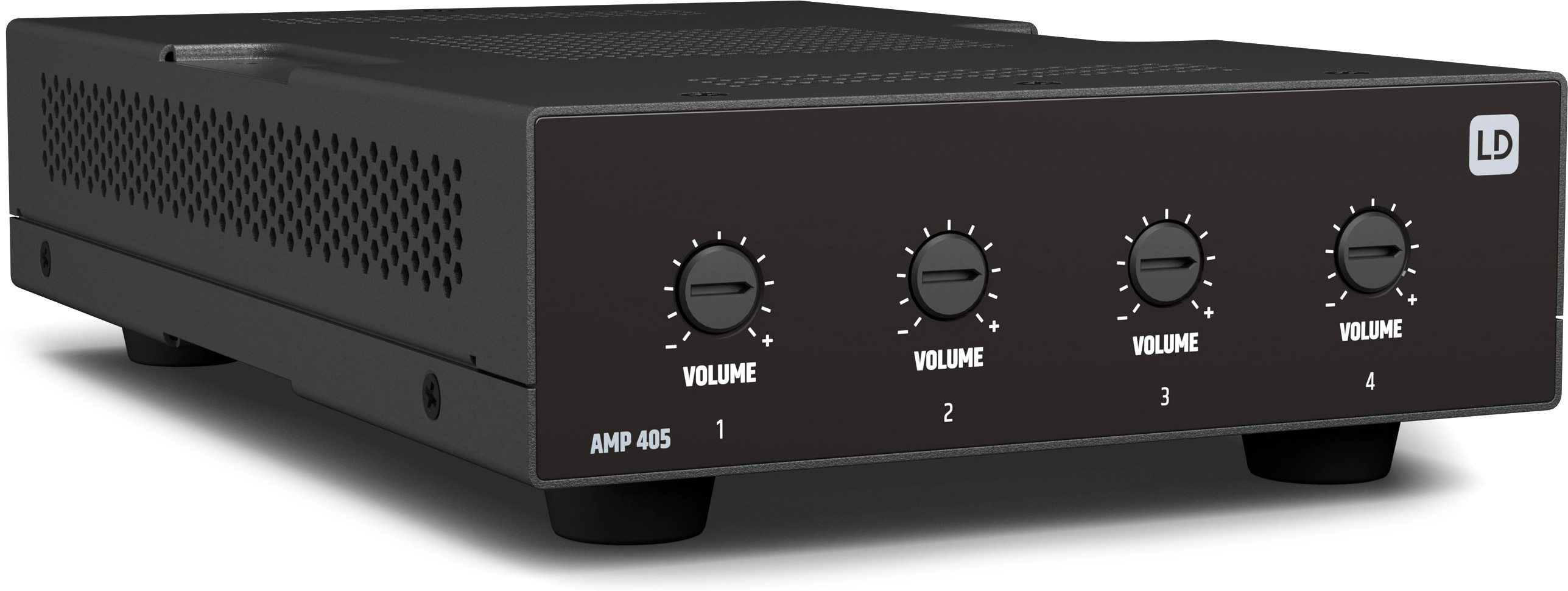

Thanks to its compact dimensions of 142 x 44 x 222 mm and the supplied mounting plates, it can be discreetly installed almost anywhere: behind screens, under tables or even in ventilation ducts and above plenum ceilings. Alternatively, it also fits in 1/3 19-inch racks. Use the optional rack tray to place up to three TICA® series products side by side to create a system that exactly meets your requirements and takes up minimal rack space.

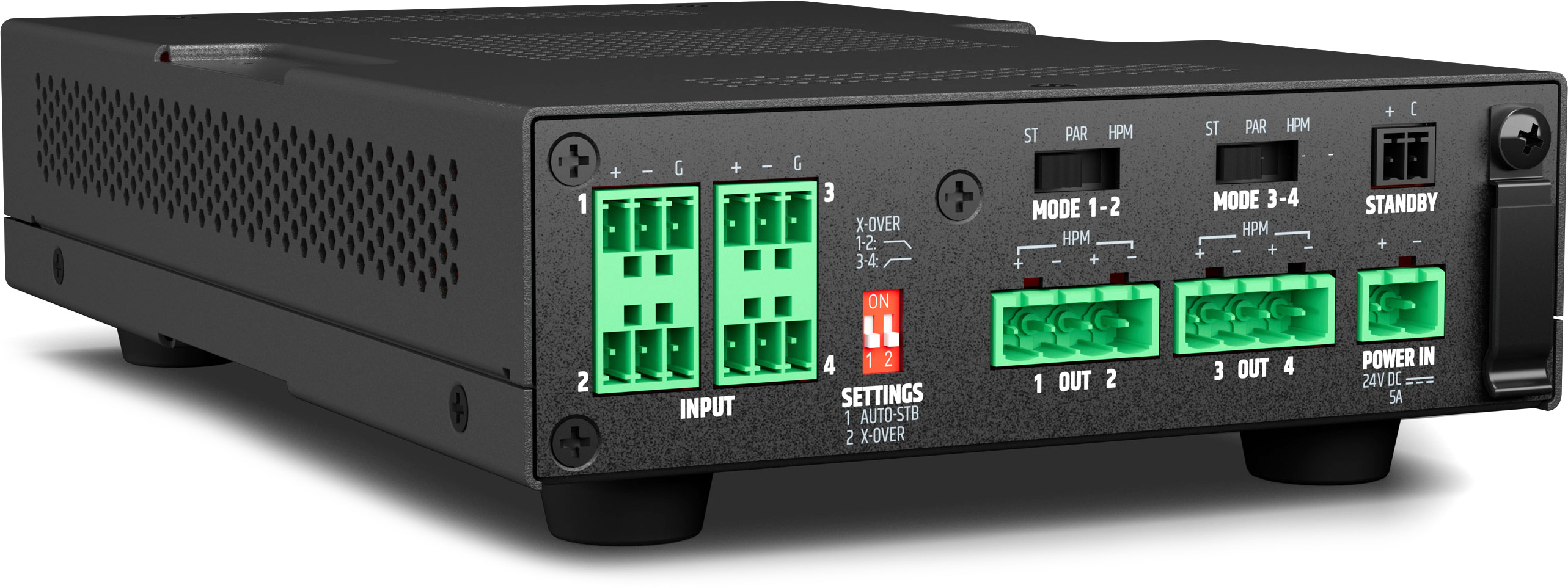

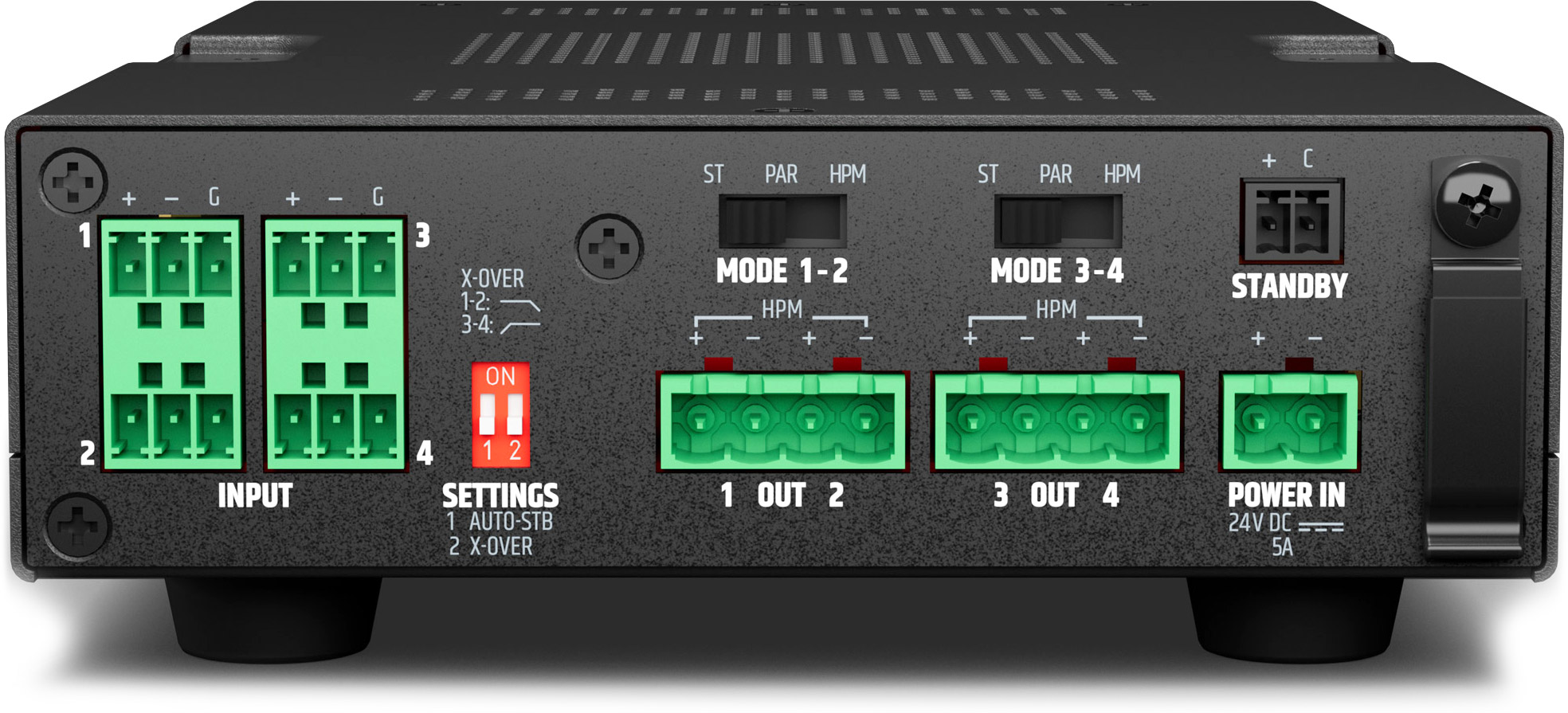

Terminal block connectors on the balanced line input and speaker output make wiring easier.

With the remote control, you can put the power amplifier into standby mode at any time, even when it is hidden. The optional auto standby function saves energy when there is no audio transmission.

The perfect solution for professional installers and users looking for a compact, highly efficient and easy-to-integrate solution.

Technical data:

Product type:	installation amplifier
Balanced line inputs:	4
Powered outputs:	4 with output mode selector (stereo / parallel / high power mode)
Cooling:	convection

entrance area

Nominal input sensitivity:	0 dBu (Volume Max.)
Nominal input attenuation:	18 dBu (Volume 9 o'clock)
Input impedance:	12 ohms
CMMR:	> 48 dB (0 dBu 1 kHz)
Number of input connections:	4
Inlet connection:	3-Pin Terminal Block (3.81 mm)

digital specifications

DSP crossover LPF (switchable for CH1-2):	20 Hz - 125 Hz
DSP crossover HPF (switchable for CH3-4):	125 Hz - 20 kHz
AD/DA converter resolution:	24 bits
AD/DA converter sample rate:	48 kHz
Latency period:

amplifier output

Type 1:	Class D
output modes:	Stereo, parallel, high power mode (ST / PAR / HPM)
Amplifier outputs:	2.1 with 2 channels (ST, PAR) and 1 channel (HPM)
Amplifier outputs:	4 channels (ST, PAR) / 2 channels (HPM)
Number of output connections:	2
Connection:	4-Pin Terminal Block. Pitch 5.08mm
RMS power (W):	4 x 50 W @ 4 ohms (ST, PAR) / 2 x 100 W @ 2 ohms (continuous sine wave, 1 kHz, 10 sec)
Power (peak) (W):	2 x 55 W @ 4 ohms (ST, PAR) / 1 x 110 W @ 2 ohms (continuous sine wave, 1 kHz, 4 ms)
Minimum load impedance:	4 ohms (ST, PAR) / 2 ohms (HPM)
Frequency range (-1 dB):	20 Hz - 20 kHz
THD + N:
SNR:	> 100 dB (17 dBu, Volume center, 20 kHz BW, A-weighted)
Max. Gain:	22 dB
Protective circuits:	direct current
Protective circuits:	short circuit
Protective circuits:	overheating
Protective circuits:	overvoltage
Protective circuits:	undervoltage

third-party control

Remote-controlled standby function:	GPI connector for external pushbutton
Remote standby connection:	2-pole black terminal block, grid 3.5 mm

power supply

Power supply type:	External SMPS
Operating voltage:	100 V AC - 240 V AC / 50 - 60 Hz
Secondary voltage:	24 V DC
Secondary current:	5 A
Secondary connection:	2-Pin Terminal Block (5.08 mm)
Fuse:	No.
Primary connection:	IEC
Security class:	Class 3
Max. power consumption:	230 W (sine 1 kHz with 4 x 4-ohm load)
Power consumption (idle):	8.5 W (no signal input)
Power consumption in standby mode:
Operating temperature (non-condensing):	0°C - 40°
Maximum humidity in operation:	85%

General data

Time until automatic standby:	20 mins.
Wake-up time in standby mode:	3 seconds
Wake-up threshold in standby mode:	-33 dBu
Material:	plastic bezel
Material:	steel
Dimensions (W x H x D) (height with rubber feet):	142 mm x 53 mm x 221.7 mm
Weight:	1.84 kg
Accessories (included):	External SMPS
Accessories (included):	Terminal blocks for electrical connections
Accessories (included):	Mounting plates for surface mounting
