1-channel mini installation amplifier 60 W @ 4 Ohm / 70V/100V Professional mini amplifier... more

Back to the overview

All information about the product:

"LD Systems AMP 106 T - 1-Channel Mini Installation Power Amplifier 60 W @ 4 Ohm / 70V/100V"

1-channel mini installation amplifier 60 W @ 4 Ohm / 70V/100V

Professional mini amplifier
60W Class-D amplifier with Lo-Z / Hi-Z selector switch between 4 ohms / 100V / 70V outputs
Small format 1/4 19" rack, 1U
Silent operation with passive cooling
Connection options for remote control of standby mode and volume

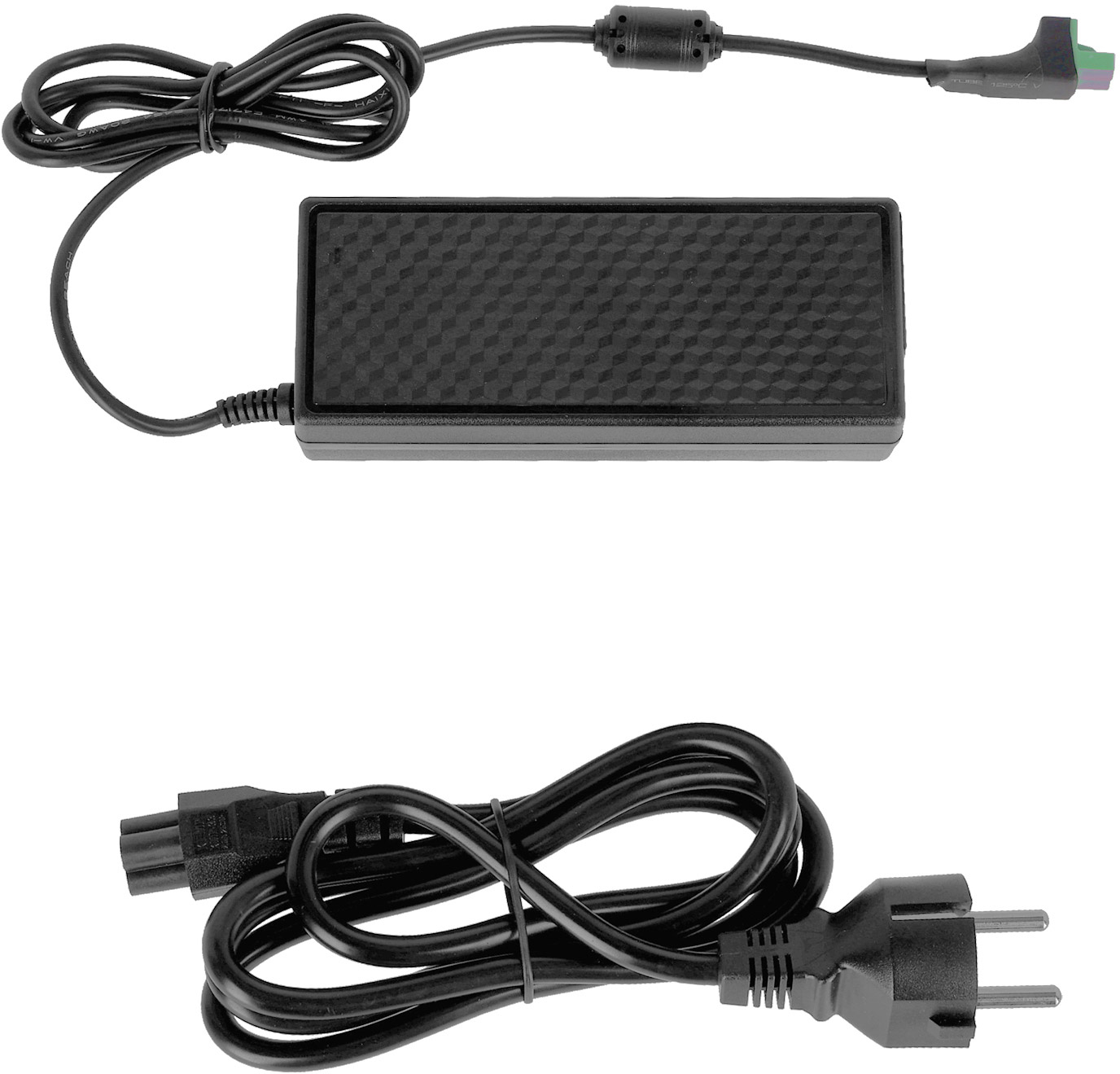

External 100-240V power supply

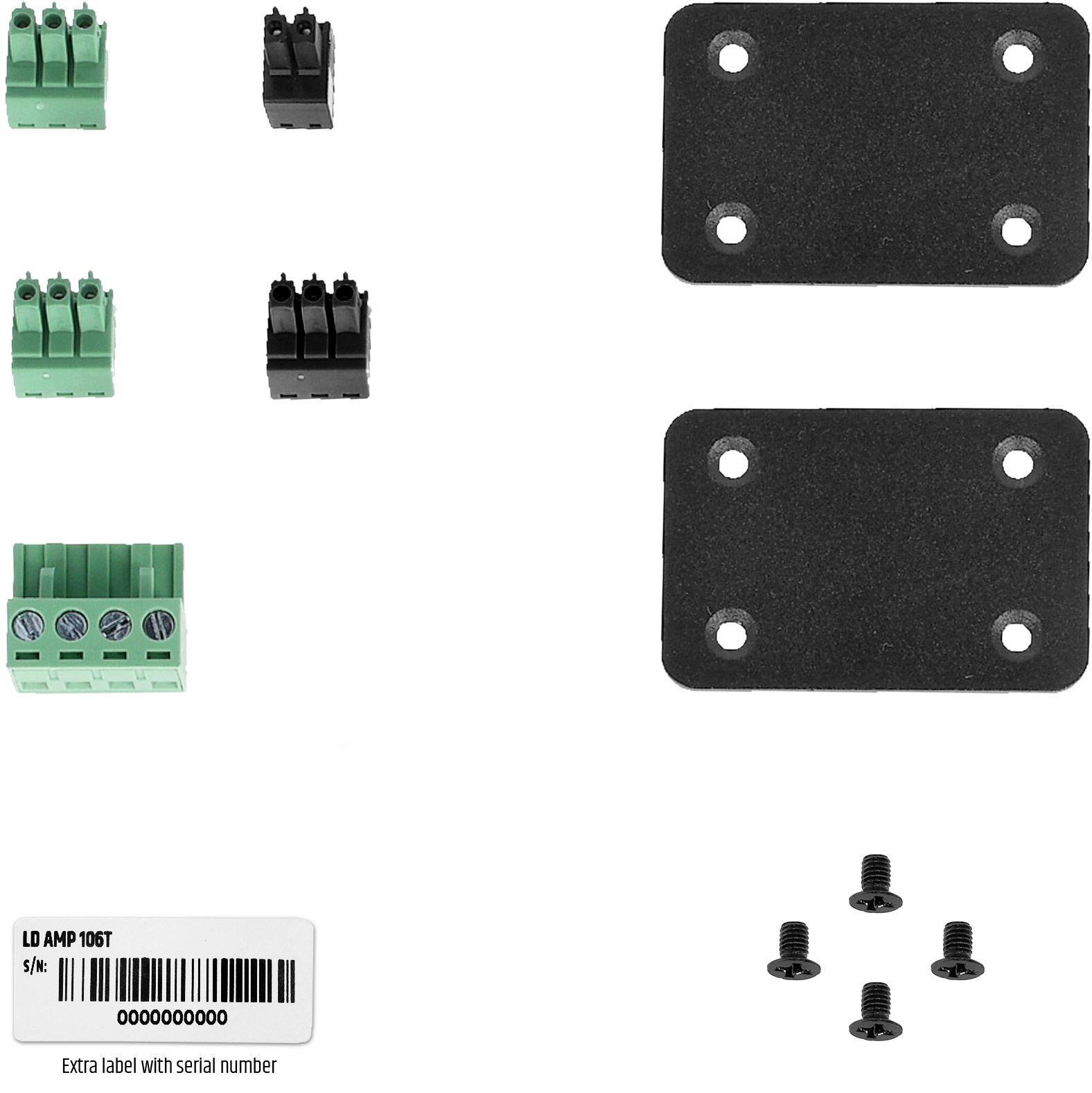

Mounting plates for flexible, unobtrusive mounting, even above suspended ceilings
Automatic standby mode to save energy

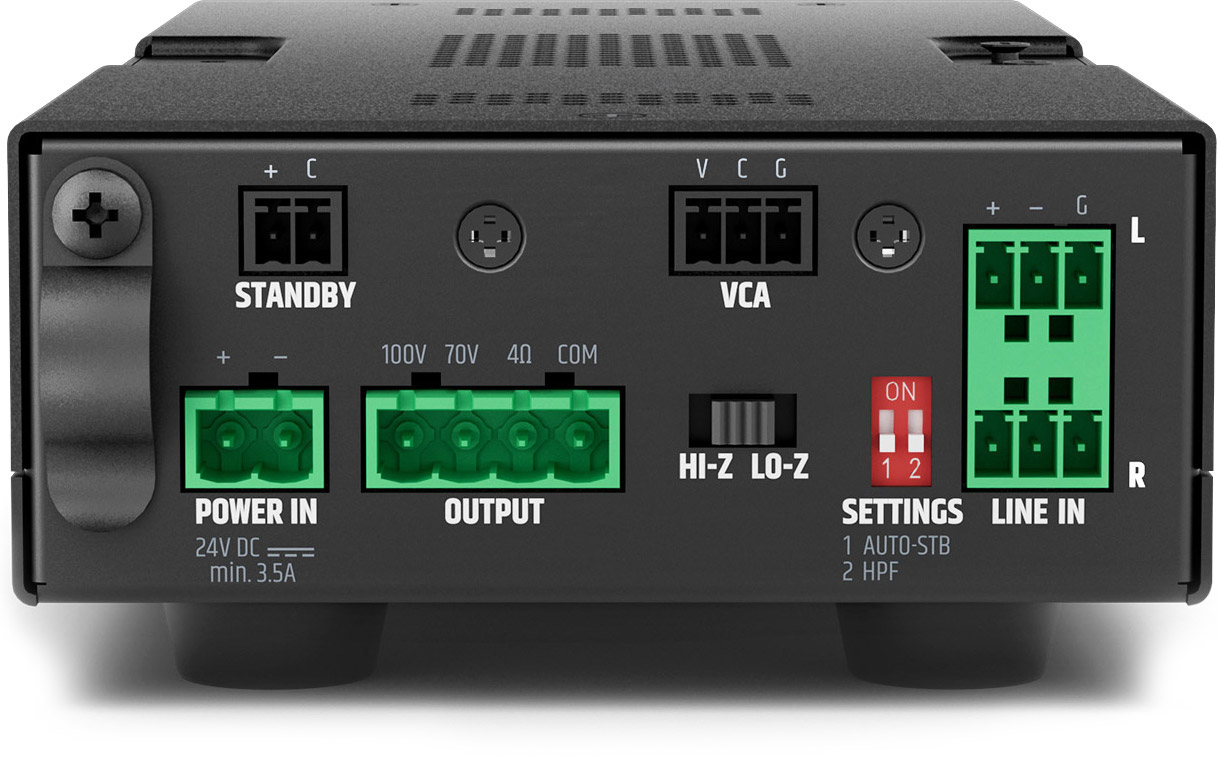

Balanced line input and speaker output with terminal blocks

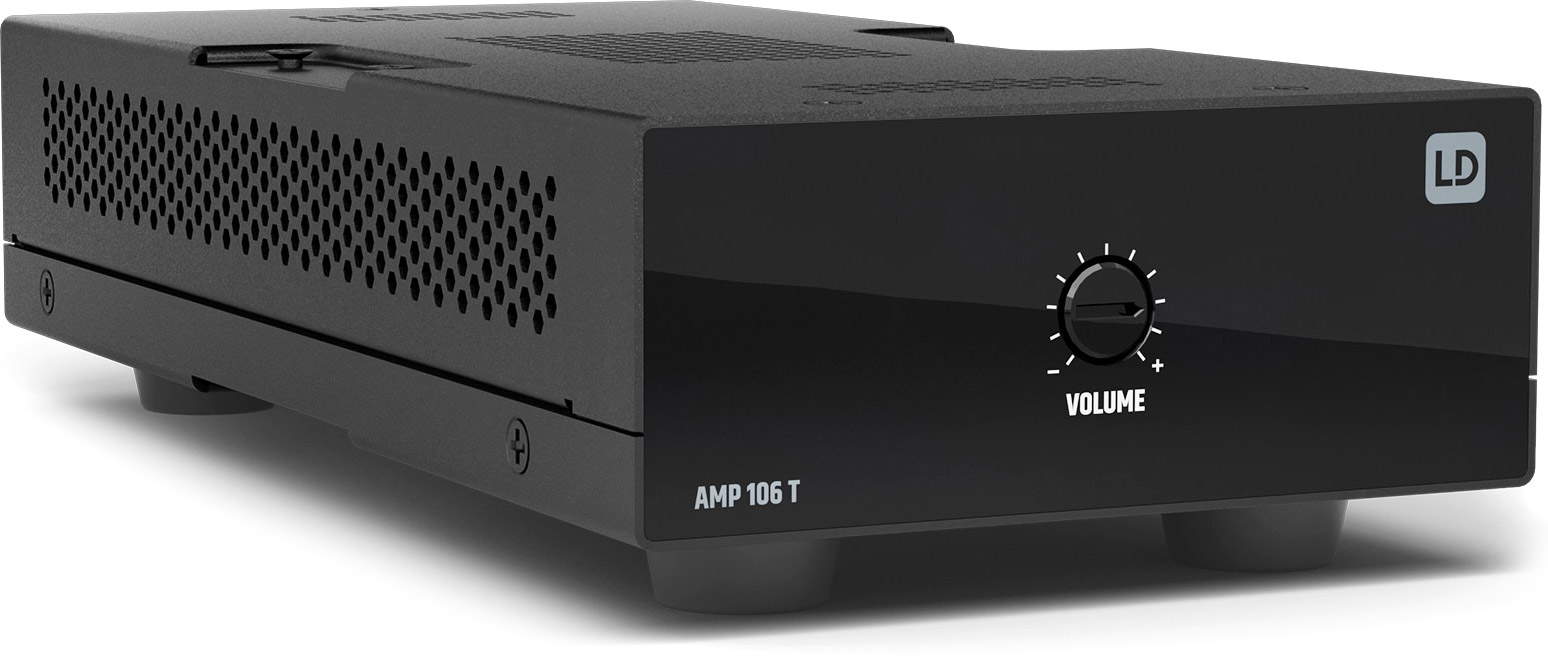

User-friendly front panel with signal, clip and protection LEDs
Optional rack tray for combining with other products in the TICA® series

The TICA® AMP106T combines compact dimensions, passive cooling and high efficiency – ideal for a wide range of audio installation applications.

The 60W Class-D amplifier can drive low-impedance speaker systems or 70/100V speakers.

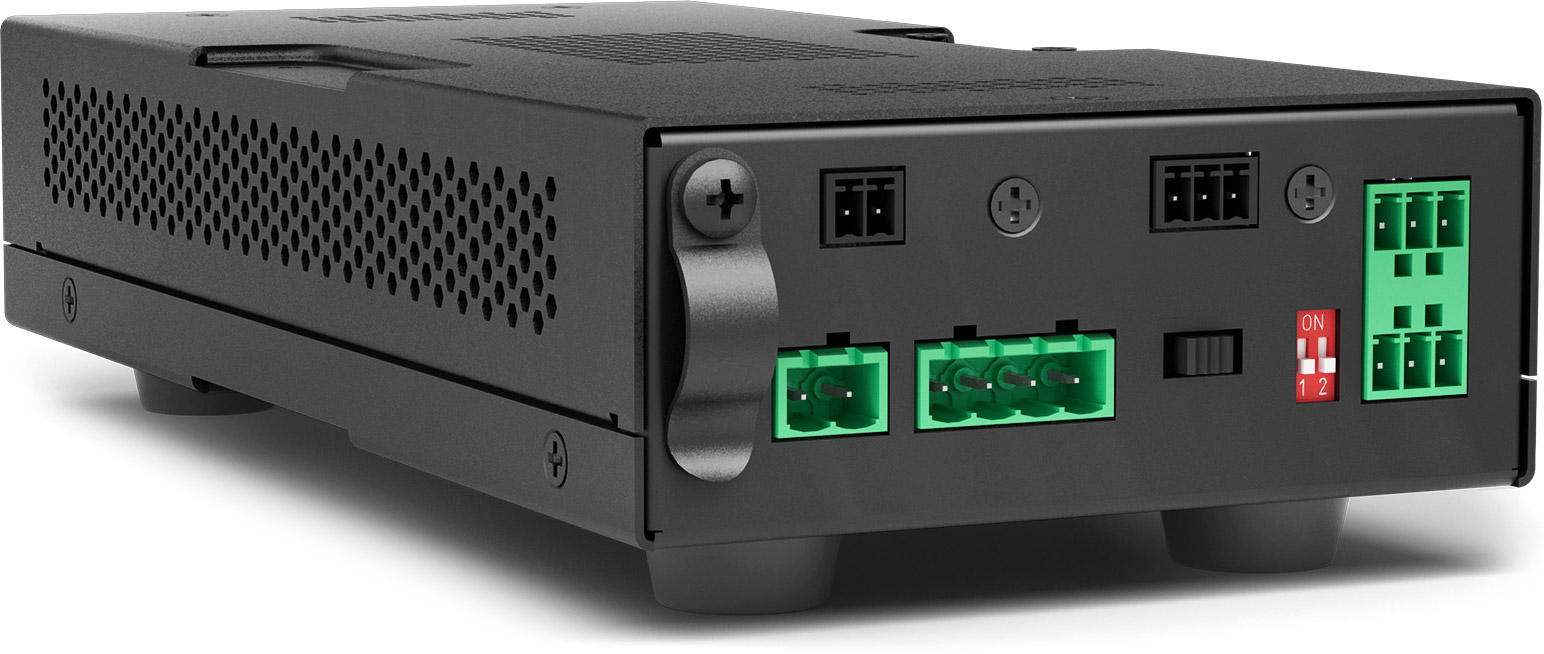

Thanks to its small dimensions of 120 x 44 x 222 mm and the supplied mounting plates, it can be installed almost anywhere inconspicuously: behind monitors, under tables or even in ventilation ducts and above plenum ceilings. Alternatively, it also fits into a quarter of a 19-inch rack. With the optional rack tray, you can mount up to four products from the TICA® series next to each other, allowing you to put together a system that suits your needs and takes up minimal space in the rack.

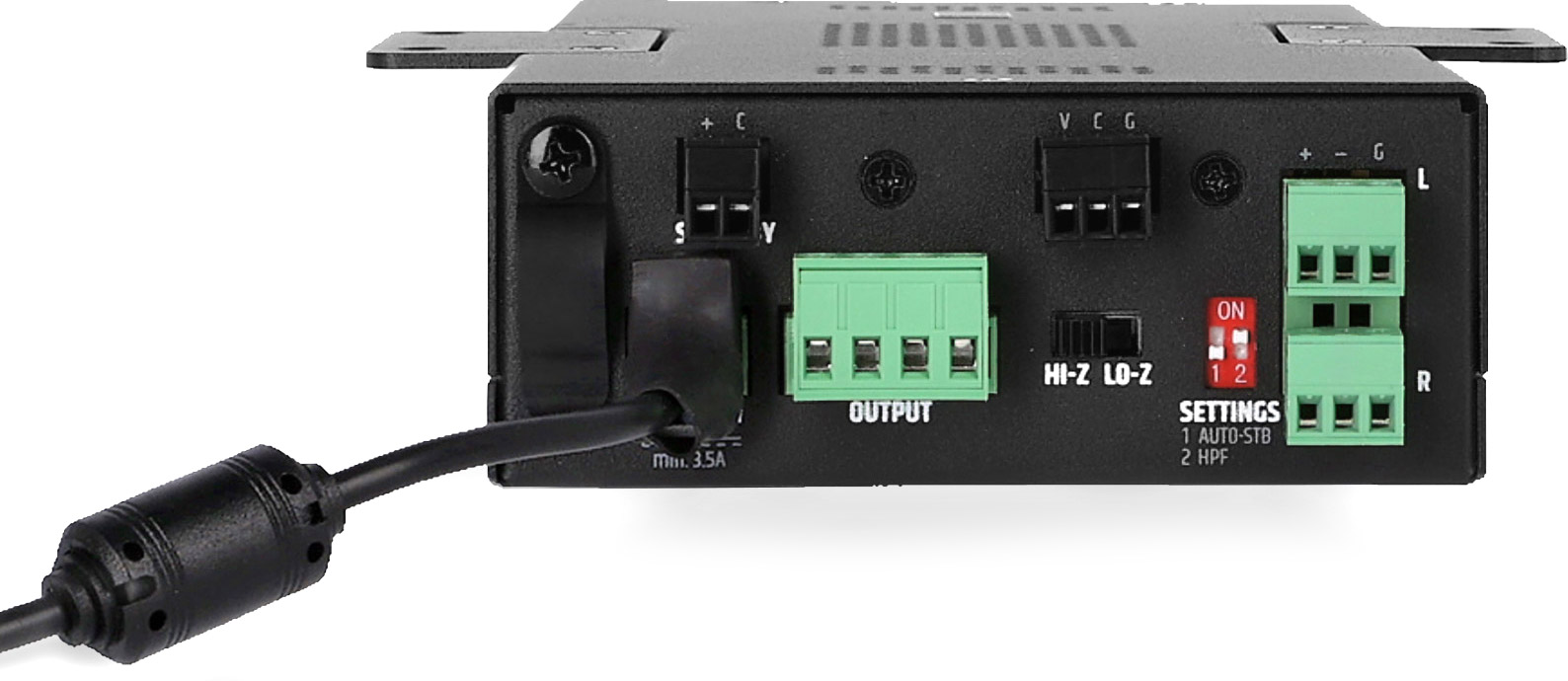

Terminal block connections on the balanced line inputs and speaker outputs make wiring particularly easy.

With remote control connectivity for third-party devices, you can always adjust the volume or put the power amplifier into standby mode, even if it is hidden. The optional auto standby mode saves power when there is no audio transmission.

The perfect solution for professional installers and users looking for a compact, highly efficient and easy-to-integrate solution.

Technical data:

Product type:	installation output stage
Line inputs:	2
Music sources:	2 balanced stereo line inputs
Line outputs:	0
Powered outputs:	1 with output mode selector (Low-Z/High-Z)
Cooling:	convection
Priority levels:	1

entrance area

Nominal input sensitivity:	8.5 dBu (Sine 1 kHz, Gain max)
Nominal input attenuation:	18 dBu (Sine 1kHz, Gain 0dB)
Inlet connection:	2 x 3.81mm Terminal Block 3-pin
Wake-up threshold in standby mode:	-30 dBu

amplifier output

Type:	Class D
Amplifier outputs:	High-Z: 70V or 100V outputs
Amplifier outputs:	Low-Z: 4 ohms minimum load
Connection:	4 - Pin Terminal block (pitch 5,08mm)
RMS power (W):	60 W (continuous sine wave 1kHz, 4 ohm load)
Power (peak) (W):	72 W (100 msec sine 1kHz burst @ 4 ohm load)
Frequency range:	15 Hz - 20 kHz (LO-Z, -1 dB)
Frequency range:	20 Hz - 20 kHz (HI-Z, -1 dB)
High Pass Filter:	110 Hz.
Protective circuits:	direct current
Protective circuits:	short circuit
Protective circuits:	Protection against direct current
Protective circuits:	overheating
Protective circuits:	overvoltage
Protective circuits:	undervoltage

power supply

Type 1:	External SMPS
Operating voltage:	100 V AC - 240 V AC / 50 - 60 Hz
Secondary connection:	2-pole 5.08mm terminal block
Primary connection:	IEC
Power consumption (idle):	2 W (no signal input)
Power consumption in standby mode:
Operating temperature (non-condensing):	0°C - 40°C;

General data

Time to automatic standby:	20 mins.
Dimensions (W x H x D) (height with rubber feet):	142 mm x 53 mm x 221.7 mm
Accessories:	rack-mounting material
Weight:	1.3 kg
