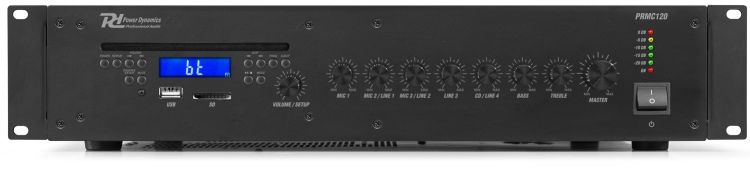

Power Dynamics PRC120 100V Mixer Amplifier with CD 120W

The PRC120 is a rack-mountable mixer-amplifier that can either be used as 100V amplifier or as a standard low-impedance amplifier. Features 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs. It's equipped with a CD player, BT receiver and USB/SD ports for MP3 playback including a bright LCD display. The PRC120 is provided with switchable XLR inputs with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc.

• Mixer-Amplifier with 5 input channels
• 120W Class D power Section
• Slot-in CD player
• MP3 Player with USB/SD slot
• Using BT wireless technology for audio streaming
• LCD control panel with ID3 tag

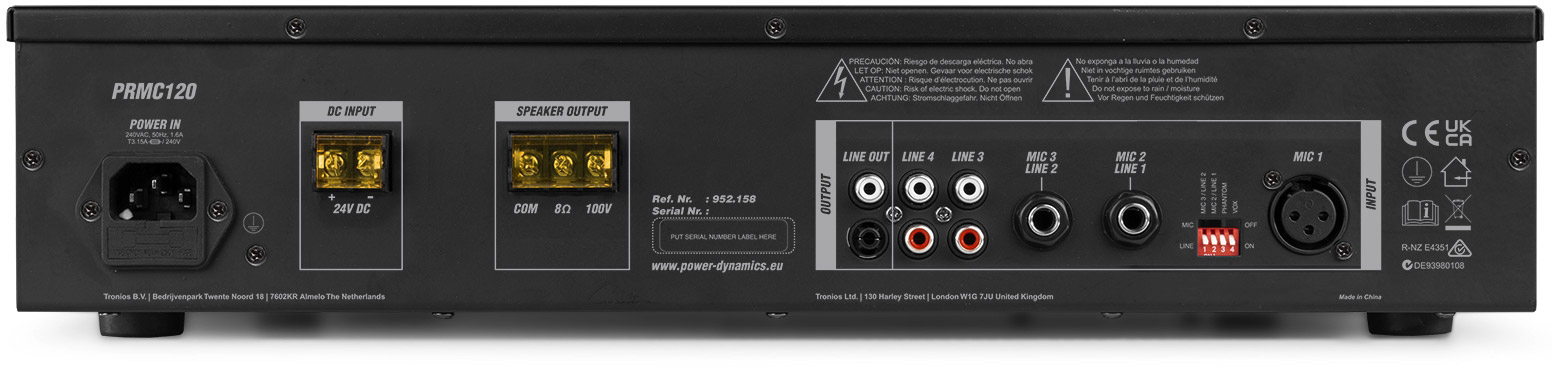

• 2x Mic/line inputs 6.3mm and 2x RCA line input and 1x RCA line output
• XLR Microphone input with switchable phantom power (24V) and VOX priority
• 100V or 8 Ohm speaker output
• Zone outputs: Speaker Terminal (100V / 8Ohm / Com)
• Bass and treble controls
• 19" Rack mountable (2U)
• Emergency operation by 24V battery (not supplied)
• Overload protected

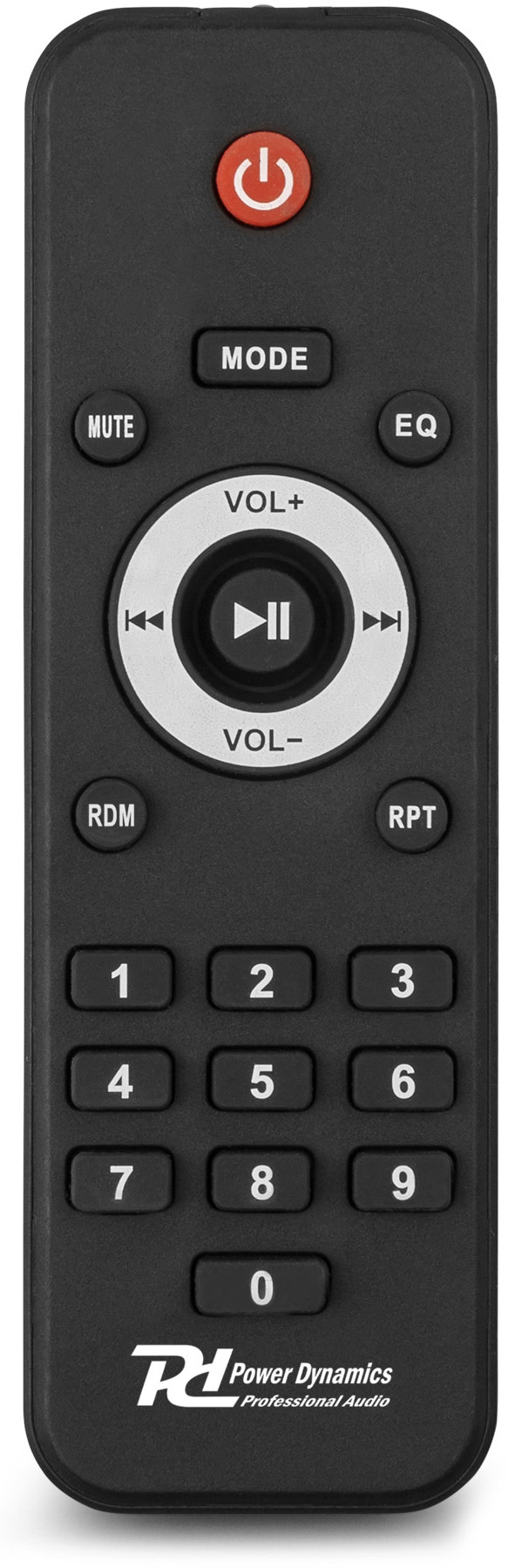

• Including remote control

Technical data:

• Product colour: Black
• Playback options: BT streaming, CD, USB, SD
• Output channels: 1
• Output power: RMS: 120W
• Impedance: 8 Ohm, 100V
• Frequency response : 50Hz - 18.000Hz
• Signal-to-noise ratio: >75dB
• THD: 85dB
• Signal-to-noise ratio: Mic: >72dB
• Input level: Line: 150-470mV, 10 kOhm
• Input level: Mic.: 5-8mV, 600 Ohm
• Power supply: 100-240VAC 50/60Hz
• Dimensions (L x W x H): 410 x 487 x 85mm
• Weight (kg): 11.4000
• Included accessories: Remote control (wireless), Mounting bracket, Power cable
