MONACOR PA-M412 4-zone PA matrix mixing amplifier

€1,486.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 250139895

EAN: 4007754273373

MPN: 0179290

4-zone PA matrix mixing amplifier 120 W per zone 4 zones, can be controlled individually... more

All information about the product:

"MONACOR PA-M412 4-zone PA matrix mixing amplifier"

4-zone PA matrix mixing amplifier

120 W per zone
4 zones, can be controlled individually with 2-way tone control
Class D concept with a high efficiency to cut energy costs
4 adjustable mic/line inputs with 3-way equalizer and 24 V phantom power, to be activated as required
4 adjustable line inputs
Mute function for muting individual zones
Connection for external mute switch (all zones simultaneously)
Talkover (channel 1)
Adjustable monitor function
1 connection for zone paging microphone PA-M4RC
4 connections for wall module PA-M1WP
482 mm (19") rack installation

4-zone PA matrix mixing amplifier,

120 W per zone.

Technical data:

Peak output power:	4 x 170 W
Power rating:	4 x 120 W
Channels:	8
Zones:	4
Inputs:	2.5 mV/20 kO (mic), 2 V/20 kO (line)
Frequency range:	20-20,000 Hz
Equalizer bass:	±12 dB/80 Hz (channels 1-4) ±15 dB/80 Hz (zones 1-4)
Equalizer midrange:	±12 dB/2.5 kHz (channels 1-4)
Equalizer treble:	±12 dB/12.5 kHz (channels 1-4) ±15 dB/12 kHz (zones 1-4)
S/N ratio:	> 70 dB
THD:
Phantom power:	24 V
Mains voltage:	~ 230 V
Mains frequency:	50 Hz
Power consumption, operation:	860 VA
Admiss. ambient temp.:	0-40 °C
Width:	482 mm
Height:	88 mm
Depth:	320 mm
Rack spaces, RS:	2
Weight:	6.2 kg

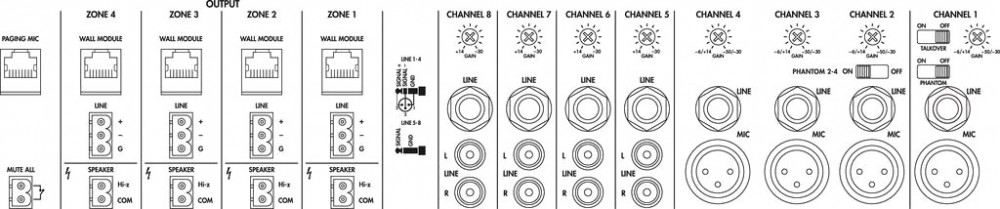

Connections:	4 x XLR, bal. (mic 1-4), 4 x 6.3 mm jack (line 1-4), 4 x 6.3 mm jack (line 5-8), 4 x RCA L/R (line 5-8), 1 x RJ45 (push-to-talk microphone), 4 x RJ45 (remote in), screw terminal (speakers)
Packing dimensions (W x H x L):	0.4 x 0.53 x 0.17 m
Gross weight:	7.37 kg
Net weight:	6.21 kg
