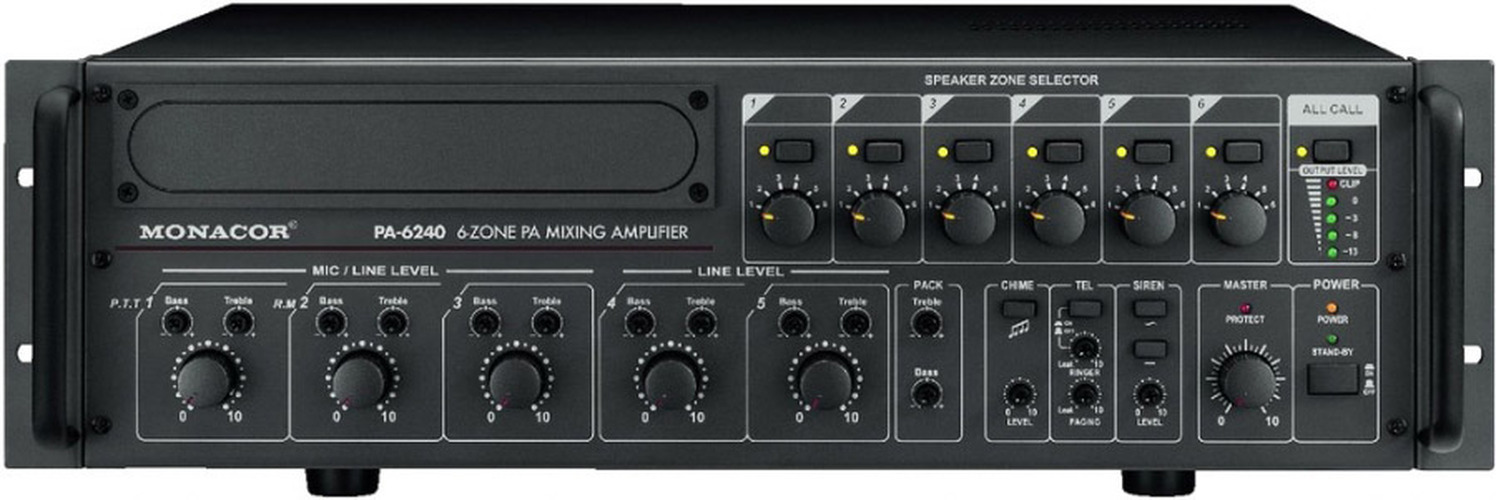

MONACOR PA-6240 6-zone mono PA mixing amplifier
€950.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250111555
EAN: 4007754199017
MPN: 0172180
6-zone mono PA mixing amplifier 1 x 240 W 6 zones, can be controlled individually... more
All information about the product:
"MONACOR PA-6240 6-zone mono PA mixing amplifier"
6-zone mono PA mixing amplifier
- 1 x 240 W
- 6 zones, can be controlled individually
- Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
- Bass, treble and master controls, level display via LEDs, regulated fan
- Insertions for various functions are available at option
- 17 V phantom power for electret microphones
- Connection for zone paging microphone PA-6000RC
- 1 insertion compartment at the front for automatic alarm message insertion PA-1120DMT, a tuner insertion or a CD player insertion, all available at option
- 3 insertion facilities on the rear panel for optional modules with the following features:
- PA-6FD: fault detection
- PA-6FD: fault monitoring
- PA-6FR: anti-feedback
- Mains operation and 24 V emergency power operation
- Removable mounting brackets
| Peak output power: | 340 W |
| Power rating: | 240 W |
| Channels: | 5 |
| Zones: | 6 |
| Inputs: | 2.5 mV/5 kO, 0.3 V/5 kO (mic/line), 0.3 V/15 kO (line), 0,775 V/10 kO (preamplifier) |
| Frequency range: | 55-16,000 Hz |
| Equalizer bass: | ± 10 dB/100 Hz |
| Equalizer treble: | ± 10 dB/10 kHz |
| S/N ratio: | > 70 dBA (mic), > 80 dBA (line) |
| THD: | |
| Phantom power: | 17 V |
| Mains voltage: | ~ 230 V |
| Mains frequency: | 50 Hz |
| Power consumption, operation: | 750 VA |
| Operating voltage (possible alternative): | DC 24 V |
| Power supply (possible alternative): | DC 20 A |
| Admiss. ambient temp.: | 0-40 °C |
| Width: | 430 mm |
| Height: | 133 mm |
| Depth: | 352 mm |
| Rack spaces, RS: | 3 |
| Weight: | 15 kg |
| Connections: | 3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 1 x 6.3 mm jack (preamplifier), 1 x RJ45 (push-to-talk mic), screw contacts (telephone system), 1 x 6.3 mm jack (ext. amplifier), 1 x RCA L/R (record), screw contac |
| Packing dimensions (W x H x L): | 0.54 x 0.22 x 0.48 m |
| Gross weight: | 17.16 kg |
| Net weight: | 15.32 kg |
