5-zone mono PA mixing amplifier 1 x 240 W 5 zones, can be controlled individually... more
All information about the product:
"MONACOR PA-1240 5-zone mono PA mixing amplifier"
5-zone mono PA mixing amplifier
- 1 x 240 W
- 5 zones, can be controlled individually
- Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
- Bass, treble and master controls, level display via LEDs, regulated fan
- Insertions for various functions are available at option
- 17 V phantom power for electret microphones
- Connection for zone paging microphone PA-1120RC (available at option)
- Connection for push-to-talk microphone PA-4000PTT or PA-4300PTT
- Automatic alarm announcement with insertion PA-1120DMT (available at option)
- Mains operation and 24 V emergency power operation
- Removable mounting brackets
| Peak output power: | 340 W |
| Power rating: | 240 W |
| Channels: | 5 |
| Zones: | 5 |
| Inputs: | 2.5 mV/5 kO, 0.3 V/5 kO (mic/line), 0.3 V/15 kO (line), 0.775 V/10 kO (preamplifier) |
| Frequency range: | 55-16,000 Hz |
| Equalizer bass: | ± 10 dB/100 Hz |
| Equalizer treble: | ± 10 dB/10 kHz |
| S/N ratio: | > 70 dBA (mic), > 80 dBA (line) |
| THD: | |
| Phantom power: | 17 V |
| Mains voltage: | ~ 230 V |
| Mains frequency: | 50 Hz |
| Power consumption, operation: | 630 VA |
| Operating voltage (possible alternative): | DC 24 V |
| Power supply (possible alternative): | DC 27 A |
| Admiss. ambient temp.: | 0-40 °C |
| Width: | 482 mm |
| Height: | 133 mm |
| Depth: | 352 mm |
| Rack spaces, RS: | 3 |
| Weight: | 14 kg |

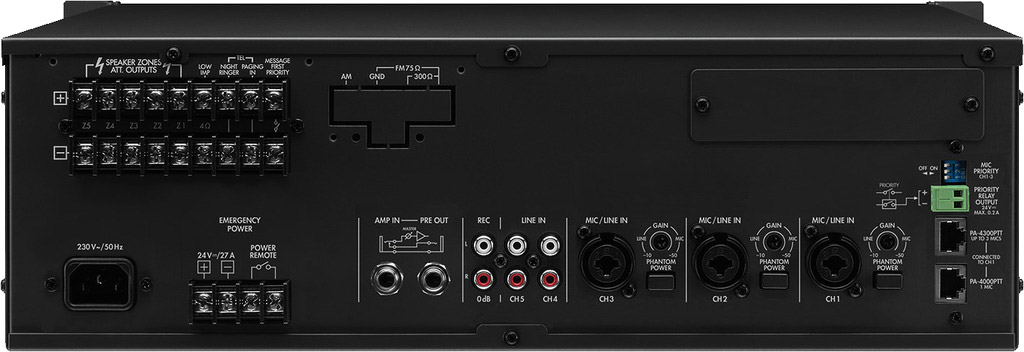

| Connections: | 3 x combo 6.3 mm/XLR (mic/line inputs), 2 x RCA L/R (line inputs), 2 x RJ45 (push-to-talk microphone), screw contacts (telephone system), 1 x 6.3 mm jack (preamplifier), 1 x 6.3 mm jack (ext. amplifier), 1 x RCA L/R (rec |
| Packing dimensions (W x H x L): | 0.48 x 0.21 x 0.54 m |
| Gross weight: | 16.44 kg |
| Net weight: | 14.46 kg |
