MONACOR ARM-880WP1 Wall module

Sale to reseller only

Availability:

Currently not available

Product inquiry

Item number: 250128680

EAN: 4007754231717

Audio Matrix System The system ARM-880... from MONACOR is a highly flexible PA solution for... more

Back to the overview

All information about the product:

"MONACOR ARM-880WP1 Wall module"

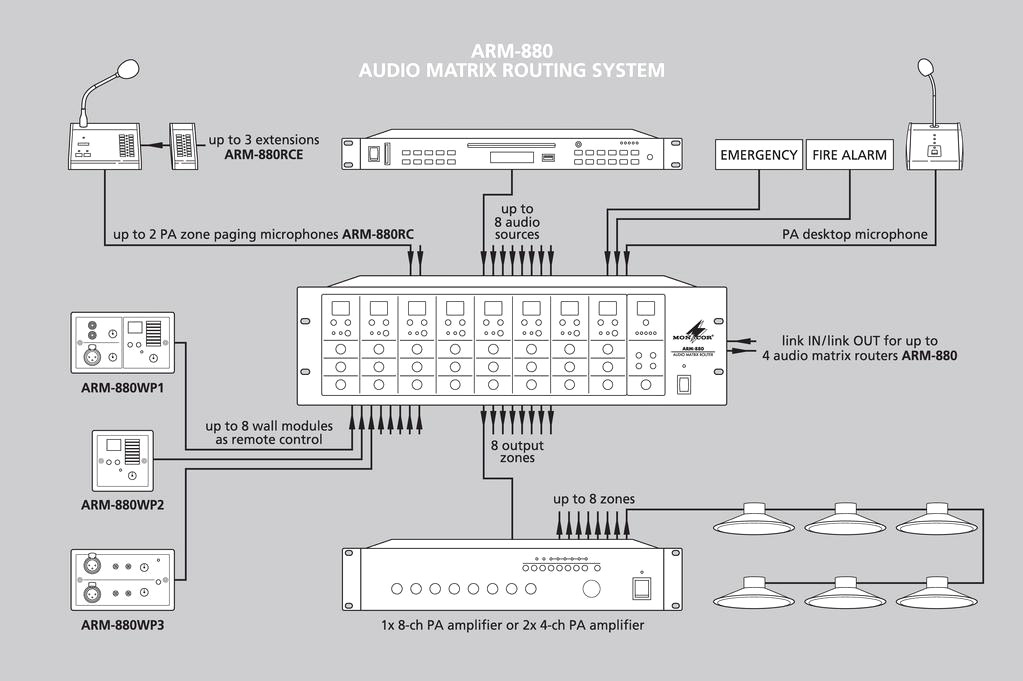

Audio Matrix System

The system ARM-880... from MONACOR is a highly flexible PA solution for multi-room applications. It is ideally suited for applications in hotels, in restaurants and bars, in conference rooms, schools, sports facilities and fitness centres. Eight different audio sources, e.g. CD players, SAT receivers, radio programmes can be distributed to 8 output zones, assignment as required.
The audio matrix router ARM-880 is the centrepiece of the system. For operation, one amplifier is required for each output used. This may be an individual power amplifier or an active speaker system. Matching wall modules ARM-880WP1, ARM-880WP2 and ARM-880WP3 for remote control of ARM-880 or with additional local inputs for the respective zone are available at option.
With a master/slave connection, it is possible to extend the system to up to 32 output zones. Connections for various alarm signals and a local microphone are available.
Announcements can be made via 2 optional zone paging microphones ARM-880RC with zone selection.

Wall module,

for remote control of audio matrix router ARM-880.

Intended application: remote control of one zone, local insertion of audio signals
2 RCA jacks for line signals
Microphone connection via NEUTRIK 3-pole XLR jack
Source selector switch
Level controls for line, microphone and source
15 V phantom power
7-segment LED display
Connection to ARM-880 and power supply via RJ45 jack and Cat. 5 network cable. A separate power supply is required for operation with cable lengths of more than 50 m
Dimensions front panel: 146 x 86 mm
Supplied with robust flush-mounted metal housing

Technical data:

Description:	wall module
Type:	remote control of one zone
Colour:	white
Suitable for:	ARM-880
Power supply:	via ARM-880
Admiss. ambient temp.:	0-40 °C
Dimensions:	146 x 86 x 33 mm
Weight:	155 g
Connections:	1 x XLR (microphone), 1 x RCA L/R (line), 1 x RJ45
Other features:	15 V phantom power
Packing unit:	1
Packing dimensions (W x H x L):	0.09 x 0.075 x 0.185 m
Gross weight:	0.44 kg
Net weight:	0.375 kg
