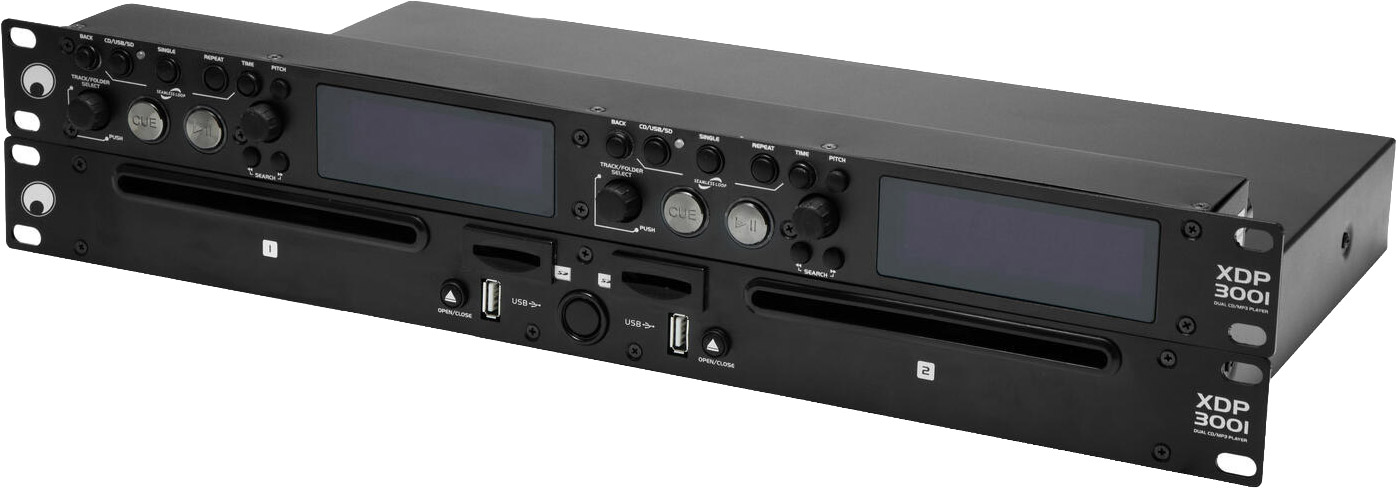

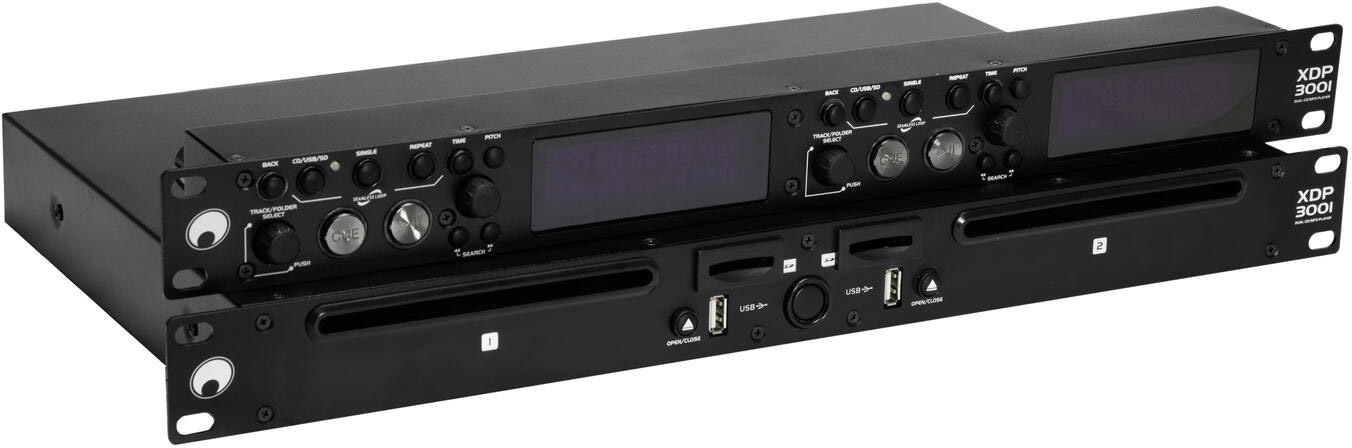

OMNITRONIC XDP-3001 CD/MP3 Player

Slim dual media player for your DJ rackThe flat XDP-3001 is designed as a user-friendly dual player for equipment racks. The XDP-3001's control and drive units require only 1 height unit each, yet are packed with intuitive features such as pitch control, cueing and folder navigation. The unit offers playback functions for audio CDs, CD-Rs and MP3 CDs via two decks, as well as USB ports and SD card slots for storage devices up to 64 GB. Its versatility makes it essential for easy music control in bars, restaurants, dance studios and retail stores.

Dual CD and MP3 player for CD, USB and SD

• 2 USB ports for USB storage devices
• 2 SD(HC) card slots
• 2 slot-in drives
• 2 x 15 seconds anti-shock protection
• Bright dot-matrix VFD display with ID3 tag support
• Cue function
• Single or continuous play
• Folder navigation
• Repeat function
• Bargraph display
• Extra-large play/pause and cue buttons with color illumination
• Search buttons for fast forward and reverse
• Multicolor VFD display
• Pitch range: ±4%, ±8%, ±16%
• (19") 48.3 cm rack installation 2 U

Package contents

• 1 x audio player, 1 x control panel, 1 x power cord, 2 x rCA cable, 2 x multi-pin cable, 1 x user manual, 4 x foot

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	Max. 15 W
Power connection:	Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided)
Frequency range:	20 - 20000 Hz
Audio player:	USB + SD + CD player, Anti-shock, pitch,
CD player drive:	Slot in-Double CD drive
Display type:	Multicolor VFD display
Display:	CD-DA play time elapsed , play time remaining , total play time remaining , Bargraph; MP3 play time remaining , play time elapsed , Bargraph , ID3-Tags
Control elements:	Source selector
Connections:	Output: line via 2 x stereo RCA 0,86 V
Music format:	CD, CD-R, CD-RW, CD-DA, MP3
Available storage media:	USB devices/SD cards max. 64GB
Pitch range:	±4%, ±8%, ±16%
Material:	Metal
Housing design:	(19") 48.3 cm rack installation 2 U
Weight:	4,45 kg
Control panel
Dimensions:	Width: 48,3 cm Depth: 8,5 cm Height: 4,45 cm
Audio player
Dimensions:	Width: 48,3 cm Depth: 28 cm Height: 4,45 cm
