Neutrik NAC3FXXA-W-S - Neutrik powerCON blue PowerIn

Preview: Neutrik NAC3FXXA-W-S - Neutrik powerCON blau PowerIn

Neutrik NAC3FXXA-W-S - Neutrik powerCON blau PowerIn

€11.02 *

incl. tax, plus shipping costs

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 220003705

EAN: 7613187017759

Neutrik powerCON blue PowerIn IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified,... more

Back to the overview

All information about the product:

"Neutrik NAC3FXXA-W-S - Neutrik powerCON blue PowerIn"

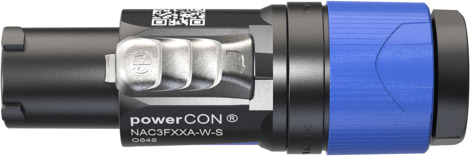

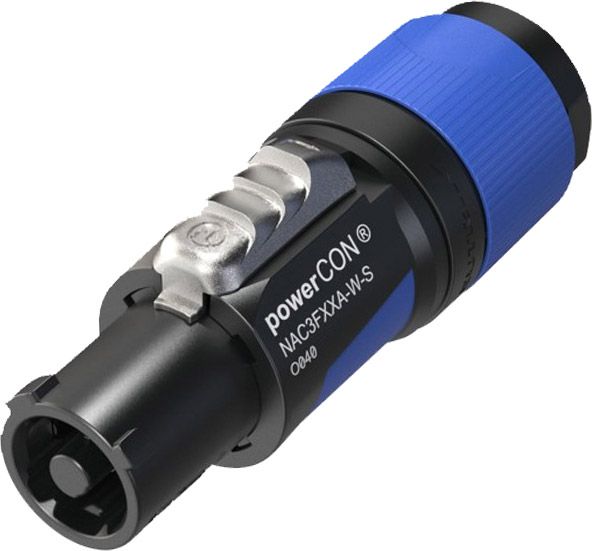

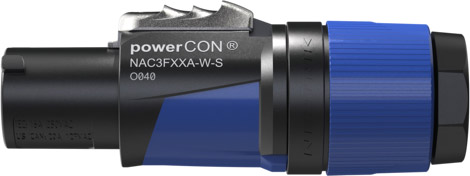

Neutrik powerCON blue PowerIn

IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
Power-in (blue) and power-out (grey) versions with di?erent keying to avoid the possibility of intermating
Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
Easy and reliable twist lock system
Ergonomic design with slip-proof two-component molded housing
Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm
Superior NEUTRIK quality standard, extremely robust and reliable
Improved kink protection by two-component bushing

Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 6 - 12 mm.

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Technical data:

Product type:	Plugs and Connectors
Type:	Power Connectors
Poles:	3
Gender:	female
Cable diameter:	6 - 12 mm
Contacts:	copper
Connection type:	PowerCon
Housing:	polyamide
Weight:	0,044 kg
