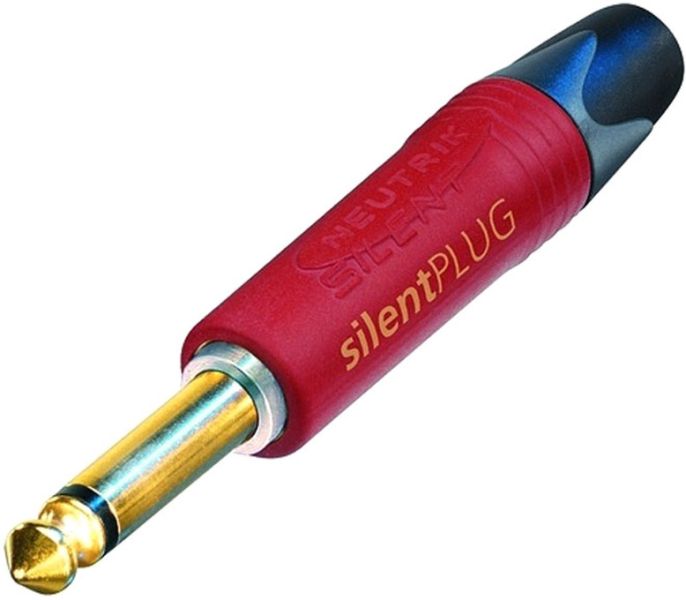

Neutrik NP2X Silent Plug 6.3 mm Jack Plug mono

2 pole 1/4" professional phone plug, gold plated contacts, red rubber overlay, silent switch The silentPLUG automatically mutes (shorts) an instrument (guitar) cable to avoid pops and squeals when changing the instrument (guitar) under load. The integrated silent switch is based on REED-technology and guarantees a lifetime beyond 10 '000 mating cycles. The new PX silentPLUG features a rugged metal shell enhanced with a rubber cushion overlay for improved shock protection. Features & Benefits

• Avoid pops and squeals
• Hermetically sealed switching contacts
• Lifetime beyond 10'000 mating cycles
• Slim plug with industry proven and reliable chuck type cable strain relief
• Sleek attractive design for convenient handling and connections
• Rubber overlay on straight housing for best shock-protection and reliability
• L-D versions available which accommodates cable O.D. up to 8 mm

ATTENTION: For use with instrument (guitar) applications only. Damage may occur if connected to amplifier output. Please note that the signal isn't muted with some types of active electric guitars which are equipped with tip-ring-sleeve jacks thtat tap to activate the guitar power supply. Specifications:

Product type:	Plugs and Connectors
Type:	Jack Connectors
Poles:	2
Gender:	male
Cable diameter:	4 - 7 mm
Contacts:	gold plated
Connection type:	solder contacts
Colour:	red
Housing:	Rubber sheath
Strain relief:	polyacetal
Length:	100 mm
Diameter:	15.8 mm
Weight:	0,02248 kg
