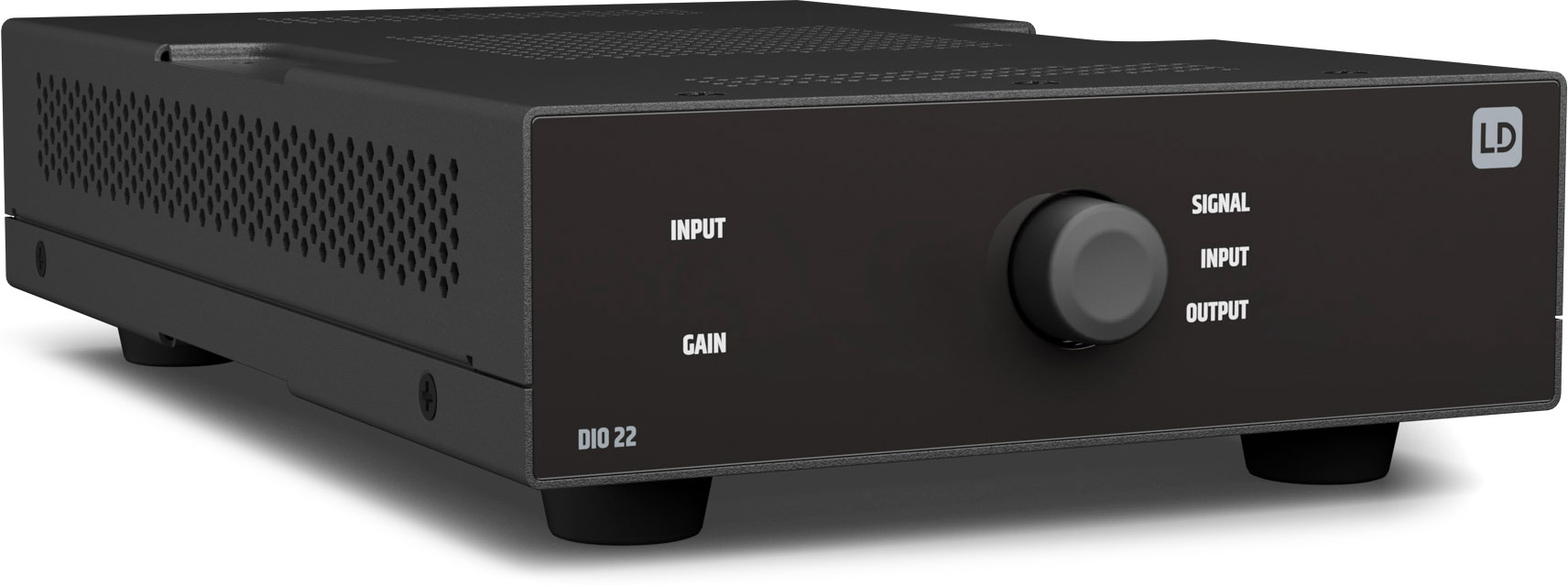

2x2 inputs/outputs Dante interface

Dante interface with two inputs and two outputs
Connect microphones or line-level signals.
Four-stage gain control and 24 V phantom power per channel
Terminal block connections for all analog connections
Signal display for each channel
Operates via PoE or an external power supply
Can be used as a PoE injector to supply power to another network device
Enables the cascading of Dante devices

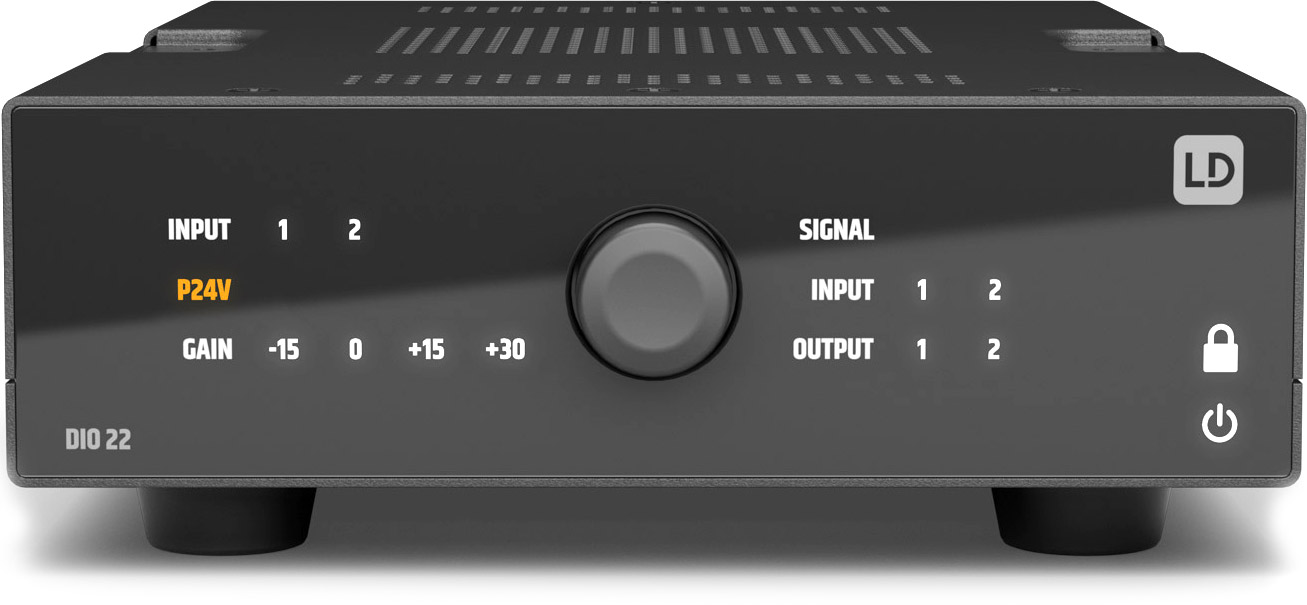

Easy configuration on the front and user blocking

The DIO 22 from the TICA® series is a Dante interface with two inputs and two outputs that offers exactly the features that audio and AV professionals really need. It features two balanced mic/line inputs and two line outputs with four-stage gain adjustment and 24V phantom power on each input. Signal indicators for each channel speed up installation and troubleshooting.

The DIO 22 is easily configured from the front panel and can then be locked to prevent unauthorized changes.

Power is supplied via a PoE+ network switch or the optional external power supply. Since the interface is equipped with two Dante network connectors, you can cascade multiple Dante devices. If you use the external power supply, you can supply power to another networked device in the chain.

Thanks to its compact size (142 x 43 x 221 mm) and the included mounting plates, the DIO 22 can be installed unobtrusively behind screens or under tables. Alternatively, it can also fit into 1/3 19-inch racks. Use the optional rack tray to place up to three TICA® series products next to each other, creating a system that exactly meets your requirements and takes up minimal rack space.

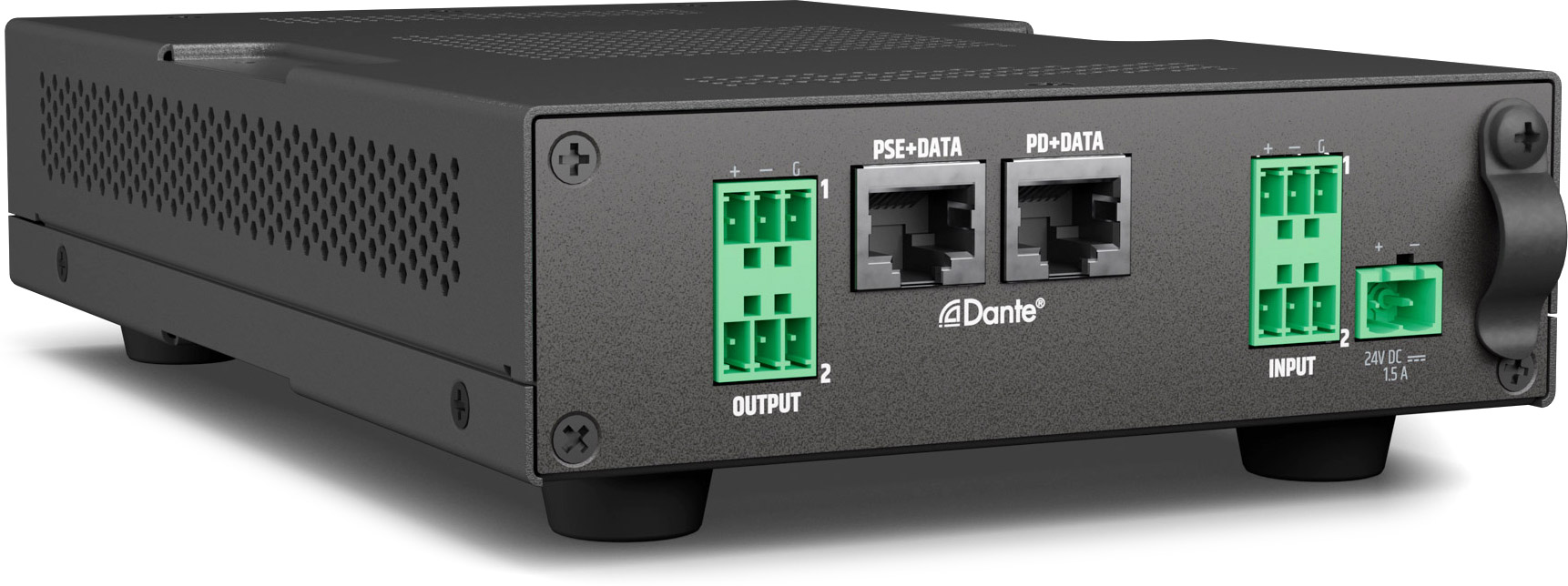

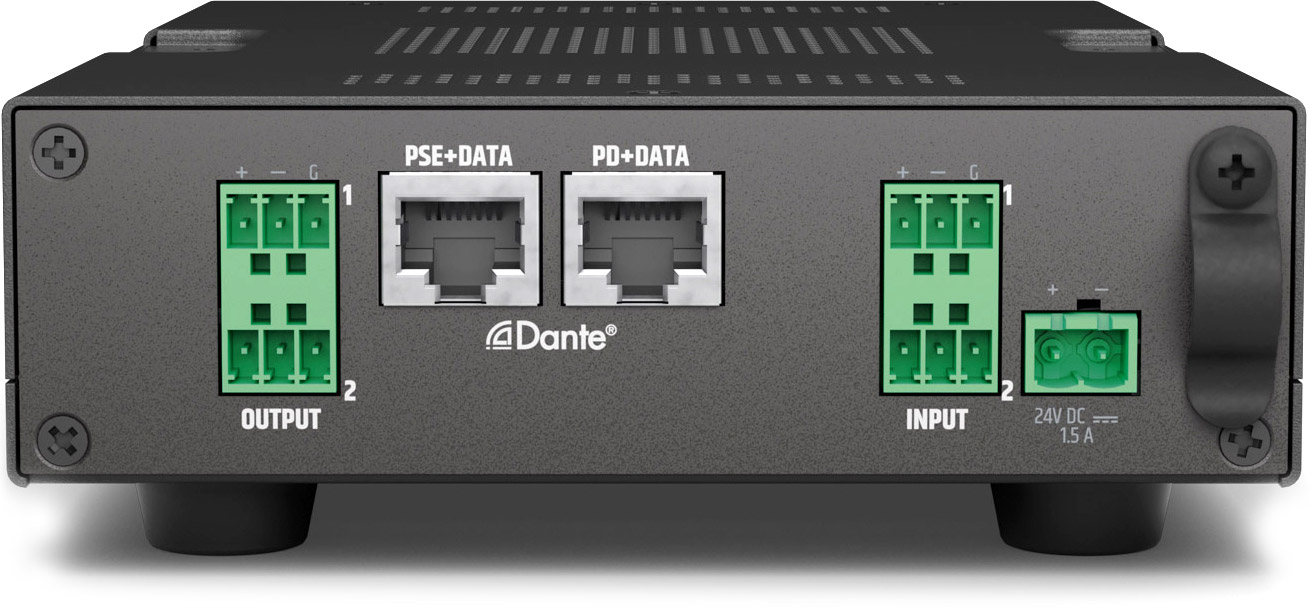

Terminal block connections at the analog inputs and outputs simplify the cabling.

The perfect solution for professional technicians who need an interface to Dante devices.

Compatible with Dante Domain Manager and AES 67.

Technical data:

Product type:	2x2 I/O Dante interface.
Inputs:	2
Type of receipt:	Switchable balanced microphone or line level
Line outputs:	2
Output type:	Balanced line level with automatic mute on loss of Dante/AES67 signal
Cooling:	convection

Analog input range

Number of input connections:	2
Connection:	3-Pin Terminal Block (3.81 mm)
Microphone input sensitivity:	55mV (Gain +30dB switch)
Nominal input attenuation:	20 dBu (sine 1kHz)
Nominal input attenuation:	0dB gain switch
Frequency response:	10 hz - 20 kHz ( 0.5 dB)
THD + Noise:
DIM:
Input impedance:	10 kOhm (balanced)
crosstalk
SNR:	> 112 dB (0dB switch, 20 dBu, 20 kHz BW, a-weighted)
CMRR:	> 50 dB
High Pass Filter:	100Hz (-3dB, when +15 or +30dB is selected)
Phantom power (per input):	+ 24 VDC @ 10 mA max
Gain:	-15dB, 0dB, +15dB, +30dB

Analog line outputs

Number of output connections:	2
Connections: line outputs:	3-Pin Terminal Block (3.81 mm)
Max. output level:	18 dBu
Intermodulation distortion (SMPTE):
THD + N:
Idling noise:	- 92 dBu
Dynamic range:	> 107 dB (0dBFS, AES 17, CCIR-2k Weighting)
Frequency range:	15 Hz - 20 kHz (-0.5 dB)

Dante™ Specifications

Audio channels:	2 inputs / 2 outputs
Bit depth AD/DA converter:	24 bits
Sample rate:	48 kHz
System Latency:	Minimum 1 ms
DANTE connection:	100 BASE-T RJ45

PoE (Power over Ethernet)

Minimum requirements for PoE:	PoE+ IEEE 802.3at
PSE+ Data:	Can supply 1 additional PD device

power supply

Input voltage:	24 V DC
Minimum current:	1.5 A
Power supply connection:	Grid spacing 5.08 mm terminal block (2-pin)
Max. power consumption:	10 W
Power consumption (idle):	7.5 W (no input signal)
Power consumption with secondary connection:	22 W
Mains inrush current:	1.7A @ 230V AC
Operating temperature (non-condensing):	0°C - 40°C;
Material:	Steel casing
Material:	plastic bezel
Dimensions (W x H x D) (height with rubber feet):	142 mm x 53 mm x 221.7 mm
Weight:	1.04 kg
Accessories (included):	rubber feet
Accessories (included):	Terminal blocks for electrical connections
Accessories (included):	Mounting plates for surface mounting
