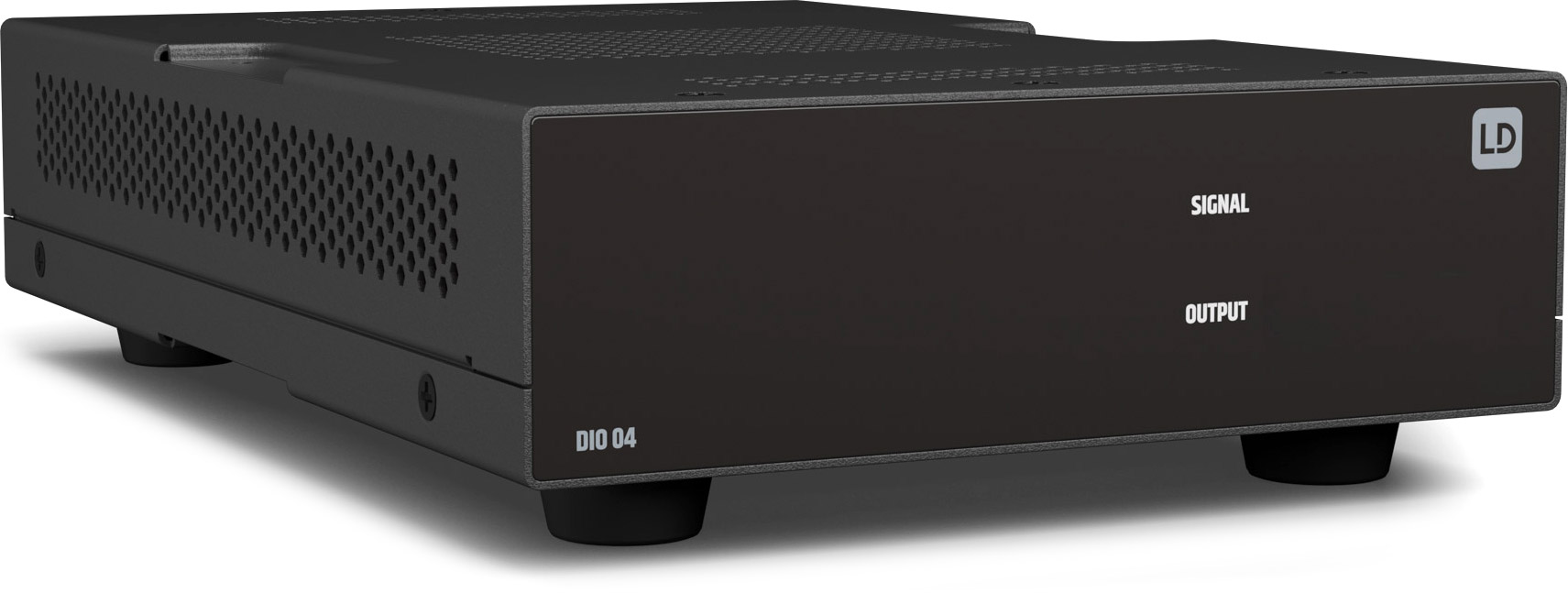

LD Systems DIO 04 - 4 Output Dante Interface

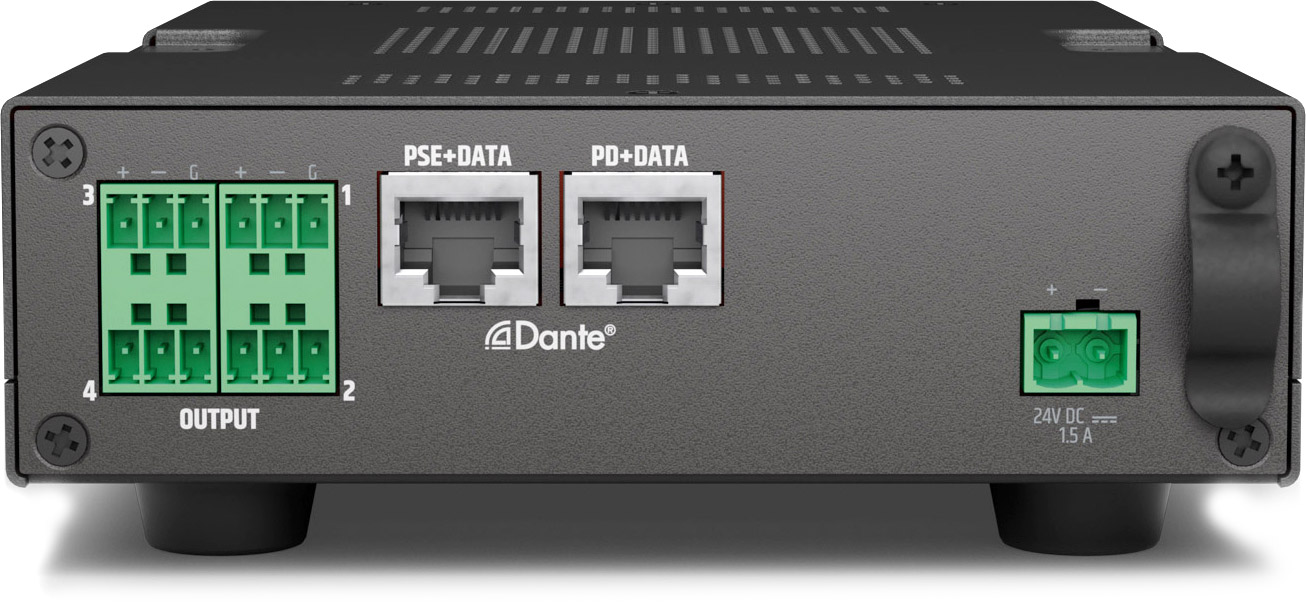

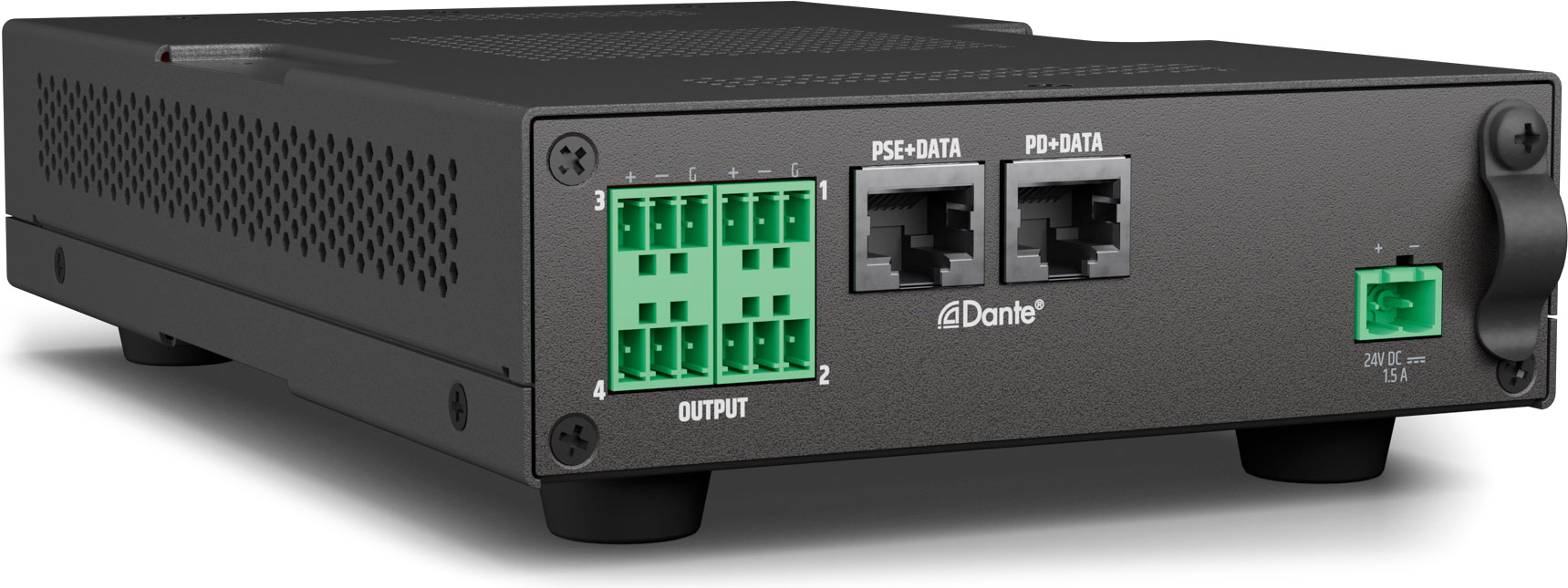

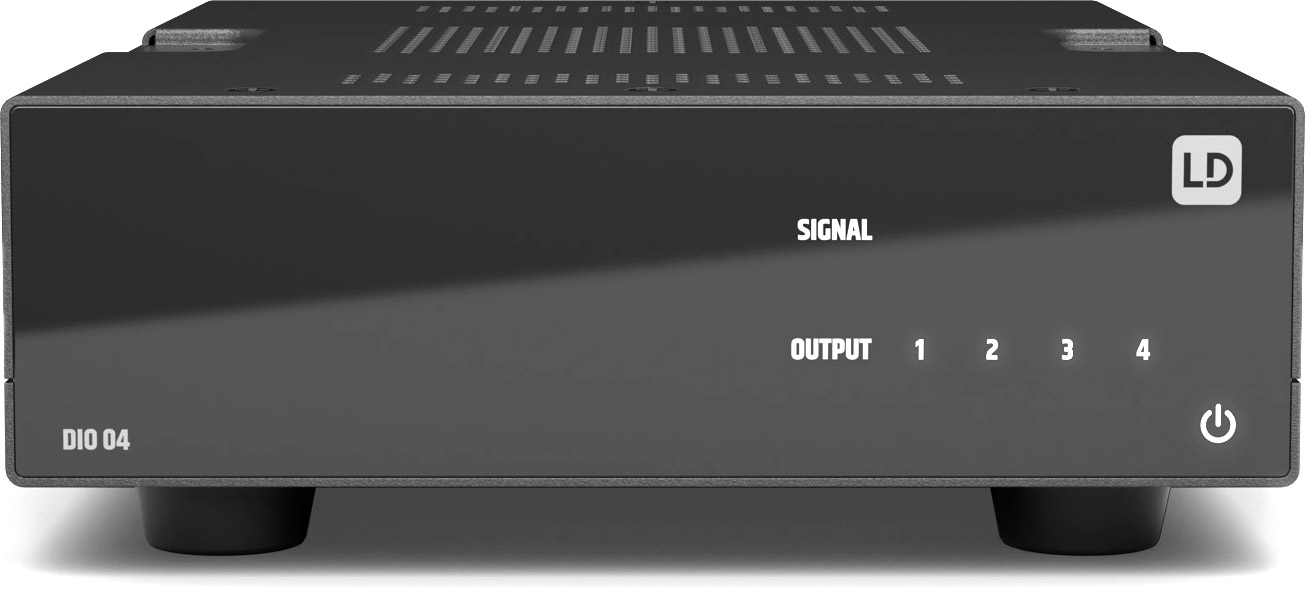

The DIO 04 from the TICA® series is a Dante interface with four outputs that offers exactly the features that audio and AV professionals really need. It has four balanced outputs for connecting to analog audio devices, such as power amplifiers. Signal indicators for each channel speed up installation and troubleshooting.

Power is supplied via a PoE+ network switch or the optional external power supply. Since the interface is equipped with two Dante network connections, you can cascade multiple Dante devices. It also works as a PoE+ injector: if you use the external power supply, you can supply power to another networked device in the chain.

Thanks to its compact size (142 x 43 x 221 mm) and the included mounting plates, the DIO 04 can be installed inconspicuously behind screens or under tables. Alternatively, it can also be mounted in 1/3 19-inch racks. Use the optional rack tray to place up to three TICA® series products next to each other, creating a system that exactly meets your requirements and takes up minimal rack space.

Terminal block connections at the analog inputs and outputs simplify the cabling.

The perfect solution for professional technicians who need an interface to Dante devices.

Compatible with Dante Domain Manager and AES 67.
