Palmer RIVER saar - Active guitar splitter Y-Box
- Distributes the guitar/bass signal to two outputs/amps simultaneously
- Reliably prevents ground loop hum through isolation transformer
- No sound loss thanks to active FET input switching
- Input signal looped through to amp 1 output
- Amp 2 output is actively buffered and also withstands longer cable runs with no sound loss
- Phase reverse switch for output 2 for top quality sound with out-of-phase amps
- Ground Lift Switch

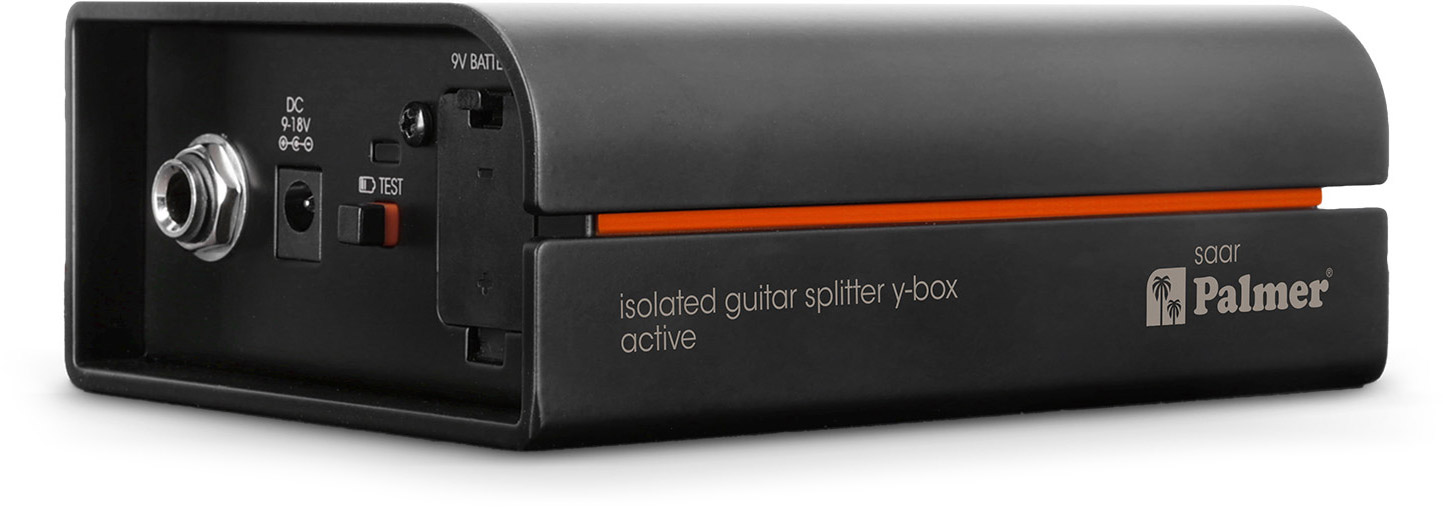

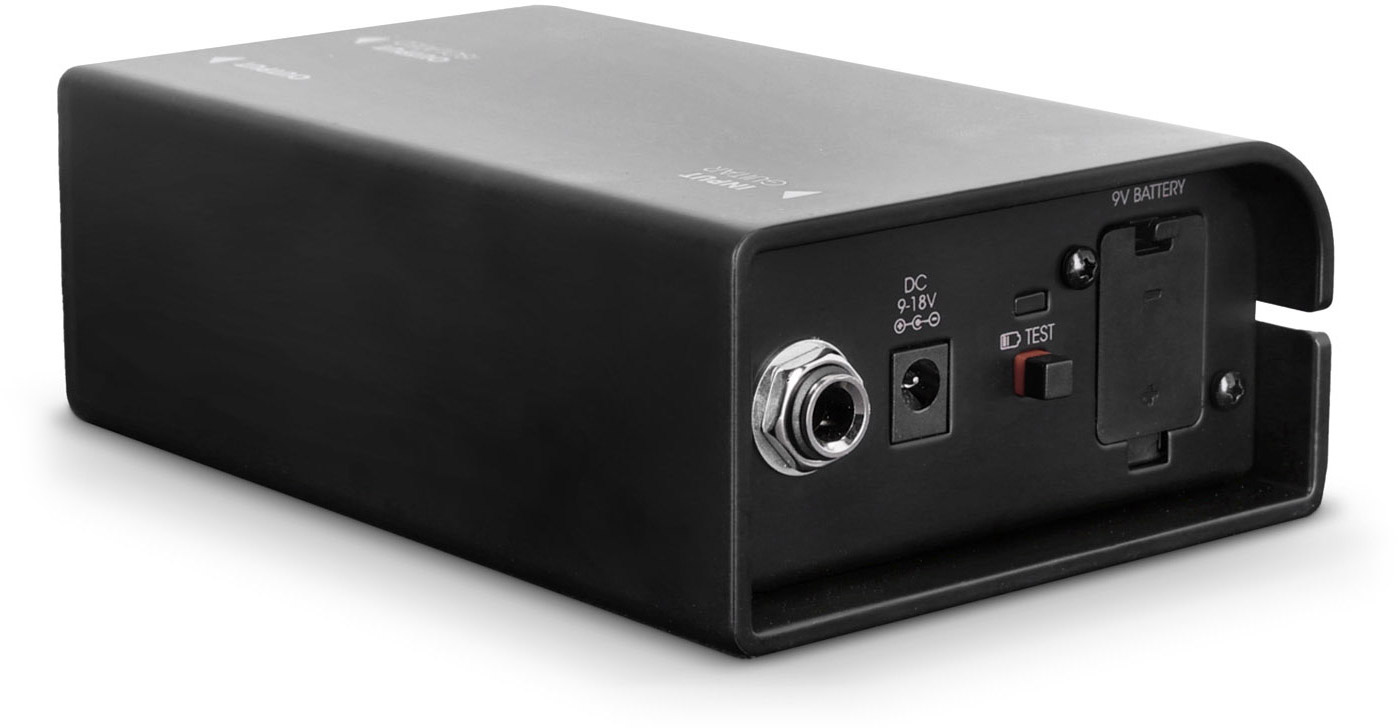

- Power supply via 9V battery or general 9V mains supply

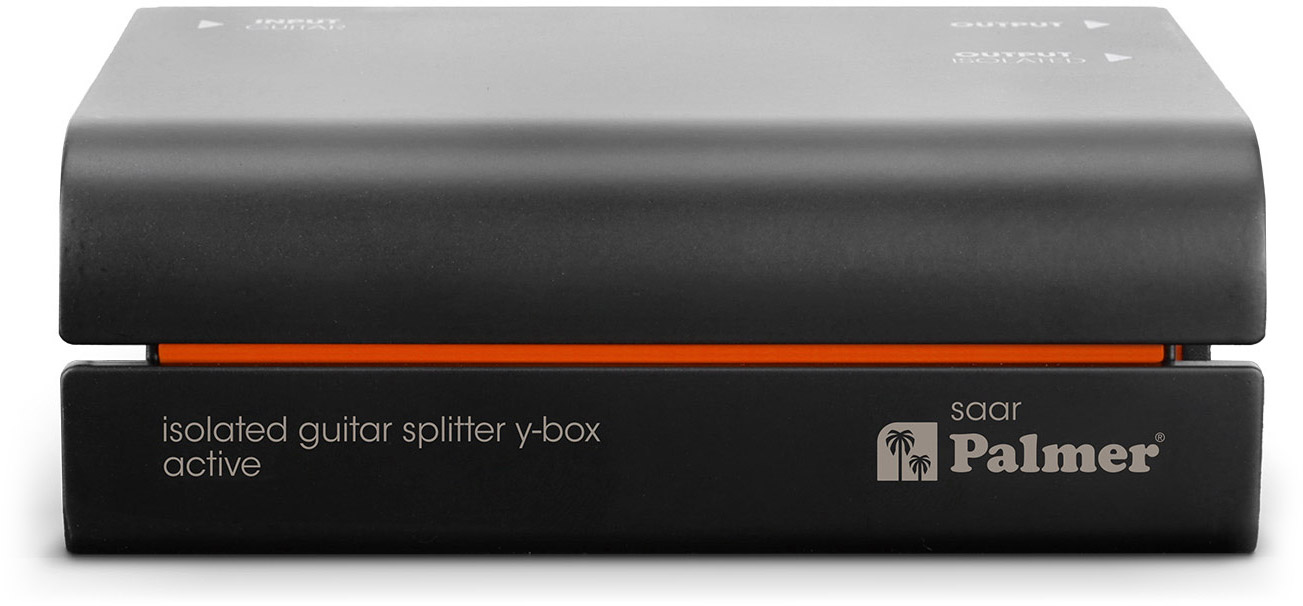

- Road-ready aluminium and steel casing
- Incl. rewritable tour label for attachment on to the back of the saar
- Engineered in Germany
So, you want to play your guitar or your bass through two amps at the same time? Great idea! The problem is, it hums. And not just a little bit either. In fact, it makes a real racket. Thankfully, the Palmer saar Guitar Splitter box is here to save the day. The saar separates the ground potentials of both amplifiers and prevents ground loop hum when interconnecting multiple amps.
The Palmer saar loops through the input signal passively to amp out 1, while an active FET switch branches off the signal for amp out 2. This happens without sound loss, as the FET input level is extremely high impedance. Amp out 2 is also decoupled from the ground circuit by a transformer. Ground loops can be separated by pressing the ground lift switch.
The signal from amp out 2 is low impedance and reliable, so that longer cable runs without sound loss are also possible. An important feature is the phase reverse switch for the second output. The signal polarity of guitar/bass amplifiers is not standardised. Two amps operated simultaneously can be in-phase or out-of-phase. In the latter case, the sound is unpleasantly thin - which can be resolved by pressing the phase reverse switch on the Palmer saar. Of course, you can also use the phase reverse feature as a sound design tool if you wish: the out-of-phase sound can sometimes be a great creative option!
The Palmer saar is a simple and effective tool that lets you enjoy the larger-than-life sound of two amps simultaneously - without any hum or interference.
Technical data:General| Type: | Active |
| Included Accessories: | Rubber feet, Tour label |
| Isolated transformer: | Yes |
| Transformer Ratio: | 1:1,1 |
| Ground Lift: | Yes |
| On/Off switch: | No |
| Number of inputs: | 1 |
| Number of outputs: | 1 |
| Number of channels: | 1 |
| Input signal type: | Unbalanced |
| Input connector types: | 6.3 mm Jack TS |
| Number of instrument inputs: | 1 |
| Max. input level ( | 21 dBu: |
| Max. input level ( | 24 dBu: |
| Input impedance: | 1 kO |
| Output signal type: | Unbalanced |
| Output connector types: | 6.3 mm Jack TS |
| Output impedance: | 64 O |
| Linked outputs per channel: | 1 |
| Linked output connector type: | 6.3 mm Jack TS |
| Max. output level*: | 20 dBu |
| Frequency response (±1 dB, rel. 1 kHz): | 20 - 20,000 Hz |
| Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted): | 120 dB |
| Max. THD+N (1 kHz, +4 dBu, unity, unweighted): | 0.0005 % |
| Max. THD+N (30 Hz, +4 dBu, unity, unweighted): | 0.0006 % |
| Max. IMD (SMPTE, 7 kHz, 4:1, +4 dBu): | 0.0015 % |
| Max. IMD (SMPTE, 60 Hz, 4:1, +4 dBu): | 0.0015 % |
| Measuring conditions, unless otherwise specified: | 600 O generator source impedance (including open inputs) and 1 kO balanced load. |
| Operation voltage: | 9 V DC - 18 V DC (external power supply) |
| Polarity: | Switchable |
| Rated power: | 0.5 W |
| Battery type: | 9V block (6LR61) |
| Number of batteries needed: | 1 |
| Built in battery tester: | No |
| Chassis material: | Aluminum continuous casting |
| Ambient temperature: | -20 - 70 °C |
| Maximum air humidity (non-condensing): | 80 % |
| Width: | 50 mm |
| Height: | 140 mm |
| Depth: | 98 mm |
| Weight: | 0.57 kg |
