Palmer PAN 16 - 19" DI Box 8 Channels passive
€324.24 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 500117315
EAN: 4049521172557
MPN: PAN16
19" DI Box 8 Channels passive 19“ passive DI-Box 8 Channels Up to 16 Inputs Link Merge... more
All information about the product:
"Palmer PAN 16 - 19" DI Box 8 Channels passive"
19" DI Box 8 Channels passive
- 19“ passive DI-Box
- 8 Channels
- Up to 16 Inputs
- Link Merge Function
- Flexible PAD: -10dB, -20dB, -30dB
- Transformer balanced and isolated outputs

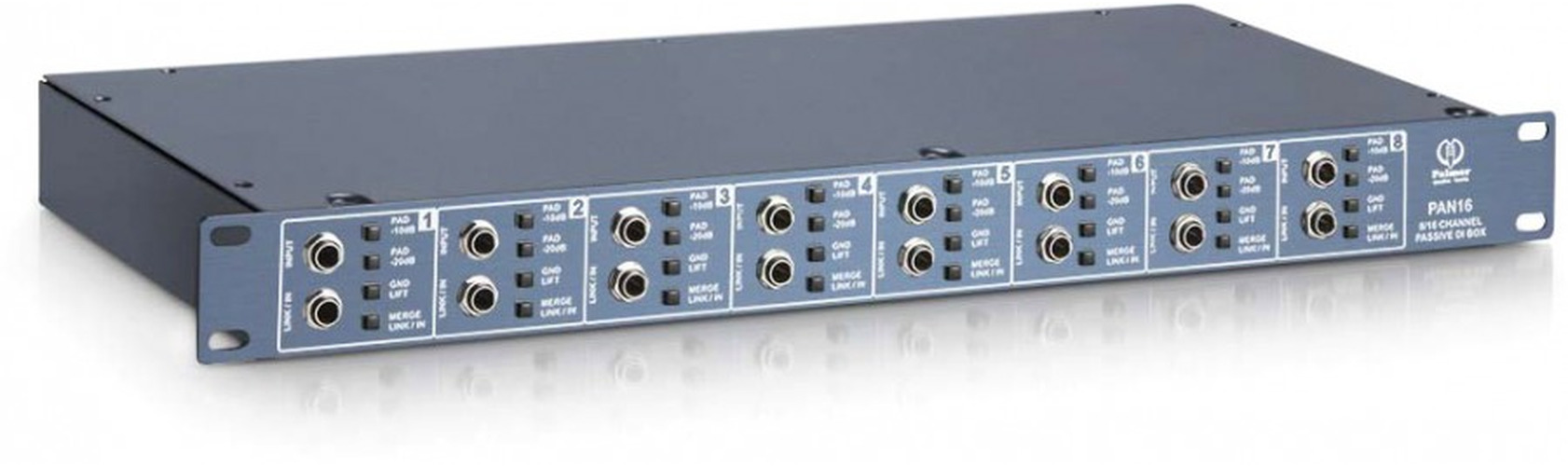

The Palmer PAN16 is an 8 channel passive DI box in a 19" 1U rack format. Through the special MERGE LINK/IN function, the front LINK output can be used as a second input.The signal is then mono merged with the one from the INPUT jack through to the output. Thus, the PAN16 offers a maximum of 16 inputs. Two PAD buttons enable an attenuation of 10, 20 or 30 dB. The XLR outputs are electrically isolated and balanced via transformer. 8 additional LINK-sockets are also available on the rear panel of the device.
Technical data:| Product type: | DI Boxes |
| Type: | passive |
| Channels: | 8 |
| Inputs: | 8 / 16 |
| Input connectors: | 6.3 mm jack |
| Max. input level: | + 54 dBu |
| Input impedance: | (@ 60 Hz) 1 M Ohm(s) |
| Input pad: | 0 / -30 dB |
| Outputs: | 4 (+ 4 Parallel Thru out) |
| THRU outputs/channel: | 2 |
| Output connectors: | 6.3 mm jack |
| Output connectors: | XLR |
| Max. output level: | +4 dBu |
| Output impedance: | 600 Ohm(s) |
| Frequency response: | 10 - 40000 Hz |
| Transformer balanced: | Yes |
| Ratio: | 10 : 1 |
| Controls: | ground lift |
| Controls: | merge |
| Controls: | PAD -10dB |
| Controls: | PAD -20dB |
| Cabinet material: | sheet steel |
| Cabinet surface: | Powder coated |
| Width: | 480 mm |
| Width: | 19 " |
| Depth: | 200 mm |
| Height: | 45 mm |
| Height: | 1 U |
| Weight: | 2,39 kg |
