Palmer PAN 03 PASS - 19" DI Box 4-Channel passive
€224.12 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 500117330
EAN: 4049521108846
MPN: PAN03PASS
19" DI Box 4-Channel passive Passive 4-channel DI BOX in a 19" housing. Each channel has a jack... more
All information about the product:
"Palmer PAN 03 PASS - 19" DI Box 4-Channel passive"
19" DI Box 4-Channel passive

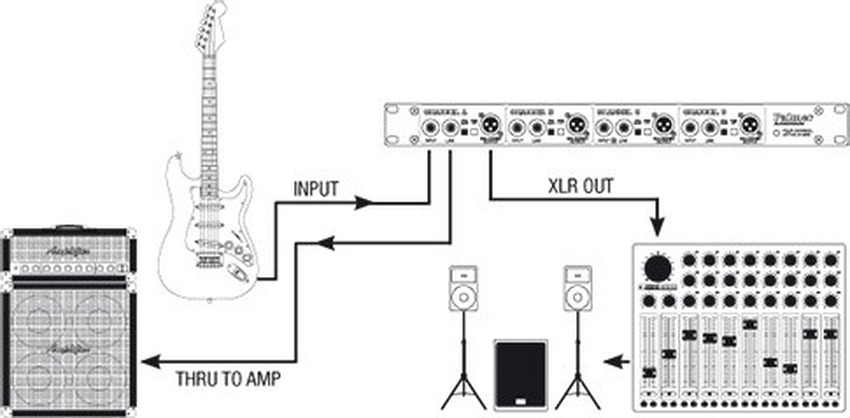

Passive 4-channel DI BOX in a 19" housing. Each channel has a jack input with a parallel output for looping the signal through. An attenuation switch (-30 dB) permits connection of a line or speaker signal at the user's choice. The specifications are identical with those of the PAN 01. All connections and switches are on the 1 U front panel; the XLR output is additionally present as a parallel socket on the rear panel.
Technical data:| Product type: | DI Boxes |
| Type: | passive |
| Channels: | 4 |
| Inputs: | 4 |
| Input connectors: | 6.3 mm jack |
| Max. input level: | + 54 dBu |
| Input impedance: | (@ 60 Hz) 68k Ohm(s) |
| Input pad: | 0 / -30 dB |
| Outputs: | 4 (+ 4 parallel outs) |
| THRU outputs/channel: | 1 |
| Output connectors: | 6.3 mm jack |
| Output connectors: | XLR |
| Max. output level: | +4 dBu |
| Output impedance: | 600 Ohm(s) |
| Frequency response: | 10 - 40000 Hz |
| Transformer balanced: | Yes |
| Ratio: | 10 : 1 |
| Controls: | attenuation |
| Controls: | ground lift |
| Cabinet material: | sheet steel |
| Cabinet surface: | Powder coated |
| Width: | 480 mm |
| Width: | 19 " |
| Depth: | 90 mm |
| Height: | 45 mm |
| Height: | 1 U |
| Weight: | 1,43 kg |
