LD Systems IPA 412 T - 4-Channel DSP Installation Power Amplifier 4 x 120 W @ 4 Ohm / 70V/100V
Delivery time: approx. 2 weeks
- Professional 4-channel installation amplifier
- Powerful Class D amplifier with 4 x 120 W (IPA 412 T) or 4 x 240 W (IPA 424 T) at 4 ohms (transformerless) or 70V/100V outputs with toroidal transformer
- Stereo/parallel/bridge mode selector switch per channel pair
- 4 priority levels for a wide range of integration options

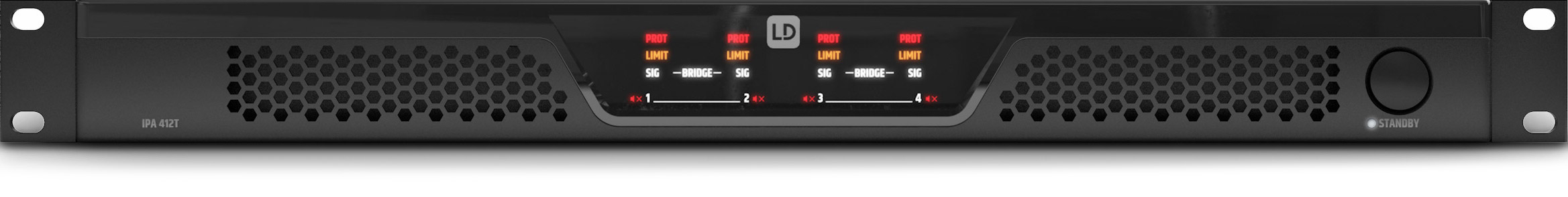

- User-friendly front panel with signal, limit, protection, mute and bridge mode indicators for each channel and clipping LEDs for the inputs
- Amplifier protection circuits: DSP limiter, overcurrent, DC current, overheating, short circuit and switchable auto standby mode
- DSP presets with HP and LP filters can be activated via rear DIP switches
- REMOTE audio and control bus based on CAN architecture (Controller Area Network)
- Prepared for future LD Systems remote control panels and paging microphones
- Slot for future optional expansion cards for Ethernet or Ethernet + Dante
- Optional accessories: 19" L-support rails, length 450 mm
Good sound is expected everywhere – in hotel lobbies, conference rooms, schools and places of worship. At the same time, expectations are constantly rising, not only in terms of quality but also in terms of flexibility. Fixed installation and yet flexible? This apparent contradiction can be resolved with DSP-based systems such as the IPA series installation amplifiers.
The IPA 412 T is a professional four-channel installation power amplifier with 4 x 120 watts. While the 70V/100V outputs are equipped with high-quality toroidal transformers, the low-impedance 4-ohm outputs work completely transformerless to ensure the highest audio quality. The versatile DSP functions include parametric EQ with a matching speaker library, dynamics tools, a matrix mixer, priority source selection and delay.
Despite this functional diversity, the power amplifiers of the IPA series remain easy to operate. Important functions such as signal, limit, protection and bridge mode are easily visible via front LEDs.
HPF/LPF filter presets can be activated directly on the device via DIP switches. The IPA 412 T is already prepared for remote control using future LD Systems remote panels and paging microphones. A slot for optional expansion cards ensures future-proofing. The Ethernet card provides comprehensive configurability and control via software. The Ethernet+Dante card offers additional Dante audio networking capabilities and connection to a wide range of Dante-enabled devices, integrating the IPA 412 T into the Dante network and solving even complex sound reinforcement tasks.
Times may change; rooms may be reallocated or rededicated, numbers of participants may increase or decrease due to unforeseen events – but with the DSP-supported power amplifiers of the IPA series, your installation is prepared for all eventualities. Scalability and future-proofing are among the great advantages of the IPA series. Its energy efficiency is also exemplary, thanks to Class D technology and switchable auto standby.
The IPA 424 T variant with 4 x 240 watts is available for larger installations.
Technical data:| Product type: | amplifier |
| Type: | installation amplifier |
| Audio channels: | 4 |
| Output circuit: | Class D |
| Power supply: | Wide-range switch-mode power supply with PFC (power factor correction filter) |
| Grid connection: | IEC mains socket |
| Auto standby mode: | Yes, switchable (on-off) |
| Time to automatic standby: | 20 min. without audio input signal |
| DSP: | Yes. |
| Remote bus: | Yes. |
| Display elements: | Rear: 4 x input signal clip LEDs, remote disable LED (red) |

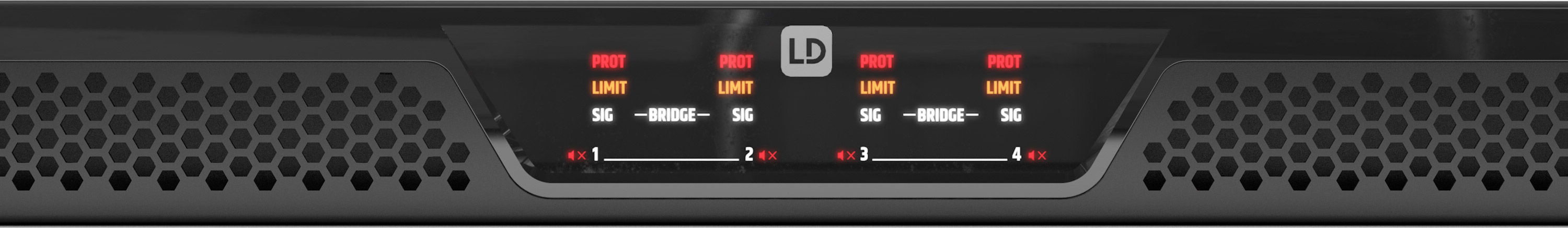

| Display elements: | Front: "PROT", "LIMIT", "SIG", "BRIDGE" and mute symbol LEDs. Power/standby LED |
| Controls on the front panel: | power button |
| Controls on the front panel: | standby |

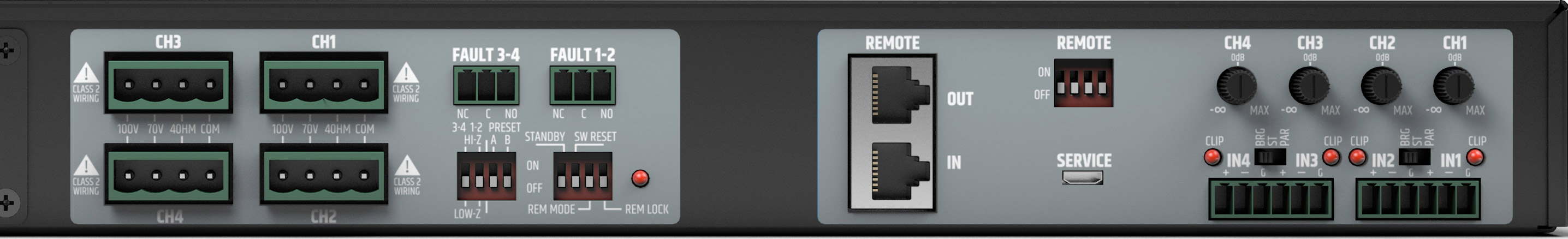

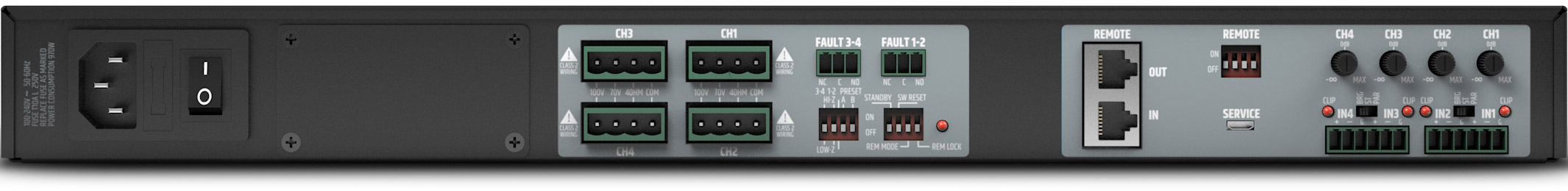

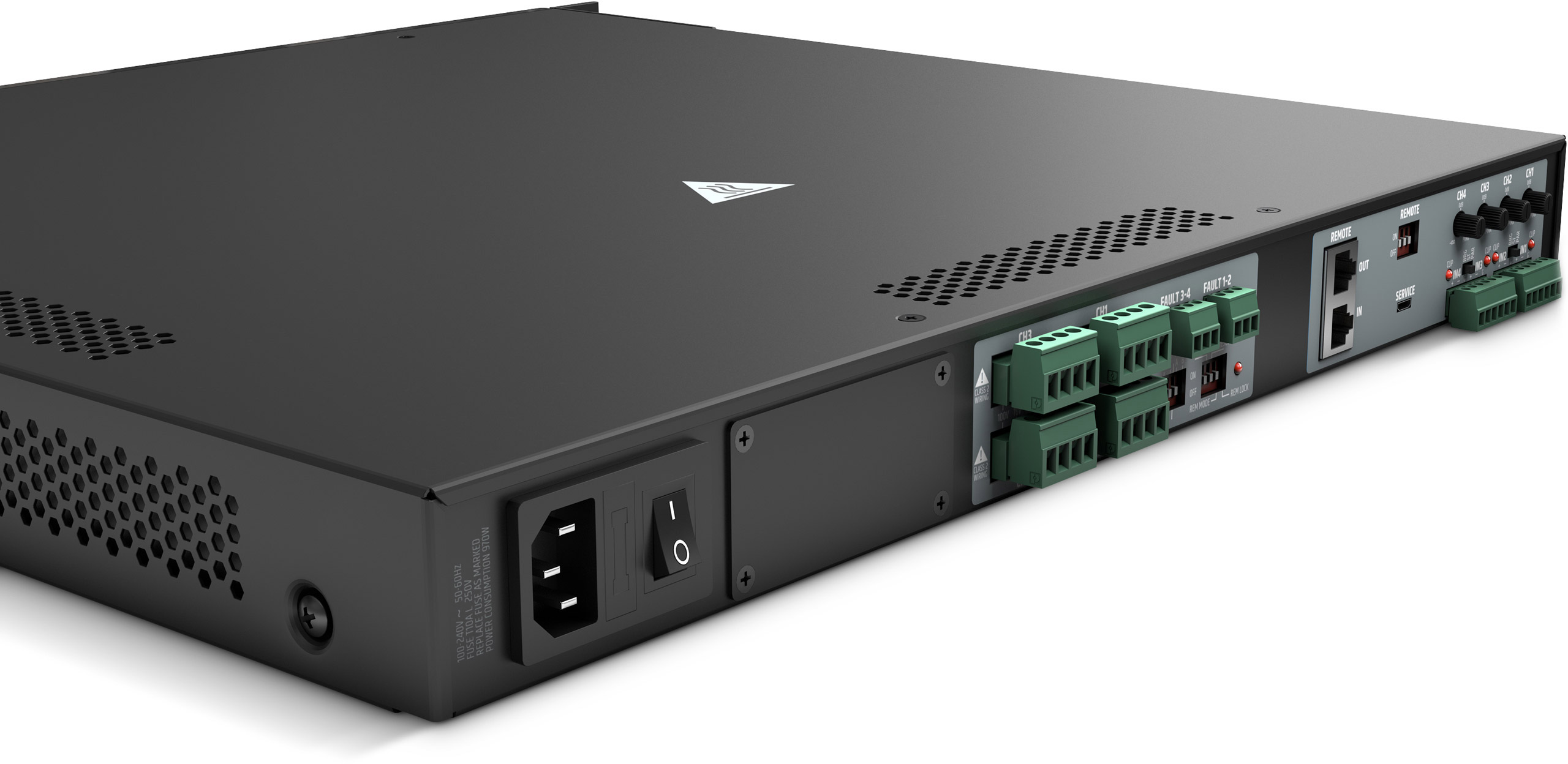

| Controls on the back: | "BRG" (Bridge) |
| Controls on the back: | "PAR" (parallel) |
| Controls on the back: | "ST" (stereo) |
| Controls on the back: | Low-Z and High-Z switch (coupled) |
| Controls on the back: | volume control |
| Controls on the back: | Remote ON/OFF |
| Controls on the back: | remote mode |
| Controls on the back: | remote locking switches |
| Controls on the back: | Switch for preset A and B |
| Controls on the back: | Standby on/off |
| Controls on the back: | amplifier channel mode |
| Inputs: | 4 balanced line inputs |
| Inputs: | remote bus audio input |
| Input connectors: | 6-pole terminal block, 3.81 mm pitch |
| Input connectors: | Remote ON/OFF RJ45 |
| Input connectors: | Service connection: micro USB type B |
| Expansion slot: | For optional Ethernet or Ethernet + Dante cards |
| Cooling: | Front-to-Rear/Side air flow (front to back/sides) |
| Cooling: | Passive + temperature-controlled active cooling (2 zones) |
| Operating voltage: | 100 V AC - 240 V AC / 50 - 60 Hz |
| Fuse: | T10AL 250 V |
| Switch-on current OFF-standby: | 2.8 A |
| Inrush current standby ON: | 0.5 A |
| Power consumption in standby: | 0.9 W |
| Power consumption in sleep mode: | 25 W |
| Power consumption at full load: | 790 W |
| Operating temperature: | 0 °C - 40 °C (max. 60 % relative humidity) |
| width: | 483 mm |
| Height: | 44.5 mm |
| Depth: | 425 mm |
| Optional accessories: | 19" L-mounting rails ( AH - 876T L) |
| Weight: | 8.7 kg |
| Output power (1 kHz @ 4 ohms) (filter): | 4 x 120 W (1.5 seconds sine burst) |
| Output power (1 kHz @ 8 ohms): | 4 x 60 W (1.5 seconds sine burst) |
| Output power (1 kHz @ 16 ohms): | 4 x 30 W (1.5 seconds sine burst) |
| Output power (1 kHz @ 8 ohms, bridge mode): | 2 x 236 W (1.5 seconds sine burst) |
| Output power (1 kHz at 100 V/70 V): | 4 x 120 W, transformer-coupled outputs |
| Protective circuits: | audio limiter |
| Protective circuits: | direct current |
| Protective circuits: | RF protection |
| Protective circuits: | HPF (High-Z) |
| Protective circuits: | short circuit |
| Protective circuits: | Temperature |
| Protective circuits: | overheating |
| Minimum load impedance per channel: | 4 ohms single-sided, 8 ohms bridge |
| Input sensitivity, nominal: | +5 dBu (sinusoidal signal, 1 kHz, gain max.) |
| Input overdrive, nominal: | 19 dBu (sine signal, 1 kHz) |
| THD + N: | |
| Frequency response: | 18 Hz – 22 kHz (Low-Z OUT, -3 dB) |
| Frequency response: | 50 Hz – 23 kHz (High-Z OUT, -3 dB) |
| Signal-to-noise ratio: | >105 dB (Low-Z SPK OUT |
| Signal-to-noise ratio: | CH-Gain center position (0 dB, 20 kHz bandwidth, A-weighted) |
| Channel crosstalk: | 83 dB @ 1 kHz |
| System Latency: | 6.2 ms |
| Resolution AD/DA converters: | 24 bits |
| AD/DA converter sample rate: | 48 kHz |
