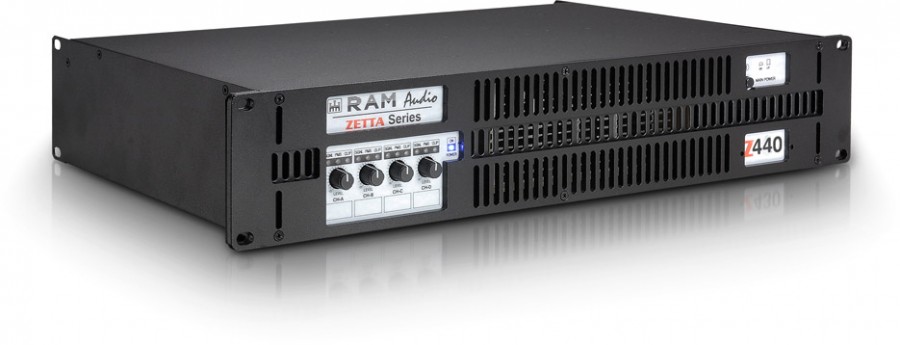

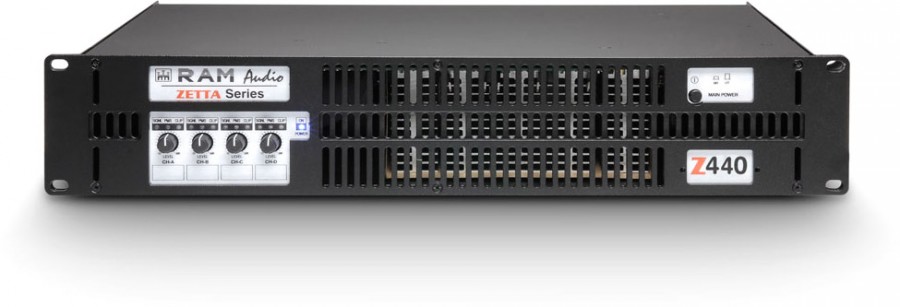

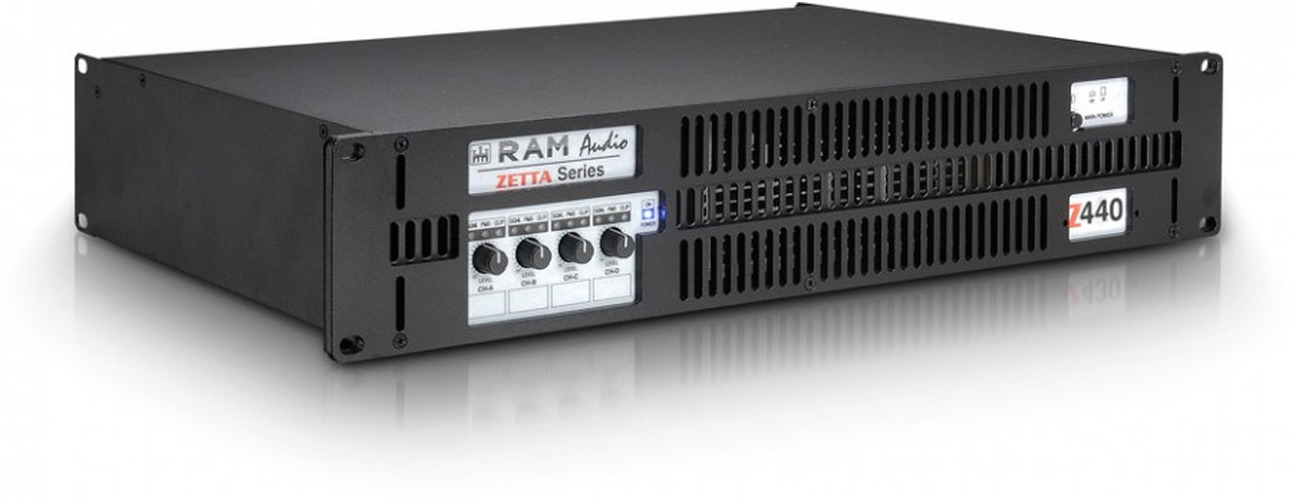

Ram Audio Zetta 440 PA Power Amplifier 4 x 1000 W 2 Ohms

skilled and workable product. The last generation QuantaPulse switching power supply allows to reach a new level of refined sensing and control of the power flow. The cost-effective ZETTA Series amplifiers are packed with solid and convincing arguments for the professionals researching quality, reliability and value! Main Features

• Unmatched audio quality hi efficiency Class H design
• 2/4 Channels models from 1000W up to 4000W
The RAM Audio ZETTA Series, is the result of an in depth study, in order to reach the best compromise between economy and performances, taking advantage of latest improvements in automated mixed surface mount and through hole electronic assembly. ZETTA Series are a project based on an up-side-down mono-block approach offering an all-in-one power module that contains the entire amplifier assembly. Simplicity and effectiveness run hand by hand through the entire design to obtain an effectively
• Ultra light weight 6.5kg, compact package 25cm deep
• Last generation QuantaPulse? switch mode power supply
• RAM Audio Power Management System (PMS?) and Clip Limiter (ICL?)
• Up-side-down design to avoid fan dust acumulation

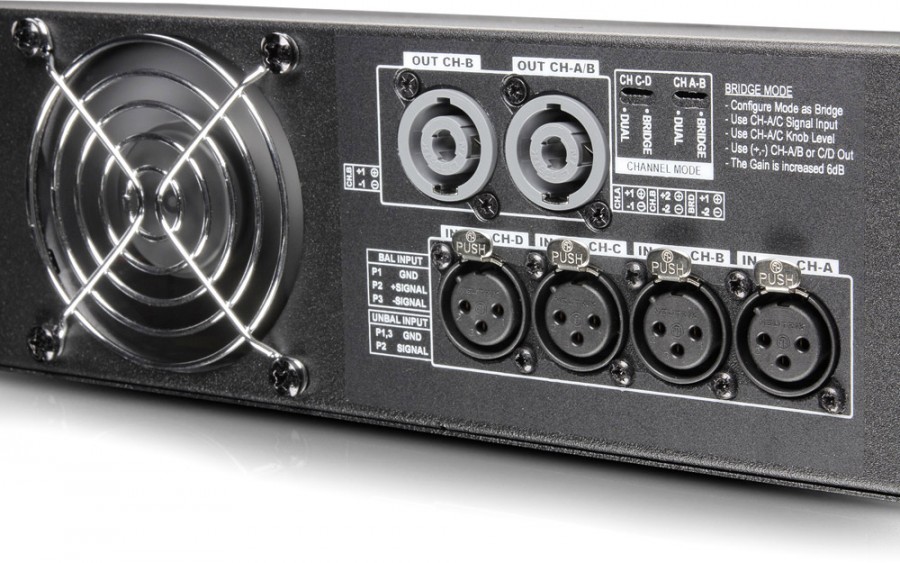

• Industry standard Neutrik® XLR and Speakon® connectors
• Comprehensive protection set (ICL, PMS, SSP, turn-on, Temp, DC....)
• Detented sealed potentiometers
• Dual or bridge mode operation
• Temperature controlled, back to front cooling fan

PMS?: a complete Power Management System that monitors the essential parameters for safe operation. It precisely controls the power supply to the amplifier and output power under extreme and dangerous conditions:

• if the internal operating temperature approaches emergency shutdown during irregular operating conditions,
• if the power supply draws excessive current under laboratory conditions or during extended acoustic feedback.

ICL?: improved Intelligent Clip Limiting prevents loudspeaker damage while maintaining audio quality and punch under clipping conditions. QuantaPulse? Technology: The Soft Switching Resonant QuantaPulse Power Supply is designed to provide plenty of power when needed monitoring the necessary parameters of voltage and current for a controlled performance at all times. Bi-directional data flow between the power supply and power amp module. Two very important characteristics of the QuantaPulse power supply are the optimization against over-voltages and superior reliability.Specifications:

Product type:	Power Amplifiers
Type:	PA Power Amplifiers
Rated ouput power (1kHz @ 2 Ohms):	4 x 1000 W
Rated ouput power (1kHz @ 4 Ohms):	4 x 1000 W
Rated ouput power (1kHz @ 8 Ohms):	4 x 630 W
Rated ouput power (1kHz @ 4 Ohms, bridged):	2 x 2000 W
Rated ouput power (1kHz @ 8 Ohms, bridged):	2 x 2000 W
High Z 70Vrms / 100Vpeak:	4 x 700 W
Output circuitry:	Class H
Frequency response:	20 - 20000 Hz
THD:	< 0.05 %
Signal-to-noise ratio:	116 dB
Damping factor:	> 400
Crosstalk:	> 75 dB
Gain:	32 dB
Input sensitivity:	1.9 V
Input impedance:	10 k Ohm(s)
Protection circuits:	high frequency
Protection circuits:	mismatching
Protection circuits:	Soft start
Protection circuits:	thermal overload
Protection circuits:	DC voltage
Protection circuits:	on/off transients
Protection circuits:	open outputs
Protection circuits:	power on muting
Protection circuits:	short circuit
Controls:	4 x volume
Controls:	dual/bridge switch
Controls:	Power
Indicators:	power LED
Line inputs:	4
Line input connectors:	XLR
Loudspeaker outputs:	4
Speaker output connections:	Speakon
Cooling:	fan
Operating voltage:	30 - 240 V AC
Power consumption @ full load:	11 A
Width:	483 mm
Height:	89 mm
Depth:	250 mm
Weight:	6 kg
