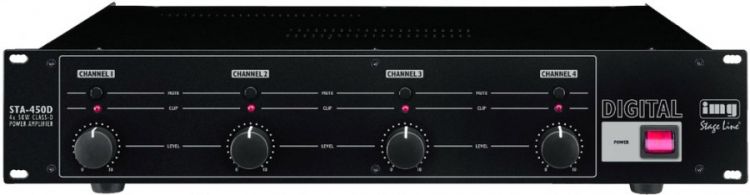

MONACOR STA-450D 4-channel class D amplifier
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 250124390
EAN: 4007754212792
MPN: 0252350
4-channel class D amplifier Silent operation due to fanless cooling concept 8 O bridged... more
All information about the product:
"MONACOR STA-450D 4-channel class D amplifier"
4-channel class D amplifier
- Silent operation due to fanless cooling concept
- 8 O bridged operation possible
- Mute function for each channel
- 4 level controls
- 1 LED per channel for indicating overload (clip)
- Protected against short circuit
| Peak output power: | 300 W |
| Power rating: | 200 W |
| Power rating at 4 O: | 4 x 50 W |
| Power rating at 8 O: | 4 x 30 W |
| Power rating with 8 O bridged operation: | 2 x 100 W |
| Channels: | 4 |
| Inputs: | 1 V/20 kO unbal. 550 mV/20 kO bal. |
| Frequency range: | 10-20,000 Hz |
| Crosstalk attenuation: | > 45 dB |
| Mains voltage: | ~ 230 V |
| Mains frequency: | 50 Hz |
| Power consumption, operation: | 300 VA |
| Admiss. ambient temp.: | 0-40 °C |
| Width: | ~ 483 mm |
| Height: | 90 mm |
| Depth: | 330 mm |
| Rack spaces, RS: | 2 |
| Weight: | 8.4 kg |

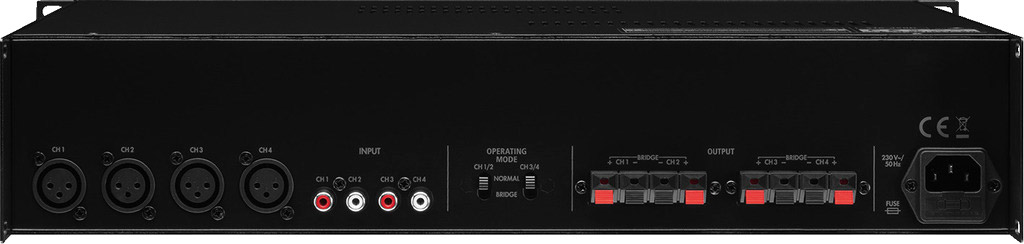

| Connections: | 4 x XLR, bal. 4 x RCA 4 x spring-load. speaker term. L/R |
| Packing dimensions (W x H x L): | 0.4 x 0.17 x 0.56 m |
| Gross weight: | 11 kg |
| Net weight: | 8.46 kg |
