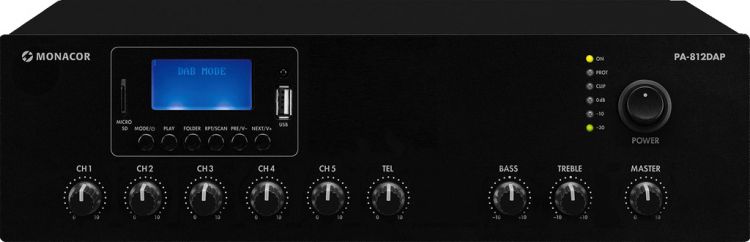

MONACOR PA-812DAP Mono class D PA mixing amplifier
€451.00 *
Availability:
Currently not available
Currently not available
Item number: 250140130
EAN: 4007754276688
MPN: 1000235
Mono class D PA mixing amplifier, with integrated MP3 player, FM/DAB+ tuner and Bluetooth.... more
All information about the product:
"MONACOR PA-812DAP Mono class D PA mixing amplifier"
Mono class D PA mixing amplifier,
with integrated MP3 player, FM/DAB+ tuner and Bluetooth.
- 1 x 120 W
- Class D concept with high efficiency to cut energy costs
- Silent operation due to fanless cooling concept
- Bluetooth version 4.2
- MP3 player with USB/SD interface, FM/DAB+ radio, LED display, infrared remote control
- Reception of interference-free 'digital radio' (DAB+)
- 1 balanced XLR microphone input with 48 V phantom power and priority selection for announcements
- 2 unbalanced inputs, switchable mic/line
- 2 unbalanced line inputs
- 1 TEL input
- 1 Music-On-Hold output (MOH)
- Speaker outputs via screw contacts
- Mute function via screw contact
- 1 amp input
- 1 preamp output
- Input level control and output level control
- 2-way tone control for the output
- LEDs for indicating operation, clipping, protect and signal level
| Power rating: | 120 W |
| Channels: | 1 |
| Zones: | 1 |
| Inputs: | 4.5 mV/600 O (channel 1), 4.5 mV/120 mV (channels 2-3), 60 mV (channels 4-5) 90 mV (tel.) |
| Frequency range: | 60-15,000 Hz |
| Equalizer bass: | yes |
| Equalizer treble: | yes |
| S/N ratio: | 72 dB (mic, channels 1-3) 85 dB (line, channels 2-5) |
| THD: | |
| Phantom power: | 48 V |
| Mains voltage: | ~ 230 V |
| Mains frequency: | 50 Hz |
| Power consumption, operation: | 250 VA |
| Operating voltage (possible alternative): | DC 24 V |
| Power supply (possible alternative): | 8.4 A |
| Admiss. ambient temp.: | 0-40 °C |
| Width: | 320 mm |
| Height: | 95 mm |
| Depth: | 245 mm |
| Weight: | 4.5 kg |

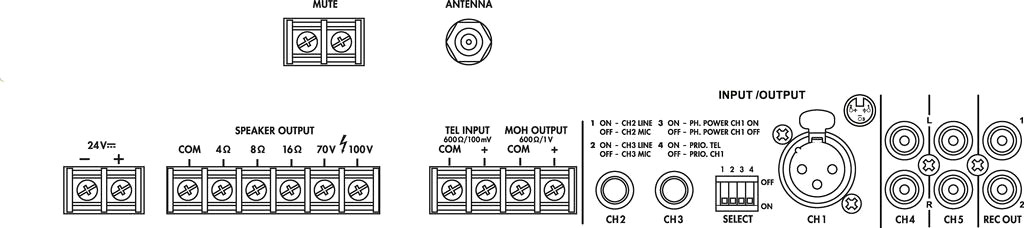

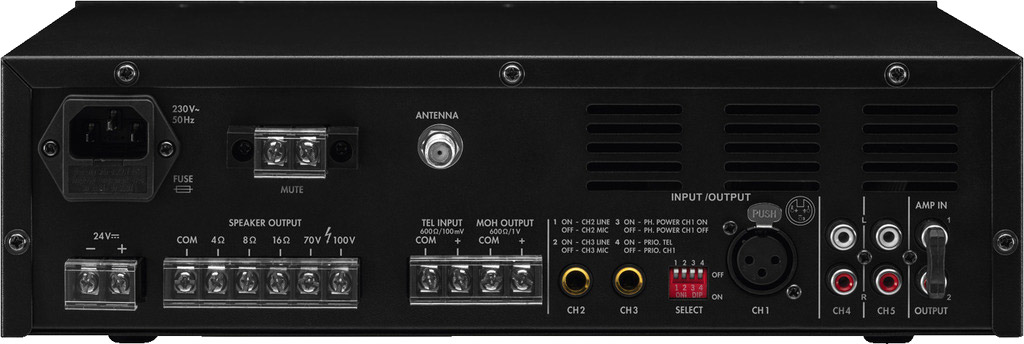

| Connections: | 1 x XLR (channel 1), 2 x 6.3 mm jack (channels 2-3) 2 x RCA L/R (channels 4-5), 1 x RCA (amp in), 1 x RCA (preamp out), 1 x F jack (FM/DAB+), screw contacts (tel. input), screw contacts (MOH), screw contacts ( DC 24 V), |
| Packing dimensions (W x H x L): | 0.395 x 0.16 x 0.305 m |
| Gross weight: | 5.2 kg |
| Net weight: | 4.51 kg |
