MONACOR PA-812DMP Mono class D PA mixing amplifier
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 250135910
EAN: 4007754261707
MPN: 0176930
Mono class D PA mixing amplifier, with integrated MP3 player, FM tuner and Bluetooth. 1... more
All information about the product:
"MONACOR PA-812DMP Mono class D PA mixing amplifier"

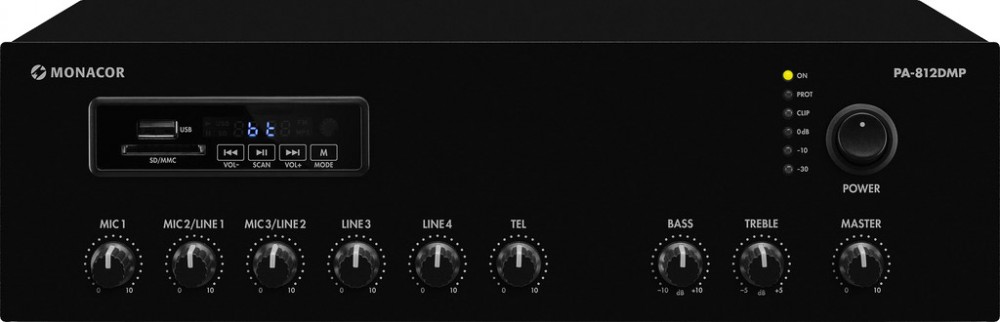

Mono class D PA mixing amplifier, with integrated MP3 player, FM tuner and Bluetooth.
- 1 x 120 W
- Class D concept with high efficiency to cut energy costs
- MP3 player with USB/SD interface, FM radio, LED display, infrared remote control
- 1 balanced XLR microphone input with phantom power and priority selection for announcements
- 2 unbalanced inputs, switchable mic/line
- 2 unbalanced line inputs
- 1 emergency input
- 1 music on hold output (MOH)

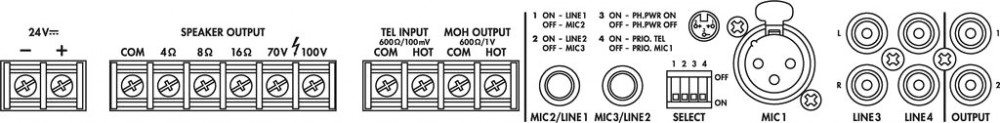

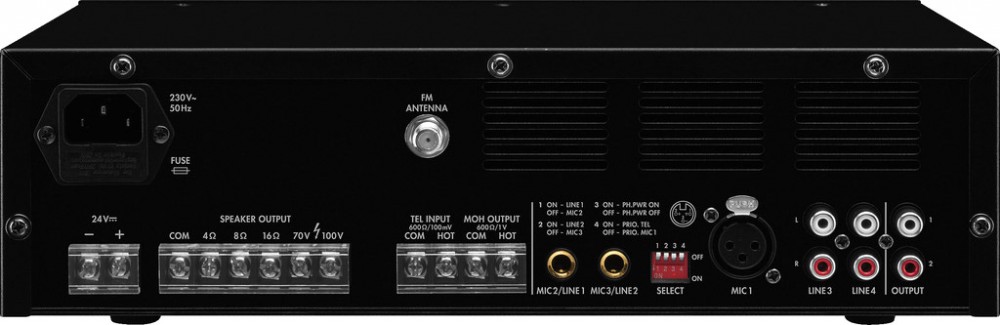

- Speaker outputs via screw terminals
- 2 line outputs
- Input level control and output level control
- 2-way tone control for the output
- LEDs for indicating operation, clipping, protect and signal level
Channels: | 1 |
Zones: | 1 |
Rated power: | 120 W |
Power rating at 2 Ω: | - |
Power rating at 4 Ω: | - |
Power rating at 8 Ω: | - |
Power rating at 100 V: | - |
Power rating with 4 Ω bridged operation: | - |
Power rating with 8 Ω bridged operation: | - |
Peak music power output (PMAX): | - |
Output impedance: | - |
Inputs: | 5-8 mV/600 Ω (mic 1-3),150-470 mV/10 kΩ (line, unbal.), |
Attenuation factor: | - |
Frequency range: | 60-15,000 Hz |
Crossover network: | - |
Crossover frequency: | - |
Integrated limiter: | - |
Equalizer bass: | yes |
Equalizer midrange: | - |
Equalizer treble: | yes |
S/N ratio: | 72 dB (mic)85 dB (aux) |
Crosstalk attenuation: | - |
THD: |
