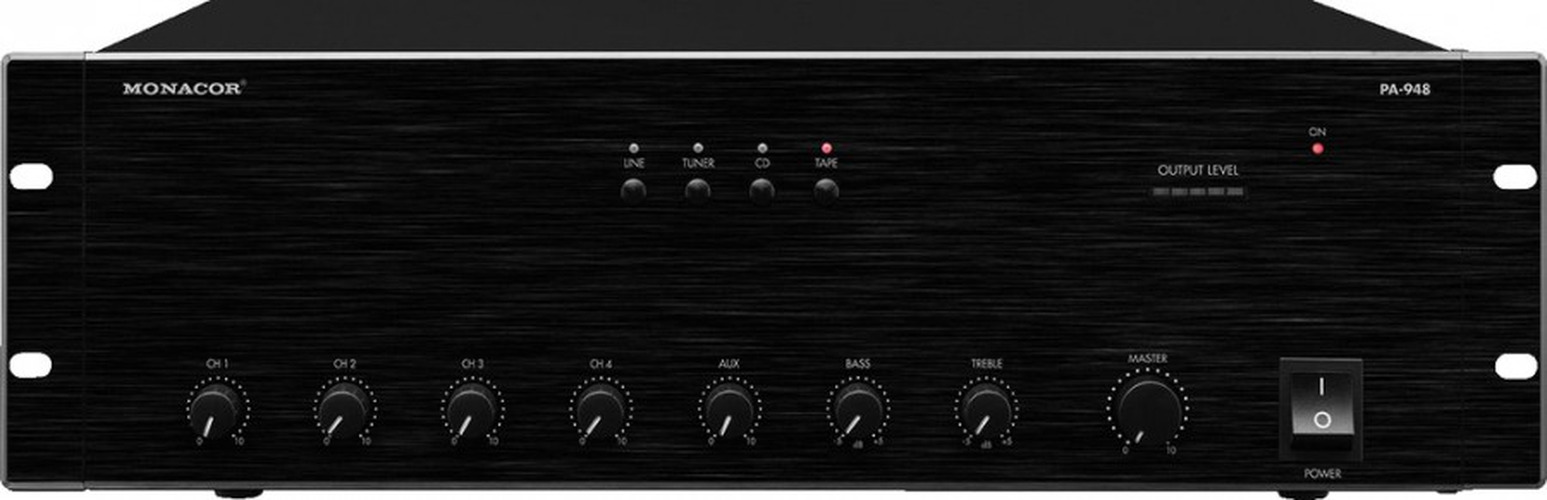

MONACOR PA-948 Mono PA mixing amplifier
€950.00 *
Availability:
Currently not available
Currently not available
Item number: 250134785
EAN: 4007754254297
MPN: 0175070
Mono PA mixing amplifier 1 x 480 W 4 balanced microphone inputs and line inputs with... more
All information about the product:
"MONACOR PA-948 Mono PA mixing amplifier"
Mono PA mixing amplifier
- 1 x 480 W
- 4 balanced microphone inputs and line inputs with selectable priority
- 4 stereo line inputs
- Speaker outputs via screw terminal contacts
- Balanced line output
- Record output
- Insert facility, e.g. for effect units, equalizers, feedback controllers
- 2-tone or 4-tone chime, can be activated externally
- Input level control and output level control
- 2-way tone control for the output
- Switchable 48 V phantom power for microphone inputs
- Temperature-controlled fan
- Mains operation or 24 V emergency power operation
- Removable mounting brackets
Peak output power: | 680 W |
Power rating: | 480 W |
Channels: | 5 |
Inputs: | 2.5-100 mV (mic), 350 mV (line) |
Frequency range: | 50-16,000 Hz |
Equalizer bass: | ± 10 dB/100 Hz |
Equalizer treble: | ± 10 dB/10 kHz |
S/N ratio: | > 75 dB |
THD: | |
Phantom power: | 48 V |
Mains voltage: | ~ 230 V |
Mains frequency: | 50 Hz |
Power consumption, operation: | 1,090 VA |
Operating voltage (possible alternative): | DC 24 V |
Power supply (possible alternative): | DC 27 A |
Admiss. ambient temp.: | 0-40 °C |
Width: | 482 mm |
Height: | 137 mm |
Depth: | 395 mm |
Rack spaces, RS: | 3 |
Weight: | 19 kg |
Connections: | 4 x XLR (mic), 4 x RCA L/R (line), 1 x XLR (line out), 1 x RCA L/R (line out), screw terminals (speakers) |
Packing dimensions (W x H x L): | 0.525 x 0.26 x 0.565 m |
Gross weight: | 21.96 kg |
Net weight: | 18.81 kg |
