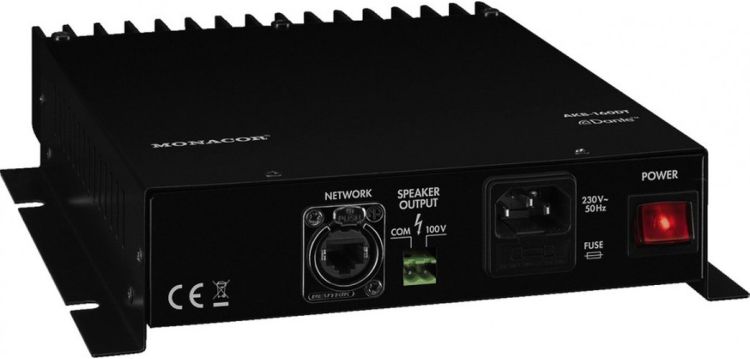

MONACOR AKB-160DT PA amplifier module with integrated Dante® module

€593.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 250134495

EAN: 4007754254648

MPN: 0176070

Let's stream ... The well-known and reliable amplifier systems PA-900 and AKB-160 now... more

Back to the overview

All information about the product:

"MONACOR AKB-160DT PA amplifier module with integrated Dante® module"

Let's stream ...

The well-known and reliable amplifier systems PA-900 and AKB-160 now feature a 2-channel Dante® module which turns them into Dante® instreamers for versatile applications. They are able to receive one digital stereo signal or two mono signals via the RJ45 connections. These signals are converted into an analogue audio signal, amplified and then streamed. Thus, it is possible to integrate an analogue speaker system into a digital Dante® network.

PA amplifier module with integrated Dante® module

1 x 40 W
100 V output
Silent operation due to fanless cooling concept
Dante® input
Speaker output via screw terminal
Metal housing with mounting brackets

System requirements Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11

The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.

Technical data:

Peak output power:	60 W
Power rating:	40 W
Power rating at 100 V:	40 W
Channels:	1
Zones:	1
Inputs:	network
Frequency range:	17-20,000 Hz
S/N ratio:	> 80 dB
THD:
Mains voltage:	~ 230 V
Mains frequency:	50 Hz
Power consumption, operation:	75 VA
Admiss. ambient temp.:	0-40 °C
Width:	213 mm
Height:	55 mm
Depth:	238 mm
Weight:	3.2 kg
Connections:	1 x RJ45 (Dante®)
Packing dimensions (W x H x L):	0.31 x 0.11 x 0.29 m
Gross weight:	3.68 kg
Net weight:	3.27 kg
