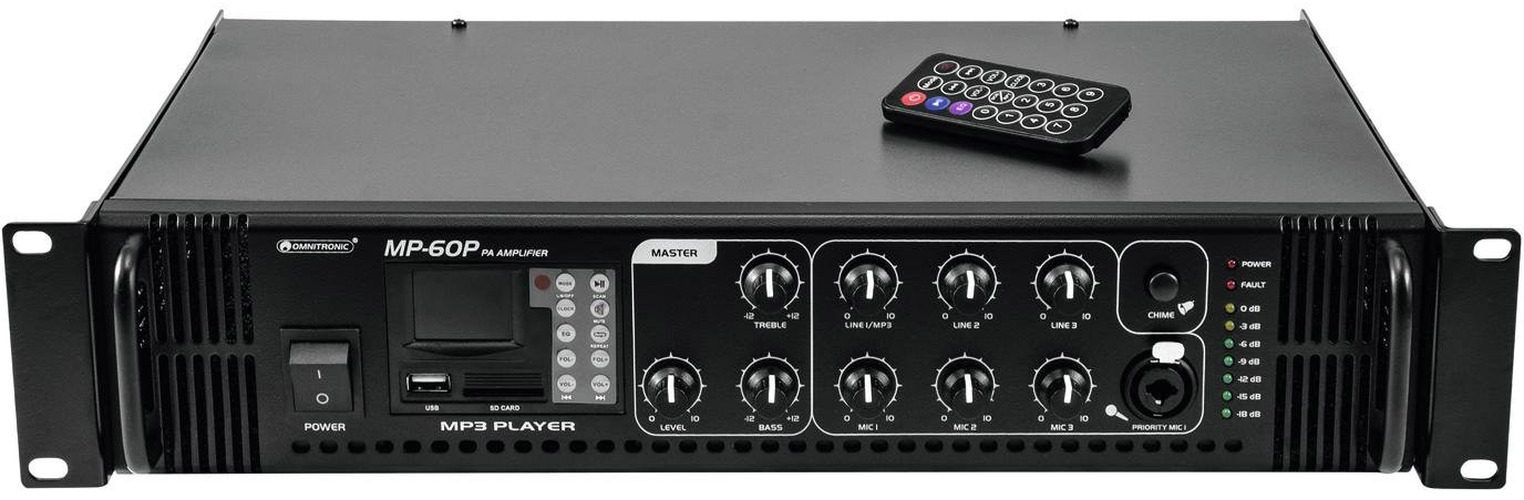

OMNITRONIC MP-60P PA Mixing Amplifier
€269.00 *
Availability:
Currently not available.
Expected to be available again in 14 days.
Expected to be available again in 14 days.
Currently not available
Item number: 200016060
EAN: 4026397503449
PA mixing amplifier with audio player,IR remote control and Bluetooth, 60 W RMS SD card slot... more
All information about the product:
"OMNITRONIC MP-60P PA Mixing Amplifier"
PA mixing amplifier with audio player,IR remote control and Bluetooth, 60 W RMS
- SD card slot and USB port
- Folder navigation and repeat functions (1, All)
- 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- The device is cooled by cooling fan
- Control via IR remote control; Bluetooth
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x remote control, 1 x user manual, 1 x amplifier, 1 x battery
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 120,00 W |
| Output power: | 60 W RMS |
| Power connection: | Fixed power supply cord with safety plug |
| Frequency range: | 80 - 14000 Hz |
| S/N ratio: | >75 dB Microphone >85 dB line |
| THD: | |
| Cooling: | Cooling fan |
| Impedance: | Public address systems 100V; 4-16 ohms; Public address systems 70V |
| Control: | IR remote control; Bluetooth |
| Audio player: | USB + SD, |
| Circuitry: | Class AB |
| Controls: | Power on/off transient; Overvoltage; short-circuit |
| Connections: | Input: Microphone via 2 x 6.3 mm plug (unbal.) Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: line via 3 x stereo RCA 0,3 V Output: line via 1 x stereo RCA 0,3 V Output: speaker via screw terminal |
| Equalizer: | Master: 1 x 2-band tone control mono |
| Music format: | MP3 |
| Number of files: | Max. 999 |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm Depth: 40 cm Height: 8,9 cm |
| Weight: | 7,25 kg |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
