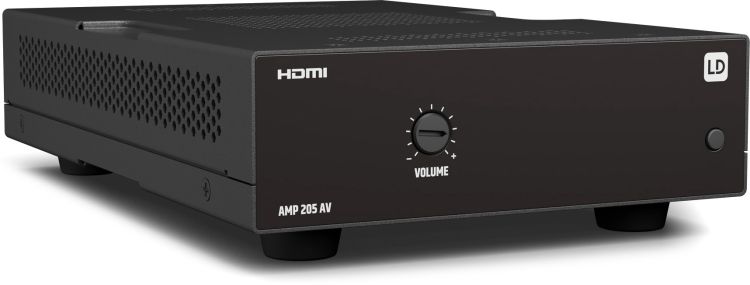

LD Systems AMP 205 AV - HDMI Audio De-Embedder & Amplifier 2x50W @ 4 Ohm

NEW

Preview: LD Systems AMP 205 AV - HDMI Audio De-Embedder & Verstärker 2x50W @ 4 Ohm

LD Systems AMP 205 AV - HDMI Audio De-Embedder & Verstärker 2x50W @ 4 Ohm

Sale to reseller only

Availability:

Currently not available

Product inquiry

Item number: 210906045

EAN: 4049521798825

MPN: LDAMP205AV

NEW

HDMI Audio De-Embedder & Amplifier 2x50W @ 4 Ohm Professional mini amplifier with HDMI audio... more

Back to the overview

All information about the product:

"LD Systems AMP 205 AV - HDMI Audio De-Embedder & Amplifier 2x50W @ 4 Ohm"

HDMI Audio De-Embedder & Amplifier 2x50W @ 4 Ohm

Professional mini amplifier with HDMI audio de-embedder
HDMI inputs and outputs and stereo line outputs
2 x 50 W class D amplifier with low-impedance outputs
Compact design and passive cooling
Connection options for remote control of source selection, standby and volume control
External power supply (100 - 240 V)
Mounting plates for flexible, unobtrusive installation, even above suspended ceilings
Automatic standby mode to save energy
Balanced line output and speaker output with terminal blocks
User-friendly control panel with signal, clip and protection LEDs
Optional rack tray for combining with other products in the TICA® series

The LD Systems AMP 205 AV is the perfect addition to an AV system for sound reinforcement. It extracts the sound from a connected video source and transmits it in stereo to the speakers. An HDMI pass-through connection makes it easy to connect a display device.

The highly efficient 2 x 50 W Class D amplifier features 4-ohm outputs and a user-friendly control panel equipped with signal, clip and protection LEDs.

Thanks to its compact dimensions of 142 x 44 x 222 mm and the supplied mounting plates, it can be discreetly installed almost anywhere: behind screens, under tables or even in ventilation ducts and above plenum ceilings. Alternatively, it also fits into 19-inch racks (1/3 rack width). With the optional rack tray, you can mount up to two additional products from the TICA® series next to each other, allowing you to configure a system that suits your needs and takes up minimal space in the rack.

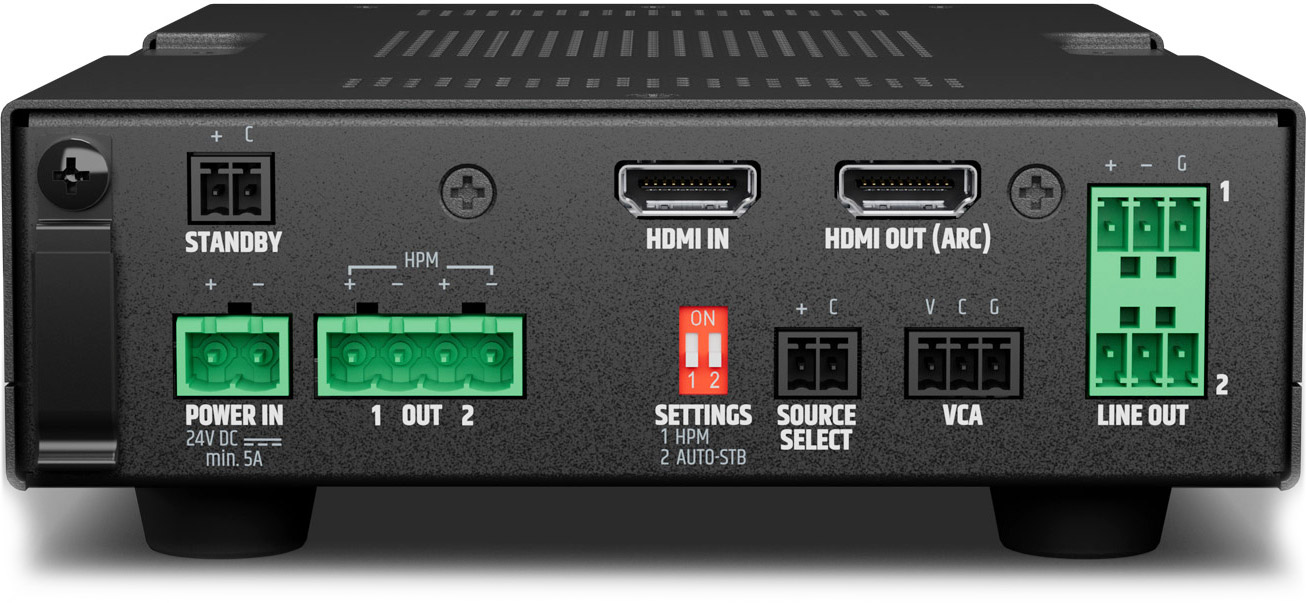

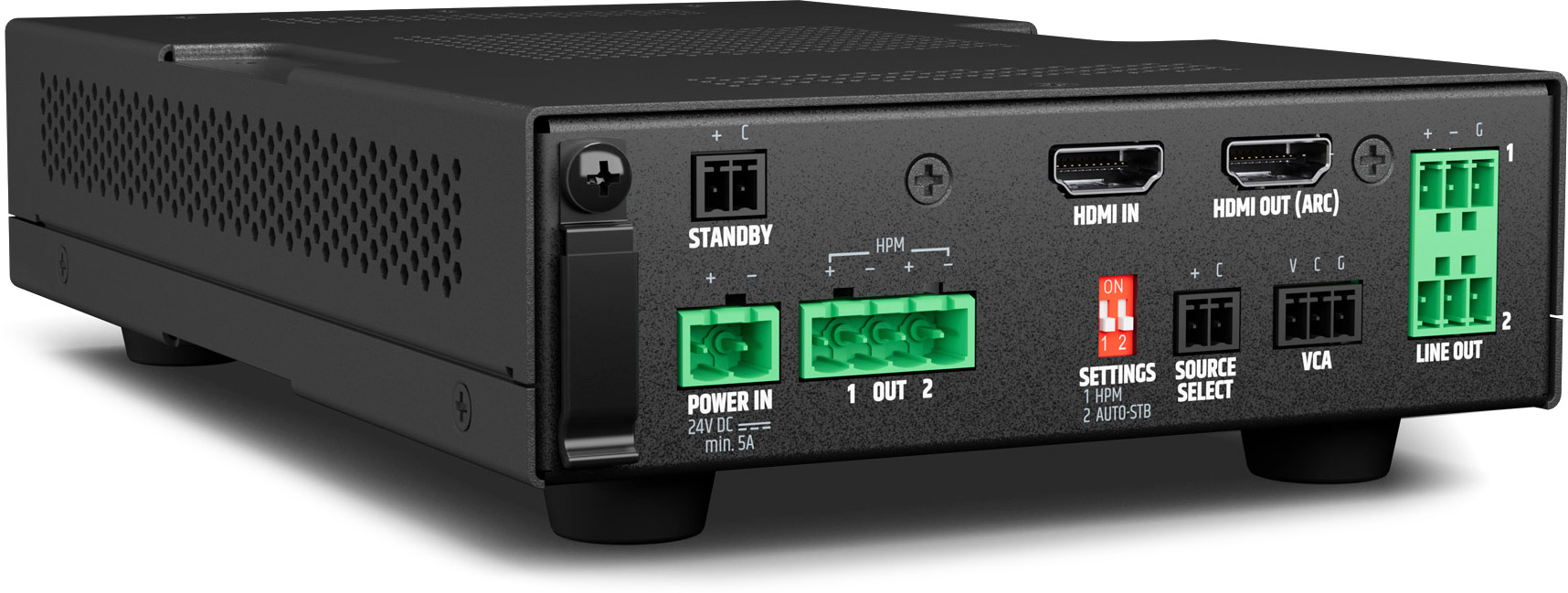

The AMP 205 AV uses an external 24V power supply. Terminal block connections for the analog outputs and GPIO connections make wiring easy.

Since the remote control is supported by third-party devices, you can always adjust the volume on both channels or put the power amplifier in standby mode, even if it is mounted out of sight. The optional auto standby function saves energy when there is no audio transmission.

The perfect solution for professional installers and users who are looking for a high-quality audio solution for their video systems.

Technical data:

Product type:	End-of-line installation amplifier and HDMI audio de-embedder
Line inputs:	0
Line outputs:	2
Line output connectors:	Pitch 3.81 mm Terminal Block (3-Pin)
Line output connectors:	Balanced line outputs
speaker outputs:	2 with output mode selector (stereo / high power mode)
Cooling:	convection

HDMI specifications.

Supported color formats:	RGB
Supported color formats:	YUV420
Supported color formats:	YUV422
Supported color formats:	YUV444
Max. data rate:	48 Gbit/s
dissolution area:	Up to 4K2K 60Hz
Color bit depth:	8 bits per color
color sampling:	4 : 4 : 4
HDMI Standards:	HDCP 1.4 - 2.3
HDMI Standards:	HDMI 2.1
Number of HDMI inputs:	1
HDMI input connection:	1 female HDMI type A
Number of HDMI outputs:	1
HDMI output port:	1 female HDMI type A
Wake-up threshold in standby mode:	7 seconds

Thiele & Small Parameter

THD + N:	> 0.006%
Frequency range:	20Hz - 20kHz (-1dB)
Output level:	+15 dBu (0dBFS / 1kHz)

third-party control

Master volume (VCA):	10k (linear) External potentiometer
Master volume (VCA):	Pitch 3.5 mm Terminal Block (3-Pin)
Source selection:	External push button
Source selection:	Pitch 3.5mm terminal block (2-pin)
Power Standby:	External push button
Power Standby:	Pitch 3.5mm terminal block (2-pin)

amplifier output

Type:	Class D
output modes:	Stereo, parallel, high power mode (ST / PAR / HPM)
Amplifier outputs:	2-channel (STEREO) / 1-channel (HPM)
Connection:	4 - Pin Terminal block (pitch 5,08mm)
THD+N (-20dBFS):	> 0.005%
SRN (A ):
RMS power (W):	1 x 100 W @ 2ohm (Continuous sine wave 1kHz 10sec, 4 ohm load)
RMS power (W):	2 x 50 W @ 4ohm (ST, PAR)
Minimum load impedance:	2 ohms (HPM mode)
Minimum load impedance:	4 ohms (stereo and parallel modes)
Frequency response:	15 Hz - 20 kHz (-0.5 dB)
Protective circuits:	short circuit
Protective circuits:	Protection against direct current
Protective circuits:	overheating
Protective circuits:	overvoltage
Type 1:	External SMPS
Operating voltage:	100 V AC - 240 V AC / 50 - 60 Hz
Fuse:	0
Secondary power supply:	24 V DC
Secondary current:	3.5 A
Secondary connection:	2-pole 5.08 mm terminal block
Primary connection:	IEC
Security class:	3
Max. power consumption:	115W (sine 1kHz with 2x 4 ohm load)
Power consumption (idle):	6 W
Power consumption in standby mode:
Mains inrush current:	1.5A @ 230V AC
Operating temperature (non-condensing):	0°C - 40°C;

General data

Material:	plastic bezel
Material:	Steel casing
Dimensions (W x H x D) (height with rubber feet):	142 mm x 53 mm x 221.7 mm
Weight:	1.76 kg
Accessories (included):	External SMPS
Accessories (included):	Terminal blocks for electrical connections
Accessories (included):	Mounting plates for surface mounting
