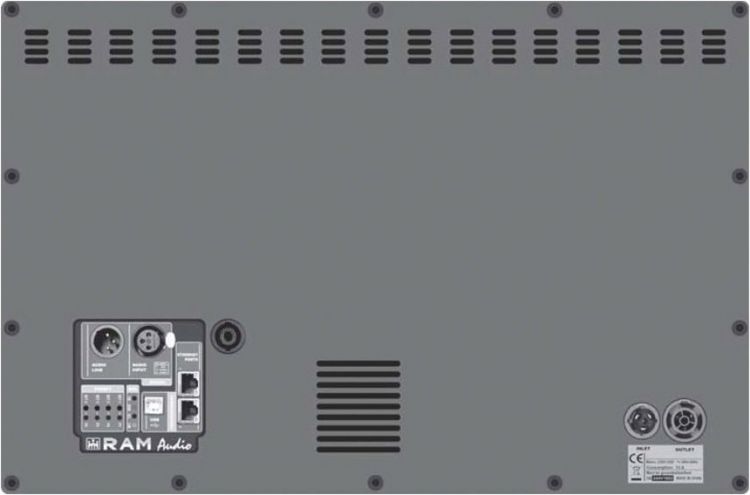

Ram Audio SB 6K BI - PowerPack Module SB 6K Bi

€1,580.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available

Item number: 500126185

EAN: 4049521433320

PowerPack Module SB 6K Bi DSP_PowerPack is the integral solution given by RAM Audio to the... more

Back to the overview

All information about the product:

"Ram Audio SB 6K BI - PowerPack Module SB 6K Bi"

PowerPack Module SB 6K Bi

DSP_PowerPack is the integral solution given by RAM Audio to the needs of many acoustic enclosures manufacturers when it comes to self-powering their products. RAM Audio Class D modules with regulated switching power supply and a high quality FIR DSP, all integrated in a customized chassie to meet the needs of every manufacturer. DSP_PowerPack comprises two series, ASYM and SUB series: ASYM Series are 2 ways modules to power separately mid/low and high frequencies in medium power systems. And SUB Series are designed to be used in low frequencies ways when big powers are requested, up to 6000W @4Ohm.

Technical data:

Product type:	Power Amplifiers
Type:	PA Power Amplifiers
Rated ouput power (1kHz @ 2 Ohms):	2 x 1500 W
Rated ouput power (1kHz @ 4 Ohms):	2 x 3000 W
Rated ouput power (1kHz @ 8 Ohms):	2 x 1500 W
Total Harmonic Distortion (THD):
Damping factor (20Hz-500Hz @8ohm):	>400
Gain:	26 / 38 dB
Protection circuits:	DC
Protection circuits:	high frequency
Protection circuits:	ICL (Intelligent Clip Limiting)
Protection circuits:	on/off transients
Protection circuits:	Open or mismatched loads
Protection circuits:	PMS
Protection circuits:	short circuit
Protection circuits:	thermal overload
Line inputs:	1
Line input connectors:	XLR
Line outputs:	1
Line output connectors:	XLR
USB Port:	USB Type B
Ethernet Functions:	2 x RJ45
Cooling:	fan
Operating voltage:	85 - 265 V AC, 50-60 Hz
Power connector:	PowerCON TRUE1 IN-OUT
Width:	467 mm
Height:	297 mm
Depth:	68 mm
Weight:	3,4 kg
