IMG STAGELINE STA-800D Stereo class D PA amplifier

Preview: IMG STAGE LINE STA-800D Digitalverstaerker

IMG STAGE LINE STA-800D Digitalverstaerker

€776.57 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 250130500

EAN: 4007754239065

The new generation of class D PA amplifiers from IMG STAGELINE impresses with a high power... more

Back to the overview

All information about the product:

"IMG STAGELINE STA-800D Stereo class D PA amplifier"

The new generation of class D PA amplifiers from IMG STAGELINE impresses with a high power capability and high energy efficiency.

Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.

Stereo class D PA amplifier

Class D concept with power amplifier modules from HYPEX
Silent operation due to temperature-controlled fans
Lightweight design due to compact switch-mode power supply
Energy-efficient concept due to a high efficiency
High power reserves due to the application of two switch-mode power supplies
Powerful bass reproduction due to large buffer capacitors (high power reserves)
2 level controls
Protected against short circuit and overtemperature
LEDs for indicating power, overload (clip) and protect
Super slimline design
NEUTRIK SPEAKON connections

EVENT Rookie 01/2015

on the STA-400D and STA-800D

“Small and powerful surely applies to them. The two test units didn't really show any weakness. It should be noted that the minimum noise created by the two amplifiers is almost record-breaking ...”

Technical data:

Peak output power:	1,000 W
Power rating:	800 W
Power rating at 4 O:	2 x 400 W
Power rating at 8 O:	2 x 210 W
Channels:	2
Inputs:	1 V/10 kO (XLR, bal.), 1 V/4.7 kO (RCA)
Frequency range:	20-20,000 Hz
Integrated limiter:	no
S/N ratio:	> 110 dBA
THD:
Mains voltage:	~ 230 V
Mains frequency:	50 Hz
Power consumption, operation:	920 VA
Admiss. ambient temp.:	0-40 °C
Width:	482 mm
Height:	52 mm
Depth:	298 mm
Rack spaces, RS:	1
Weight:	4 kg

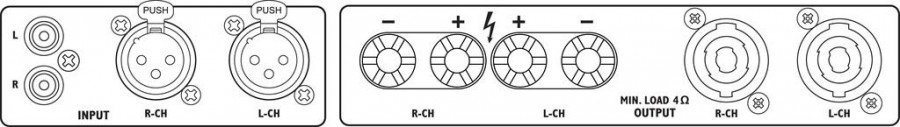

Connections:	1 x 3-pole XLR L/R 1 x RCA L/R 1 x NEUTRIK SPEAKON L/R 2 x pair of screw terminals
Packing dimensions (W x H x L):	0.34 x 0.095 x 0.53 m
Gross weight:	5.16 kg
Net weight:	4.37 kg
