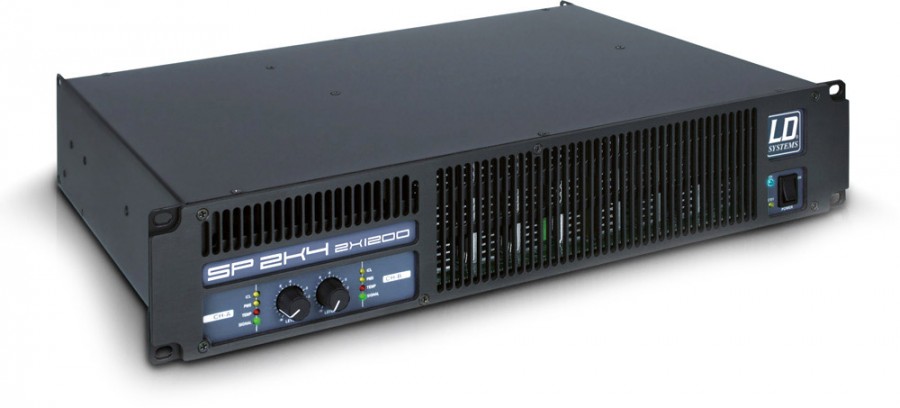

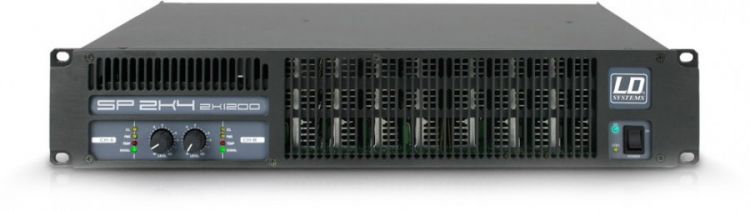

LD Systems SP 2K4 PA Power Amplifier 2 x 1190 W 2 Ohm

The new Audio 3-stage CLASS-H SMPS amplifiers incorporate all the features to meet all your needs, whether you're starting a P.A. amplifier project from scratch or just need to upgrade your present sound reinforcement equipment. In the amps, you'll find 2 and 4 channel models, all offering high power levels at low distortion in the range 1.5 to 6 kW, yet weighing around 8.6 kg and only 30 cm deep.Specifications:

Product type:	Power Amplifiers
Type:	PA Power Amplifiers
Rated ouput power (1kHz @ 2 Ohms):	2 x 1190 W
Rated ouput power (1kHz @ 4 Ohms):	2 x 790 W
Rated ouput power (1kHz @ 8 Ohms):	2 x 460 W
Rated ouput power (1kHz @ 4 Ohms, bridged):	2380 W
Rated ouput power (1kHz @ 8 Ohms, bridged):	1580 W
Output circuitry:	Class H
Frequency response:	20 - 20000 Hz
THD:	< 0.05 %
Signal-to-noise ratio:	113 dB
Damping factor:	> 500
Crosstalk:	>75 dB
Gain:	26 / 32 / 38 dB
Input sensitivity:	3.0 / 1.5 / 0.8 V
Protection circuits:	mute when turning on
Protection circuits:	Open or mismatched loads
Protection circuits:	DC
Protection circuits:	ICL (Intelligent Clip Limiting)
Protection circuits:	power supply overload
Protection circuits:	short circuit
Protection circuits:	soft start
Protection circuits:	thermal protection
Controls:	bridge/stereo mode selector
Controls:	dual/link switch
Controls:	gain
Controls:	mains switch (on/off)
Controls:	volume
Indicators:	PMS
Indicators:	signal
Indicators:	temperature
Indicators:	ICL (Intelligent Clip Limiting)

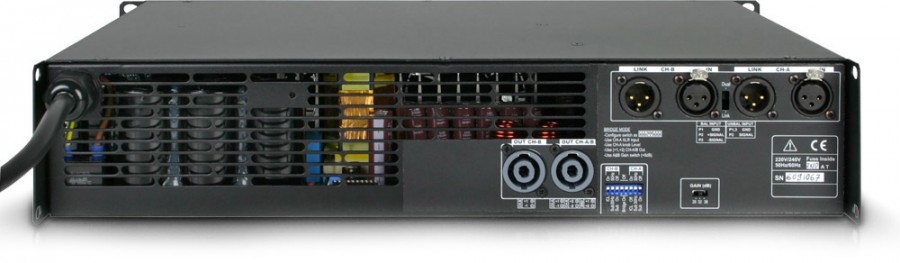

Loudspeaker outputs:	2
Speaker output connections:	Speakon
Cooling:	2 fans, temperature controlled
Operating voltage:	Switching Power Supply
Operating voltage:	220 V AC - 240 V AC, 50-60 Hz
Width:	483 mm
Height:	89 mm
Depth:	310 mm
Weight:	8 kg
