Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus 1... more

Back to the overview

All information about the product:

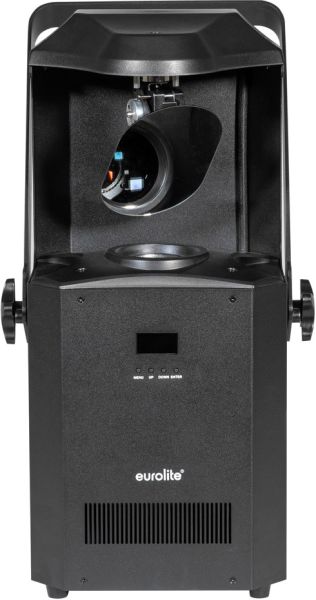

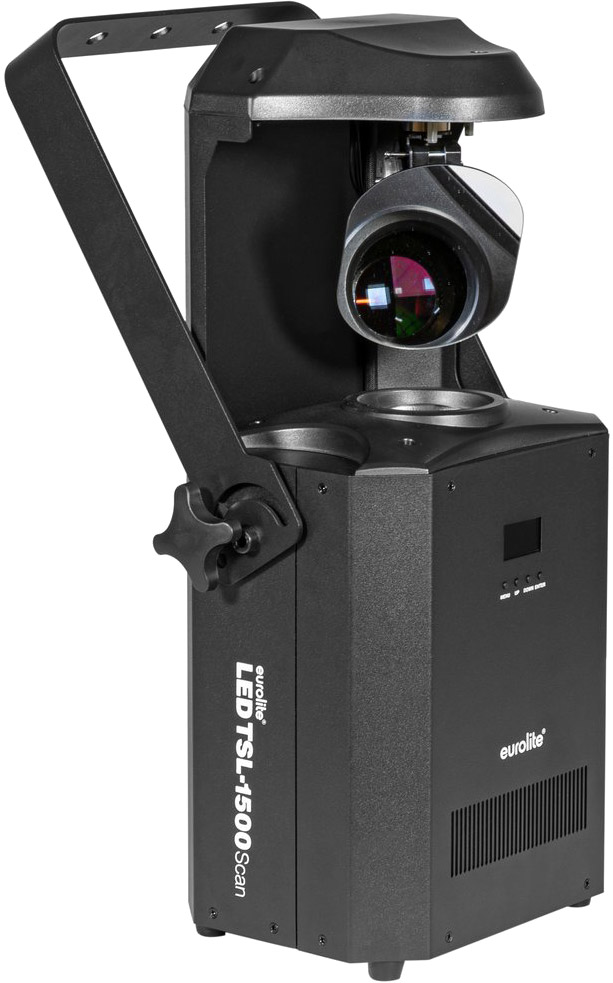

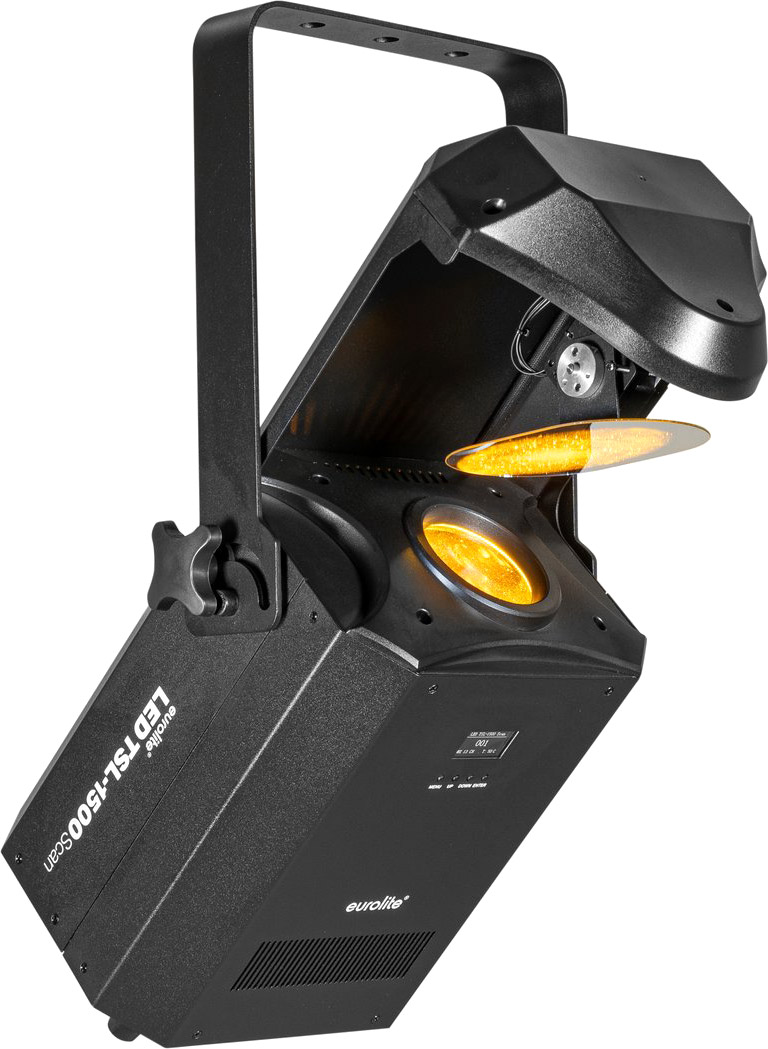

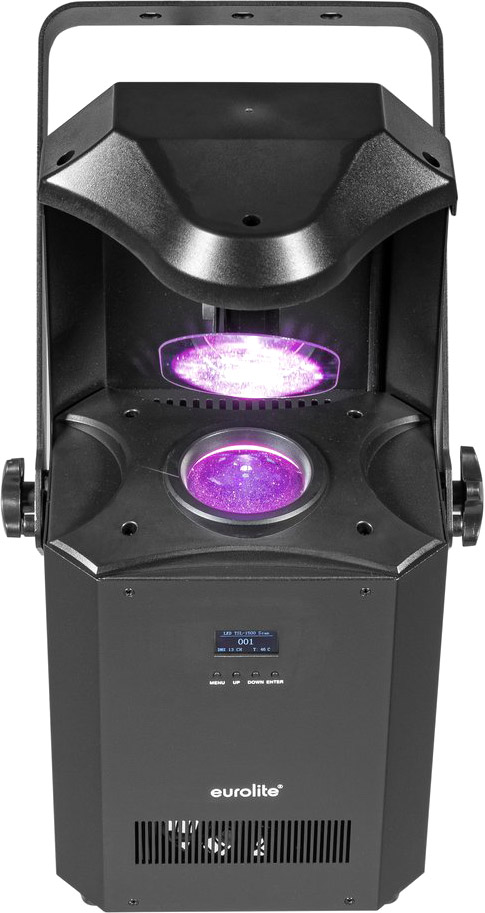

"EUROLITE LED TSL-1500 Scan"

Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus

1 powerful LED 150 W COB (chip-on-board) cold white (CW)
Positioning within 180° PAN and 70° TILT
Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 4-fold rotating
Dimmer electronic
Gobo effect; Strobe effect
Color wheel with 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
9 integrated show programs
The device is cooled by temperature-controlled fan
Control via stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 11°
OLED display
Rubber feet
Preprogrammed in Light Captain
Mains input and output for power linking up to 8 units

Package contents

1 x device, 1 x user manual, 1 x power cord, 1 x safety eyelet

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	175 W
IP classification:	IP20
Protection class:	Protection class I

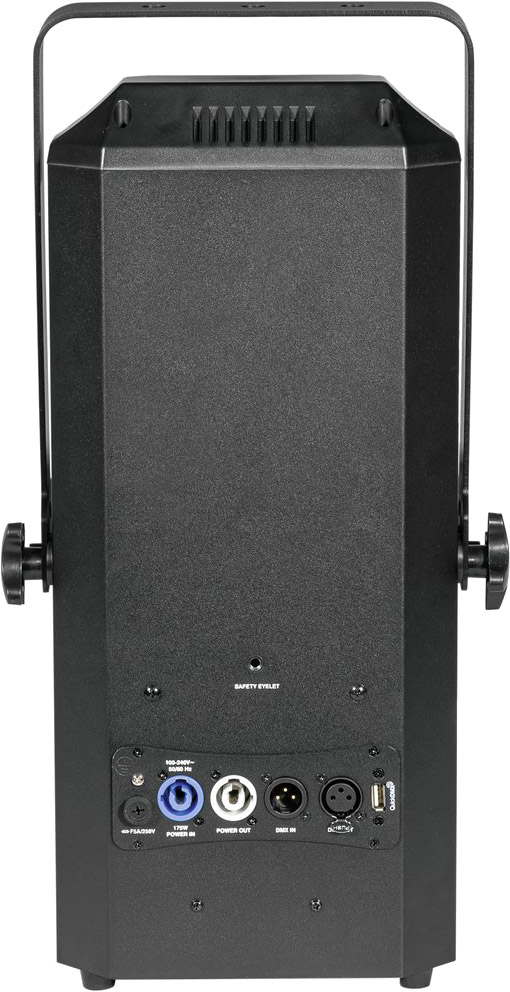

Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	1 x P-Con (gray), mounting version
Fuse:	5 x 20 mm, F 5 A Fuse replaceable
Lamp type:	LED lamp
LED:	1 x 150 W COB (chip-on-board) cold white (CW)
Color temperature:	10000K
Max. TILT movement:	70° Positioning
Max. PAN movement:	180°
Flash rate:	1 - 30 Hz
Equipment:	Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 4-fold rotating
Color generation:	Color wheel with 8 dichroic filters plus open Rainbow effect with adjustable speed in both directions
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 19,8mm Image diameter 17mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement
DMX channels:	13
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	Stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Light Captain
Beam angle:	11°
Beam angle (1/2 peak):	11°
Illuminance in Lux (lx):	Cold white (CW) 3m: 15649 lx, 6m: 4147 lx
Housing color:	Black
Display type:	OLED display
Transport aid:	Rubber feet
Dimensions:	Width: 33,5 cm Depth: 16,5 cm Height: 47 cm
Weight:	7,05 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
