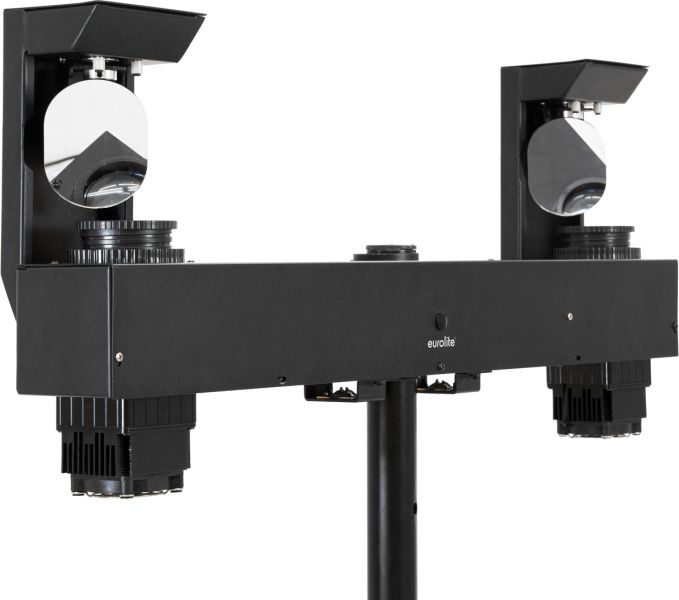

EUROLITE LED Twin Scan Bar
€499.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120035815
EAN: 4026397708127
MPN: 51786200
LED Scan Bar with 2 full-fledged scanners, incl. IR remote control 2 powerful LEDs 37,5 W COB... more
All information about the product:
"EUROLITE LED Twin Scan Bar"
LED Scan Bar with 2 full-fledged scanners, incl. IR remote control
- 2 powerful LEDs 37,5 W COB (chip-on-board) cold white (CW)
moving lights effects separate controlling - Positioning within PAN and TILT
- Gobo wheel with static gobos; color wheel
- Color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed - Gobo wheel with static gobos, 7 gobos and open
- 16 integrated show programs
- The device is cooled by temperature-controlled fan
- Control via stand-alone; Sound to light via Microphone; Master/slave function; IR remote control; Rotary dial for microphone sensitivity; Rotary dial for brightness; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional)
- The article is delivered pre-assembled
- With a beam angle of 12°
- Multicolor OLED display
- For application areas such as: Wedding/gala/events; mobile use
- Color selection; Dimmer electronic
- Strobe effect
- With Omega bracket
- Application possibility: On tripod; suspended
- Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J
Package contents

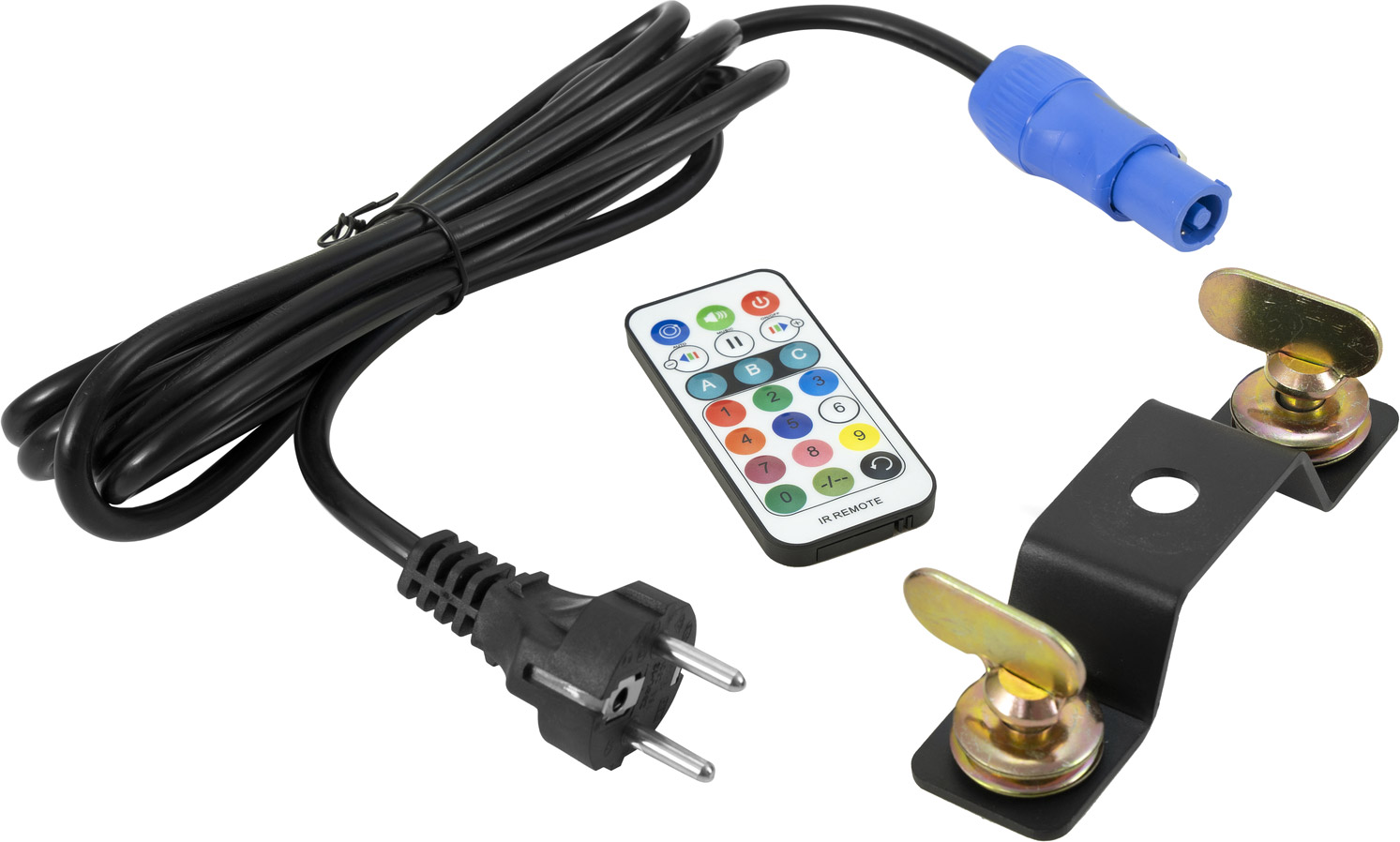

- 1 x device, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x remote control, 1 x battery, 1 x bag
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 125 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output: | 1 x PowerCON (gray) |
Device fuse: | 5 x 20 mm, T 3,15 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 2 x 37,5 W COB (chip-on-board) cold white (CW) |
Color temperature: | 8500K |
Flash rate: | 0 - 20 Hz |
Equipment: | Gobo wheel with static gobos; color wheel |
Color generation: | Color wheel with 7 dichroic filters plus open Rainbow effect with adjustable speed |
Gobos: | Gobo wheel with static gobos, 7 gobos and open |
DMX channels: | 2; 5; 7; 8; 14 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling: | 2 x temperature-controlled fan |
Control: | Stand-alone; Sound to light via Microphone; Master/slave function; IR remote control; Rotary dial for microphone sensitivity; Rotary dial for brightness; DMX; QuickDMX (optional); W-DMX by wireless solution (optional); CRMX by LumenRadio (optional) |
Preprogrammed in: | Light Captain; EASY SHOW 2; EASY SHOW 3; Light´J |
Beam angle: | 12° |
Beam angle (1/2 peak): | 12° |
Housing color: | Black |
Attachment system: | Omega bracket |
Display type: | Multicolor OLED display |
Dimensions: | Length: 60 cm Width: 11,8 cm Height: 28,5 cm |
Weight: | 6,25 kg |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
