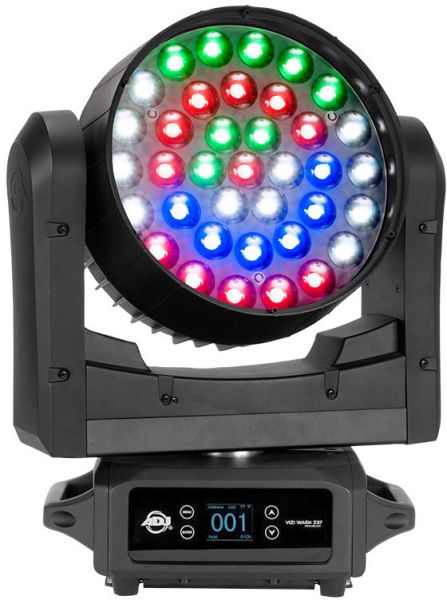

ADJ Vizi Wash Z37

€2,849.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 250802485

EAN: 0818651026467

MPN: 1226100374

The Vizi Wash Z37 is a professional moving head wash fixture with variable motorized zoom (10 ~... more

Back to the overview

All information about the product:

"ADJ Vizi Wash Z37"

The Vizi Wash Z37 is a professional moving head wash fixture with variable motorized zoom (10 ~ 60°) and 37x 20W Quad (RGBW / 4-IN-1) LEDs. It features 11 zones of LED block control, or 4 zones of LED ring control, smooth 16bit dimming control from 0-100%, Locking Power In/Out to daisy chain power, both Locking 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.

There are 64 built-in color macros, 44 Color Temperature DMX Presets from 2700K-7000K, 16bit fine zoom control and 9 DMX control modes. This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions.

Technical data:

Source

37 OSRAM RGBW QUAD-LEDs
Max. 9710 Lumens (Zoom out, Full on)
1250 Lux @5m at 60°
17609 Lux @5m at 10°

Optics

Motorized Zoom 10°-60° (Field Angle)

Control

2 Operational Modes: Program Mode & DMX Control
9 DMX Channel Mode: 14, 15, 17, 18, 19, 38, 39, 72 or 73 Channels
RDM compatible (Remote Device management)
16bit Electronic Dimming 0-100%
6 Dim Modes (Standard, Stage, TV, Architectural, Theatre, Stage 2)
Adjustable Dimmer Delay Time: 0.1secs - 10 secs
4 Dim Curves: Linear, Square, Inv. Square, S-curve.
Display: Color display with 4-button function menu
11-Zone or 4 Ring-Control
16bit Pan 540°
16bit Tilt 270°
Pan/Tilt Target Mode
3 Fan Modes : Auto/High/Silent

Colors

RGBW Color Mixing
64 Color Presets
Built-In Zone Chase Patterns
44 Color Temperature Presets 2700K - 7000K

Construction

PVC molding
Includes Quicklock Omega Brackets

Electrical

Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
Power consumption: 525W

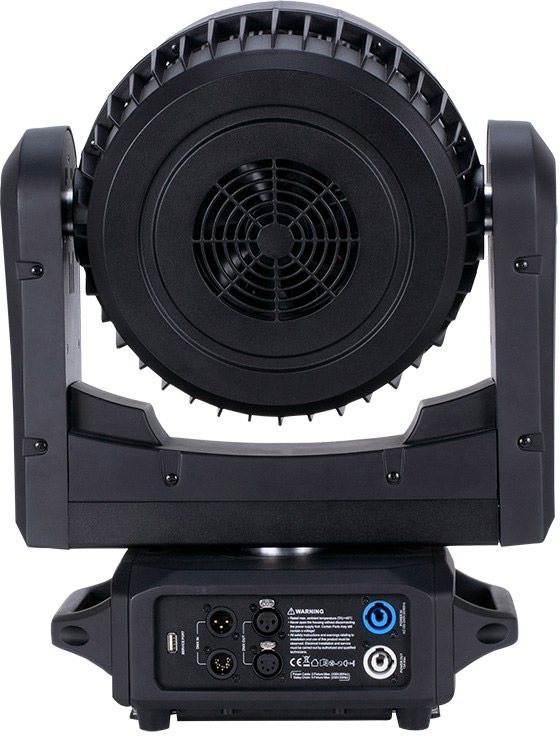

Connections

3-& 5pin Locking DMX In/Out connections
Locking Power In connection
USB-Service Port for Firmware updates

Dimensions & Weight

Dimension: 408,4 × 226 × 520,3
Weight: 18 kg.
