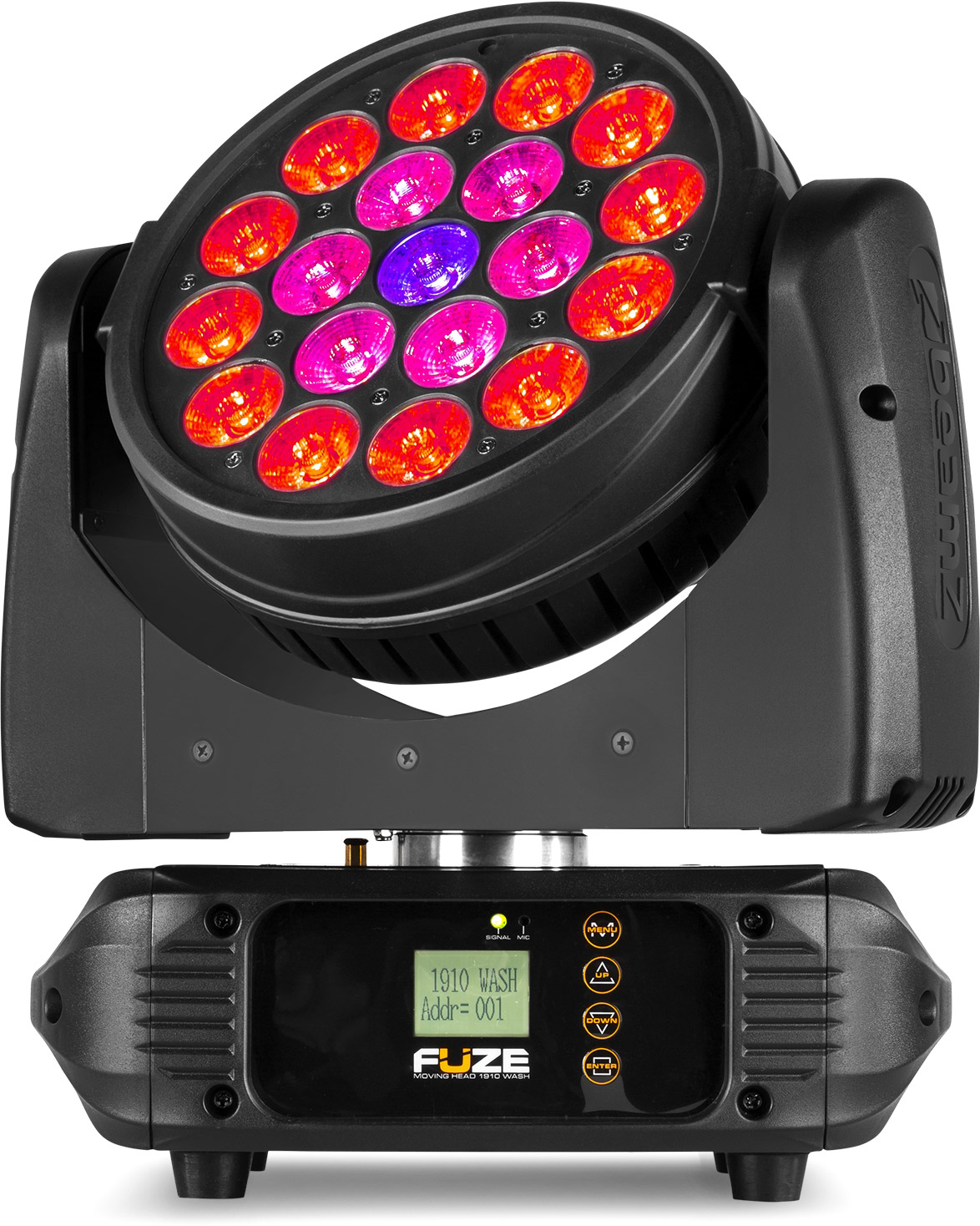

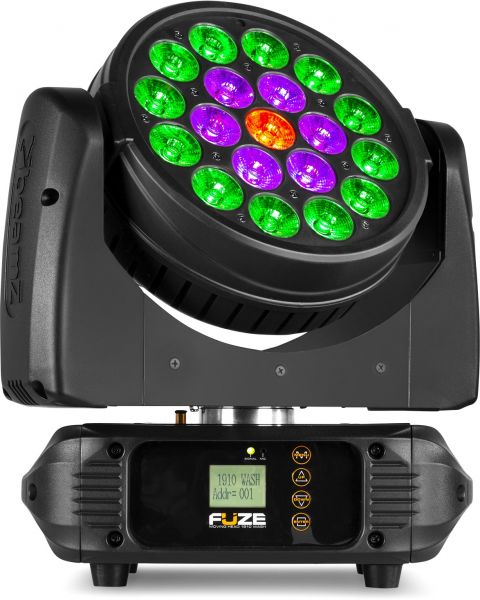

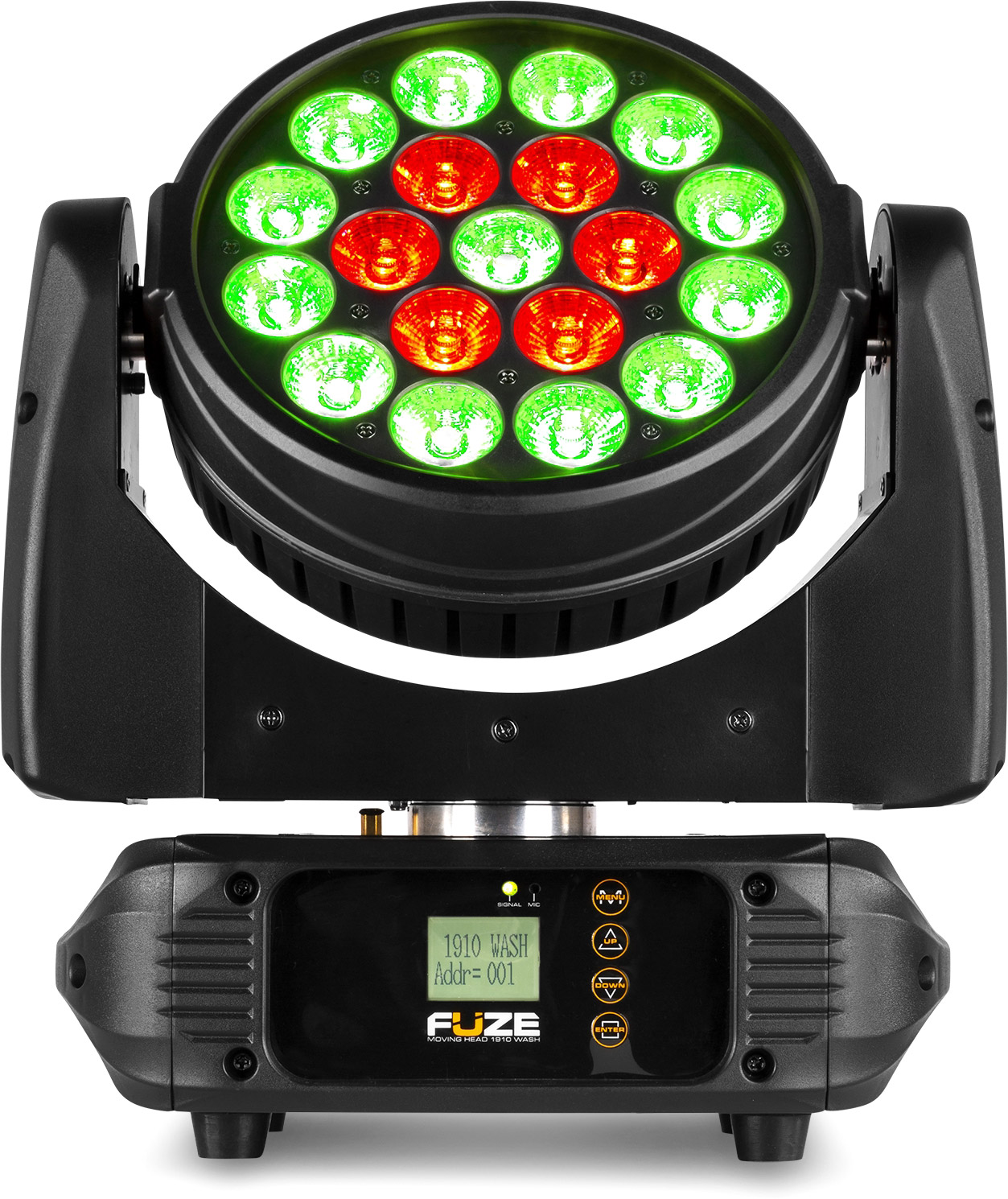

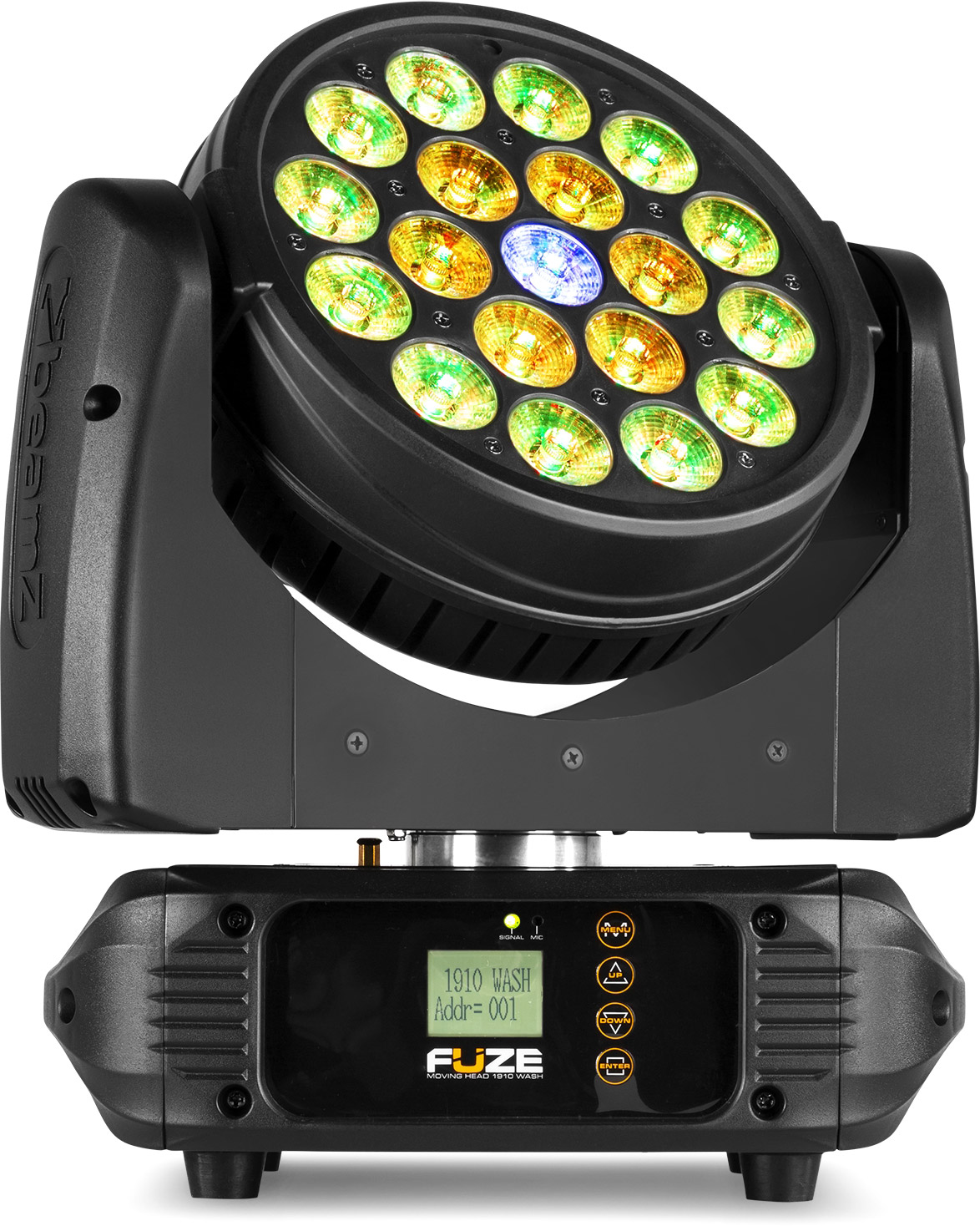

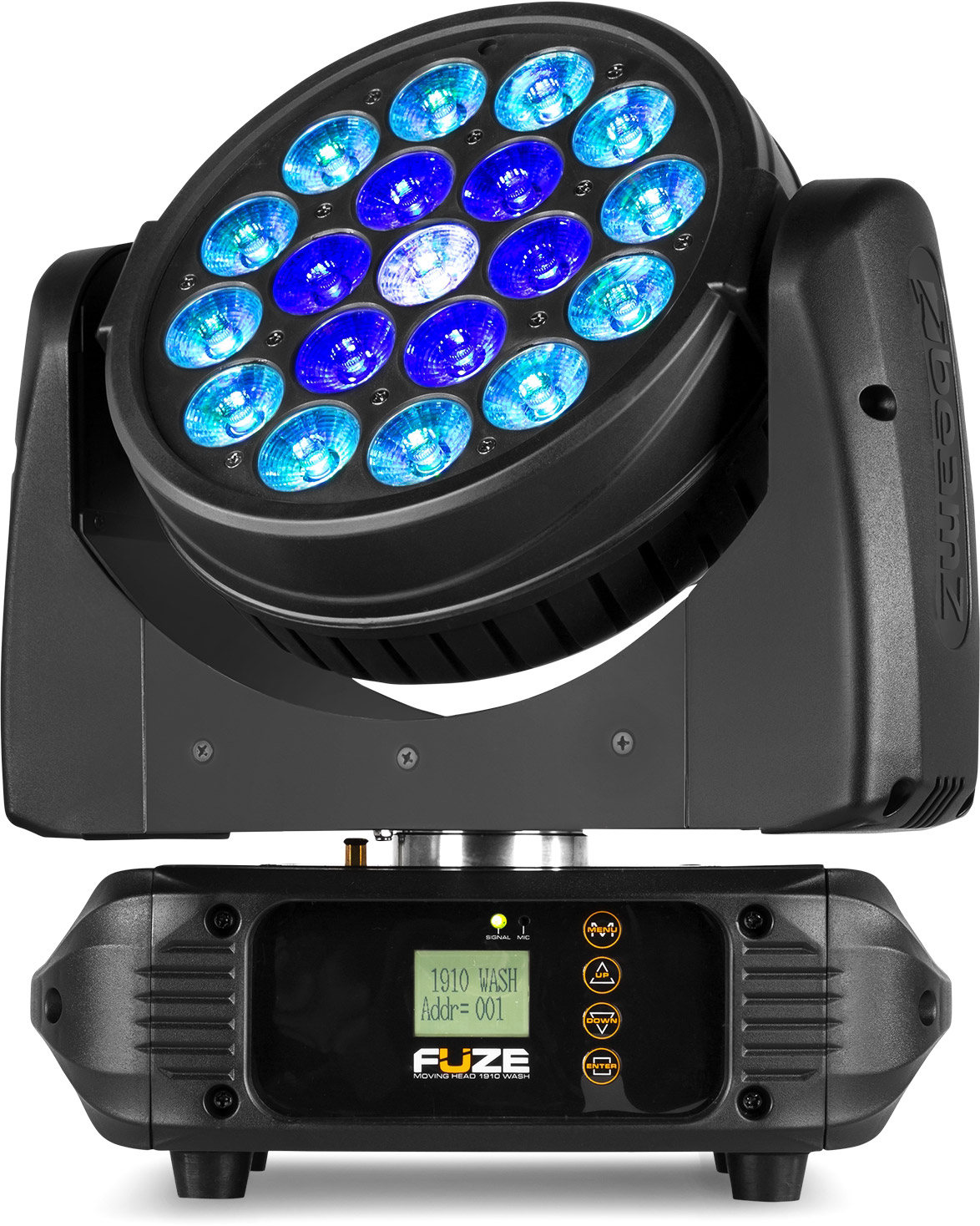

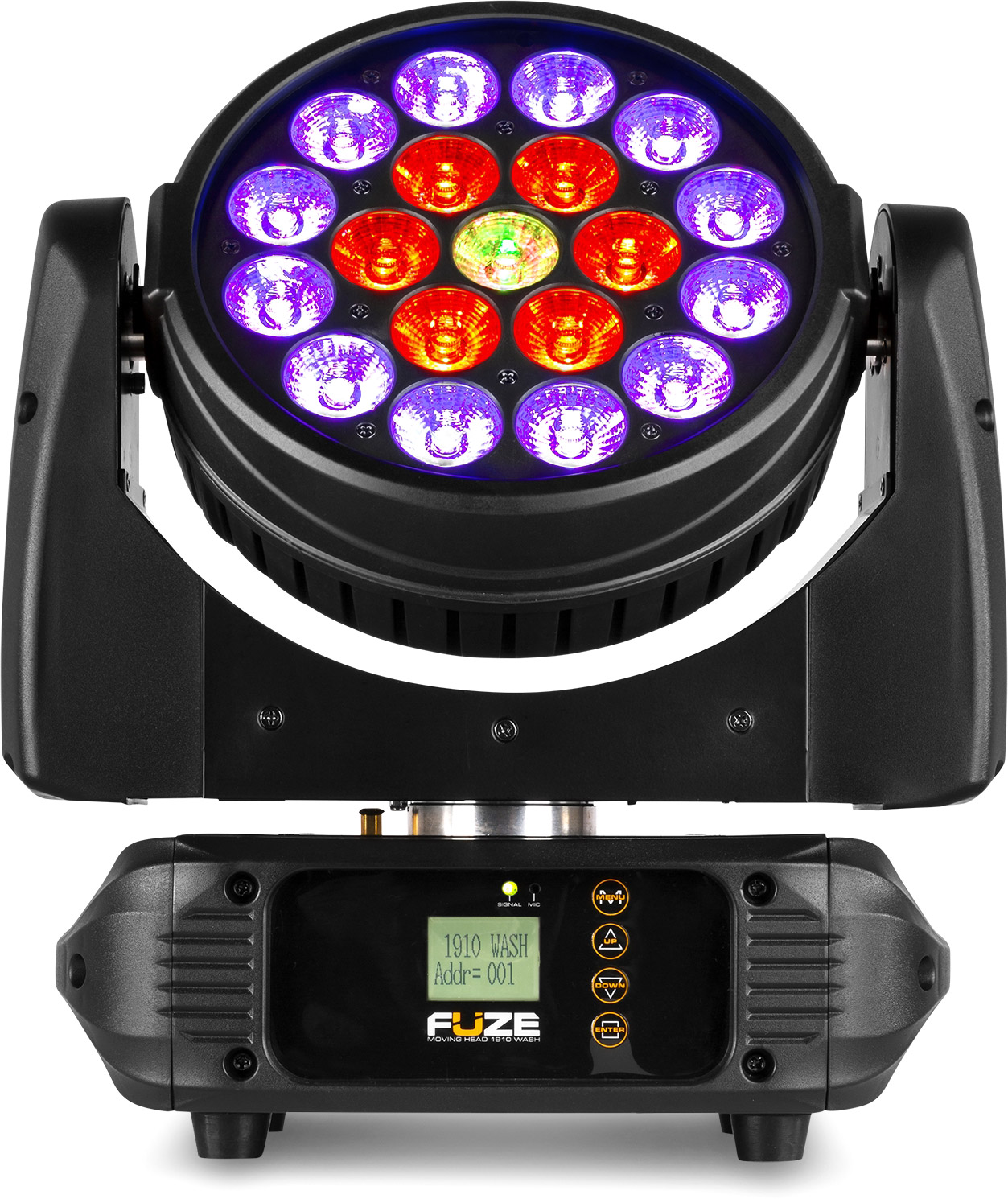

beamZ Fuze1910 Wash Moving Head with Ring Control

The Fuze series consists of a series of compact moving heads equipped with a powerful LED light source that guarantees impressive colour washes and stunning visual effects. Exact positioning is possible through 16-bit movement resolution (540-degree pan and 180-degree tilt). These fixtures are designed in a compact housing and are ideal for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical. It can be controlled by DMX, with sound activation or used in standalone mode with the Master/Slave function.

• Compact moving head wash with circle control
• 19x 10W 4-in-1 LEDs
• RGBW Colour mix (red, green, blue and white)
• Linear colour temperature 2800K-8000K
• Circle (3 rings) controllable
• 16 or 28 DMX channels
• DMX, Auto, Sound and Stand-alone mode
• Master/slave synchronization
• 0-100% Electronic Dimmer
• Wide pan and tilt range with smooth movement
• Reset function
• Control panel with TFT LCD display

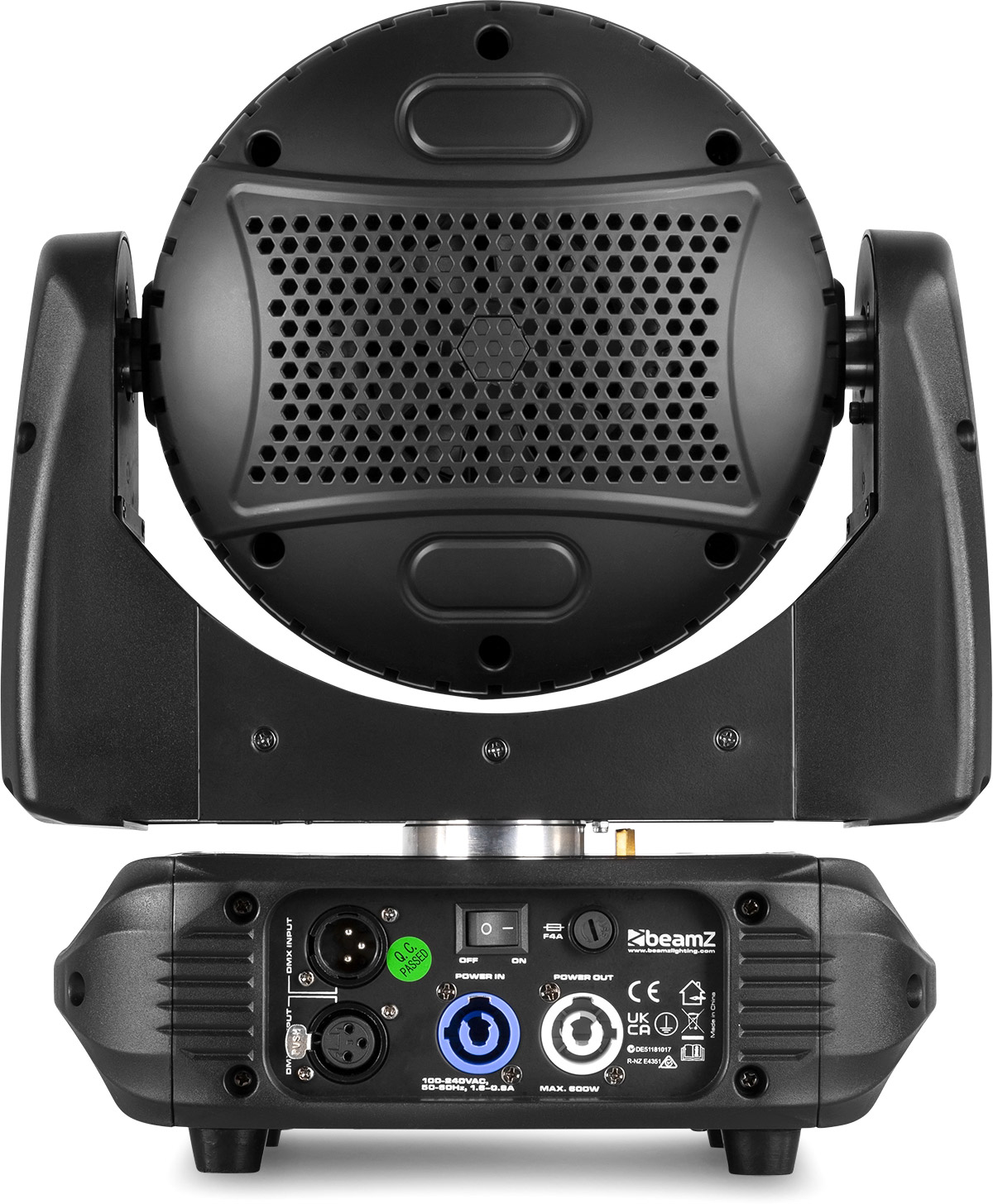

• DMX in/output via 3-pin XLR
• Quick release omega style brackets included
• Powerconnector cable, DMX cable and safety cord included

Technical data:

• Colour temperature: 2700K - 8000K
• Light source: 4-in-1 LED
• LED colours: Red, Green, Blue, White
• LED power : 10W
• Quantity of LEDs: 19
• Beam angle: 20°
• Field angle: 35°
• Illuminance: 26.000 lx @ 1m
• Head movement: Pan: 540
• Head movement: Tilt: 180
• Flash rate per second: 1 - 21Hz
• Modes: Automatic programs, DMX, Manual, Master/Slave
• Sound to light mode: Yes
• DMX channels: 16, 28
• DMX connector: 3-pin XLR
• Display: LCD
• IP rating: IP20
• Cooling: Temperature controlled fan
• Power plug: Power-connector
• Power consumption: 1.66 - 0.81A
• Power supply: 100-240VAC 50/60Hz

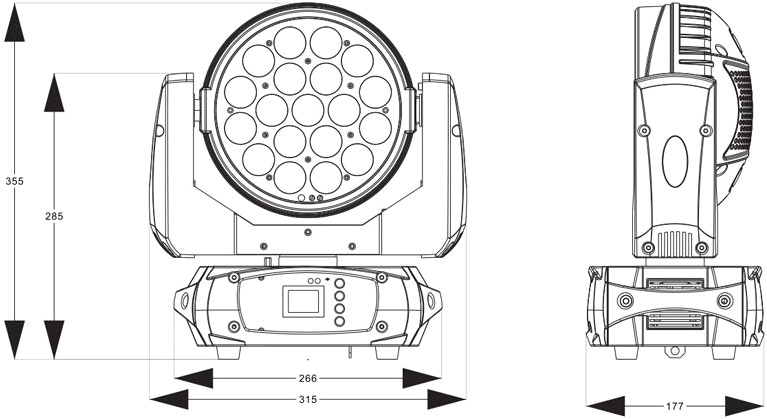

• Dimensions (L x W x H): 270 x 310 x 360mm
• Weight: 5.6500 kg
• Accessories: DMX cable, Mounting bracket, Power cable, Safety cord
