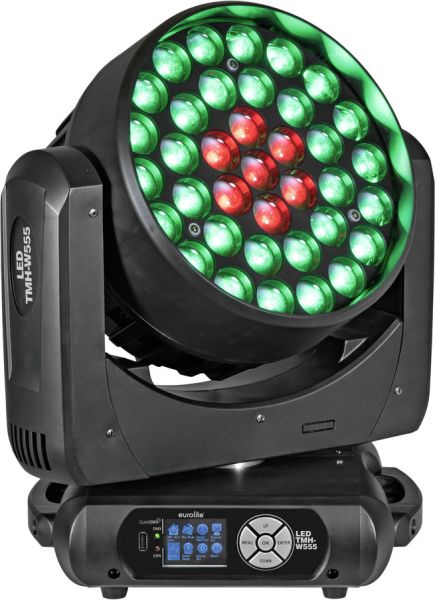

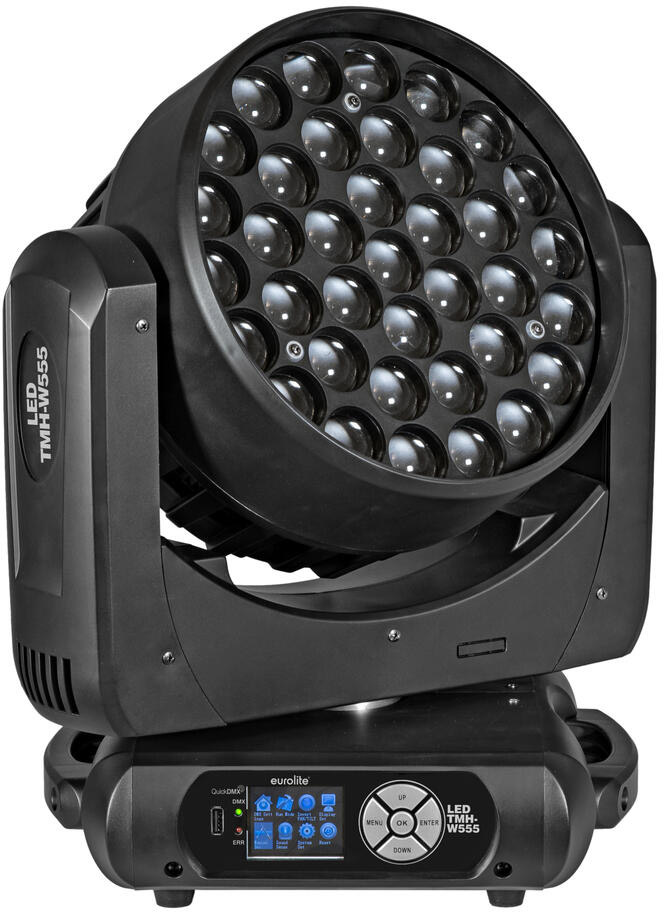

EUROLITE LED TMH-W555 Moving Head Wash Zoom
€899.00 *
€949.00 *
(5.27% Saved)
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 120035085
EAN: 4026397693706
Washlight with 37 bright 15 W RGBW LEDs, zoom, macros, patterns and color temperature setting... more
All information about the product:
"EUROLITE LED TMH-W555 Moving Head Wash Zoom"

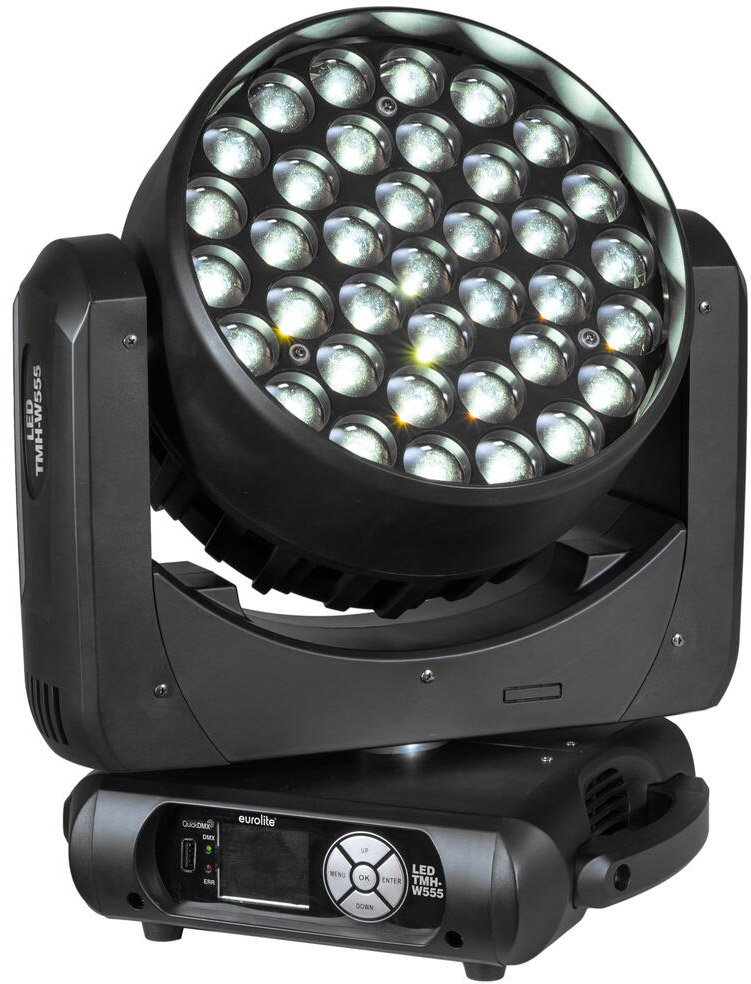

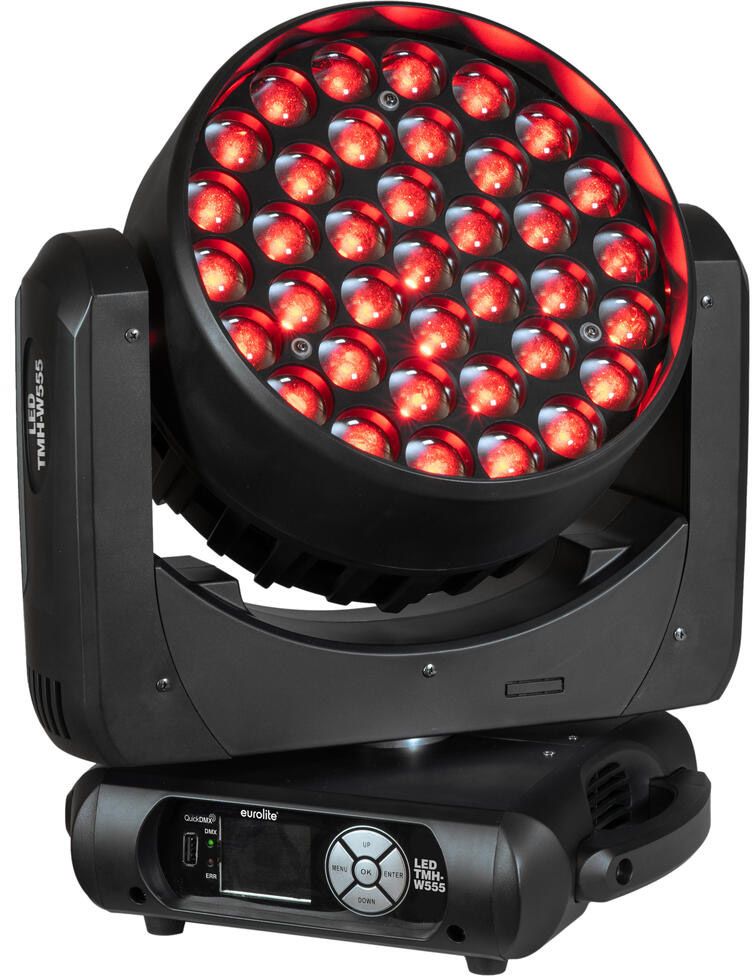

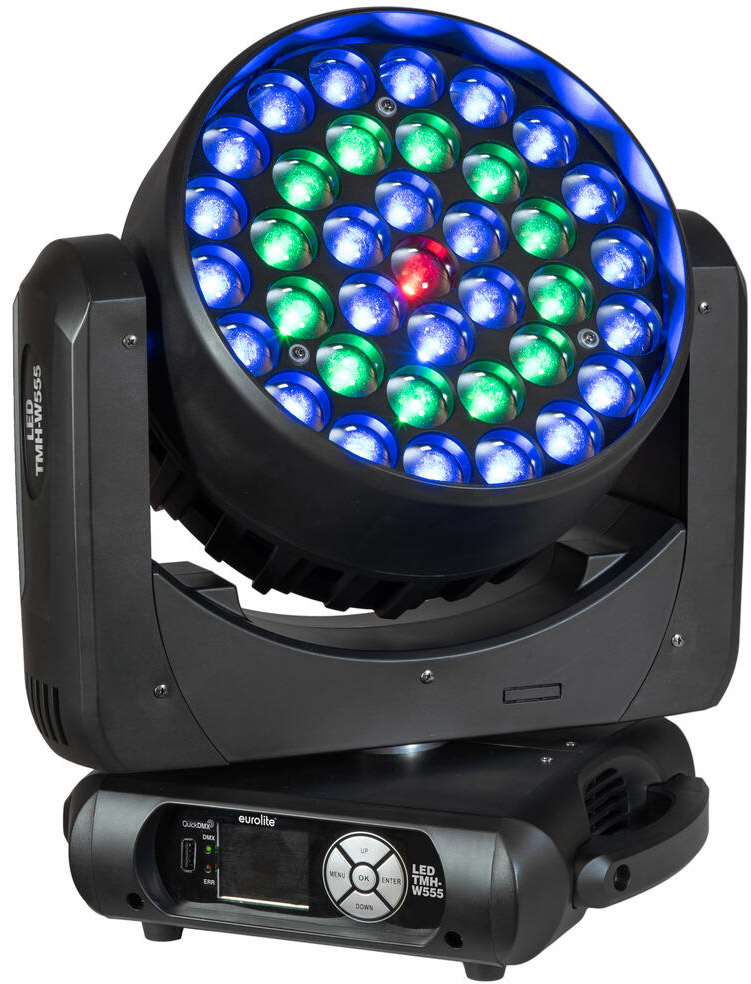

Washlight with 37 bright 15 W RGBW LEDs, zoom, macros, patterns and color temperature setting

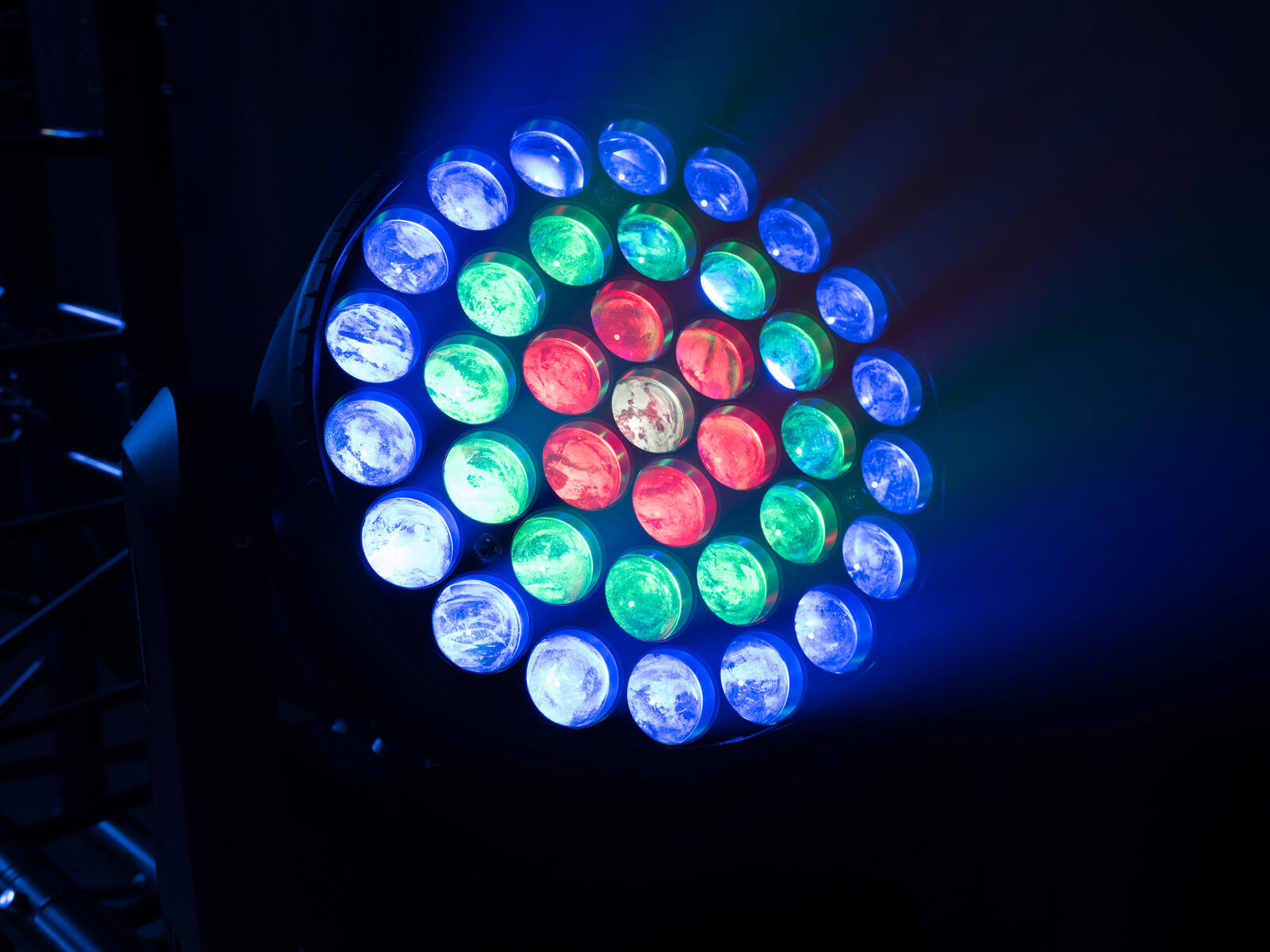

- 37 powerful LEDs 15 W 4in1 QCL RGBW (homogenous color mix)
segments separate controlling - Variable color temperature 2500 K - 10000 K
- Positioning within 540° PAN and 205° TILT
- Exact positioning (16 bit resolution)
- The device is cooled by temperature-controlled fan at the Head; cooling fan at the Base
- Control via DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 1° - 38°
- Multicolor LCD display
- Zoom motor-driven
- Dimmer electronic; color blend stepless; patterns animated; pulse effect adjustable; color macros adjustable; program selection
- Strobe effect
- Preprogrammed in Light Captain
- Mains input and output for power linking up to 4 units
Package contents

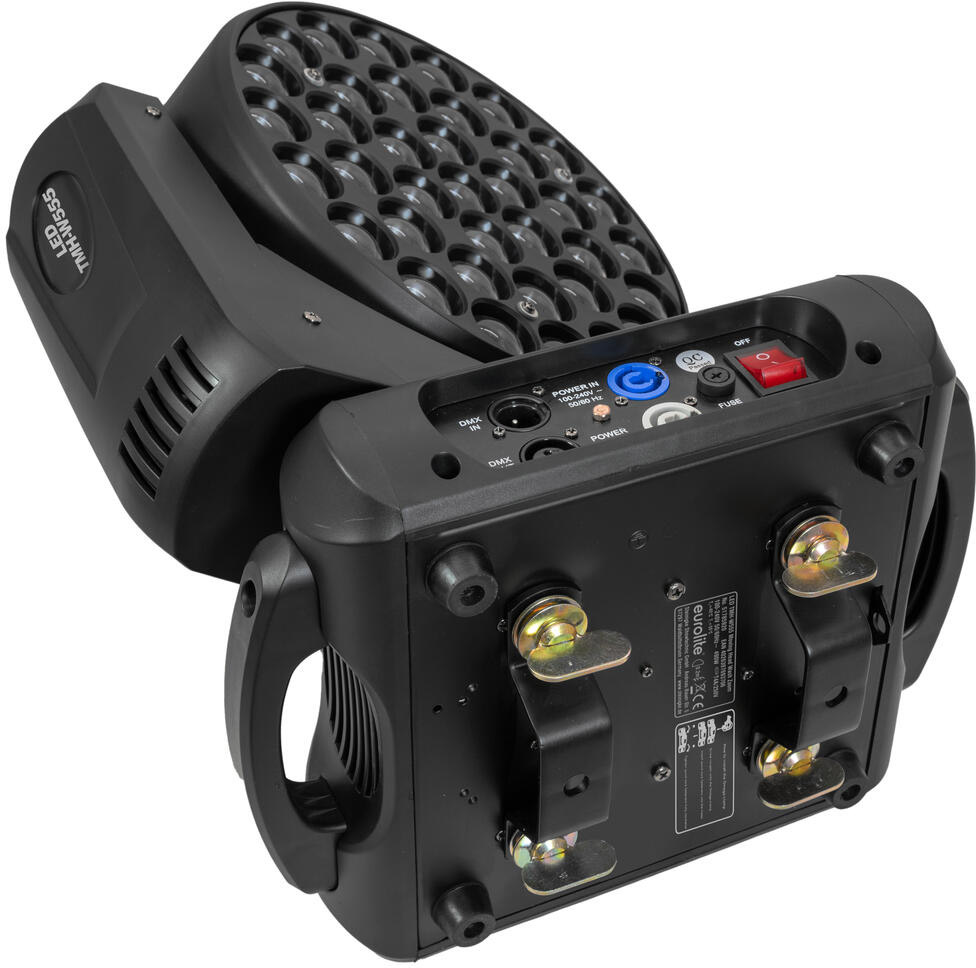

- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 490 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 4 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 37 x 15 W 4in1 QCL RGBW (homogenous color mix) |
| Color temperature: | 2500K - 10000K adjustable |
| Max. TILT movement: | 205° Exact positioning (16 bit resolution) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) |
| Equipment: | Zoom motor-driven |
| DMX channels: | 24; 36; 48 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan at the Head Cooling fan at the Base |
| Control: | DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain |
| Beam angle: | 1° - 38° |
| Beam angle (1/2 peak): | 1 - 20° |
| Beam angle (1/10 peak): | 8 - 38° |
| Illuminance in Lux (lx): | Narrow red (R) 1m: 14703 lx, 3m: 6338 lx, 6m: 1581 lx Narrow green (G) 1m: 36582 lx, 3m: 14313 lx, 6m: 3581 lx Narrow blue (B) 1m: 4622 lx, 3m: 2444 lx, 6m: 666 lx Narrow cold white (CW) 1m: 47065 lx, 3m: 15572 lx, 6m: 3872 lx Narrow all 3m: 35914 lx, 6m: 9025 lx Wide red (R) 1m: 4769 lx, 3m: 624 lx, 6m: 165 lx Wide green (G) 1m: 10949 lx, 3m: 1431 lx, 6m: 386 lx Wide blue (B) 1m: 2021 lx, 3m: 274 lx, 6m: 77 lx Wide cold white (CW) 1m: 11357 lx, 3m: 1505 lx, 6m: 397 lx Wide all 1m: 27092 lx, 3m: 3575 lx, 6m: 956 lx |
| Housing color: | Black |
| Display type: | Multicolor LCD display |
| Dimensions: | Width: 39,0 cm Depth: 26,5 cm Height: 47,5 cm |
| Weight: | 14,30 kg |
| Noise classification: | Class 2 (slight noise) |
| Photobiological safety: | Risk Group 0 |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
